FlightScope Mevo+ Manual

Performance tracking

Visit myFlightScope.com to analyze and track your data performance over time.
Join the myFlightScope.com community and connect with fellow golfers like yourself. Keep track of your stats over time, spot trends or tendencies and see how you have improved.

Please share your results and tag us on social media.

@flightscopegolf

In the box

1. Mevo+
2. Case (Not to scale)
3. Quickstart guide
4. Power adapter
5. USB charging cable
6. Aluminum stickers
   (Only needed for indoor use)

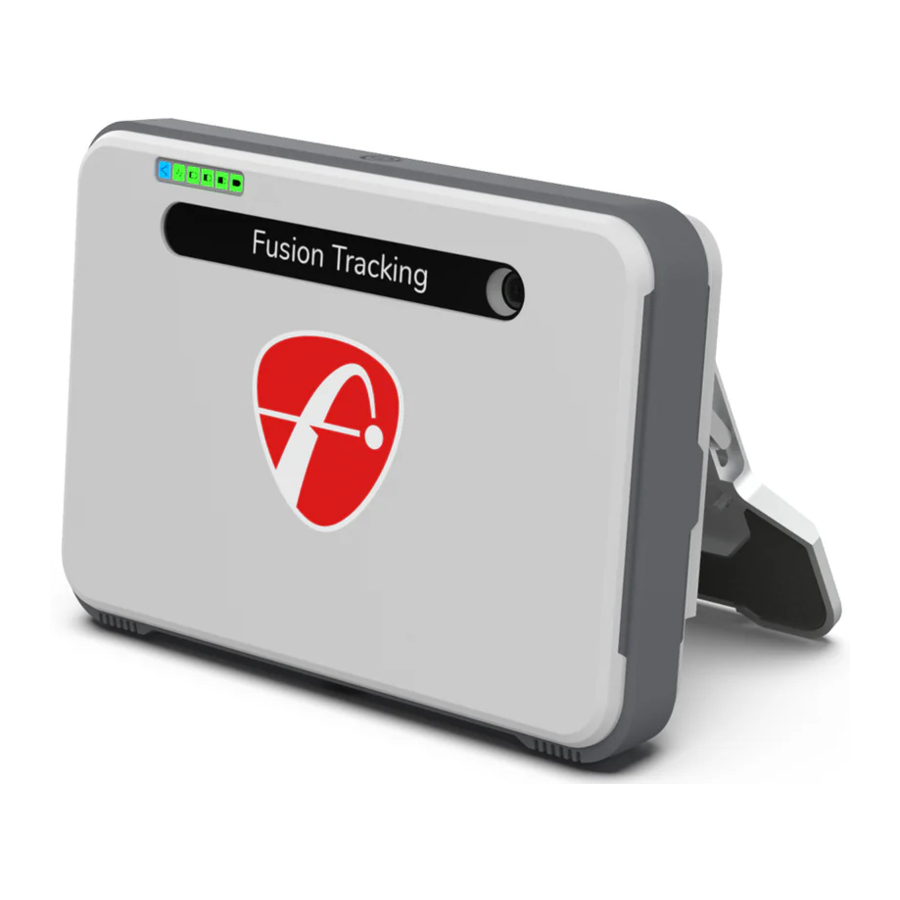

Product overview

1. Indicators
2. USB charging port
3. Alignment camera
4. On / Off button
5. Kickstand
6. 5000 mAh Battery (under rubber band)
7. Tripod mount (bottom of the unit)
8. Serial Sticker (includes QR code for connection)

Power and charging

4hrs for a full charge using the supplied adapter.

Battery and charging indicators

Charging error
(Battery too hot or cold to charge, or battery is not connected properly)

System indicators

Get the app

Download and install the FS Golf app.

This will direct you to the FlightScope applications page. Please choose the FS Golf app.

Connect to the unit

Via QR Code

The username and password you setup will be the same for myflightscope.com

Connect manually via Wi-Fi

If you are unable to connect using the QR code, then you can connect manually in your device settings. Follow these easy steps:

1. Make sure your phone's Wi-Fi is turned on.
2. Press the on/off button on the unit, the system and battery lights will come on.
   The connection light will be solid blue while the unit is ready for connection.
3. Select Wi-Fi settings on your phone and select the unit with your serial number.
   The Wi-Fi password is your serial number, for example: M2-123456.
4. The connection light on the the unit will turn to solid green when connection has been established.
5. Launch the app on your phone and proceed.

Kickstand

Open the Kickstand before placing.
The kickstand will stop at open position. With the kickstand open, the radar will be at the correct tilt angle on a flat surface.

Do not over extend the kickstand or force it past it's open position, this can cause damage to your unit.

Setup

Setback

OUTDOOR
Aluminum stickers NOT required.

LIMITED FLIGHT
Aluminum stickers required.
Aluminum stickers not required if using Titleist RCT golf balls.

Aiming

1. Place the Mevo+ behind the ball position so that the camera aims along the chosen target line.

2. In the App, follow the instructions using the camera view to align.
   Adjust the position and aim so that the vertical line on the camera view passes through the ball and is aligned with the target.


Clearance

Keep area between Mevo+ and the ball position clear of any objects and people.

Tips

Best practice is to keep the unit on the floor with a level surface between the unit and the mat.

1. Hitting Surface
2. Ground surface

*Maximum Height: 3'' (76mm)

For putting, keep the ball and unit on an even flat surface.

For putting, chipping and hitting never raise the Mevo+ to match the ground level.

Extremely low and wide shots, and shots where the player is between the Mevo+ and the ball, might not register.

Indoor ball spin

For the best spin accuracy indoors, place a reflective sticker on the ball.

Reflective stickers are for indoor use only.

To order additional stickers: go to flightscopemevo.com/collections/mevo-accessories

Tee the ball

Place the ball so that the sticker faces forward, directly away from the Mevo+.

E6 Connect

With your purchase of a new FlightScope Mevo+ 2023 product you receive an E6 Connect golf simulator software license with 10 golf courses, multiple practice ranges, and more features, at no extra charge.

(Note that this free E6 Connect license is not transferable if you decide to sell your Mevo+ to another person in future.)

1. Register a FlightScope Mevo+ account on the iOS/Android FS Golf app or Windows FS Golf PC app. An E6 Connect product key will be emailed to you.
2. Download the iOS E6 Connect app from the Apple app store, or download the Windows PC app from the E6 website at portal.E6golf.com


3. Follow the on-screen instructions to create your E6 Connect profile.
4. Select the redeem option and enter your product key.
5. Download the available courses to your E6 Connect app.
   (Courses must be downloaded BEFORE connecting your mobile device)
   • Play Golf Menu > Course Selection
6. You can now connect to your Mevo+ via Wi-Fi and begin your session.

Create or access your account on portal.e6golf.com to activate, view or manage your E6 licenses.

Switch off

Press and hold to turn off, unit will beep to confirm.
When all indicators are off, the unit is off.

Electronic noise

Mevo+ is designed to operate in most environments. However certain appliances and equipment can create noise that can interfere with resulting shots.

Some common noisy objects are above

Keep area clear of possible noise interference. Make sure to move noisy electronic devices behind the unit.

Noisy electronic devices in front of the unit may cause poor tracking performance.

Care

Clean with a damp cloth and light household detergent

Store in the case

Avoid

Moisture, including rain

Physical impact

Water immersion

Flames and direct heat

Excessive weight loading

Solvent Chemicals

FAQ's and support

Below are the top 5 frequently asked questions.
For more FAQ's please refer to flightscopemevo.com/faq

1. Can the unit be used indoors and outdoors?

Yes. Please check "Setback" section for indoor space requirements.

2. Does a reflective sticker need to be used?

Yes, for indoor use only. See "Indoor ball spin" section.

3. How is the video recorded

The video is taken with your iPhone camera in the FS Golf application.
The radar is synchronized with your iPhone to automatically record and clip video of your swing with data overlay.

4. Can the built in camera be used for video

The built in camera is used for target alignment only.

5. How long is the battery life

The battery life is up to 2 hours on a full charge, and up to 1.5 hours in simulator play.

If you need assistance please email out support team at
support@flightscope.com

Technical specifications
