RAZER WOLVERINE V2, Wolverine V2 Pro - Wireless Gaming Controller Manual

WHAT'S INSIDE / WHAT'S NEEDED

WHAT'S INSIDE

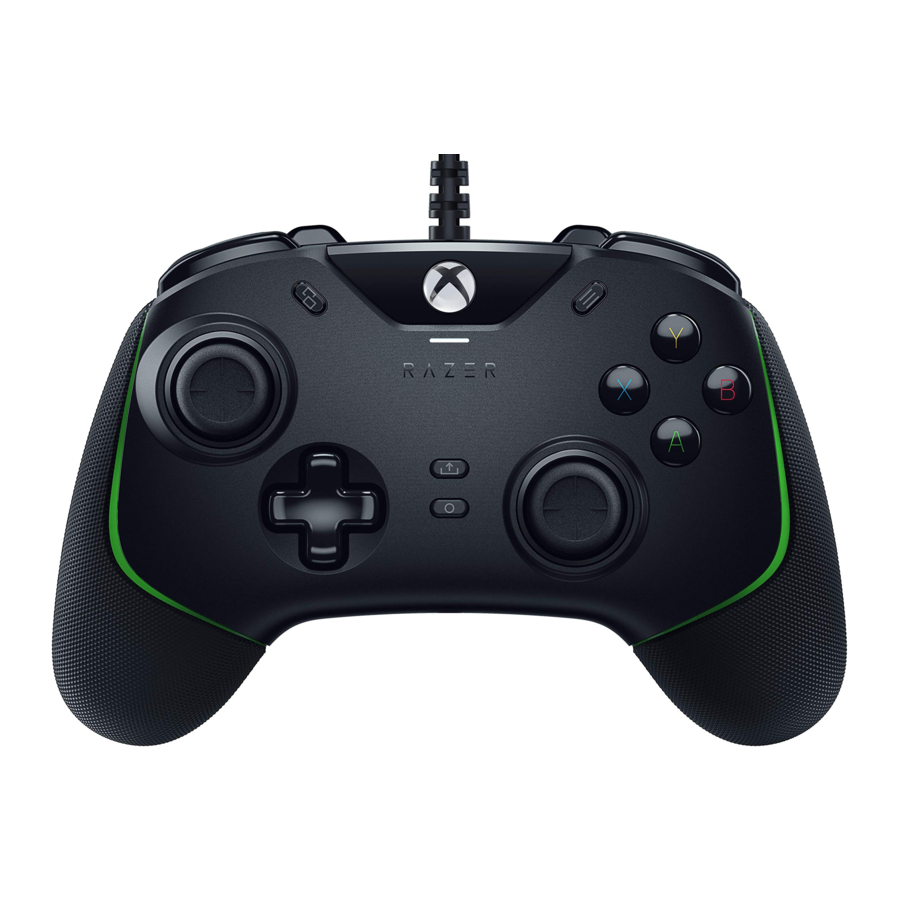

• Razer Wolverine V2


1. Analog Thumbsticks
2. View button
3. Xbox button
4. Status indicator
5. Menu button
6. Razer^TM Mecha-Tactile action buttons
7. Razer^TM Mecha-Tactile D-pad
8. Share button
9. Audio Configuration button
10. 3.5 mm headset port
11. Bumpers (LB / RB)
12. Triggers (LT/ RT)
13. Multi-function bumpers (MI / M2)
14. Trigger stop switches

• Important Product Information Guide

WHAT'S NEEDED

• Xbox One^TM / Xbox One^TM S / Xbox One^TMX / Xbox Series^TM X

OR

• PC (Windows 10 64-bit or higher) with a free USB port
• Internet connection for software installation

SAFETY STATEMENT

Before using your Xbox console with this product, read its instruction manual for safety, health, and other information regarding the use of your Xbox console.

LET'S GET YOU COVERED

You've got a great device in your hands, complete with a I-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com

Got a question? Ask the Razer Support Team at support.razer.com

TECHNICAL SPECIFICATIONS

FEATURES

• Razer^TM Mecha-Tactile Action Buttons and Razer^TM Mecha-Tactile D-Pad
• 2 remappable multi-function buttons
• Hair Trigger Mode with trigger stops
• 3.5mm analog audio port compatible for Xbox and PC (Windows)
• 9.8 ft/ 3 m wired cable with strain relief
• Wired connection

APPROXIMATE SIZE & WEIGHT

• Length: 161.5 mm / 6.35 in
• Width: 105.8 mm / 4.16 in
• Height: 65 mm / 2.55 in
• Weight: 274 g / 0.604 lbs

GETTING STARTED

SETTING UP YOUR CONTROLLER

Connect your Razer Wolverine V2 to your Xbox console or PC.

On Xbox console
Press the Xbox button to begin using your controller.

On PC
Wait until the controller's drivers are automatically installed, or manually update the drivers through Device Manager.

USING THE CONTROLLER

AUDIO CONFIGURATION BUTTON

Use the Audio Configuration button to fine-tune the master volume, as well as adjust the balance between game and chat audio levels.

To increase or decrease the master volume, press and hold the Audio Configuration button then press the Up or Down directional button, respectively.

To increase the voice chat and decrease the game volume or vice versa, press and hold the Audio Configuration button then press the Left or Right directional button, respectively.

TRIGGER STOP SWITCHES

You may enable the Trigger Stops to shorten the travel distance and response time (Active Hair Trigger Mode) of the Left and Right triggers by sliding the Trigger Stop Switches outwards. To disable, simply slide the switches inwards.

RAZER^TM CONTROLLER SETUP FOR XBOX

Use the Razer^TM Controller Setup for Xbox* app to access countless customization options for your controller, such as adjusting the sensitivity of its thumbsticks for better aiming and handling, and even remapping its buttons for each game. By default, each button is mapped to its specific function, while the MI and M2 Multi-Function buttons are mapped with the following functions, as shown here.

The Xbox button is not remappable.

*Download and install the Razer^TM Controller Setup for Xbox app from the Microsoft Store on your gaming console or PC.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using the Razer Wolverine V2, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for support. Do not attempt to service or fix the device yourself at any time.

Do not take apart the device and do not attempt to operate it under abnormal current loads. Doing so will void your warranty.

Keep the device and its components away from liquid, humidity or moisture. Operate the device and its components only within the specific temperature range of 0C (32 F) to 40C (104F). Should the temperature exceed this range, unplug and switch off the device in order to let the temperature stabilize to an optimal level.

MAINTENANCE AND USE

The Razer Wolverine requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device and clean it using a soft cloth or cotton to prevent dirt buildup. Do not use soap or harsh cleaning agents.
