Siemens iQ500 KI81R Series, iQ500 KI81RSOE0 - Refrigerator Manual

Installation and connection

Scope of delivery

After unpacking all parts, check for any transport damage and for completeness of delivery. If you have any complaints, contact your dealer or our after-sales service.

The delivery consists of the following:

• Built-in appliance
• Equipment and accessories^[1]
• Installation material
• Installation instructions
• User manual
• Customer service directory
• Warranty enclosure^[2]
• Energy label
• Information on energy consumption and noises

Criteria for the installation location

Risk of explosion
If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

▶ Only install the appliance in a space with a volume of at least 1 m³ per 8 g refrigerant. The volume of refrigerant is indicated on the rating plate. → "Appliance", Fig. 1 / 6

The weight of the appliance ex works may be up to 70 kg depending on the model.

The subfloor must be sufficiently stable to bear the weight of the appliance.

Permitted room temperature
The permitted room temperature depends on the appliance's climate class.

The climate class can be found on the rating plate. → "Appliance", Fig. 1 / 6

Climate class	Permitted room temperature
SN	10°C to 32°C
N	16°C to 32°C
ST	16°C to 38°C
T	16°C to 43°C

The appliance is fully functional within the permitted room temperature.

If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5°C.

Niche dimensions
Observe the niche dimensions if you install your appliance in the niche. If this is not the case, problems may occur when installing the appliance.

Niche depth
Install the appliance in the recommended niche depth of 560 mm. If the niche depth is smaller, the energy consumption increases slightly. The niche depth must be a minimum 550 mm.

Niche width
An inside niche width of at least 560 mm is required for the appliance.

Over-and-under and side-by-side installation
If you want to install 2 refrigerating appliances one over the other or side by side, you must maintain a clearance of at least 150 mm between the appliances. Selected appliances can be installed without a minimum clearance. Ask your dealer or kitchen planner about this.

Installing the appliance

▶ Install the appliance in accordance with the enclosed installation instructions.

Preparing the appliance for the first time

1. Remove the informative material.
2. Remove the protective foil and transit bolts, e.g. remove the adhesive strips and carton.
3. Clean the appliance for the first time.

Connecting the appliance to the electricity supply

1. Insert the mains plug of the appliance's power cable in a socket nearby. The connection data of the appliance can be found on the rating plate.→ "Appliance", Fig. 1 / 6
2. Check the mains plug is inserted properly.

The appliance is now ready for use.

Familiarising yourself with your appliance

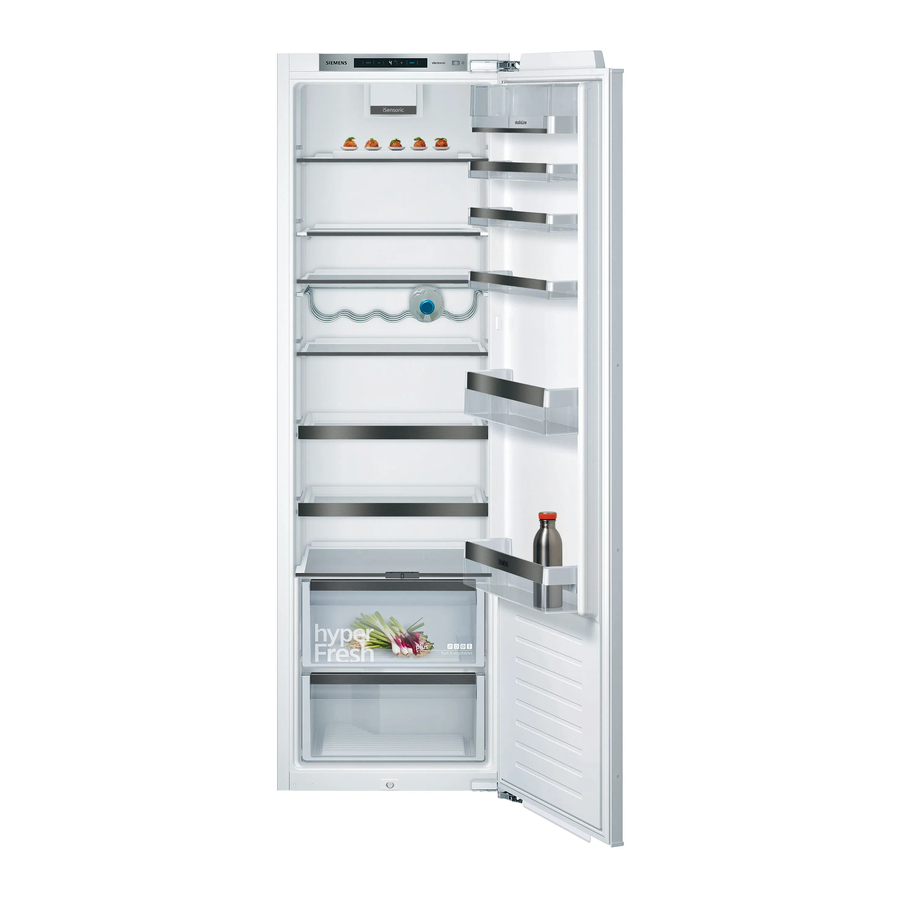

Appliance

You can find an overview of the parts of your appliance here.

6. Rating plate
7. Butter and cheese compartment
8. Door storage compartment for large bottles
9. Door opening aid

Note: Deviations between your appliance and the diagrams may differ with regard to their features and size.

Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

Features

The features of your appliance depend on the model.

Shelf

To vary the shelf as required, you can remove the shelf and re-insert it elsewhere.
→ "Removing the shelf"

Variable shelf

Use the variable shelf to store tall items, e.g. cans or bottles, on the shelf below.

You can remove the front section of the variable shelf and slide it below the rear part of the shelf.

Extendable shelf

In order to achieve an improved overview and to remove food more quickly, pull out the extendable shelf.

Fruit and vegetable container

Store fresh fruit and vegetables loose in the fruit and vegetable container. Cover any chopped fruit and vegetables, or store in air-tight packaging. Condensation may form in the fruit and vegetable container depending on the food and quantity stored.

Remove the condensation with a dry cloth.

To ensure that the quality and aroma are retained, store fruit and vegetables that are sensitive to cold outside of the appliance at temperatures of approx. 8°C to 12°C, e.g. pineapple, bananas, citrus fruits, cucumbers, courgettes, peppers, tomatoes and potatoes.

Fruit and vegetable container with humidity control

Store fresh fruit and vegetables loose in the fruit and vegetable container. Cover any chopped fruit and vegetables, or store in air-tight packaging.

The air humidity in the fruit and vegetable container can be set according to the type and amount of food to be stored by moving the humidity controller:

• Low humidity required when primarily storing fruit or mixed items, or if the appliance is very full.
• High humidity required when primarily storing vegetables or when the appliance is not very full.

Condensation may form in the fruit and vegetable container depending on the food and quantity stored.

Remove the condensation with a dry cloth and adjust the air humidity to a lower setting using the humidity controller.
To ensure that the quality and aroma are retained, store fruit and vegetables that are sensitive to cold outside of the appliance at temperatures of approx. 8°C to 12°C, e.g. pineapple, bananas, citrus fruits, cucumbers, courgettes, peppers, tomatoes and potatoes.

Butter and cheese compartment

Store butter and hard cheese in the butter and cheese compartment.

Door rack

To adjust the door rack as required, you can remove the door rack and re-insert elsewhere. → "Removing door rack"

Accessories

Use original accessories. These have been made especially for your appliance.

The accessories for your appliance depend on the model.

Egg tray
Store eggs safely on the egg tray.

Bottle holder
The bottle holder prevents bottles from falling over when the appliance door is opened and closed.

Basic operation

Switching on the appliance

1. Press .
   The appliance begins to cool.
2. Set the required temperature.

Operating tips

• Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put any food in the appliance until the set temperature has been reached.
• When you close the door, a vacuum may be created. The door is then difficult to open again. Wait a moment until the vacuum is offset.

Switching off the appliance

▶ Press .

Setting the temperature

Setting the refrigerator compartment temperature
▶ Press / repeatedly until the temperature display shows the required temperature. The recommended temperature in the refrigerator compartment is 4°C.
→ ""OK" sticker"

Additional functions

Super cooling

With Super cooling, the refrigerator compartment cools as cold as possible.

Switch on Super cooling before placing large quantities of food.

Note: When Super cooling is switched on, increased noise may occur.

Switching on Super cooling

▶ Press .

lights up.

Note: After approx. 15 hours, the appliance switches to normal operation.

Switching off Super cooling

▶ Press .

The previously set temperature is displayed.

Automatic door-opening aid

The automatic door-opening aid supports you in opening the door.

Opening the door using the automatic door-opening aid
ATTENTION
Repeatedly closing the door prematurely may cause the automatic dooropening aid to fail or wear out. Never close the door while the door-opening aid is extended.

▶ If you have nevertheless closed the door, leave it closed for 5 minutes. The automatic dooropening aid is realigned.

1. Push the door in the middle.
   The automatic door-opening aid extends and opens the door slightly.
2. Manually open the door.

If you do not open the door any further within 3 seconds, the automatic door-opening aid retracts and the door closes.

Setting the compressive force of the automatic door-opening aid
The compressive force is the force that you must apply in order to trigger the automatic door-opening aid.

1. Open the door, wait until the automatic door-opening aid is retracted, and close the door.
2. Open the door and press and hold for 2 seconds.
3. Press repeatedly until the required compressive force is displayed.

1 - Low compressive force
2 - Medium compressive force
3 - High compressive force

The compressive force of the automatic door-opening aid is set and the temperature that was previously set is displayed.

Switching off the automatic door-opening aid

1. Open the door, wait until the automatic door-opening aid is retracted, and close the door.
2. Open the door and press and hold for 2 seconds.
3. Press repeatedly until the temperature display shows ⁠.

Automatic door opening is switched off and the temperature that was previously set is displayed again.

Switching on the automatic door-opening aid

1. Open the door, wait until the automatic door-opening aid is retracted, and close the door.
2. Open the door and press and hold for 2 seconds.
3. Press repeatedly until the temperature display shows the required compressive force. →"Setting the compressive force of the automatic door-opening aid"

The automatic door-opening aid is switched on with the appropriate compressive force and the temperature display shows the temperature that was previously set.

Alarm

Door alarm

If the appliance door is open for a while, the door alarm switches on. A warning tone sounds.

Switching off the door alarm

▶ Close the appliance door or press

The warning tone is switched off.

Refrigerator compartment

You can keep meat, sausage, fish, dairy products, eggs, prepared meals and pastries in the refrigerator compartment.

The temperature can be set from 2°C to 8°C.

The refrigerator compartment can also be used to store highly perishable foods in the short to medium term. The lower the selected temperature, the longer the food remains fresh.

Tips for storing food in the refrigerator compartment

• Only store food when fresh and undamaged.
• Store food covered or in air-tight packaging.
• To avoid impeding the circulation of air and to prevent food from freezing, do not place food so that it has direct contact with the back wall.
• Allow hot food and drinks to cool down first before placing in the appliance.
• Observe the best-before date or use-by date specified by the manufacturer.

Chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones.

Coldest zone
The coldest zone is between the arrow stamped on the side and the shelf underneath.

Tip: Store highly perishable food such as fish, sausages and meat in the coldest zone.

Warmest zone
The warmest zone is at the very top of the door and in the lower vegetable container.

Tip: Store food that does not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread.

"OK" sticker

The "OK" sticker lets you check whether the refrigerator compartment reaches the safe temperature ranges of +4°C or colder recommended for food.

The "OK" sticker is not included with all models.

If the sticker does not indicate "OK", gradually reduce the temperature. → "Setting the refrigerator compartment temperature" Once the appliance is switched on, it may take up to 12 hours until the set temperature is reached.

Correct setting

Defrosting

Defrosting in the refrigerator compartment

When the appliance is operating, condensation droplets or frost form on the rear panel of the refrigerator compartment due to functional reasons. The back panel in the refrigerator compartment defrosts automatically.

Condensation runs through the condensation channel into the drainage hole to the evaporation pan and does not have to be wiped away. To ensure that the condensation can drain and odours do not form, observe the following information:
→ "Cleaning the condensation channel and drainage hole".

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inaccessible points. Cleaning by customer service can give rise to costs.

Preparing the appliance for cleaning

1. Switch off the appliance.
2. Disconnect the appliance from the power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
3. Take out all of the food and store it in a cool place. Place ice packs (if available) onto the food.
4. If there is a layer of hoarfrost, allow this to defrost.
5. Remove all fittings and accessories from the appliance.
6. Remove the shelf above the fruit and vegetable container.

Cleaning the appliance

Risk of electric shock
An ingress of moisture can cause an electric shock.

▶ Do not use steam- or high-pressure cleaners to clean the appliance. Liquid in the lighting or in the controls can be dangerous.

▶ The rinsing water must not drip into the lighting or controls.

ATTENTION
Unsuitable cleaning products may damage the surfaces of the appliance.

▶ Do not use hard scouring pads or cleaning sponges.

▶ Do not use harsh or abrasive detergents.

▶ Do not use cleaning products with a high alcohol content. If liquid gets into the drainage hole, the evaporation pan may overflow.

▶ The rinsing water must not get into the drainage hole. If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discolour.

▶ Never clean fittings and accessory in the dishwasher.

1. Prepare the appliance for cleaning.
2. Clean the appliance, the fittings, the accessories and the door seals with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.
3. Dry thoroughly with a soft, dry cloth.
4. Insert the fittings and install the appliance components.
5. Electrically connect the appliance.
6. Switch on the appliance.
7. Putting the food into the appliance.

Cleaning the condensation channel and drainage hole

Regularly clean the condensation channel and drainage hole to ensure that the condensation can drain.

▶ Carefully clean the condensation channel and the drainage hole, e.g. using a cotton bud.

Removing the fittings

If you want to clean the fittings thoroughly, remove these from your appliance.

Removing the shelf
▶ Pull out and remove the shelf.

Removing the extendable shelf

1. Firmly pull out the extendable shelf until the locking catch is released.

2. Lower the shelf and swing it out to the side.

Removing door rack
▶ Lift the door rack and remove it.

Removing the fruit and vegetable container

1. Pull out the fruit and vegetable container as far as it will go.
2. Press the latch on the pull-out rail downwards and remove the fruit and vegetable container ⁠.


Removing appliance components

If you want to clean your appliance thoroughly, you can remove certain components from your appliance.

Removing the shelf above the fruit and vegetable container

1. Pull out the fruit and vegetable container.

4. Lift the cover at the front and pull it out at the rear ⁠.


Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

Risk of electric shock
Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault	Cause and troubleshooting
The appliance is not cooling, the displays and lighting are lit.	Showroom mode is switched on. ▶ Carry out the appliance self-test. Once the appliance self-test has ended, the appliance switches to normal operation.
The LED lighting does not work.	Different causes are possible. ▶ Call customer service. The customer service number can be found in the enclosed customer service directory.
or appears in the temperature display.	The electronics have detected a fault. Switch off the appliance. Disconnect the appliance from the mains. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Reconnect the appliance after five minutes. If the message still appears on the display, call customer service. The customer service number can be found in the enclosed customer service directory.
A warning signal sounds and lights up.	Different causes are possible. ▶ Press . The alarm is switched off.
	The appliance door is open. ▶ Close the appliance door.
The temperature differs greatly from the setting.	Different causes are possible. Switch off the appliance. Switch the appliance back on after five minutes. → If the temperature is too warm, check the temperature again after a couple of hours. If the temperature is too cold, check the temperature again on the following day.
The base of the refrigerator compartment is wet.	The condensation channel or drainage hole are blocked. ▶ Clean the condensation channel and the drainage hole.
The appliance hums, bubbles, buzzes, gargles or clicks.	Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant flows through the pipes. The motor, switches or solenoid valves are switching on or off. No action required.
The appliance makes noises.	Fittings wobble or stick. ▶ Check the removable fittings and, if required, replace these.
	Bottles or containers are touching. ▶ Move the bottles or containers away from each other.

Conducting an appliance self-test

Your appliance has an appliance selftest which displays faults that can be eliminated by your customer service.

1. Switch off the appliance.
2. Switch the appliance back on after approx. five minutes.
3. Within the first 10 seconds after switching on, press and hold 3 to 5 seconds.

The appliance self-test starts.

While the appliance self-test is running, a long audible signal sounds.

If, at the end of the appliance selftest, two audible signals sound and the temperature display indicates the set temperature, your appliance is OK. The appliance switches to normal operation.

If, at the end of the appliance selftest, 5 audible signals sound and flashes for 10 seconds, inform customer service.

Storage and disposal

Taking the appliance out of operation

1. Switch off the appliance.
2. Disconnect the appliance from the power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
3. Remove all of the food.
4. Defrost the appliance.
5. Clean the appliance.
6. To guarantee the ventilation inside the appliance, leave the appliance open.

Disposing of old appliance

Valuable raw materials can be reused by recycling.

Risk of harm to health
Children can lock themselves in the appliance, thereby putting their lives at risk.

▶ Leave shelves and containers inside the appliance to prevent children from climbing in.

▶ Keep children away from the redundant appliance.

Risk of fire
If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

▶ Do not damage the tubes of the refrigerant circuit or the insulation.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner.

Customer Service

Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum duration of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years according to the terms of warranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself under local legislation.

Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (ENr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Product number (E-Nr.) and production number (FD)

You can find the product number (ENr.) and the production number (FD) on the appliance's rating plate.
→ "Appliance", Fig. 1 / 6
Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.
→ "Appliance", Fig. 1 / 6 .
You can find more information about your model online at https:// eprel.ec.europa.eu/^[3]. This web address is linked to the official EU EPREL product database. Please then follow the instructions on searching for the model. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively, you can also find the model identifier in the first line of the EU energy label.

Observe the following safety instructions.

General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

Intended use

This appliance is only intended to be fully fitted in a kitchen.

Only use this appliance:

• For chilling food.
• In private households and in enclosed spaces in a domestic environment.
• Up to an altitude of 2000 m above sea level.

Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer.

Safe transport

Risk of injury

The high weight of the appliance may result in injury when lifted.

▶ Do not lift the appliance on your own.

Safe installation

Risk of electric shock

Incorrect installation is dangerous.

▶ Connect and operate the appliance only in accordance with the specifications on the rating plate.

▶ Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.

▶ The protective conductor system of the domestic electrical installation must be properly installed.

▶ Never equip the appliance with an external switching device, e.g. a timer or remote control.

▶ When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an isolating switch must be integrated into the permanent electrical installation according to the installation regulations.

▶ When installing the appliance, check that the power cable is not trapped or damaged. If the insulation of the power cord is damaged, this is dangerous.

▶ Never let the power cord come into contact with heat sources.

Risk of explosion
If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.
▶ Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Risk of fire
It is dangerous to use an extended power cord and non-approved adapters.

▶ Do not use extension cables or multiple socket strips.

▶ Only use adapters and power cords approved by the manufacturer.

▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. Portable multiple socket strips or portable power supply units may overheat and cause a fire.

▶ Do not place portable multiple socket strips or power supply units on the back of the appliance.

Safe use

Risk of electric shock
An ingress of moisture can cause an electric shock.

▶ Only use the appliance in enclosed spaces.

▶ Never expose the appliance to intense heat or humidity.

▶ Do not use steam- or high-pressure cleaners to clean the appliance.

Risk of suffocation
Children may put packaging material over their heads or wrap themselves up in it and suffocate.

▶ Keep packaging material away from children.

▶ Do not let children play with packaging material. Children may breathe in or swallow small parts, causing them to suffocate.

▶ Keep small parts away from children.

▶ Do not let children play with small parts.

Risk of explosion
If the cooling circuit is damaged, flammable refrigerant may escape and explode.

▶ To accelerate the defrosting process, do not use any other mechanical devices or means other than those recommended by the manufacturer.

▶ If food is stuck to the freezer compartment, loosen it with a blunt implement such as the handle of a wooden spoon. Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.

▶ Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

Risk of fire
Electrical devices within the appliance may cause a fire, e.g. heaters or electric ice makers.

▶ Do not operate electrical devices within the appliance.

Risk of injury
Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

▶ Do not damage the tubes of the refrigerant circuit or the insulation.

Risk of harm to health
To prevent food from being contaminated, you must observe the following instructions.

▶ If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compartments of the appliance.

▶ Regularly clean the surfaces that may come into contact with food and accessible drain systems.

▶ Store raw meat and fish in suitable containers in the refrigerator so that they do not touch or drip on other food.

▶ If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould. Metal or metal-style parts in the appliance may contain aluminium. If acidic food comes into contact with aluminium in the appliance, aluminium foil ions may pass into the food.

▶ Do not consume soiled food.

Damaged appliance

Risk of electric shock
If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.

▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.

▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

▶ Call customer services. → Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

▶ If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Risk of fire
If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

▶ Keep naked flames and ignition sources away from the appliance.

▶ Ventilate the room.

▶ Switch off the appliance.

▶ Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

▶ Call after-sales service.

Preventing material damage

ATTENTION
Using the base, runners or appliance doors as a seat surface or climbing surface may damage the appliance.

▶ Do not stand or support yourself on the base, runners or doors. Contamination with oil or fat may cause plastic parts and door seals to become porous.

▶ Keep plastic parts and door seals free of oil and grease. Metal or metal-style parts in the appliance may contain aluminium. Aluminium reacts when it comes into contact with acidic foods.

▶ Do not store unpackaged food in the appliance.

Saving energy

If you follow these instructions, your appliance will use less power.

Selecting the installation location

• Keep the appliance out of direct sunlight.
• Install the appliance as far away as possible from heating elements, cookers and other heat sources:
  • Maintain a 30 mm clearance to electric or gas cookers.
  • Maintain a 300 mm clearance to oil or solid-fuel cookers.
• Use a niche depth of 560 mm.
• Never cover or block the external ventilation openings.

Saving energy during use
Note: The arrangement of the fittings does not affect the energy consumption of the appliance.

• Open the appliance only briefly and then close it carefully.
• Never cover or block the interior ventilation openings or the exterior ventilation openings.
• Transport purchased food in a cool bag and place in the appliance quickly.
• Allow warm food and drinks to cool down before storing them.
• Thaw frozen food in the refrigerator compartment to utilise the low temperature of the food.
• Always leave some space between the food and to the back panel.
