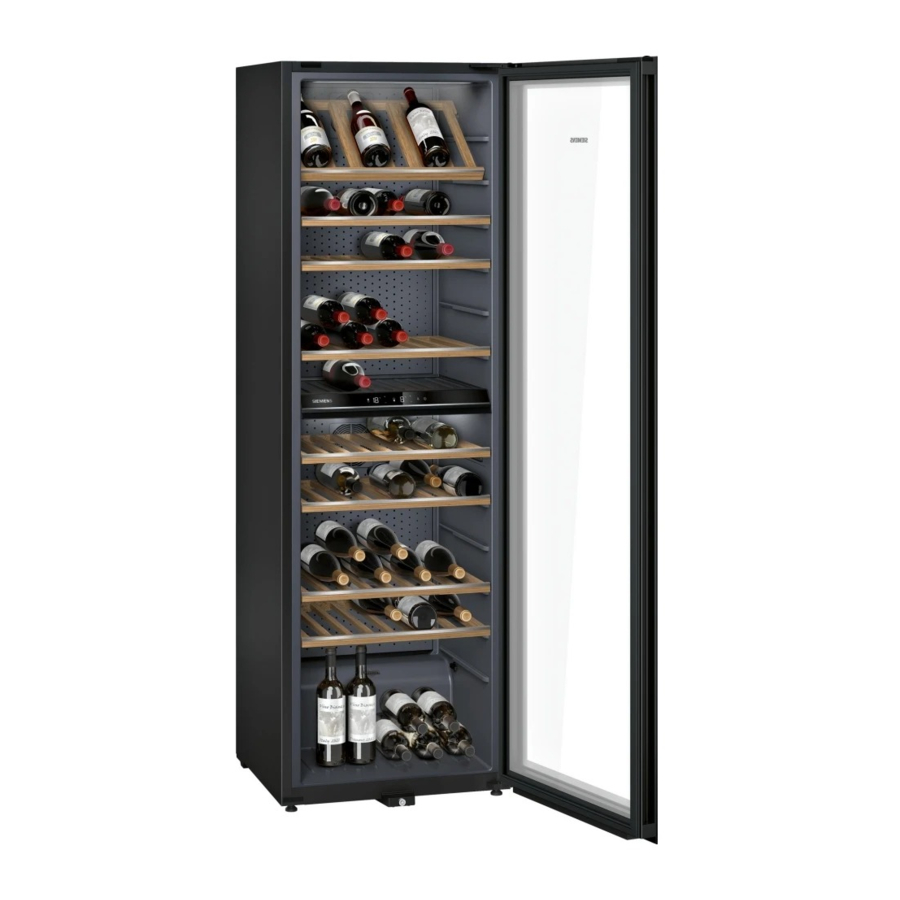

Siemens iQ500 KW36K Series - Wine Storage Manual

Siemens iQ500 KW36K Series - Wine Storage Manual

Also See for iQ500 KW36K Series:

Advertisement

Contents
Siemens iQ500 KW36K Series - Wine Storage Manual

Installation and connection

Scope of delivery

After unpacking all parts, check for any transport damage and for completeness of delivery. If you have any complaints, contact your dealer or our after-sales service.
The delivery consists of the following:

  • Free-standing appliance
  • Equipment and accessories1
  • Installation material
  • Installation instructions
  • User manual
  • Customer service directory
  • Warranty enclosure[1]
  • Energy label
  • Information on energy consumption and noises

1 Depending on the appliance specifications

Criteria for the installation location


Risk of explosion! If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

  • Only install the appliance in a space with a volume of at least 1 m3 per 8 g refrigerant. The volume of refrigerant is indicated on the rating plate. → "Appliance", Fig. 1 / 6.

The weight of the appliance ex works may be up to 80 kg depending on the model.
The subfloor must be sufficiently stable to bear the weight of the appliance.

Permitted room temperature
The permitted room temperature depends on the appliance's climate class.
The climate class can be found on the rating plate. → "Appliance", Fig.1 / 6.

Climate class Permitted room temperature
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C

1 Not in all countries

The appliance is fully functional within the permitted room temperature.
If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5°C.

Over-and-under and side-by-side installation
If you want to install 2 refrigerating appliances one over the other or side by side, you must maintain a clearance of at least 150 mm between the appliances. Selected appliances can be installed without a minimum clearance. Ask your dealer or kitchen planner about this.

Installing the appliance

  • Install the appliance in accordance with the enclosed installation instructions.

Preparing the appliance for the first time

  1. Remove the informative material.
  2. Remove the protective foil and transit bolts, e.g. remove the adhesive strips and carton.
  3. Clean the appliance for the first time.

Connecting the appliance to the electricity supply

  1. Insert the mains plug of the appliance's power cable in a socket nearby.
    The connection data of the appliance can be found on the rating plate. → "Appliance", Fig. 1 / 6.
  2. Check the mains plug is inserted properly.
    The appliance is now ready for use.

Familiarising yourself with your appliance

Appliance

You can find an overview of the parts of your appliance here.
Appliance

  1. Interior lighting
  2. Presentation shelf
  3. Control panel
  1. Extendable bottle shelf
  2. Bottle shelf
  3. Rating plate
  1. Screw foot
  2. Door lock

Note: Deviations between your appliance and the diagrams may differ with regard to their features and size.

Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
Control panel

  1. Displays the set temperature of the wine-storage compartment °C.
  2. sets the temperature of the wine storage compartment.
  3. switches the interior lighting on or off.
  4. switches the appliance on or off.

Features

The features of your appliance depend on the model.

Extendable bottle shelf

In order to achieve an improved overview and to remove bottles more quickly, pull out the extendable bottle shelf.
Extendable bottle shelf

Bottle shelf

Store bottles securely on the bottle shelf.

warningATTENTION!
If you exceed the maximum loadbearing capacity, this may damage the bottle shelves and holders.

  • Do not exceed the maximum weight of 125 kg per bottle shelf.

To store the maximum number of bottles, you can remove the bottle trays. → "Removing the bottle shelf".

Presentation shelf

Display special wines on the presentation shelf.
In order to use the presentation shelf, remove the top bottle shelf and insert the presentation shelf at an angle.
Presentation shelf


Risk of injury!

Bottles may fall and break.

  • Make sure that the presentation shelf is inserted correctly before you put the bottles back.

Door lock


Risk of suffocation! Children can lock themselves in the appliance, thereby putting their lives at risk.

  • Keep the key out of the reach of children.

To lock the appliance, push and hold the key in the door lock and turn it to the right.

Basic operation

Switching on the appliance

  1. Electrically connect the appliance.
    Note: If the appliance has been previously switched off using the control panel, press .
    The appliance begins to cool.
  2. Set the required temperature.

Operating tips

  • Once you have switched on the appliance, the set temperature is only reached after several hours.
  • When you close the door, a vacuum may be created. The door is then difficult to open again. Wait a moment until the vacuum is offset.
  • The temperature in the appliance varies due to the following conditions:
    • How often the appliance is opened
    • Load capacity
    • Ambient temperature
    • Direct sunlight

Switching off the appliance

  • Press .

Setting the temperature

Setting the temperature of the wine storage compartment

  • Press repeatedly until the temperature display shows the required temperature.
    Note: If you press and hold for a longer time, the temperature value changes continuously.

Button lock (childproof lock)

The button lock prevents the appliance from being operated accidentally or incorrectly while running.

Switching on the button lock

  • Press and hold ⁠ at the same time for three seconds.
    The temperature displays show and for three seconds, then the temperature that was previously set is displayed again.
    Note: If you press a touch field while the button lock is switched on, the temperature display indicates for three seconds.

Switching off the button lock

  • Press and hold ⁠at the same time for three seconds.
    The temperature displays show and for three seconds, then the temperature that was previously set is displayed again.

Additional functions

Find out which additional functions can be used for your appliance.

Interior lighting

The interior lighting switches on automatically when you open the appliance.
Tip: If the interior lighting is switched on when the door is closed too, you can switch on the presentation mode. Switching on the interior lighting

  • Press .

Switching off the interior lighting

  • Press .
    The interior lighting is permanently switched off.

Presentation mode

In presentation mode, the interior lighting is permanently switched on.

Switching on the presentation mode

  • Press and hold for three seconds.
    The interior lighting remains switched on, even if the appliance door is closed.

Switching off the presentation mode

  • Press and hold for three seconds.

Alarm

Door alarm

If the appliance door is open for a while, the door alarm switches on.

Switching off the door alarm

  • Close the appliance door.
    The warning tone is switched off.

Temperature alarm

If the wine storage compartment is too warm or too cold for an extended period, the temperature alarm switches on.

If the temperature in a wine storage compartment lies more than 2°C below the set temperature for an extended period, a warning signal sounds and flashes in the corresponding temperature display. If the temperature in a wine storage compartment lies more than 5°C above the set temperature for an extended period, a warning signal sounds and flashes in the corresponding temperature display.

Switching off the temperature alarm

  • Press any touch field.
    The warning tone is switched off.
    Note: or flashes until the set temperature is reached again.

Wine storage compartment

In the wine storage compartment, you store wine at a constant temperature.
You can set the temperature in the wine storage compartment from 7°C to 19°C.

Arranging the maximum number of standard bottles

  • To place the maximum number of bottles in the appliance, place wine bottles into the appliance laying down with the neck of the bottle facing forwards.
    Arranging the maximum number of standard bottles - Part 1
    Standard bottle
    Arranging the maximum number of standard bottles - Part 2

Storage example with 133 standard bottles and 199 standard bottles
Note: If you remove the bottle shelves, instead of 133 standard bottles, you can place a total of 199 standard bottles in the appliance.

Tips for storing wine

Note the following tips for storing wine.

  • Do not store the wine bottles in crates or boxes in the appliance. The open bottle shelves allow for continuous air circulation. As a result, excess humidity is quickly removed.
  • Before you enjoy your wine, you should slowly warm it to room temperature. Take rosé out of the appliance two to five hours before consuming, and take red wine out of the appliance four to five hours before consuming. Serve white wine immediately after taking it out of the appliance. Sparkling wine and champagne should be chilled in the refrigerator for a short while before drinking.
  • Always store wine a little cooler than its ideal serving temperature, as the wine warms up as soon as it is poured into the glass.

Drinking temperatures

The correct serving temperature is crucial for the taste of the wine.

Type of wine Drinking temperature
Full-bodied red Bordeaux 18°C
Côtes du Rhône red, Barolo 17°C
Full-bodied red Burgundy, red Bordeaux 16°C
Port 15°C
Young red Burgundy 14°C
Young red wines 12°C
Young Beaujolais, all white wines with little residual sugar 11°C
Old white wines, fullbodied Chardonnay 10°C
Sherry 9°C
Young white wines, from late vintage onward 8°C
Loire, Entre-deux- Mers white wines 7°C

Defrosting

Defrosting in the wine storage compartment

When the appliance is operating, condensation droplets or frost form on the rear panel of the wine storage compartment due to functional reasons. The back panel in the wine storage compartment defrosts automatically.
The condensation drains into the drainage hole via the condensation channel.
To ensure that the condensation can drain and odours do not form, observe the following information: → "Cleaning the condensation channel and drainage hole".

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inaccessible points. Cleaning by customer service can give rise to costs.

Preparing the appliance for cleaning

  1. Switch off the appliance.
  2. Disconnect the appliance from the power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
  3. Take out all bottles and store them in a cool place.
  4. Remove all fittings and accessories from the appliance.

Cleaning the appliance


Risk of electric shock! An ingress of moisture can cause an electric shock.

  • Do not use steam- or high-pressure cleaners to clean the appliance.
    Liquid in the lighting or in the controls can be dangerous.
  • The rinsing water must not drip into the lighting or controls.

warningATTENTION!
Unsuitable cleaning products may damage the surfaces of the appliance.

  • Do not use hard scouring pads or cleaning sponges.
  • Do not use harsh or abrasive detergents.
  • Do not use cleaning products with a high alcohol content. If liquid gets into the drainage hole, the evaporation pan may overflow.
  • The rinsing water must not get into the drainage hole. If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discolour.
  • Never clean fittings and accessory in the dishwasher.
  1. Prepare the appliance for cleaning.
  2. Clean the appliance, the fittings, the accessories and the door seals with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.
  3. Dry thoroughly with a soft, dry cloth.
  4. Insert the fittings.
  5. Electrically connect the appliance.

Cleaning the condensation channel and drainage hole

Regularly clean the condensation channel and drainage hole to ensure that the condensation can drain.

  • Carefully clean the condensation channel and the drainage hole, e.g. using a cotton bud.
    Cleaning the condensation channel and drainage hole

Removing the fittings

If you want to clean the fittings thoroughly, remove these from your appliance.

Removing the bottle shelf

  • Slightly lift the rear of the bottle shelf and remove it ⁠.
    Removing the bottle shelf

Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.


Risk of electric shock!
Incorrect repairs are dangerous.

  • Repairs to the appliance should only be carried out by trained specialist staff.
  • Only use genuine spare parts when repairing the appliance.
  • If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
Fault Cause and troubleshooting
The appliance is not cooling, the displays and lighting are lit. Showroom mode is switched on.
  1. Press and hold at the same time until and flash in the temperature displays.
  2. After a short time, check whether your appliance is cooling.

The LED lighting does not work

Different causes are possible.
  • Call customer service. The customer service number can be found in the enclosed customer service directory.
or appears in the temperature display. The electronics have detected a fault.
  1. Switch off the appliance.
  2. Disconnect the appliance from the mains. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
  3. Reconnect the appliance after five minutes.
  4. If the message still appears on the display, call customer service. The customer service number can be found in the enclosed customer service directory.
appears in the temperature display. The button lock is switched on.
  • Switch off the button lock.
A warning signal sounds and flashes in the temperature display. It was too warm in the wine storage compartment for an extended period.
  • Press any touch field.
    Note: flashes until the set temperature is reached again.
The exterior ventilation grilles are blocked.
  • Remove any obstructions from in front of the exterior ventilation grilles.
A warning signal sounds and flashes in the temperature display. It was too cold in the wine storage compartment for an extended period.
  • Press any touch field.
    Note: flashes until the set temperature is reached again.

The temperature differs greatly from the setting

Different causes are possible.
  1. Switch off the appliance.
  2. Switch the appliance back on after five minutes.
    • If the temperature is too warm, check the temperature again after a couple of hours.
    • If the temperature is too cold, check the temperature again on the following day.

The base of the wine storage compartment is wet

The condensation channel or drainage hole are blocked.
  • Clean the condensation channel and the drainage hole.

The appliance hums, bubbles, buzzes, gargles or clicks

Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant flows through the pipes. The motor, switches or solenoid valves are switching on or off. No action required.

The appliance makes noises

The appliance is not level.
  • Align the appliance using a spirit level and the screw feet.
The appliance is not free-standing.
  • Observe the minimum clearances for the appliance.
Fittings wobble or stick.
  • Check the removable fittings and, if required, replace these.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our aftersales service, your retailer or on our website.
If you contact Customer Service, you will require the product number (ENr.) and the production number (FD) of your appliance.
The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Product number (E-Nr.) and production number (FD)

You can find the product number (ENr.) and the production number (FD) on the appliance's rating plate. → "Appliance", Fig. 1 / 6.
Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate. → "Appliance", Fig. 1 / 6.

Safety

warningObserve the following safety instructions.

General information

  • Read this instruction manual carefully.
  • Keep the instruction manual and the product information safe for future reference or for the next owner.
  • Do not connect the appliance if it has been damaged in transit.

Intended use

Only use this appliance:

  • For storing wine.
  • In private households and in enclosed spaces in a domestic environment.
  • Up to an altitude of 1200 m above sea level.

Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by children unless they are being supervised.

Safe transport


Risk of injury!

The high weight of the appliance may result in injury when lifted.

  • Do not lift the appliance on your own.

Safe installation


Risk of electric shock!

Incorrect installation is dangerous.

  • Connect and operate the appliance only in accordance with the specifications on the rating plate.
  • Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
  • The protective conductor system of the domestic electrical installation must be properly installed.
  • Never equip the appliance with an external switching device, e.g. a timer or remote control.
  • When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an isolating switch must be integrated into the permanent electrical installation according to the installation regulations.
  • When installing the appliance, check that the power cable is not trapped or damaged.
    If the insulation of the power cord is damaged, this is dangerous.
  • Never let the power cord come into contact with heat sources.


Risk of explosion!
If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

  • Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.


Risk of fire!

It is dangerous to use an extended power cord and non-approved adapters.

  • Do not use extension cables or multiple socket strips.
  • Only use adapters and power cords approved by the manufacturer.
  • If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.
    Portable multiple socket strips or portable power supply units may overheat and cause a fire.
  • Do not place portable multiple socket strips or power supply units on the back of the appliance.

Safe use


Risk of electric shock!

An ingress of moisture can cause an electric shock.

  • Only use the appliance in enclosed spaces.
  • Never expose the appliance to intense heat or humidity.
  • Do not use steam- or high-pressure cleaners to clean the appliance.


Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

  • Keep packaging material away from children.
  • Do not let children play with packaging material.
    Children may breathe in or swallow small parts, causing them to suffocate.
  • Keep small parts away from children.
  • Do not let children play with small parts.


Risk of explosion!

If the cooling circuit is damaged, flammable refrigerant may escape and explode.

  • To accelerate the defrosting process, do not use any other mechanical devices or means other than those recommended by the manufacturer.
  • If food is stuck to the freezer compartment, loosen it with a blunt implement such as the handle of a wooden spoon.
    Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.
  • Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.


Risk of fire!
Electrical devices within the appliance may cause a fire, e.g. heaters or electric ice makers.

  • Do not operate electrical devices within the appliance.


Risk of injury!

Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

  • Do not damage the tubes of the refrigerant circuit or the insulation.
    The appliance may tip.
  • Do not stand or support yourself on the base, runners or doors.


Risk of burns!

Individual parts on the back of the appliance become hot during operation.

  • Never touch these hot parts.

Damaged appliance


Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

  • Never operate a damaged appliance.
  • Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
  • If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
  • Call customer services. Incorrect repairs are dangerous.
  • Repairs to the appliance should only be carried out by trained specialist staff.
  • Only use genuine spare parts when repairing the appliance.
  • If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.


Risk of fire!

If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

  • Keep naked flames and ignition sources away from the appliance.
  • Ventilate the room.
  • Switch off the appliance.
  • Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
  • Call after-sales service.

Preventing material damage

warningATTENTION!
If not rolling freely, the appliance's castors may damage the floor when the appliance is moved.

  • Transport the appliance using a sack truck.
  • Use floor protection when moving the appliance, and do not move it in a zigzag fashion. Using the base, runners or appliance doors as a seat surface or climbing surface may damage the appliance.
  • Do not stand or support yourself on the base, runners or doors. Contamination with oil or fat may cause plastic parts and door seals to become porous.
  • Keep plastic parts and door seals free of oil and grease. If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discolour.
  • Never clean fittings and accessory in the dishwasher.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Siemens iQ500 KW36K Series - Wine Storage Manual

Advertisement

Need help?

Need help?

Do you have a question about the iQ500 KW36K Series and is the answer not in the manual?

Questions and answers

Table of Contents
