CPVAN CP2 - PIR Motion Sensor Alarm Manual

Introduction

Congratulations with your CPVANPIR CP2 Motion Sensor Alarm. The PIR motion sensor alarm is intended to detect when people enter your shop or your home. Depending on your need, it will sound a loud siren alarm or a friendly chime. The PIR motion Sensor features fuzzy logic processing technology and intelligent analysis algorithms to optimize its ability to correctly interpret signals.
The PIR motion sensor alarm can be operated directly on the device or with a remote control. If required, you can link multiple remote controls form the CPVAN Home Alarm System to allow your team- or family members to arm or disarm the PIR motion sensor alarm as well. An innovative feature is the ability to add sensors from the CPVANHome Alarm System easily to extend your PIR Motion Sensor Alarm capabilities. It can be linked to other components Of the CPVANHome Alarm System like the Door & Window sensor or the PIR sensor.

Box contents

1 x CP2 PIR motion sensor alarm
1 x remote control
3 x batteries 1.5V AA, alkaline
Flexible mount
Pair of screws
Instructions for use

Product Overview

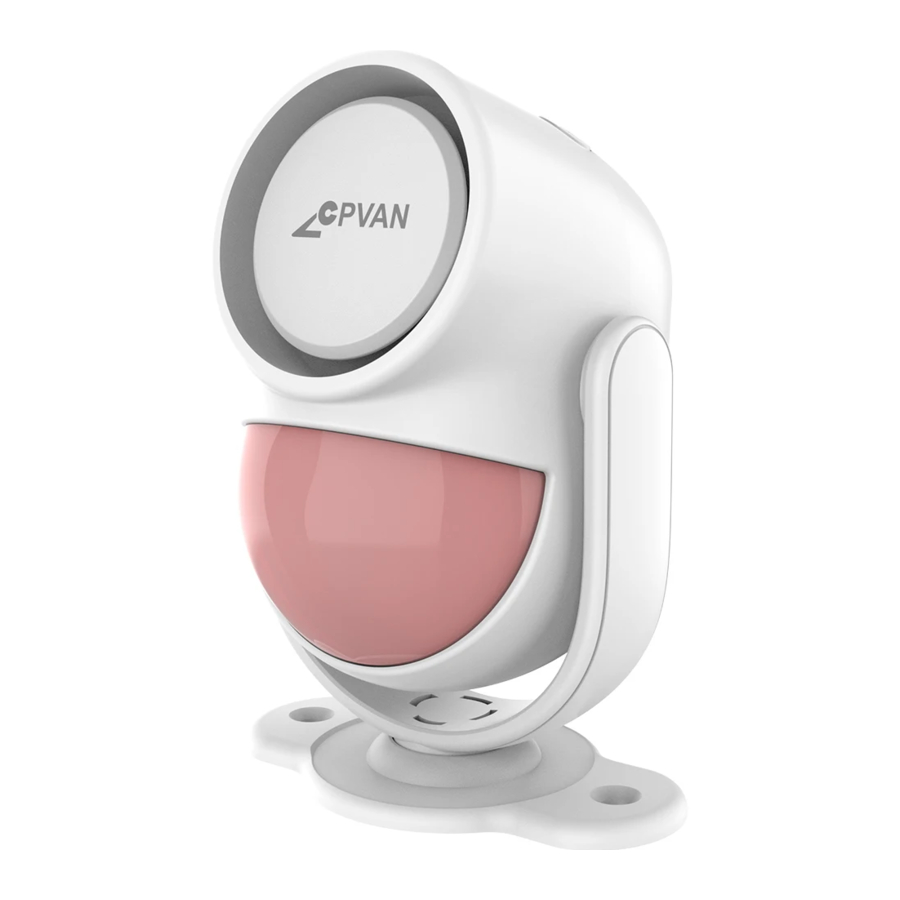

CP2 PIR Motion Sensor Alarm

1. Siren
2. Detection window
3. M0de button
4. On/Off button
5. Pairing button

Remote Control

First preparation of the CP2 PIR Motion Sensor Alarm

Slide off the back lid, and insert 3 AA batteries. Close the lid. Your system should be armed and ready for use.

Pressing the buttons

There are 2 ways to press the buttons on your Alarm unit:
Short press: press the button for 1 second or less.
Long press: keep the button pressed for 5 seconds.
Usually, the long press Of 5 seconds is used to enter a programming or pairing mode. This procedure prevents that important settings are changed accidentally.

Using the CP2 PIR motion Sensor Alarm

The CP2 PIR Motion Sensor Alarm can be operated both through the remote control as well as by pressing the buttons on the top.

Please note that switching the unit On/Off and arming it are two individual steps. Switching it on does NOT automatically mean that the unit is armed and active because The PIR motion sensor alarm is equipped with a memory function which allows the unit to resume in.resume in its last setting after switching Off. If that setting was 'armed' it will come back to that setting. If the setting was 'disarmed', it will be disarmed at startup.

Switch the unit ON for the first time

Long press the On/Off button on the Alarm Unit. There will be one short beep and the red detection light on the front will light up once. This means the unit is now switched on. The factory settings are as such that the PIR motion sensor alarm will startup in armed mode.
Disarming the PIR motion sensor: Press the On/Off button shortly. You will hear two beeps and the detector light will light two times. Your PIR motion sensor alarm is now disarmed Alternatively, press the Disarm button on the remote control.
Arming the PIR motion sensor: Press the On/Off button shortly. You will hear one beep and the detector light will light up once. Your PIR motion sensor alarm is now armed Alternatively, press the Arm button on the remote control.
Changing the sound: Short press the Mode button to change between sounds. Each time the button is pressed, a short sample of the chosen sound is heard (Siren or Chime).
Adjust the volume: Short press the volume button to adjust the volume (two levels volume)
Stopping the Siren alarm sound: There are three ways to stop the siren alarm sound:

1. Short press the Mode button or the Pairing button . The sound will stop and the unit will stay armed.
2. Short press the On/Off button on the Alarm Unit. There will be two short beeps and the alarm sound will stop. The PIR motion sensor alarm is now disarmed. Short press the On/Off button again to arm it again.
3. Press the Arm or Disarm button on the remote control In case of pressing the Arm button the alarm stops and the unit stays armed. When pressing the Disarm button the alarm stops and the unit changes in the disarmed mode at the same time.

Switching the unit OFF: Long press the On/Off button on the Alarm Unit. There will be one long beep and the red detection light on the front will light up once.

Pairing with remote control and sensors

Pairing with remote control

Your PIR motion sensor alarm is already paired with the supplied remote control. Pairing additional remotes is easy. In general, the pairing mode is activated on the PIR motion sensor. Then, activate (trigger) the detector to allow the PIR motion sensor alarm to recognize the signal. At this stage, multiple remotes can be added by activating them one by one. They will be paired with the PIR motion sensor alarm immediately and automatically. Each PIR motion sensor alarm can be paired with 5 or more remote controls and each remote control can control multiple PIR motion sensors simultaneously. This means that each member Of your family or team can switch the system on or Off when they require it. Your home will never be unprotected. Follow the steps below to add a remote control:

• Make sure the PIR motion sensor alarm is ON
• On the PIR motion sensor alarm, long press the Pairing button to enter pairing mode. The detector light will light up continuously.
• Press any button on your remote control. You will hear two beeps to indicate correct pairing.
• Short press the Pairing button to exit the pairing mode. Your remote has now been paired.

Multiple remotes can be connected to any PIR motion sensor. Also, the remote control can be linked to multiple PIR motion sensor alarm using the method described.

Pairing with CPVAN Alarm System sensors

Extend your PIR motion sensor alarm with additional sensors. Your PIR motion sensor alarm can wirelessly be connected with additional sensors from the CPVAN Home Alarm System. The system features window & door sensors and additional PIR Motion Sensors.
Triggering any sensor will cause your PIR motion sensor alarm to sound either a Siren or a Chime.
Sensors can be setup as an emergency sensor or as a normal sensor. An emergency sensor is a sensor that is supposed to be always on (meaning: never disarmed). This sensor will always trigger an alarm even if the CP2 PIR motion sensor alarm is disarmed. When the sensor is triggered, you can stop the alarm by pressing any of the three buttons on the PIR motion sensor alarm.

To add sensors please follow this simple procedure:

• Enter pairing mode by long pressing the Pairing button (or the Mode button in case of setting up an emergency sensor). The detector light will light up continuously.
• Activate your sensor. With a door & window sensor, just remove the magnet away from the sensor to activate it. A PIR sensor can be activated by waving your hand in front of it.
• You will hear two beeps indicating a correct pairing occurred.
• Short press the Pairing button (or the Mode button in case of an emergency sensor).

Multiple sensors can be paired with a PIR motion sensor alarm.

Using the remote control

The supplied remote control will work with multiple motion sensor alarms if required. Each new PIR motion sensor alarm is supplied with a remote pre-paired with your PIR motion sensor.

There are four buttons on the remote control:

Deleting remote controls and sensors from the CP2 PIR Motion Sensor Alarm

1. Enter pairing mode by long pressing the Pairing button when the PIR motion sensor alarm is On. The detection light is now on.
2. Now, again long press the Pairing button 5 Beeps will be heard and the light will flash. Your remote control (and, if applicable, added sensors) have now been disconnected from your PIR motion sensor.
3. Press the Pairing button to exit the settings mode.

If you have added emergency sensors, then these can only be deleted from the device by doing a factory reset. Please refer to the corresponding instructions in this manual.

Changing the batteries

When the batteries are running empty the detector light will flash once every 40 seconds and a beeping sound will be heard. Please change the batteries at your earliest convenience.

Remote control

The battery can be changed by removing the screw on the back of the remote control. Remove the back panel and replace the battery. The battery type is CR2025 (3V, Lithium battery).

PIR motion sensor alarm

Slide off the back panel and replace the batteries with 3x AA size 1.5V Alkaline batteries.

Reset to Factory settings

Follow this procedure to reset the PIR motion sensor alarm back to the factory settings and disconnect any remote controls and emergency sensors.
Make sure the device is switched On.
Remove one or all the batteries.
Press the Mode button and keep it pressed throughout the next 2 event:

• Re-insert the battery
• 10 beeps will be heard and then another 5 beeps very quickly

Now, release the Mode button
The factory reset is now completed.
Your PIR motion sensor alarm is reset and will resume in Armed mode.

Technical specifications

Power: DC 5V / 3pcs * AA Battery
Current: <300uA
Work Current: <100mA
Switch off Current: <40uA
Detection Distance: <8m
Alarm sound: 125dB
Detection Angle: 110 degree
Working Humidity: <80%

Detection range profile:

The Infrared detector is sensitive to a human's vertical movement, and less sensitive to horizontal movements, so it's best to aim the device at a 90 degrees' angle to a person's walking direction.
The PIR motion sensor alarm detects signals at a distance up to 8 meters.

Frequently asked questions

Q: The PIR motion sensor alarm is switched on but does not detect any motion
A: Maybe the system is not armed yet. Short press the On/Off button to arm the device
(The device remembers its last setting. If it was disarmed when switched Off, it will be in disarmed mode when it is switched On again. Pressing the On/Off button briefly will arm the device again)

Q: The PIR does not enter pairing mode when pressing the Pairing or Mode button .
A: The device might be switched off. Try long pressing the On/Off button to switch the unit on. Now, enter Pairing mode by long pressing the Pairing or Mode button .

Q: The device does not switch on
A: Check the batteries. They might be empty

Q: The device signals motion when there is no motion ('false alarms")
A:

1. The PIR motion sensor alarm is activated by infrared light and can also be triggered by direct sunlight. It is advised to keep the device out of direct sunlight.
2. Animals like dogs, birds and cats are known to trigger PIR motion sensors as well.

Q: The remote-control indicator light is on when I press a button but the PIR motion detector does not react to it.
A:

1. The signal might not penetrate walls or cover large distances
2. Try opening the remote control and taking the battery out- and back in again.
3. The battery is running out Of power. Insert a new battery.

Q: I have connected a Door & Window sensor, and I cannot change the alarm sound from siren to chime
A: If you installed your Door & Window sensor in Emergency mode, the siren sound is the only option. It cannot be changed unless you delete the sensor and reconnect it in normal mode (using the Pairing button .

Q: Where can I find more information and instructional video's?
A: Please visit www.cpvans.com for additional information.

Q: I want to add sensors like a window & door sensor or another PIR motion detector. Where can I find these?
A: All our products are offered on Amazon CPVAN Storefront. You can also visit www.cpvans.com

Q: I have a question and cannot find the answer in this manual
A: Just send your question to support@cpvans.com and we will respond usually within 24 hours.

Please Email us for Better Solution instead of returning any unsatisfied product to Amazon
Via e-mail:
For US customer, please contact support@cpvans.com
For UK customer, please contact info@cpvans.com
For DE customer, please contact support2@cpvans.com
For other country customer, please contact Amazon@cpvans.com
Via telephone: +86 (0755) 2308-7066 (during office hours)
Floor 3, Yifenghua Mansion, Huaning Rd, Dalang Subdistrict, Longhua District Shenzhen, Guangdong, CN.

Three-second delay arming function.
After you arm with the remote control, it will not be triggered immediately. The detector light will light up three times and into arming status. So you have three seconds to leave the alarm area.

Please also refer to www.cpvans.com for further information and technical assistance. We are improving our site continuously to make sure you have the best possible experience with our products. We normally respond within 24hours to any questions.
