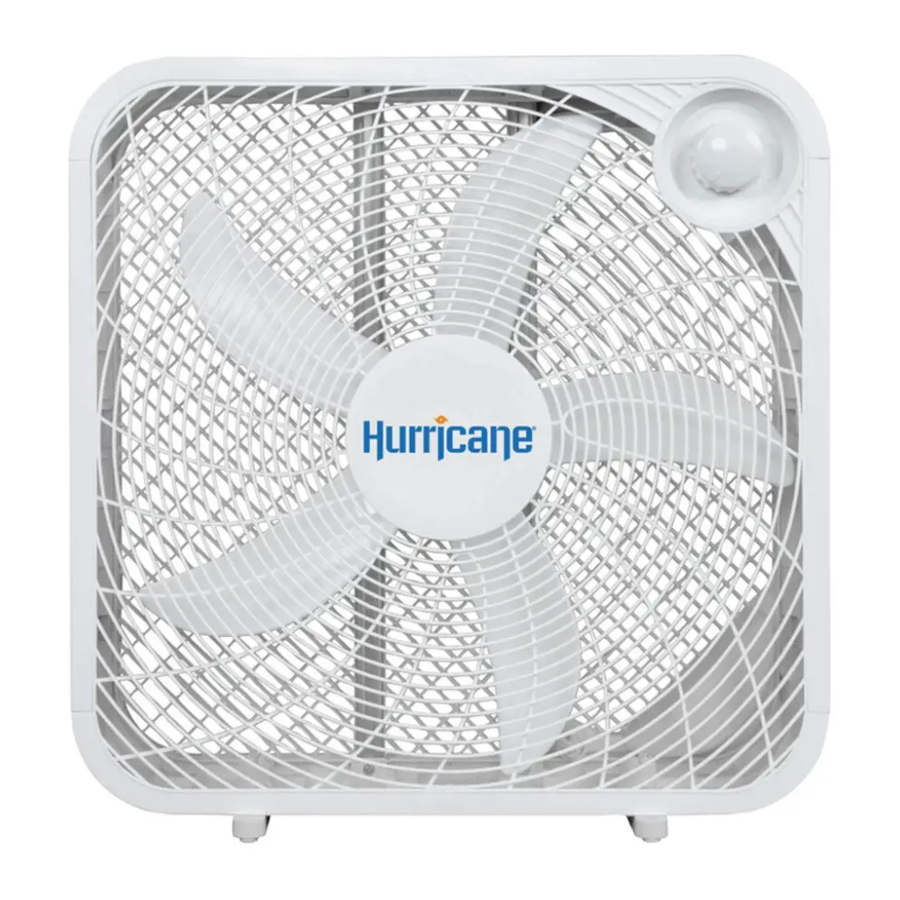

Hurricane CLASSIC HGC736501 - PORTABLE FLOOR FAN Manual

PART FIGURE

1. Top Cover
2. Switch Knob
3. Front Grill
4. Rear Grill
5. Blade
6. Side panel
7. Base cover
8. Supports
9. Rubber feet

ASSEMBLY OF FAN

Take the fan out of the packing carton, place the fan upside down, rotate the supports (Fig.2) 90 (use degree sign) counterclockwise.

Turn the fan upright so it's resting on the supports (Fig. 3). It's ready to use!

OPERATING INSTRUCTION

Speed control
Speed is controlled by the switch knob:
0–Off
1–Low
2–Medium
3–High

USER SERVICING INSTRUCTIONS

1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord
2. Open fuse cover. Slide open fuse access cover on top of attachment plug towards blades.

3. Remove fuse carefully. Insert the tip of your tool into fuse slot (close with the terminal), then pry the fuse gradually and slowly. If fuse feels tight, you can try again to carefully pry it out little by little. After one side of the fuse has been pried out, you can remove the fuse entirely.
4. Risk of fire. Replace fuse only with 2.5 Amp, 125 Volt fuse.
5. Close fuse cover. Slide the fuse access cover on top of the plug until it is closed.
6. Risk of fire. DO NOT replace attachment plug. Contains a safety device (fuse) that should not be removed. Discard product if the attachment plug is damaged

Notice:

1. If the plug does not go into the outlet easily, make sure the plug is turned the right way.

CLEANING

1. Be sure to unplug the power cord from the outlet before cleaning.
2. Plastic parts should be cleaned with mild soap and a damp cloth or sponge. Thoroughly to remove soap film with clean water.
3. Be sure not to get water or other liquid on or inside the motor.

Use a "QR Code App" on your smart phone to access our website and browse our entire product offering

or go to: www.hurricane-fans.com

SAFETY INSTRUCTIONS

Read rules for safe operation and instructions carefully.

1. This appliance has a polarized plug (one blade is wider than the other) To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to bypass this safety feature.
2. To reduce the risk of fire or electric shock, DO NOT use this fan with any solid state speed control devices.

RULES FOR SAFE OPERATION

1. Never insert fingers, pencils, or any other object through the grill when fan is running.
2. Disconnect fan when moving from one location to another.
3. Disconnect fan when removing grill for cleaning.
4. Be sure fan is on a stable surface when operating to avoid overturning.
5. Do not use fan in window. Rain may create electrical hazard.
6. Ensure that the fan is switched off from the supply mains before removing the grill.

The rules about cord and plug as below:

1. This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the products. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.
2. Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
3. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

READ AND SAVE THESE INSTRUCTIONS
