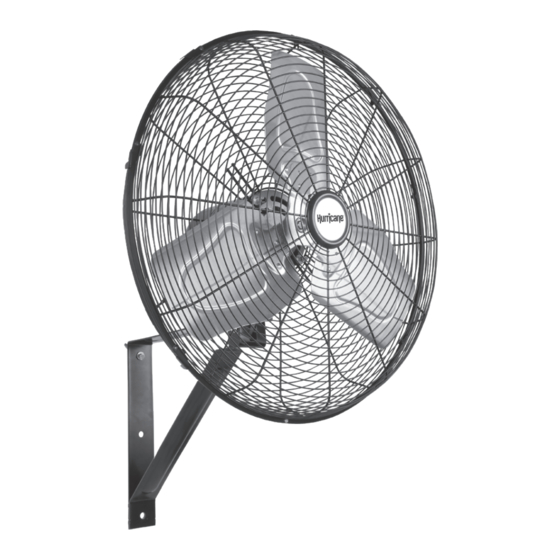

- Page 1 HIGH VELOCITY OSCILLATING WALL MOUNT FAN 20”/ 30” Product #HGC736489 Product #HGC736490 OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS Note: Pictures in the manual are for reference only.
- Page 2 TECHNICAL SPECIFICATIONS ITEM NO. SIZE VOLTS/Hz CURRENT (A) 736489 20” 120V/60Hz. 1.35 4600 1100 736490 30” 120V/60Hz. 7250 1100 CAUTION: Read instructions carefully for safe operation. SAFETY INFORMATION WARNING: 1. Unplug the fan before moving it or performing maintenance. 2. DO NOT touch the fan when your hands are wet. 3.
- Page 3 ASSEMBLY INSTRUCTIONS Step 1: a. Mark the hole locations by using the bracket, and then drill the holes. b. For concrete wall installation, after drilling, you would insert the wall anchors and tap them flush with the wall, position the bracket and then screw the bolts into the anchors, securely attaching the wall.
- Page 4 Step 4: Assemble fan blade onto motor shaft by tightening the two screws which are located on fan blade. Make sure screw are tightly secured. Rear guard Front guard Step 5: Assemble front guard to rear guard by fixing both guards together with clips. Step 6: Secure the assembly of front guard and rear guard by tightening a screw and nut at the...
- Page 5 Step 7: First, hang the fan head on the bracket. Then, fasten using No.1 screw, No.3 spring washer, No.4 and No. 5 hexangular nut. Finally, fix No.2 screw or adjusting the tilt angle of fan head. OPERATING INSTRUCTIONS CAUTION: Make sure control is in the “0” (off) position. 1.
- Page 6 ITEM NO. DESCRIPTION QUANTITY Front grill Blade Rear grill Motor Bracket...
- Page 7 NOTES...
- Page 8 HIGH VELOCITY METAL DRUM FAN PRODUCT #HGC736489 PRODUCT #HGC736490 FOR MORE INFORMATION VISIT: www.hurricane-fans.com Exclusively distributed by Hawthorne Hydroponics LLC, a subsidiary of The Hawthorne Gardening Company, 3204 NW 38th Circle, Vancouver, WA 98660 HawthorneGC.com | Canada: HawthorneGC.ca ©2020. World rights reserved.
