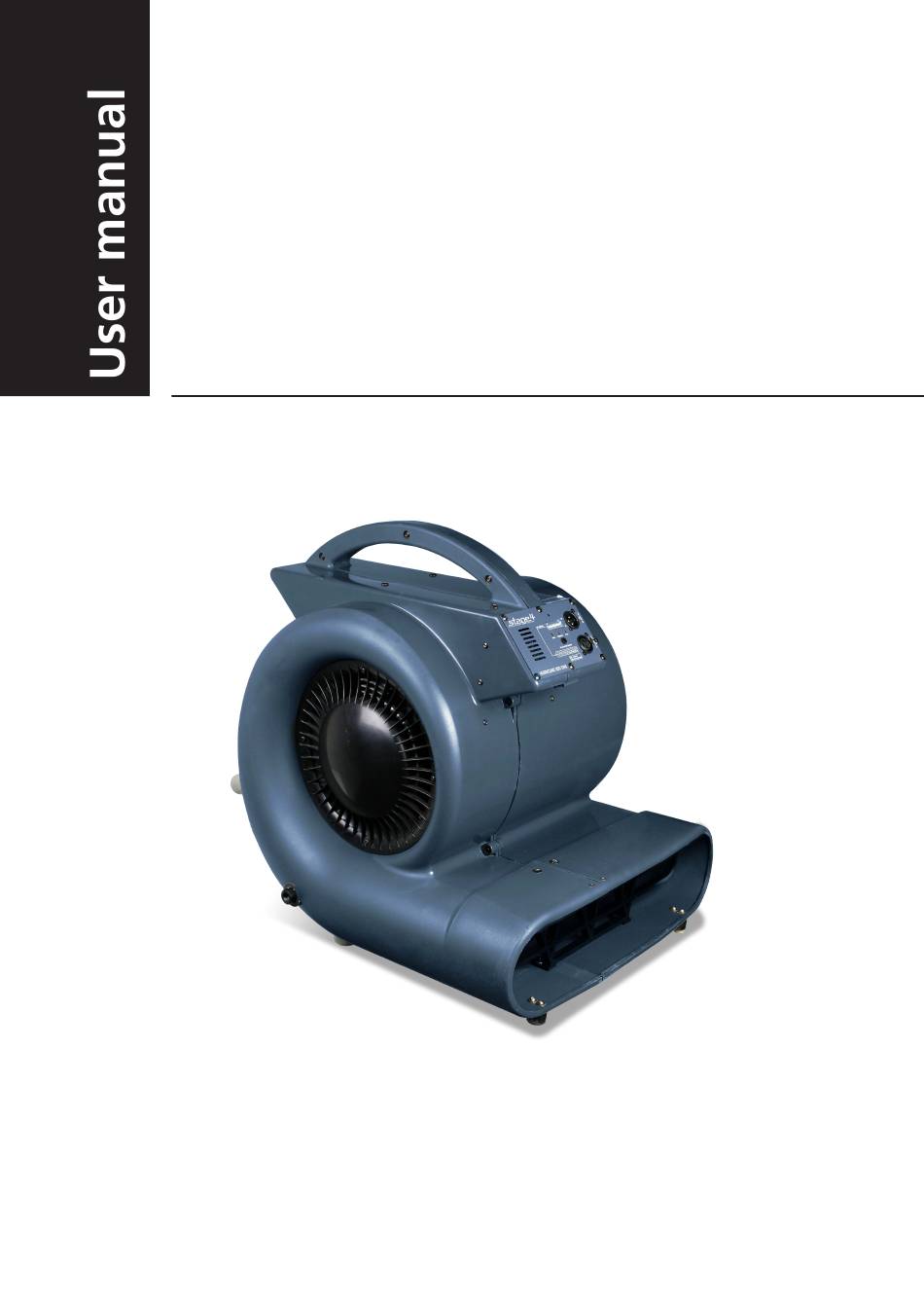

- Page 1 ENGLISH HURRICANE 850 DMX Version 1.0...
-
Page 2: Table Of Contents
CONTENTS Warning Caution Particular Warning! Please note Important Figure1 HURRICANE 850 DMX Effect Fan Functions Description Getting ready Mounting Set Up DMX Connector Pin Assignment Functions of the buttons Operation Figure 2 DMX Chart Troubleshooting Maintenance Product Specification Appendix – A DMX Dip Switch Value Guide... -
Page 3: Warning
Better read the manual thoroughly before operation, follow instruction will help you have a smooth handling with HURRICANE 850 DMX serials DMX Effect Fan to achieve the most satisfactory effect, it will also assist unit to further prolong life time as a whole. - Page 4 • Without changeable structure by non-qualified user, please do not open the cover or have any change at will, otherwise, it may cause accident！ • Machine is for adult use. Keep out of reach of children. Never leave the unit running unattended. • Keep case closed while operating. Put machine in drafty place. Do not insert objects into air vents. Allow 20cm space or above around the machine for proper ventilation.
-
Page 5: Caution
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact your local dealer. Particular Warning : Please install the product correctly according to the instruction of the user manual. -
Page 6: Figure1 Hurricane 850 Dmx Effect Fan

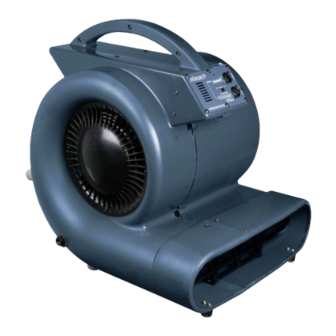

Figure1 HURRICANE 850 DMX Effect Fan Functions G. DMX 3 pin XLR Output A. Handle B. Inlet H. DMX 3 pin XLR Input C. Outlet I. Power Input D. 10 Key Dip Switch J. Pad E. 3 LED Indicators K. Hanging Bracket (OPTION) F. Function Buttons... -
Page 7: Functions Description
All products are thoroughly tested at the factory and shipped in perfect condition. If damage has occurred during shipping, or if components are missing, please contact your local dealer immediately. Your package should include: 1. One HURRICANE 850 DMX Effect Fan 2. One product user manual... -
Page 8: Mounting
Mounting HURRICANE 850 DMX Effect Fan is shipped complete, ready to use. The bracket is installed before shipping, the unit can be hung in any position. Fasten the effect fan onto firm trussing (Use a 30-kg rated or stronger C-clamp bolted onto the bracket, enhancing safety necessarily with safety cables). Allow enough space (around 20cm) on all sides for proper cooling. C-clamp safety cable safety cable... -
Page 9: Set Up
Set Up 1. Open the shipping carton and carefully remove the unit from the shipping carton; 2. Be sure to remove packing material from around the machine, especially outlet and inlet; 3. Set the machine on a dry, flat surface; 4. Plug mains power cord from the machine into appropriate power supply socket; 5. Use function buttons for operating control, or connect DMX controller for setting. -
Page 10: Dmx Connector Pin Assignment Functions
DMX Connector Pin Assignment The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below indicates pin assignment information. 5 pin XLR 3 pin XLR 1. Ground 2. Cold 1. Ground 5. N/A 2. Cold 4. N/A 3. Hot 3. Hot 2. Cold 1. Ground 5. N/A 1. -
Page 11: Of The Buttons
Functions of the buttons A. State Indicator: • The key 10 of dip switch (B) is in manual mode if OFF, indicating green LED (A) always light. • The key 10 of dip switch (B) is in wireless control mode if ON, indicating green LED (A) flashing. B. Dip switches: 1. In manual mode, the dip switch 1-9 is used to set the DMX512 address. If the DMX signal is received, then switch to 1-channel DMX control. 2. In manual mode, if no DMX signal received, the adjusting volume button (D) is used to control the fan volume. 3. -
Page 12: Operation
D. Manual Fan Speed button: Used to control the fan volume Each time the button is pressed, the fan volume is switched once, and the cycle is repeated, as follows: Fan off --> Mini. Fan Volume --> Medium Fan Volume --> Max. Fan Volume --> Fan off Set fan volume is automatically saved after power off. Operation Plug mains power cord from the machine into appropriate power supply socket;... - Page 13 Remote Control Operation .............. For best result, use RC-4T wireless controller. 1. Flip the key 10 of dip switch to ON to wireless control mode, indicating green LED flashing; 2. Fan is controlled by RC-4T wireless controller now; 3. The button functions of the wireless controller are as follows; A button set Mini. Fan volume B button set Medium Fan Volume C button set Max. Fan Volume D button set Fan oFF Specification of Compatible Controllers Model RC-4T...
- Page 14 DMX Control Operation ..............1. Flip the key 10 of dip switch to OFF to manual mode, indicating green LED always light; 2. Connect the DMX 512 controller cable to the input socket (Figure 1-H) of the machine unit. Make sure the signal cable polarity is correct. When DMX socket receives effective DMX signals, the machine enter DMX control mode automatically; 3. Use DMX Dip switches 1-9 to set the unit to the desired DMX512 address. Refer to the DMX value guide in Appendix A. This machine is 1-channel DMX; 4. If desired, connect another machine: Plug one end of another signal cable in to the output socket (Figure 1-G) on the back of the first fan plug the other end of the signal cable to the input socket (Figure 1-H) on the back of the second fan. Follow the same...
-
Page 15: Troubleshooting
Figure 2 DMX Chart DMX Value Fan Volume 230-255 Maximum 128-229 Medium 26-127 Minimum 0-25 Troubleshooting This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 16: Maintenance
Maintenance Before doing maintenance, please make sure that the power is cut, the power cord is unplugged, and the machine itself has cooled down. The maintenance must be done by qualified person. 1. For a long time use, the inlet may accumulate dust, please regularly clean the inlet; 2. For a long time use, the outlet may be the accumulation of dust, please regularly clean up the outlet, keep the outlet unobstructed;... -
Page 17: Product Specification
Product Specifications Name HURRICANE 850 DMX Effect Fan Item No. HURRICANE Fan Motor Power 850W Consumption 860W Fuse (120V) Fuse (230V,240V) DMX512 CH. Built-in Function Fan volume adjustment button Fan angle 0-220° Horse power Fan Speed Adjusment 3 Sections, Mini. Medium, & Max. -
Page 18: Appendix - A Dmx Dip Switch Value Guide
“address” to receive DMX signals. Addresses on fan are set by flipping appropriate DMX dip switches. To do this, you need to know the DMX dip switches have the following values: #1=1; #2=2; #3=4; #4=8; #5=16; #6=32; #7=64; #8=128; #9=256. And you need to know that DMX address settings are the sum of the dip switch values. For example, standard DMX addresses for four HURRICANE, each of which has 1 channel (see Figure 2), follow: Address Value DMX Dip Switches “ON” Unit 1 Unit 2... - Page 19 Save this instruction properly All the information is subject to change without prior notice...
