Hurricane Super 8 Instruction Manual

KEYS (Fig. 13)
• 'ON\SPEED' button
Press this button and the fan will started on medium. After 2 seconds
the fan will automatically go to the low speed setting. When button is
pressed repeatedly, it will turn to 'Speed' setting, the lights on the
display indicate what the speed level is, L-M-H. When speed is at
'H' level, press again for fan to shut off.
MAINTENANCE INSTRUCTION
This fan requires little maintenance. DO NOT try to fix it by yourself.
Bring fan a to qualified electrician if service is needed.
1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear
of the motor free of dust. DO NOT disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. DO NOT use any abrasive detergent or solvents to avoid scratching the surface.
DO NOT use any of the following as a cleaner: gasoline, thinner, benzine.
5. DO NOT allow water or any other liquid into the motor housing or interior parts.
USER SERVICING INSTRUCTIONS (UL)
1. Grasp plug and remove from the receptacle or other outlet device.
DO NOT unplug by pulling on cord.
2. Open fuse cover. Slide open fuse access cover on top of attachment plug towards blades.
3. Remove fuse carefully. Insert the tip of your tool into fuse slot (close with the terminal),
then pry the fuse gradually and slowly, but not overexert. If fuse feels tight, you can try
again to carefully pry it out little by little. After one side of the fuse has been pried out,
you can remove the fuse entirely.
4. Risk of fire. Replace fuse only with 2.5 Amp, 125 Volt fuse.
5. Close fuse cover. Slide the fuse access cover on top of the plug
until it is closed.
6. Risk of fire. DO NOT replace attachment plug. Contains a safety device
(fuse) that should not be removed. Discard product if the attachment plug is damaged.
Note:
1. When you replace the fuse, please don't operate suddenly or overexert, or else the
product may become damaged or cause accident.
2. If the plug does not go into the outlet easily, please make sure you have the plug turned
the right way.
CLEANING
1. Be sure to unplug the power cord from the outlet before cleaning.
2. Plastic parts should be cleaned with mild soap and damp cloth or sponge.
Thoroughly remove soap film with clean water.
3. Be sure not to get water or other liquid enter the inside
of the motors.
www.hurricane-fans.com
Fig. 13
™

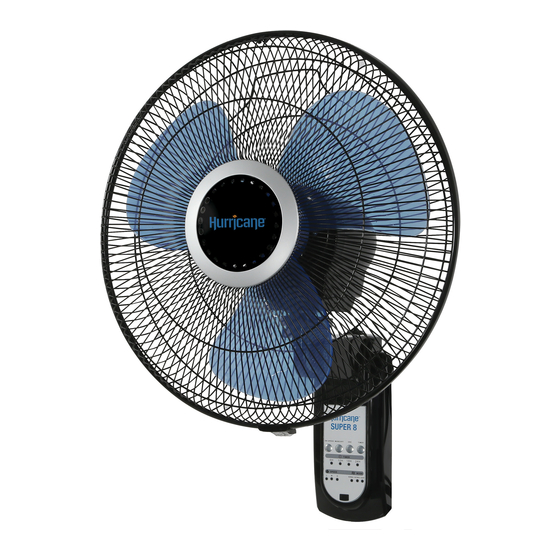

16" Super 8
Programmable Oscillating Wall Fan
Instruction Guide
CAUTION: Read Rules for Safe Operation and Instructions Carefully.
WARNING
1. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk
of electric shock, this plug is intended to fit in a polarized outlet only one way. If plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. DO NOT attempt to defeat this safely feature.
2. Suitable for use with solid-state speed controls.
RULES FOR SAFETY OPERATION
1. Never insert fingers, pencils, or any other object through the grille when fan is running.
2. Disconnect fan when moving from one location to another.
3. Disconnect fan when removing grilles for cleaning.
4. Be sure fan is on a stable surface when operating to avoid overturning.
5. DO NOT use fan in window. Rain may create electrical hazard.
6. Ensure that the fan is switched off from the supply mains before removing the grill.
Supreme Series
Remote control
allows the Hurricane
Super 8 fan to be
programmed easily
