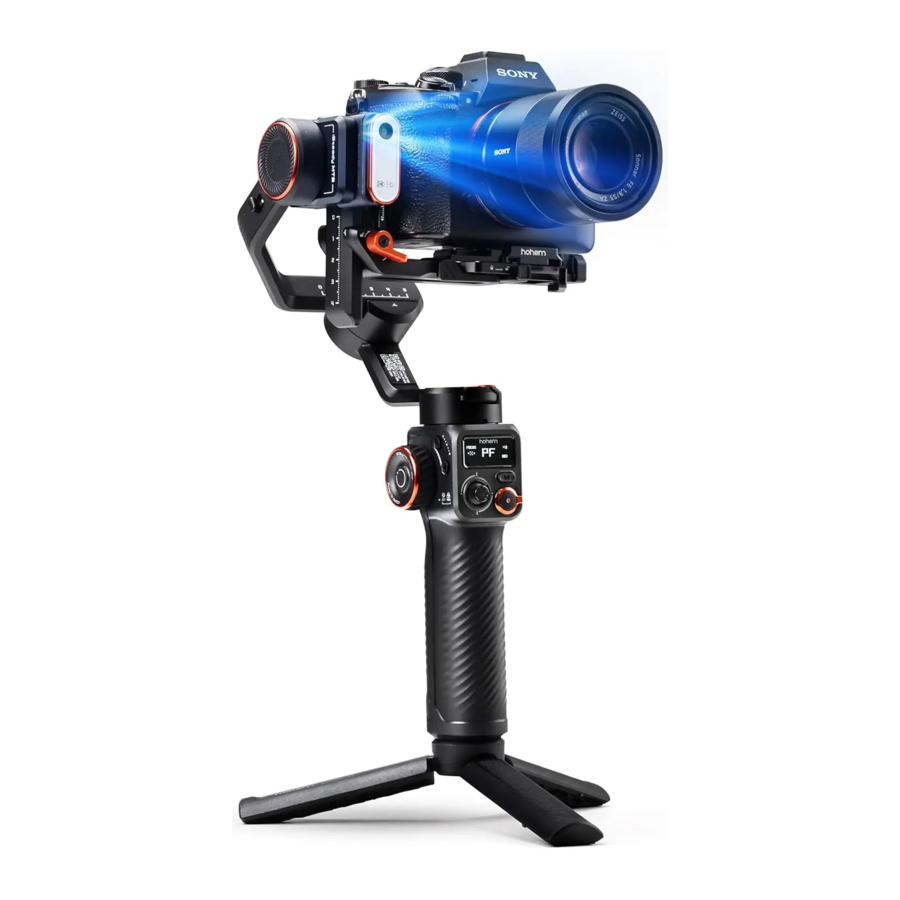

hohem iSteady MT2 - Stabilizer Manual

Product List

Before using this product, please carefully check that all the following items are included in the product package. In case that any item is found missing, please contact Hohem customer service or the local distributor.

Introduction

1. Support Mount
2. Pan Axis Arm
3. Pan Axis Arm Latch
4. Pan Axis Motor
5. Roll Axis Arm
6. Roll Motor
7. Multifunctional Control Wheel
8. Buttons for A-B Motion
9. Joystick
10. Handle
11. 1/4"-20 UNC Port
12. Type-C Reverse Charging Port
13. Type-C Camera Control Port
14. Roll Axis Arm Latch
15. Roll Axis Motor Lock Switch
16. OLED Display
17. M (Mode) Button
18. Zoom Lever & Shutter Button

19. 1/4"-20 UNC Port
20. Tilt Motor
21. Tilt Motor Lock Switch
22. Tilt Axis Arm
23. Vertical Tilt Lock
24. USB-C Charging Port
25. Positioning Hole
26. Power Button
27. 1/4"-20 UNC Port
28. Magnetic Fill Light with AI Vision Sensor
    (*Sold Separately)
29. Mount Safety Lock
30. Mount Latch
31. Pan Motor Lock Switch
32. Trigger
33. Strap Hole

34. L-Bracket
35. Camera Quick Release Plate
36. Quick Release Plate Latch
37. Safety Lock

Battery and Charging

Please fully charge iSteady MT2 before using it for the first time.
Charging Method: To charge iSteady MT2, connect a USB adapter (Not included, 5V-2A for best) to the charging port with the provided Type A-Type C charging cable.

*NOT included in the package
Charging Display: Charging is completed once the light stops flashing and the OLED screen shows the battery icon is full.

Reverse Charging
(For Smartphone/Camera/Action Camera)
Connecting the charging cable to Type-C Reverse Charging Port of iSteady MT2.

Download the Hohem Joy App

Scan the QR code or search "Hohem Joy" in App Store or Google Play to download.

*The Hohem Joy App requires iOS 11.0 or later, Android 6.0 or later.

Mounting and Balancing

Attaching the Tripod

Attach the tripod to the bottom of the iSteady MT2 handle.

Unfold the tripod and place the iSteady MT2 on a flat surface.

Mounting A Camera

Unfold iSteady MT2

1. Folded Status
   Before mounting a camera, please unlock the roll and tilt motor lock switches to unlock the axes.

2. Unfolded Status
   Unfold the support mount base and roll axis arm. Then lock roll motor and tilt motor for installation of a camera.


Mounting the Quick Release Plate

1. Mount the camera onto the camera quick release plate, and tighten the screw.


   1. If you are using a long-focus lens and the camera is front-heavy, you can mount the screw with the camera at the end of the slot(as shown on the right), which makes sure more space to adjust the center of gravity for horizontal balancing.
   2. It is required to tighten the screw in case of stabilizer shaking when the stabilizer is powered on.
2. Loosen the L-Bracket with the thumb screw wrench (magnetically attached to the L-Bracket). Adjust the L-Bracket according to the width of the camera and tighten the screw after fitting properly.

3. Attach the camera with the quick release plate onto the L-Bracket.
4. Align the short arm of L-bracket against the handle side of the camera


Mounting onto the Stabilizer

1. Unlock the mount latch, and install the camera with L-Bracket on the mount.

2. Lock the mount latch to ensure that the camera is tightly installed on the stabilizer.

   *How to quick detach the camera from stabilizer
   Unlock the mount latch, and remove the camera and quick release plate as a whole while holding down the mount safety lock.


Connect the stabilizer to the camera with a control cable to enable control of the shutter and other functions from the stabilizer.

Scan the QR code to check the list of camera compatibility and control operations.

1. Type-C to Type-C, Type-C to Micro USB, and Type-C to Mini USB are camera charging cables. These cables can also be used for camera control.
2. Type-C to Multi is the control cable exclusively for Sony cameras, it allows to control certain Sony cameras to start/stop the filming.
3. Type C - TRRS (2.5mm), Type C - TRS (2.5mm), Type C - TRS (3.3mm) are camera control cables.

For more supported cameras of iSteady MT2 and its tutorial, please scan the QR code above to acquire up-to-date information.

Portrait Mode

1. Rotate the camera with L-Bracket 90° to switch to vertical shooting mode.

2. Insert the L-Bracket into the mount slot, and lock the mount latch.


iSteady MT2 offers dual-directional vertical installation with the L-bracket, allowing you to install it in the desired orientation based on your specific requirements.

1. Install the L-bracket on the left side. You can use the flip-out screen to view the composition.


2. Install the L-bracket on the right side. You can attach accessories to the hot shoe facing outward.



Mounting A Phone

Mount the Phone in Landscape Mode

1. Mount the phone on the phone quick release plate in the middle.

   * The clamp provides multiple mounting options for various accessories.
2. Attach the phone with the quick release plate onto the L-Bracket and lock the quick release plate latch.

3. Insert the L-Bracket into the mount slot, and lock the mount latch.


Mount the Phone in Portrait Mode

1. Rotate the phone with L-Bracket 90° to switch to vertical shooting mode.

2. Insert the L-Bracket into the mount slot, and lock the safety lock latch.


Mounting An Action Camera

Mount the Action Camera in Landscape Mode

1. Attach the tripod adapter to the folding fingers, then mount it onto the Arca-Swiss quick release plate(for camera) and lock it in place.

2. Attach the action camera with the quick release plate onto the L-Bracket and lock the quick release plate latch.

3. Loosen the L-Bracket with the thumb screw wrench(magnetically attached to the L-Bracket). Adjust the L-Bracket according to the width of the action camera and tighten the screw after fitting properly.

4. Insert the L-Bracket into the mount slot, and lock the mount latch.


Mount the Action Camera in Portrait Mode

1. Rotate the action camera with the L-Bracket 90° to switch to vertical shooting mode.

2. Insert the L-Bracket into the mount slot, and lock the safety lock.


Balancing

*Here we take the mirrorless camera as an example.
The steps to balance the phone and the action camera are basically the same.
Please scan the QR code for tutorial videos of balancing.

Tilt Axis Balancing

1. Vertical Balancing of the Tilt Axis

2. Horizontal Balancing of the Tilt Axis
   Make the camera lens point forward and check the center of gravity.


Balancing the Roll Axis

Balancing the Pan Axis

* After balancing iSteady MT2, if you need adjust the motor torque for proper using, please see the description in the chapter "How to Use the Stabilizer".

How to Use the Stabilizer

On-board Features

	Power Button Press and hold for 3 seconds: Power on/off *When Powered On Press twice: Enter the standby mode Press once: Wake up the stabilizer
	M (Mode) Button Press once: Switch between stabilizer modes (PF-PTF-L-POV) Press three times: "ICP" Inception mode/360° infinite spin shot (Press M button once or press trigger twice to recenter the stabilizer.) Press five times: Auto calibration Press seven times: Enter remote control pairing (*The remote control is available as an optional accessory.) Press nine times: Clear the paired remote control Long press: Enters submenu on the OLED display, press button A/B to switch submenu, push the joystick and single press M button to set motor torque, fine tune motor angle, and pair with GoPro camera.
	Joystick Push up & down: Tilt rotation control Push left & right: Pan rotation control
	Trigger Press on: Sport mode "S" Press twice: Recenter the stabilizer Press three times: Reverse 180° panning rotation After a quick short press, press and hold: Quick switch to All Lock Mode (Switch back to the previous gimbal mode after releasing the trigger.)
	Zoom Lever Lever up/down: Zoom in/out (T/W) (Please make sure that your camera is on the list of supported devices for control and that the control cable is connected. For smartphones, it's only available in the Hohem Joy app or on the native camera app of certain standard protocol phones with Android 10.0 or later versions. Please ensure Bluetooth is connected.) Shutter Half-press: Auto-Focus (Please make sure that your camera is on the list of supported devices for control and that the control cable is connected.) Press once: Start/Stop Recording Press and Hold for 1s: Take a photo (Please make sure that your camera is on the list of supported devices for control and that the control cable is connected. For smartphones, please confirm the Bluetooth is connected.) Press twice: Photo/video switch (For smartphones, it's only available in the Hohem Joy app or on the native camera app of certain standard protocol phones with Android 10.0 or later versions. Please ensure Bluetooth is connected.) Press three times: Front/rear camera switch (Only available in the Hohem Joy app or on the native camera app of certain standard protocol phones with Android 10.0 or later versions. Please ensure Bluetooth is connected.)
	Multifunctional Control Wheel Press twice: Focus/Roll switch Roll rotation: +/-45° Focus: Focus control (Please make sure that your camera is on the list of supported devices for control and that the control cable is connected. For smartphones, it's only available in the Hohem Joy app or on the native camera app of certain standard protocol phones with Android 10.0 or later versions. Please ensure Bluetooth is connected.) Long Press: Turn on/off the fill light (CCT/RGB) (Paired with the optional fill light.) Press three times: CCT/RGB switch (Paired with the optional fill light with AI tracking sensor) CCT: Press once the control wheel to adjust color temperature "K" and brightness"%". RGB: Press once the control wheel to adjust color value " ° " and brightness"%".
	Buttons for A-B motion For timelapse shooting, long-press button A/B to set the start/ end point to record the A-B motion timelapse. (It needs to be used separately from the app's timelapse video template.) Long press button A/B: A/B as start/end point (The short beep signifies the successful setting) Press button A/B once: Quickly return to the position A/B. Press button A/B twice: Return to the position A / position B from the current position at a constant speed. You will hear a short beep as the movement begins or ends. (Duration by default: 1 minute. You can customize duration in hohem Joy App.)

How to set Motor Torque, Motor Angle Fine-Tuning, and Gimbal Follow Speed

1. Long press the M button to enter the OLED submenu "Motor Parameter Settings".
2. Single press button A/B, select [Motor Torque], [Motor Angle Fine-Tune], [Gimbal Follow Speed], or [Camera Bluetooth Connection].

* Motor Torque: Select [Motor Torque], then use the Joystick to select the motor to adjust its torque. (To perform Auto Self-Adaption, select [AUTO] and press the M button to confirm. When the icon stops flashing, it represents the self-adaptation is completed.)
* Motor Angle Fine-Tuning: Select [Motor Angle Fine-Tuning], then use the Joystick to select the motor to adjust its angle.
* Gimbal Follow Speed: Select [Gimbal Follow Speed], then use the Joystick to select the motor to adjust its speed.

How to pair or unpair the camera Bluetooth

1. Turn on your camera's Bluetooth. (The menu options may vary on different camera models. Here we take Sony a7R Ⅳ as an example:
   1. (Network) → [Bluetooth] → [Bluetooth Function] → [ON]
   2. Bluetooth Pairing: (Network) → [Bluetooth] → [Pairing])
2. Long-press the M button on the iSteady MT2 handle to enter the OLED sub-menu.
3. Press the A/B button to enter the device pairing interface.
4. Use the Joystick to select [PAIR] or [UNPAIR], and press the M button to confirm the operation.

Modes Description

Pan Follow (PF)
Tilt & roll axis both are locked, and camera is able to move to left or right smoothly.

Pan&Tilt Follow (PTF)
Roll axis is locked, and camera is able to move to left/right, and tilt up/down.

All Lock (L)
Camera stays in its current orientation.

All Follow (POV)
Also known as first-person point of view. Tilt axis, roll axis and pan axis all follow the movement of the stabilizer.

Sport Mode(S)
The follow speed of the stabilizer increases for capturing quick-moving subjects and any fast paced action.

Inception (ICP)
360° infinite spinning on pan axis while holding the stabilizer horizontally.

Manual Tilt Adjustment

The tilt motor can be rotated by a certain angle by hand. Hold it for 2s and the camera tilt axis angle will be fixed at that angle.

How to Enable the AI Tracking

(AI vision sensor is optional)

1. Install Magnetic Fill Light with AI Vision Sensor (Sold separately)
   Keep the "hohem" mark upward and camera outward, then put the fill light on the magnetic joint.

2. Enable the AI vision sensor: Switch to "ON". (Indicator light turns red with fill light flashing twice.)

3. Gesture Control: Show gestures to the AI vision sensor from 0.5~1.5m (1.64ft-4.92ft) away.

4. Gesture "OK" to start the AI tracking (Indicator light turns green).

5. Gesture "PALM" to stop the AI tracking (Indicator light turns red).

6. Make the gesture in two hands to activate the photo timer. (Extend the thumb and smallest finger while holding the three middle fingers curled.)


After the indicator blinks for 3s and turns to solid, the camera automatically takes the photo or starts/stops recording without manually pressing the shutter button. (By using this, please make sure your gimbal is paired with a mobile phone or a camera.) You can use this gesture to control taking a picture or recording while using a mobile phone or action camera. But in a mirrorless camera, controlling recording is not available.

1. It is completely normal for the magnetic alignment to become a bit hot when fill light is in long-time use and hence.
2. DO NOT make a direct contact with the hot alignment, especially the metallic part.

FAQ

How to make AI vision positioning adjustments? (Customized Composition)
If the framed subject cannot be centered on the phone/camera screen, or you want to customize the AI vision position to be tracked:

1. Make sure the stabilizer & AI vision sensor are on.
2. Take the gesture towards the AI vision sensor and the indicator blinks green quickly.
3. Move in front of the screen until you find the preferred position to be tracked.
4. Show the gesture to lock the position and create ideal composition (the indicator stops flashing).

How to control AI Tracker by using iSteady MT2
When tracking other human subjects, you can use iSteady MT2 to start or stop the AI tracker.

1. Power on the gimbal and AI tracking sensor.
2. Let the subject make an "OK" gesture toward AI tracking sensor to confirm the tracking subject.
3. Press the M button twice to start or stop AI tracking.

* It is necessary to confirm the tracking subject at first by using the hand gesture command from the person being filmed.

OLED Display

Home Screen

1. Working Status of Control Wheel

2. Working Mode

   	Pan Follow Mode
   	All Lock Mode
   	Sport Mode
   	Pan & Tilt Follow Mode
   	All Follow Mode
   	Inception Mode

3. AI Tracker Status: Solid/Flashing: AI tracking Sensor Enabled
4. Mobile Phone Connection:
   Bluetooth Connected
   Bluetooth Disconnected
5. Camera Bluetooth Connection:
   Bluetooth Connected
   Bluetooth Disconnected
6. Battery Level:
   Current Level
   In Charging
   Low Battery

Others

1. Standby:

   Stabilizer enters standby mode
2. Pan Axis Latch:

   Pan axis is locked, unlock the Latch
3. Error:

   	Firmware error
   	Gyroscope error
   	Unbalancing/Motor Unlocking/Overloading (May be caused by external disturbance)
   	[-M1] Tilt Motor Unlocking
   	[-M2] Roll Motor Unlocking
   	[-M3] Pan Motor Unlocking

4. A-B Motion:

   Move to the position A from the current position at a constant speed.

   Move to the position B from the current position at a constant speed.
5. Auto Calibration:

   Calibrating
6. Firmware Update:

   Updating
7. Pair Remote Control (Sold Separately):

   Pairing

   Paired Successfully

   Pairing Failed
8. Motor Torque Adjustment:

   Motor torque level of each axis;
   AUTO represents the motor self-adaptation level (AUTO bars flashing represents motor self-adaptation is being performed; AUTO bars stop flashing represents the completion of self-adaptation).
9. Motor angle fine-tune:

   The current fine-tune value of angle for each motor
10. Follow Speed Level:

    Current following speed of each motor
11. Pairing & Clearing:
    (Camera & Action Carema)

    Signal strength icon flashing represents the stabilizer is pairing with GoPro, signal strength icon stop flashing and a "" showing represents successful pairing.
    (Note: If no camera is paired with stabilizer within 60 seconds, signal strength icon stops flashing and icon shows, which represents failed pairing;

    Clear the paired camera, "" represents successful unpairing.

How to Use the Hohem Joy App

Bluetooth Connection

1. Power on iSteady MT2.
2. Turn on Bluetooth on Mobile Phone.
3. Launch the App Hohem Joy and follow the prompts to connect iSteady MT2 device.

* If the stabilizer's Bluetooth cannot be found or if it is being occupied by another phone, you can try clearing the stabilizer's Bluetooth information to reconnect it.

1. Long-pressing the M button for five seconds while simultaneously pushing up on the Zoom lever.
2. The Bluetooth symbol "" on the display implies that the paired device has been cleared.

App Guidance

1. Switch between front camera and rear camera.
2. Smart Tracking: Auto face/framed object tracking
3. Settings: To set parameters for stabilizer and camera and to check out available firmware updates.
4. Focus/Zoom in or out
5. Beauty & Filters
6. Gesture Control: Gesture to enable countdown PHOTO/VIDEO. Gesture to stop it.
7. Moment mode: On-tap blockbuster with diverse templates in the Moment mode.

Auto Calibration & Firmware Update

Auto Calibration

Auto calibration could reduce drift or slight deviation caused by nearby magnetic interference or human error.
Calibration failure might happen if the stabilizer is not placed on a flat surface for calibration (e.g. calibration in a running vehicle).

1. Place stabilizer on a flat surface by means of a tripod.

2. Double press the trigger to recenter the stabilizer.

3. Press the M button five times to enable the auto calibration and you will hear a beep sound. Please do not touch the stabilizer during calibration.

4. The second beep indicates that the calibration is completed, and the stabilizer will be recentered automatically.


* If the calibration fails, the stabilizer will enter standby mode after two beeps. Press any button (except the joystick) to wake up the stabilizer. Then, repeat the calibration process following the steps mentioned above.

Firmware Update

You will be prompted in the Hohem Joy App if a new firmware update is available. Follow the on-screen instructions in the App to update firmware.

Specifications

CALL CENTER - Toll Free

UNITED STATES:
+1(888)9658512
Mon-Fri: 9:00AM-5:00PM (EST)

UNITED KINGDOM:
+44(0)808 2737578
Mon-Fri: 2:00PM-10:00PM (GMT +0)

CANADA:
+1(855)758-8939
Mon-Fri: 9:00AM-5:00PM (EST)

BRAZIL:
+55 (0)800 5911897
Mon-Fri: 10:00AM-6:00PM (GMT -3)

Scan the QR code to access the tutorial

Connect us at Facebook

Hohem Technology Co., Ltd.
Email: service@hohem.com
Website: www.hohem.com
