KTC G27P6 - Display Manual

Product Introduction

Overview

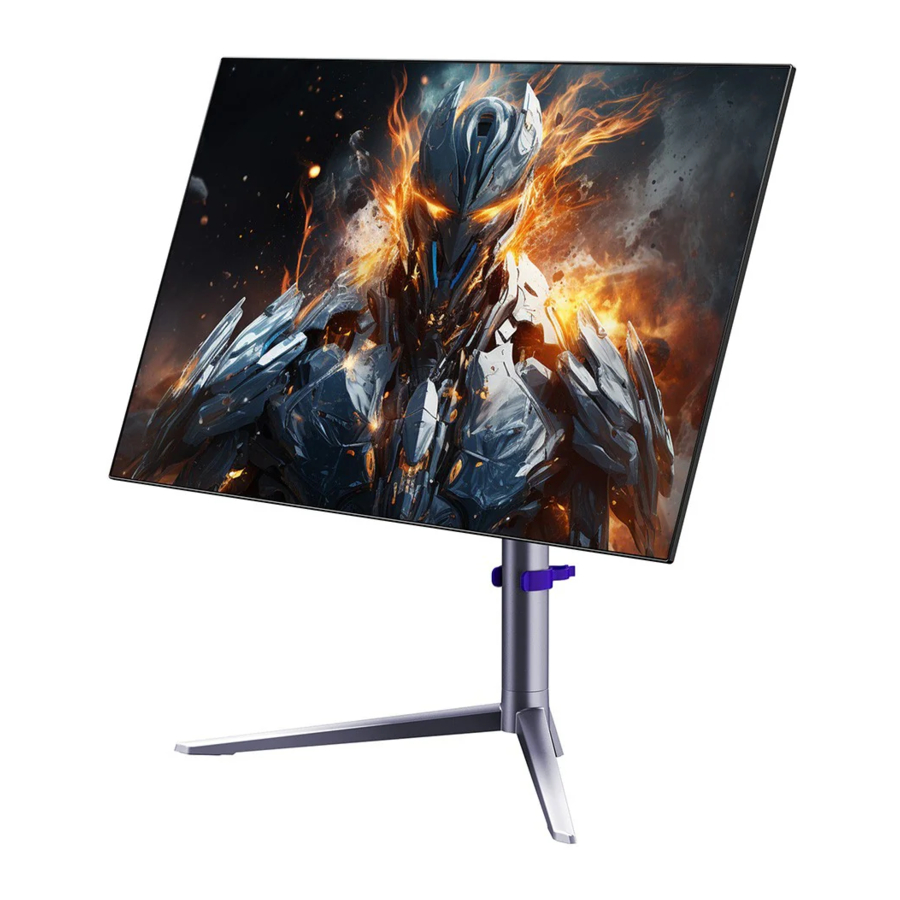

Adopting LG Display 27" OLED, G27P6 achieved a perfect display effect of OLED 2K and 240Hz high refresh rate.

Packing List

Before installation, please check whether the following articles are complete in the packing box:

• Monitor x1
• Base x1
• Warranty cord x1
• QSG x1
• User Guide x1
• DP Signal Coble x1
• Type-C Signal Coble x1
• HDMI Signal Coble x1
• Adaptor x1
• Power Cord x1

If any of above product is missing, please contact with product distributor immediately.
Notice: Specific accessories in order to prevail in kind. Please keep packing materials for future movement.

Installation and Connection

Display Installation

Installation Guide

• The display should be installed near an AC power socket that can be easily pluggable.
• It is recommended to use suitable wall mount brackets or a base for safety purpose.
• To prevent injury, the display should be placed on a smooth horizontal plane, or fixed on a firm wall.
• If you need to install it on a wall, it should be done by professional technicians. The improper display installation may cause instability.
• Do not place the display where it may be suffered from mechanical vibration.
• Do not place the display where insects may enter.
• Do not place the display directly facing an air conditioner, or the internal panel may condense, leading to faults.
• Do not place the display where there is a strong electromagnetic field, or it will be interfered with and damaged by the electromagnetic waves.

Signal Cable Connection

Connect the signal cable to the HDMI or DP signal output port on the PC, then connect the other end of the signal cable to the corresponding signal input port on the LCD.

Headset Connection

After connecting to the headset, there will be audio output, and it also supports external loudspeakers.

USB Connection

Use the USB 3.0 Type-B cable to connect the USB uplink port on display with the USB port on the case, or use the Type-C cable to connect the
Type-C port on display with the USB port on the case. Switch a port corresponding to KVM through the joystick to enable the USB port on display to transmit data.

DispIay Operation

The joystick is shown as in the figure. For the models of the same series, only the key positions and the frame styles are different. Refer to the actual situation for details.

Power Indicator

The blue indicator represents the proper functioning of the display; the red flash indicator represents no signal state. Under the energy conservation state, the display will normally work if the signal is provided again. The display is still powered on in the standby state. Thus, unplug the power cord when you do not use the display for safety.

Key Function Introduction

Initial Status:

Enter the Function Menu:

Safety Protection

When the PC video signal exceeds the frequency range of the display, the display will disable the line and field synchronizing signals to protect the display. Under this circumstance, you must set the output frequency of the PC to an acceptable range for the display to work properly.

Simple Problems Disposal

Product Technical Specifications

Power Management System

Instruction for base installation

Important Safety Precautions

1. Please read all the instructions carefully before using the product.
2. When cleaning the display, please unplug the power cord. Please wipe the display with a soft wet cloth instead of liquid or spray cleaner. Please use LCD screen cleaner in case of a stubborn stain.
3. Do not use accessories that ore not recommended by the manufacturer, or there may be dangerous.
4. When unplugging the power cord of the display or the power adapter, please hold the power plug with your hand rother than directly pull the power cord to unplug it.
5. Do not ploce the display near water, such as bathtub, washbasin, kitchen sink, or washing machine. Do not place the display on the wet ground, or near the swimming pool. Do not use fingers or hard objects to press the surface of the LCD screen.
6. The grooves and holes on the shell or ot the bock and bottom of the display are designed for the ventilation and heat dissipation of the components to ensure reliable operation. So, do not put the display on the bed, sofa, carpet, or other similar surfaces to prevent the heat dissipation holes from blocking and do not place the display near or above the radiator or heater. In addition, do not ploce the display in an embedded device unless adequate ventilation is provided.
7. Only the power supply type shown on the nameplate can be used for the display. Please feel free to consult the display dealer or the local power supply administration, if you have any doubts about your power supply type.
8. For safety, the display or the power adopter uses a power cord with o three-prong plug, whose third prong can only be properly grounded when used with a properly grounded socket. If your socket cannot match with the plug, please contact an electrician to replace your original socket so that the plug con give full play to ensuring safety.
9. As you may face high voltage or other dangers after removing the shell, do not repair the display by yourself. You can have it repaired by qualified maintenance personnel.
10. Pleose unplug the power cord of the display or the power adopter from the socket, and contact qualified maintenance personnel for repairing the display, when following cases occur:
    1. The power cord or the plug is damaged or worn out.
    2. The display hos been dropped from high or the shell is damaged.
    3. Any obvious abnormality indicates a necessary repair.
11. Please place the display in o well-ventilated environment, which is away from strong light, high temperature, or humidity.
12. The room temperature for the display store is -10°C ~ 60°C, or it may be permanently damaged.
