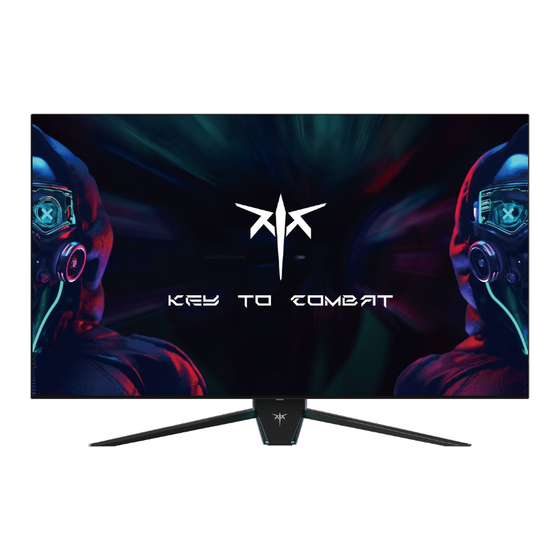

G48p5s oled displays

Advertisement

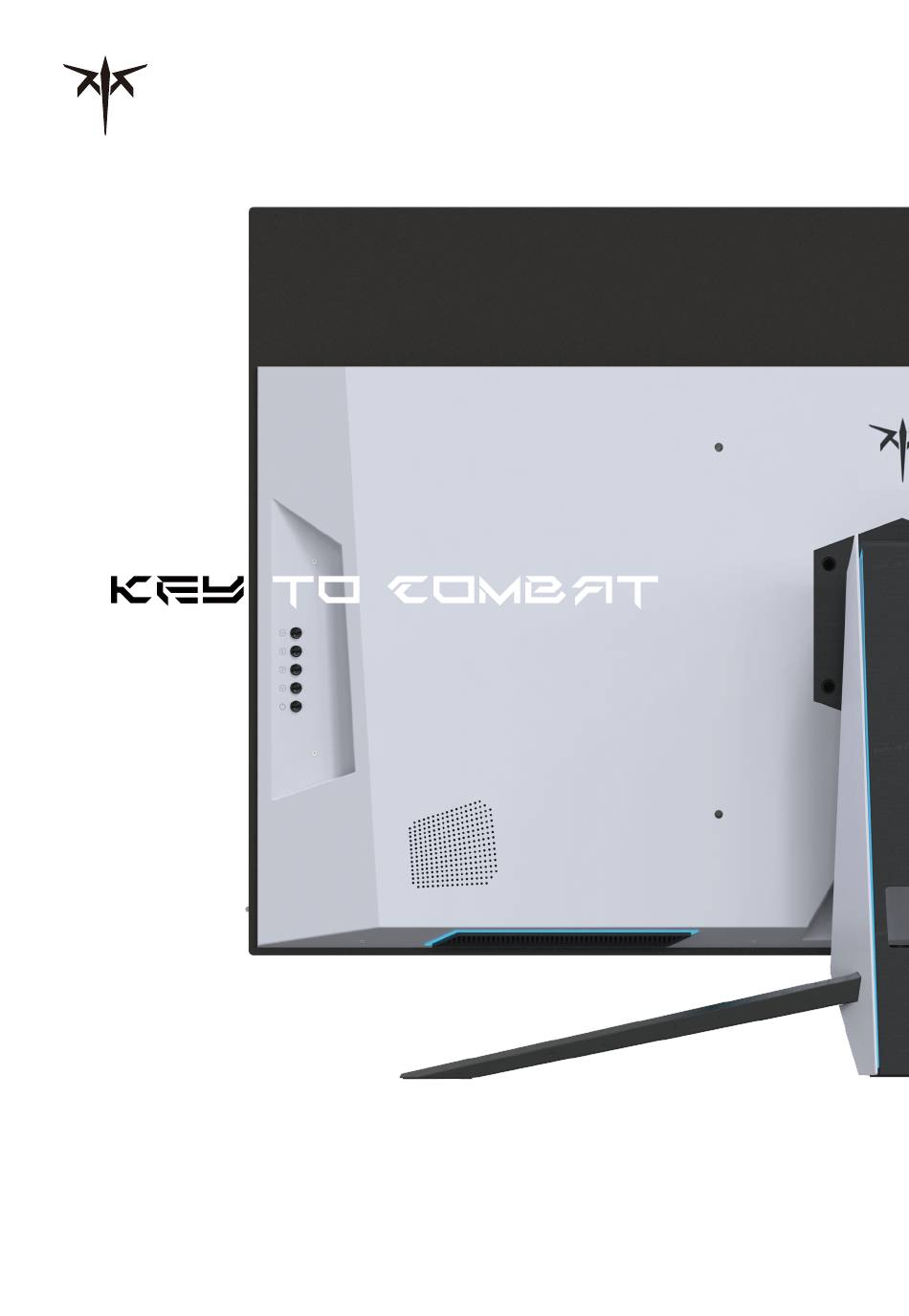

G48P5S OLED
Display User Guide
The content of the instruction manual is for reference only,
everything is subject to the real thing.
The final interpretation right belongs to Shenzhen KTC Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G48P5S OLED and is the answer not in the manual?

Questions and answers

Summary of Contents for KTC G48P5S OLED

  • Page 1 G48P5S OLED Display User Guide The content of the instruction manual is for reference only, everything is subject to the real thing. The final interpretation right belongs to Shenzhen KTC Technology Co., Ltd.
  • Page 2 Welcome to use KTC G48P5S OLED...
  • Page 3 G48P5S Designed By KTC Adopting LG Display 48'' OLED, G48P5S achieved a perfect display effect of OLED 4K HD and 120Hz high refresh rate. To provide the extreme gaming experience for the console players, the mainboard interface is adopted HDMI 2.1, also it supports Type-C 90W reverse power supply, enabling users to...
  • Page 4 48" OLED 48" OLED Benefit from the technical expertise of KTC, the 48" OLED display adopted a professional Benefit from the technical expertise of KTC, the 48" OLED display adopted a professional display solution. With DP, HDMI and Type-C multi-port, it can meet the needs of console, display solution.
  • Page 5: Packing List

    User Manual Appearance Packing List Product Warranty Card KTC G48P5S Quick Start CHECKER: Notice: Please fill out the card and return it to us, when you apply for a warranty. Display User Guide Warranty Card Remote Control ×1 ×1 ×1 ×1...
  • Page 6: Installation Instruction

    Installation Instruction Instruction for wall mount installation (optional) Please follow the arrow indicator to take out the display Recommended screw size (M6, required screwing depth is 10 ~ 15mm) Pitch-row of wall mount 100×100mm/300×300mm...
  • Page 7 Instruction for base installation (optional) Long Screws (M5×35mm) Short Screws (M5×15mm) Please follow the arrow indicator to take out the display...
  • Page 8 Instruction for third-party brackets installation (optional) Use M5 screws 100×100mm Use M6 screws 300×300mm...
  • Page 9: Port Introduction

    Port Introduction USB3.0 EARPHONE UpStream DP1.4 USB3.0×2 3840×2160@120Hz Type-C 3840×2160 HDMI2.1×2 90W PD 3.0 reverse power supply 3840×2160@120Hz Note: KVM switches to Type-C USB2.0, Type-C supports up to 3840x2160@4K 120Hz KVM switches to Type-C USB3.0, Type-C supports up to 3840x2160@4K 60Hz...
  • Page 10: Specification List

    Specification List Panel Technologies OLED: Organic light-emitting diodes Diagonal dimension 47.53" Best Operating Resolution Ratio 3840×2160@120Hz Power AC 110-220V 50Hz/60Hz 3A Contrast 135,000:1 Visible Area 1052.16mm×591.84mm Pitch size for wall mount 100mm×100mm 300mm×300mm Loudspeaker 2×15W Packing Dimension (W×H×D) 1230×770×140mm Display Dimension (W×H×D) 1068.46×611.84×50.2mm Display Dimension (with base) 1068.46×713.24×303.86mm...
  • Page 11: Signal Source Selection

    Remote menu/Functional keys button Signal Source Selection The button will become the function key of “Up Arrow” upon you open the main menu. The button will become the function key of “Right Arrow” upon you open the main menu. Game The button will become the function key of “Left Arrow”...
  • Page 12: Remote Control

    Remote Control Turn on/off Turn on/off Display Direction and OK Direction and OK Signal Source Switch Open Signal Source Input Menu Return Return or Exit Menu Menu Open Menu Mode Gaming Assistant Show Crosshair, Frames, or other gaming assistances Switch to Multiple Device Control with Key & Mouse Turn off Screen Turn off the Screen to enter Blank Screen Mode Enable HDR...
  • Page 13 Indicative Description of The Regulations for the Administration of the Recovery and Disposal of Waste Electrical and Electronic Products To care for and protect the earth better, please send it to a local manufacturer with nationally recognized qualification for recycling according to the national applicable laws and regulations on recycling of waste electrical and electronic products when you no longer need this product or at the end of its service life.
  • Page 14: Important Safety Precautions

    Important Safety Precautions 1.Please read all the instructions carefully before using the product. 2.When cleaning the display, unplug the power cord. Wipe the display with a soft wet cloth instead of liquid or spray cleaner. Use LCD screen cleaner in case of a stubborn stain. 3.Do not use accessories that are not recommended by the manufacturer, or there may be dangerous.
