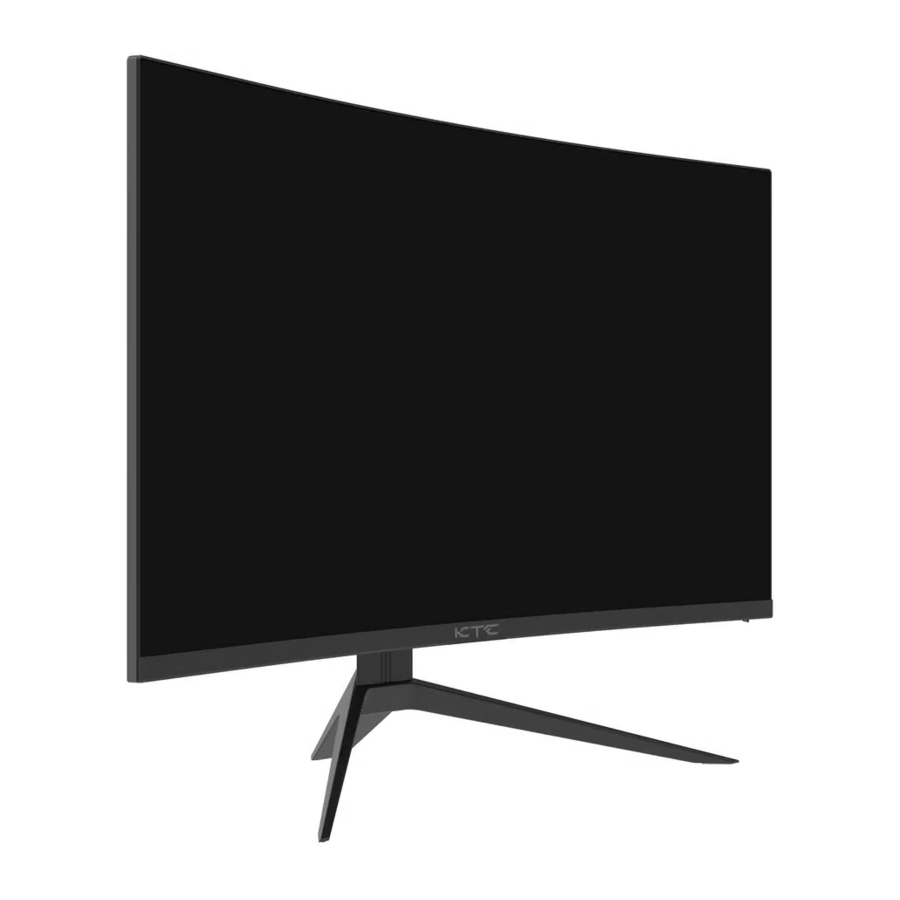

It is a kind of high-performance intelligent multiple frequency scanning display, which adopts active matrix thin film transistor LED-backlit LCD. The display is controlled through the microcomputer MCU digital technology. It is compact and lightweight, which is suitable for narrow working spaces.
Before installation, please check whether the following articles are complete in the packing box:
If any of above product is missing, please contact with product distributor immediately.
Notice: Specific accessories in order to prevail in kind. Please keep packing materials for future movement.
Installation Guide
Connect the signal cable to the HDMI or DP signal output port on the PC, then connect the other end of the signal cable to the corresponding signal input port on the LCD.
After connecting the headset, there will be audio output, and it also supports external loudspeakers.
The USB port is only used to update display firmware from a USB mobile device. DO not insert any other devices.
The joystick is shown as in the figure. For the models of the some series, only the key positions and the frame styles are different. Refer to the actual situation for details.
The blue indicator represents the proper functioning of the display; the red flash indicator represents no signal state. Under the energy conservation state, the display will normally work if the signal is provided again. The display is still powered on in the standby state. Thus, unplug the power cord when you do not use the display for safety.
Initial Status:
Joystick Upward | Shortcut Menu for Signal Source |
Joystick Downward | Shortcut Menu for Volume |
Joystick Leftward | Shortcut Menu for Gaming Assistance |
Joystick Rightward | Preset shortcut keys |
Press Joystick | Turn on the display/Show the menu by short-pressing, turn off the display by pressing and holding for 3 seconds |
Enter the Function Menu:
Joystick Upward | Move upward/Adjust the value of the selected item |
Joystick Downward | Move downward/Adjust the value of the selected item |
Joystick Leftward | Return the previous menu |
Joystick Rightward | open/OK |
Press Joystick | Turn off the display by pressing and holding for 3 seconds |
When the PC video signal exceeds the frequency range of the display, the display will disable the line and field synchronizing signals to protect the display. Under this circumstance, you must set the output frequency of the PC to on acceptable range for the display to work properly.
Symptoms | Disposal Methods |
Blank screen /Power indicator does not work | Check whether the power supply is in good contact with the display and the power socket; and check whether the display is turned off. |
Blurred too large or too small images | Go to the "Image Settings" category menu and select "Image Auto Adjust" to make the monitor adjust automatically to correct. (Only available for monitors with VGA) |
Dark screen | Enter the "Brightness & contrast" menu to regulate the contrast and the brightness of the display. |
Display overheating | Leave at least 5cm of ventilated space around the display. DO not place articles on the display. |
Dark/light spots when powered on | It is normal. Because of the temperature difference in the environment, the backlit tube emits uneven light at the initial stage after the display turns on. However, the backlit tube will emit normal light after 20 minutes, and the dark/light spots will be eliminated at that time. |
Image distortion, flashing, shaking | Check your computer configuration, choose the correct resolution, and reset your refresh rote. |
Noisy signal when powered off | During the power-off of the display, there may be some noisy signals on the screen caused by the normal discharge. |
Panel Dimension | 31.5" |
Best Operating Resolution Ratio | 2560x1440 @ 165Hz |
Input Voltage | DC 19V / 3.42A |
Contrast | 3500: 1 (TYP) |
Visible Area | 697.344mm x 392.256mm |
Pitch size for wall mount | 100mmx100mm |
Maximum elevation | 5000m |
Working condition | Temperature: 0ºC - 40ºC Humidity: 20% - 85% Atmosphere: 86kPa - 104kPa |
Storage condition | Temperature: -10º- 60ºC Humidity: 10% - 90% Atmosphere: 86kPa104kPo |
Pocking Dimension (WxHxD) and Weight Display Dimension (WxHxD) (excluding base) Pocking Dimension (WxHxD) Net Weight of Display (including base) Packing weight | 711xa22x106mm 790x535x170mm 6.0Kg 7.9Kg |
Power Management System
Mode | Power Consumption |
Normal Operation | ![]() |
Standby | ![]() |
Remark: All technical specifications in the User Guide and on the external packing are allowed to change without prior notice. If there is o subtle difference between the User Guide and the actual operation, the latter shall prevail.
