Warning of electrical voltage
This symbol indicates dangers to the life and health of persons due to electrical voltage.
Warning of hot surface
This symbol indicates dangers to the life and health of persons due to hot surface.
This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death.
This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury.
Note
This signal word indicates important information (e.g. material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry out your tasks quickly and safely.
The electric heater serves to generate and distribute warm air, e.g. in interior spaces.
The device generates heat by means of a heating element. The air surrounding the heating element is heated. The heated air is blown into the room by a fan.
The device is equipped with an integrated thermostat and so generates a constant flow of warm air.
Fan operation without heating function is also possible.
The device TDS 10 cannot be used in fan mode without heating function.

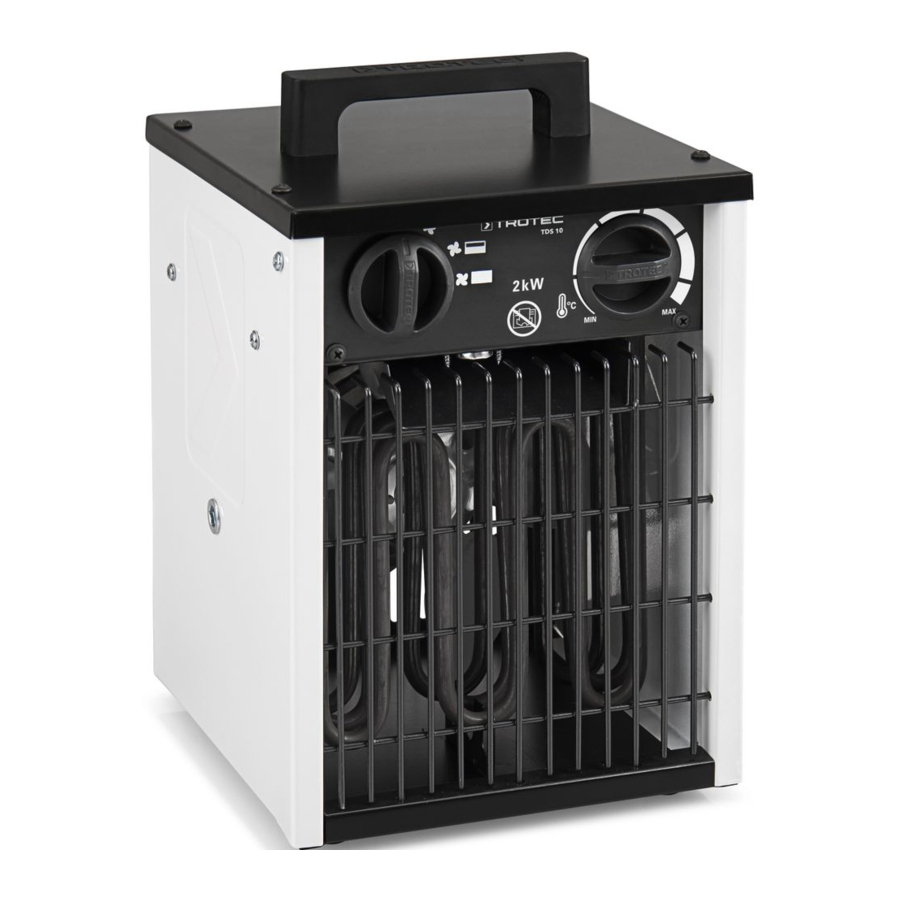

TDS 10
TDS 20
TDS 30
TDS 50
No. | Designation |
1 | Transport handle |
2 | Rotary switch temperature |
3 | Air outlet |
4 | Selection switch ventilation and heating levels |
5 | Air baffle |
6 | Air inlet |
7 | Carrying handles |
Note
If you store or transport the device improperly, the device may be damaged.
Note the information regarding transport and storage of the device.
To make the device easier to transport, it is fitted with a carry handle.
Before transporting the device, observe the following:
Before storing the device, proceed as follows:
When the device is not being used, observe the following storage conditions:
Odours might arise upon initial start-up or after a longer period of non-use.
When positioning the device, observe the minimum distance from walls or other objects as described in the Technical data chapter.
Connecting the power cable
TDS 10
No. | Designation | Meaning |
2 | Rotary switch temperature | For setting the temperature via the room thermostat |
4 | Selection switch ventilation and heating levels | For selecting the heating levels and ventilation 0: OFF ![]() ![]() ![]() |
TDS 20
TDS 30
TDS 50
No. | Designation | Meaning |
2 | Rotary switch temperature | For setting the temperature via the room thermostat |
4 | Selection switch ventilation and heating levels | For selecting the heating levels and ventilation 0: OFF ![]() ![]() ![]() |
8 | Reset button | Resets the internal thermostat within the TDS 50. |
Switching the device on
Once you have completely installed the device as described in the Start-up chapter, you can switch it on.
Setting the heating level
Setting the room thermostat
TDS 10 and TDS 20
The room thermostat controls the room temperature automatically:
TDS 30 and TDS 50
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
TDS 10
TDS 20 / TDS 30 / TDS 50
Warning of electrical voltage
Tasks which require the housing to be opened must only be carried out by authorised specialist companies or by Trotec.
The device has been checked for proper functioning several times during production. If malfunctions occur nonetheless, check the device according to the following list.
The device does not start:
The device is switched on, the fan is operating, the heating is not:
The fan is not running:
The air current is reduced:
The device is loud or vibrates:
Note
Wait for at least 3 minutes after maintenance and repair work. Only then switch the device back on.
Your device still does not operate correctly after these checks?
Please contact the customer service. If necessary, bring the device to an authorized specialist electrical company or to Trotec for repair.
Maintenance and care interval | before every start-up | as needed | at least every 2 weeks | at least every 4 weeks | at least every 6 months | at least annually |
Check air inlets and outlets for dirt and foreign objects and clean if necessary | X | |||||
Check air inlet grid(s) for dirt and foreign objects and clean if necessary | X | X | ||||
Clean the exterior | X | X | ||||
Visually check the inside of the device for dirt | X | X | ||||
Check for damage | X | |||||
Check the attachment screws | X | X | ||||
Test run | X |
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
Warning of electrical voltage
Tasks which require the housing to be opened must only be carried out by authorised specialist companies or by Trotec.
Warning of electrical voltage
Never immerse the device in water!
Clean the housing with a soft, damp and lint-free cloth. Ensure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth.
Wipe the housing dry after cleaning.
Parameter | Value | ||||
Model | TDS 10 | TDS 20 | TDS 30 | TDS 50 | |
Heating capacity | level 1: | 650 W | ventilation only | ventilation only | ventilation only |
level 2: | 1300 W | 1650 W | 2750 W | 4500 W | |
level 3: | 2000 W | 3300 W | 5500 W | 9000 W | |
Air flow rate | 186 m3/h | 335 m3/h | 458 m3/h | 708 m3/h | |
Operating range | -20°C to +40°C | -20°C to +45°C | -20°C to +45°C | -20°C to +45°C | |
Mains connection | 1/N/PE~ 230 V, 50 Hz | 1/N/PE~ 230 V, 50 Hz | 3/PE~ 400 V, 50 Hz | 3/PE~ 400 V, 50 Hz | |
Max. power input | 2000 W | 3300 W | 5500 W | 9000 W | |
Nominal current consumption | 8.7 A | 14.4 A | 8 A | 13 A | |
Fusing | 16 A | 16 A | 10 A | 16 A | |
Plug type | CEE 7/7 | CEE 7/7 | CEE 16 A, 5-pin | CEE 16 A, 5-pin | |
Cable length | 1.35 m | 1.35 m | 1.35 m | - | |
Sound pressure level (at a distance of 1 m) | 46 dB(A) | 46 dB(A) | 51 dB(A) | 52 dB(A) | |
Weight | 3.5 kg | 5 kg | 6 kg | 9.5 kg | |
Dimensions (length x width x height) | 210 x 195 x 310 mm | 265 x 255 x 395 mm | 270 x 255 x 400 mm | 283 x 355 x 515 mm | |
Minimum distance to walls and other objects | top (A): | 50 cm | 50 cm | 50 cm | 50 cm |
rear (B): | 50 cm | 50 cm | 50 cm | 50 cm | |
sides (C): | 50 cm | 50 cm | 50 cm | 50 cm | |
front (D): | 50 cm | 50 cm | 50 cm | 50 cm |
TDS 10/TDS 20
TDS 30
TDS 50
Note!
The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.
TDS 10
Spare parts list TDS 10
NO. | SPARE PART | QTY. |
1 | Front Grill | 1 |
2 | Switch Knob | 1 |
3 | Thermostat Knob | 1 |
4 | Control Panel | 1 |
5 | Left Panel | 1 |
6 | Re-Set Thermostat | 1 |
7 | Switch | 1 |
8 | Mi-Metal Thermostat | 1 |
9 | Top Panel | 1 |
10 | Handle | 1 |
11 | Middle Panel | 1 |
12 | Power Cord | 1 |
13 | Wiring Terminal | 1 |
14 | Back Grill | 1 |
15 | Protection Cover | 1 |
16 | Motor | 1 |
17 | Fan | 1 |
18 | Right Panel | 1 |
19 | Pull Rivet Nuts | 2 |
20 | Stopple | 2 |
21 | Heating Element | 3 |
22 | Bottom Panel | 1 |
23 | Rubber Feet | 4 |
TDS 20
Spare parts list TDS 20
NO. | SPARE PART | QTY. |
1 | Front Grill | 1 |
2 | Protection Cover | 1 |
3 | Knob | 2 |
4 | Control Panel | 1 |
5 | Left Panel | 1 |
6 | Re-Set Thermostat | 1 |
7 | Switch | 1 |
8 | Bi-Metal Thermostat | 1 |
9 | Top Panel | 1 |
10 | Handle | 1 |
11 | Middle Panel | 1 |
12 | Power Cord | 1 |
13 | Wiring Terminal | 1 |
14 | Sensor Holder | 2 |
15 | Back Grill | 1 |
16 | Right Panel | 1 |
17 | Pull Rivet Nuts | 2 |
18 | Stopple | 2 |
19 | Motor | 1 |
20 | Air Flue | 1 |
21 | Fan | 1 |
22 | Heating Element | 2 |
23 | Bottom Panel | 1 |
24 | Rubber Feet | 4 |
TDS 30
Spare parts list TDS 30
NO. | SPARE PART | QTY. |
1 | Control Panel | 1 |
2 | Left Panel | 1 |
3 | Switch | 1 |
4 | Adjustable Thermostat | 1 |
5 | Binding Post | 1 |
6 | Binding Post Components | 1 |
7 | Binding Post Pine | 1 |
8 | Re-set Thermostat | 1 |
9 | Protection Cover | 1 |
10 | Top Cover | 1 |
11 | Fixed Support | 2 |
12 | Handle | 1 |
13 | Middle Panel | 1 |
14 | Protection Bush | 1 |
15 | Wire Fixing Plate | 1 |
16 | Relay | 1 |
17 | Industrial Plug | 1 |
18 | Back Grill | 1 |
19 | Power Cord | 1 |
20 | Right Panel | 1 |
21 | Heat Insulation Plate | 1 |
22 | Motor | 1 |
23 | Fan Support | 1 |
24 | Feet | 4 |
25 | Bottom Panel | 1 |
26 | Fan | 1 |
27 | Bottom Thermal Baffle | 1 |
28 | Heating Element | 3 |
29 | Front Grill | 1 |
30 | Thermostat Knob | 1 |
31 | Sealing Ring | 2 |
32 | Switch Knob | 1 |
TDS 50
Spare parts list TDS 50
NO. | SPARE PART |
1 | Front Grill |
2 | Knob |
3 | Control Panel |
4 | Heat Insulation Plate |
5 | Left Panel |
6 | Switch |
7 | Capillary Thermostat |
8 | Support for Non-self resetting Thermostat |
9 | Holder for Non-self resetting thermostat |
10 | Lock |
11 | Top Panel |
12 | Time Delay Thermostat |
13 | Non-self resetting Thermostat |
14 | Back Plate For Plug |
15 | Relay |
16 | Middle Panel |
17 | Time Delay Thermostat |
18 | Industrial Plug |
19 | Back Grill |
20 | Motor |
21 | Metal Handle |
22 | Right Panel |
23 | Plastic Gasket |
24 | Tube Cover |
25 | Pull Rivet Nuts |
26 | Stoplle |
27 | Air Flue |
28 | Fan |
29 | Heating Element |
30 | Bottom Panel |
Read this manual carefully before starting or using the device. Always store the manual in the immediate vicinity of the device or its site of use!
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
Do not use the device in small rooms if persons are present who cannot leave the room independently and who are not under constant supervision.
Only use the device for heating closed rooms whilst adhering to the technical data.
Intended use comprises heating the air in:
People who use this device must:
Maintenance tasks which require the housing to be opened must only be carried out by specialist electrical companies or by Trotec.
Symbols | Meaning |
![]() | This symbol located on the device indicates that it is prohibited to place objects (such as towels, clothes etc.) above or directly in front of the device. In order to avoid overheating and fire hazards, the heater must not be covered. |
Warning of electrical voltage
Work on the electrical components must only be carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug from the mains socket!
Hold onto the mains plug while pulling the power cable out of the mains socket.
Warning of hot surface
Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present!
Improper handling entails a risk of burning and electric shock.
Only use the device as intended!
Dangers can occur at the device when it is used by untrained people in an unprofessional or improper way! Observe the personnel qualifications!
The device is not a toy and does not belong in the hands of children.
Risk of suffocation!
Do not leave the packaging lying around. Children may use it as a dangerous toy.
Improper installation entails a risk of fire.
Do not place the device on combustible ground.
Do not place the device on high-pile carpets.
In order to avoid overheating and fire hazards, the device must not be covered!
The device is provided with a safety thermostat, which is activated by overheating of the device. In such an event the device switches off automatically.
When the safety thermostat is activated, allow the device to cool down. Only then start to look for the cause of overheating. Should the problem persist, please contact the customer service.
Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
T +49 2452 962-400
F +49 2452 962-200
info@trotec.com
www.trotec.com
