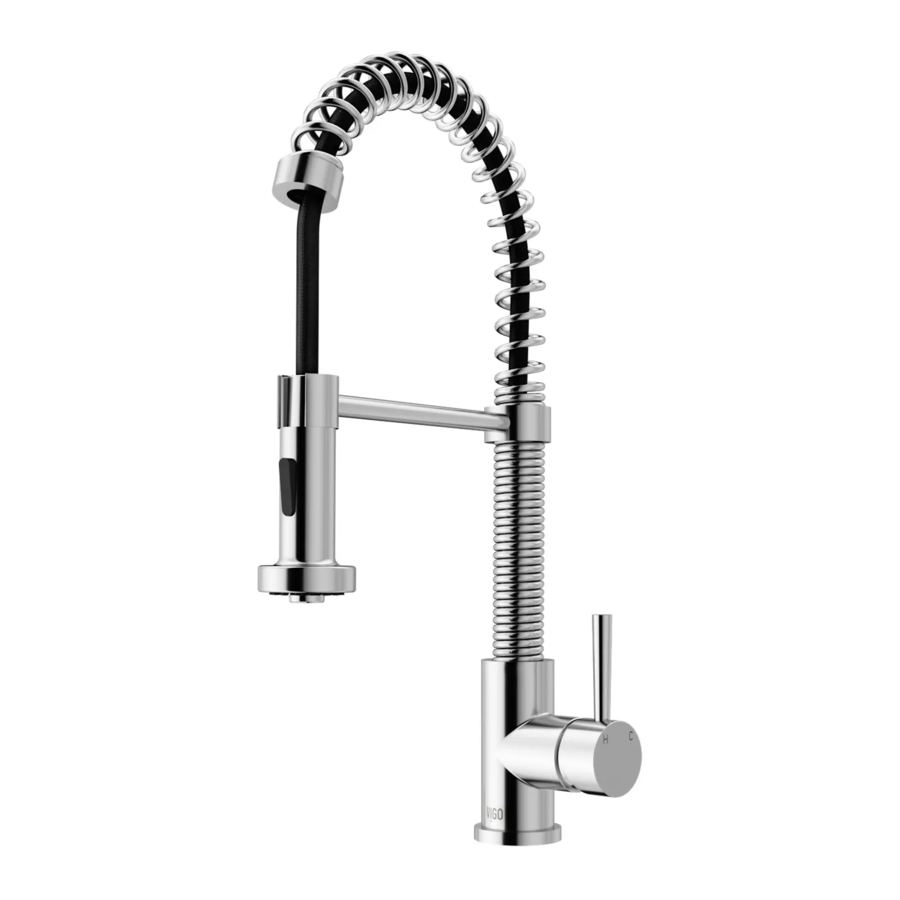

vigo Edison VG02001 - Kitchen Faucet Manual

PRODUCT FEATURES

  • Single hole mount with easy installation
  • 1.8 gpm flow rate
  • Dual-action, pull-down spray head is extendable up to 30"
  • Solid brass construction makes this faucet durable and easy to clean
  • Features smart handle lever design to allow for tighter space installation
  • Premium finish resists corrosion and tarnishing
  • All VIGO Kitchen Faucets feature a quality-assured Limited Lifetime Warranty

PACKING LIST

  • Faucet Assembly
  • Sprayer
  • Two Metal Braided
  • Counterweight
  • Plastic Holder

TOOLS

  • Adjustable Wrench
  • Eye Protection
  • Safety Gloves
  • Plumber's Putty (Optional)
  • Pipe Tape
  • Flat Screwdrivers

REGISTER YOUR PRODUCT

In order to activate your warranty, you must register your product.

vigoindustries.com/register

Dimensions

Dimensions - Front View
FRONT VIEW

Dimensions - Side View
SIDE VIEW

FAUCET MEASUREMENTS
Faucet height 18 1/2"(467mm)
Spout reach 8 1/4"(209mm)
Water supply connection 3/8"
Spout Swivel 360°
Hose length 30"
FAUCET SPECIFICATIONS
Flow ratet 1,8 gal/min
Pressure 60 psi
Valve body Brass / Lat6n / Laiton
Installation compatibility 1-, 2-, 3- and 4-hole sink
Spray mode Spray or Steam
Spout type Pull-down

Parts List

Parts List

1 74001 Spray Hose
2 74006 Sprayer
3 78009 Handle Assembly
4 74035w Cartridge
5 74052 Counterweight
6 78108 Mounting Assembly
7 74058 Plastic Support Holder
8 74027 Plastic Sprayer Holder
9 74020 Supply Hoses

Installation Steps

Installation must be done by a qualified licensed plumber.

Preparation

Installation Steps - Step 1 - Preparation

  1. Turn off hot and cold water lines
  2. Unscrew hoses
  3. Remove the hoses
  4. Remove old tape from hot and cold threads

Cold and hot hose installation to the unit

Installation Steps - Step 2

  1. Wrap plumbers tape onto cold and hot pipe threads
  2. Place the hoses
  3. Screw on hoses to cold and hot pipe threads

Unit placement

Installation Steps - Step 3 - Unit placement

  1. Place faucet into hole of countertop
  2. Set faucet in place on countertop with handle to right side

Securing the unit

Installation Steps - Step 4 - Securing the unit

  1. Place plastic holder, rubber ring, metal ring and brass nut onto large threaded pin at the bottom of the faucet
  2. Secure the faucet by tightening the brass nut

Installing spray hose

Installation Steps - Step 5

  1. Wrap tape on sprayer hose threads
  2. Place the spray hose
  3. Screw spray hose into sprayer pipe

warning Depending on the configuration of your faucet hose/clip setup, you may use either Counterweight installation Option A or Option B.

Counterweight installation

  1. Clipping
    Installation Steps - Step 6 - Clipping
    1. Place the counterweight on the spray hose
    2. Clip and lock the counterweight onto the spray hose
  2. Screwing
    Installation Steps - Step 7 - Screwing
    1. Unscrew all screws from the counterweight and separate before installation
    2. Place the counterweight on the spray hose
    3. Fasten screws into the counterweight

Open the water lines

Installation Steps - Step 8 - Open the water lines

  1. Wrap tape on cold and hot pipe threads
  2. Place the hose
  3. Screw the hoses onto cold and hot threads
  4. Open cold and hot water lines

Troubleshooting

VIGO takes pride in manufacturing the highest quality product. Over time, your product may need servicing. Let us help you find a solution to the issue you're having. If the issue you're experiencing isn't noted here, please contact VIGO Customer Service.

Description Cause Solution
  1. Leaks from handle

  1. Cartridge unseated
  1. Remove cartridge from housing, wash thoroughly with hot water and reseat in housing.
  1. Cartridge defective
  1. Contact VIGO Product Support for replacement.
  1. Insufficient flow rate

  1. Clog in supply hose line
  1. Remove supply lines and flush lines
  1. Leak at connection points

  1. Flexible hose leaking at connection point
  1. Tighten hoses If this does not resolve the issue, remove the flexible hose and rethread, checking to make sure the connection is secure. Make sure to use pipe tape
  1. Washer defective
  1. Remove supply line and check the status of the washer. If torn, washer must be replaced for a secure, non leaking connection.
  1. Mounting hardware became loose
  1. From under the counter, use an adjustable wrench and tighten the mounting hardware. Make sure the faucet is perpendicular to the counter.
  1. Loose handle

  1. Set screw has become loose
  1. Take off hot/cold cover on handle. This will give you access to the screw that connects the handle to the cartridge. Using either an allen key or a flat head screw driver, tighten the screw so handle has firm connection to cartridge.

We hope you love your new VIGO item as much as we do!
Feel free to leave a review on vigoindustries.com and don't forget to share any photos on Instagram with #vigoindustries.
The best renovations will be featured on blog.vigoindustries.com and @vigoindustries social media.

Share your VIGO product and tag
#vigoindustries
for a chance to be featured.


vigoindustries

SAFETY TIPS

Installation must be done by a qualified licensed plumber. Prior to installation please read the instructions thoroughly, confirm that all parts are included and visually inspect the unit for any defects. If you have any questions please contact the VIGO Technical Support Department before proceeding with installation.
If you use soldering for the installation of the faucet, the seats, cartridges and washers will have to be removed before using flame. Damage caused by improper soldering will void the warranty. Protect your eyes with safety glasses when cutting or soldering water supply lines.

CLEANING RECOMMENDATION FOR THE PRODUCTS

Modern faucets and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and reclamations, it is necessary to consider certain criteria when cleaning. Be sure to avoid using abrasive materials while cleaning VIGO products.

REGISTER YOUR PRODUCT
IN ORDER TO ACTIVATE YOUR WARRANTY YOU MUST REGISTER YOUR PRODUCT
VIGOINDUSTRIES.COM/REGISTER/

CLEANING INSTRUCTIONS

Please follow the instructions on your cleaning materials In addition, pay attention to the following points:

  • Clean the faucets and showers as needed and when required.
  • The amount of cleaning product needed and the time the cleaner needs in order for effective cleaning to take place should be adjusted according to products; cleaning product should not be left on VIGO product longer than necessary.
  • Clean regularly to prevent calcification.
  • When using spray cleaner, spray first onto a cloth or sponge - never directly spray onto the sanitary tapware as drops could enter openings and gaps and cause damage.
  • After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
  • Recommended cleaning solution for hard water and soap scum is to use 50/50 water and vinegar solution.

CLEANING MATERIAL

Acids are necessary ingredients of cleaning materials for removing lime, however, please pay attention to the following points when cleaning faucets and showers:

  • Only use cleaning materials that are explicitly provided for this type of application.
  • Never use cleaning materials that contain hydrochloric, formic or acetic acid, as they cause considerable damage.

  • Phosphoric acid is also restricted as it can cause damage to the finish.
  • Never mix any cleaning material with another.
  • Never use cleaning materials that have an abrasive effect, such powdered and industrial cleansers, scouring pads or micro fiber cloths.

PRODUCT LIMITED LIFETIME WARRANTY

In order to obtain the warranty provided, please contact the VIGO Product Support Department during normal business hours at 866-591-7792, option 2 or via email at SUPPORT@VIGOINDUSTRIES.COM.

VIGO Product Support (866) 591-7792 (Option 2) Monday - Friday 9:30am - 5:30pm EST

vigoindustries.com

QUESTION?
For installation help, missing or replacement parts, please contact our product specialist for consultation.
+1 866-591-7792 (Option2) (9:30am - 5:30pm EST)
support@vigoindustries com
