Summary of Contents for VIGO VG02001

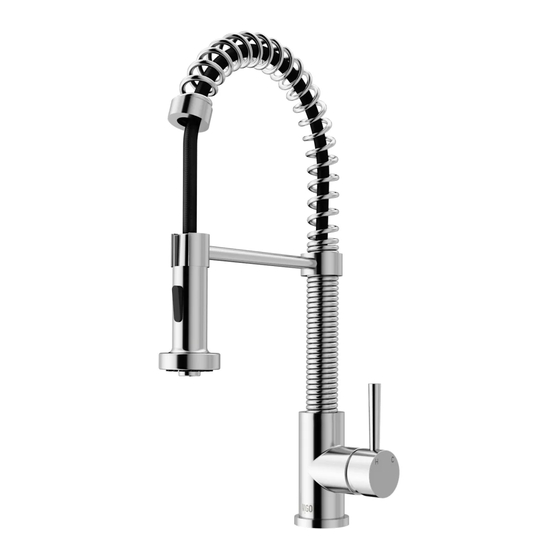

- Page 1 FAUCET SPECIFICATIONS Pull-Out Spray Kitchen Faucet Model VG02001 MODEL VG02001 FEATURES PACKING LIST DIMENSIONS MODEL # HOLE FAUCET SPRAYER DIAMETER HEIGHT REACH VG02001 1 3/8" 18 1/2" 9 1/2" 9 1/2" 1 3/8" * = +/- 1"...
-
Page 2: Front View
9 1/2" EXPANDABLE UP TO 30" FUNCTION BUTTON 2" 1 3/4" SIDE VIEW 2 1/4" SPRAY HOSE TOP VIEW FRONT VIEW VG02001 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"... -
Page 3: Maintenance
HOSE CONNECTIONS. IF LEAKS ARE DETECTED, REFER BACK TO THE INSTRUCTIONS AND ADJUST ACCORDINGLY. If you have any questions please contact the Vigo Technical Support TIGHTENING NUTS SLIGHTLY MAY STOP ANY MINOR LEAKS. Department before proceeding with installation. -
Page 4: Troubleshooting
5.A - Remove and clean aerator. 5.B - Contact Vigo Technical Support for replacement. PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART PART #... -
Page 5: Commercial Limitations
VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
