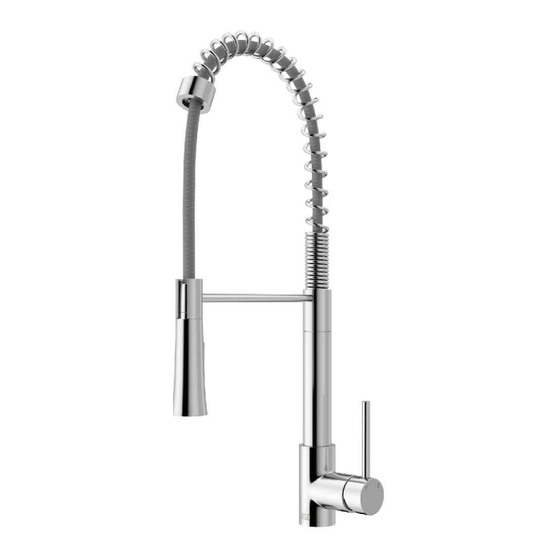

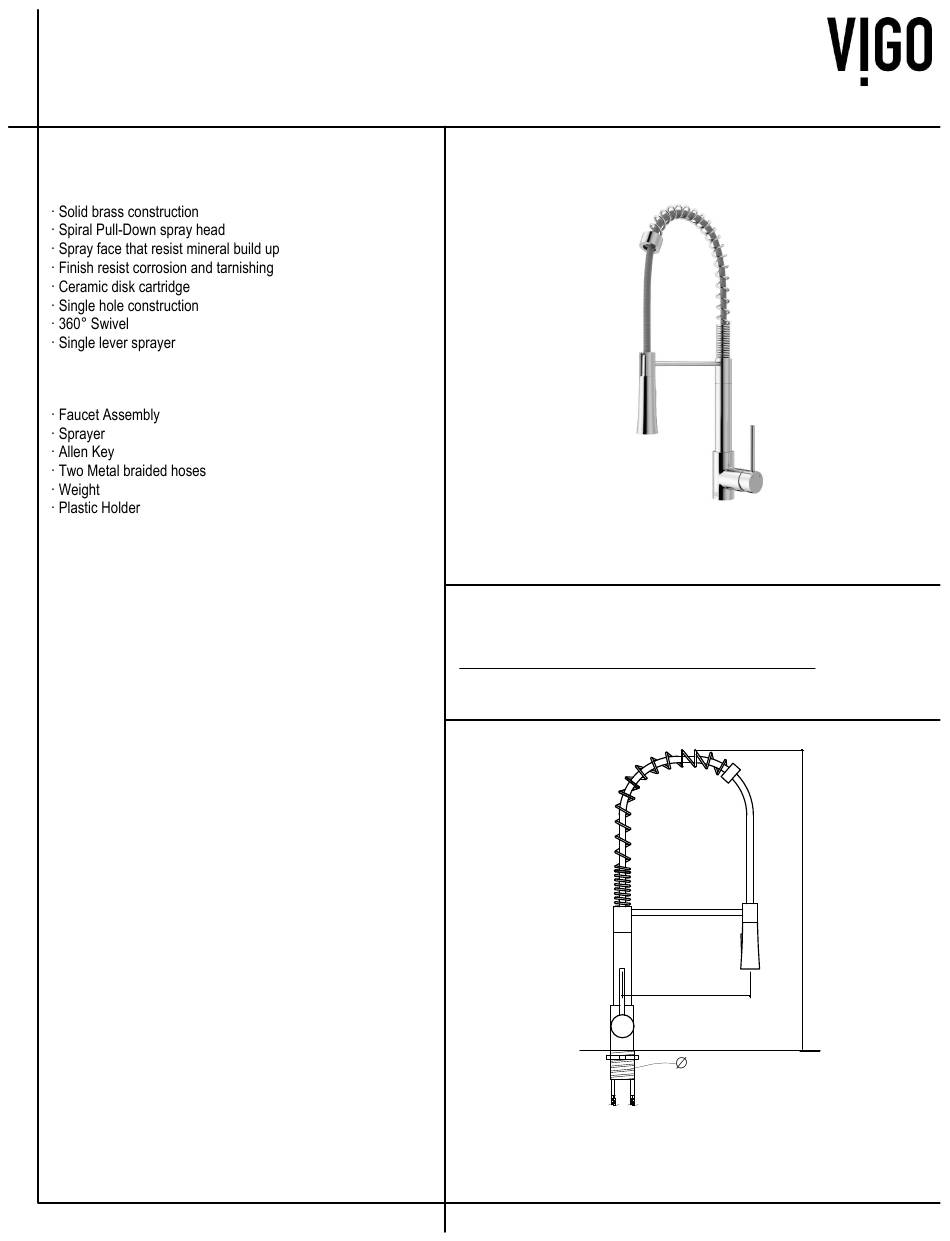

FAUCET SPECIFICATIONS Pull-Down Spray Kitchen Faucet Model VG02022 MODEL VG02022 FEATURES PACKING LIST DIMENSIONS MODEL # HOLE FAUCET SPRAYER DIAMETER HEIGHT REACH VG02022 1 3/8" 22 3/8" 9 3/8" 22 3/8" 9 3/8" 1 3/8" NOTE: All faucets are compliant to CEC 2016 regulations. If you have inquiries about your water flow, please email techmail@vigoindustries.com.
EXPANDABLE 10 1/2" FUNCTION BUTTON 1 3/8" 1 1/2" 9 3/8" 1 3/4" SIDE VIEW TOP VIEW FRONT VIEW VG02022 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 3/8"...
VIEW THE CONNECTIONS AT THE MALE AND FEMALE FLEXIBLE If you have any questions please contact the Vigo Technical Support HOSE CONNECTIONS. IF LEAKS ARE DETECTED, REFER BACK TO THE INSTRUCTIONS AND ADJUST ACCORDINGLY.
5.A - Remove and clean aerator. 5.B - Contact Vigo Technical Support for replacement. PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART PART #...
Page 5
VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
Page 6
ESPECIFICACIONES DEL GRIFO Desplegable spray grifo de la cocina Modelo VG02022 MODELO VG02022 LISTA DE CONTENIDO DIMENSIONES MODELO # ALTURA ALCANCE ORIFICIO GRIFO ROCIADOR VG02022 1 3/8" 22 3/8" 9 3/8" 22 3/8" 9 3/8" 1 3/8" NOTA: Todos los grifos cumplen con CEC 2016 regulaciones. Si usted tiene preguntas acerca de su flujo de agua, por favor escriba techmail@vigoindustries.com.
CONTENIDO DE LA CAJA MONTAJE 1. CIERRE EL SUMINISTRO DE AGUA. RETIRE EL GRIFO VIEJO Y LAS MANGUERAS FLEXIBLES. LIMPIE LA SUPERFICIE DEL LLAVE LAVABO CON UN LIMPIADOR NO ABRASIVO PARA COLOCAR EL GRIFO NUEVO. ARO DE TUERCA GOMA TRENZADA EN EL GRIFO (2). DE SUMINISTRO EN EXCESO, YA QUE ROCIADOR POR EL AGUA.
1.B - El cartucho es defectuoso 2 - Caudal insuficiente 1.B - 2.A - Suciedad en el aireador Vigo para el reemplazo 4 - Grifo flojo 2.A - Retire y remoje o limpie con un producto no abrasivo (p. ej., vinagre) 2.B -...
Page 10
JA PARTIR DEL 1 DE ABRIL DE 2013 de la fecha inicial de compra por parte del propietario, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO, de por vida para el propietario original o usuario final.
LISTE D'EMBALLAGE DIMENSIONS TROU ROBINET VAPORISATEUR VG02022 1 3/8" 22 3/8" 9 3/8" 22 3/8" 9 3/8" 1 3/8" de la CEC de 2016. Si vous avez des questions au sujet de votre...
CONTENU DE L'EMBALLAGE 1. COUPEZ L'ALIMENTATION EN EAU. ENLEVEZ L'ANCIEN ROBINET ET LES TUYAUX FLEXIBLES. NETTOYEZ LA SURFACE ANNEAU EN CAOUTCHOUC ASSUREZ-VOUS D'UTILISER DU RUBAN POUR TUYAU ET NE SERREZ PAS D'ALIMENTATION PUISQUE CELA VAPORISATEUR DU PRODUIT CE QUI POURRAIT ENSEMBLE DEUX TUYAUX EN ROBINET...
Page 14
MESURE CORRECTIVE 1.A - Cartouche non assise avec de l'eau chaude et bien asseoir dans le logement. 1.B - Communiquer avec le Soutien technique de Vigo pour un 3 - Fuite aux points de connexion remplacement. 2.B - Encrassement dans tuyau/conduite d'alimentation 2.A - Enlever et faire tremper/nettoyer avec un agent non abrasif...
Page 15
VIGO INDUSTRIES, LLC ("VIGO") EN VIGUEUR LE 1er AVRIL 2013 original pour usage domestique personnel. Des restrictions additionnelles s'appliquent aux utilisations commerciales. de la vente des produits en cause. Restrictions verre qui pourrait causer des blessures corporelles ou la mort.] constructeur.
