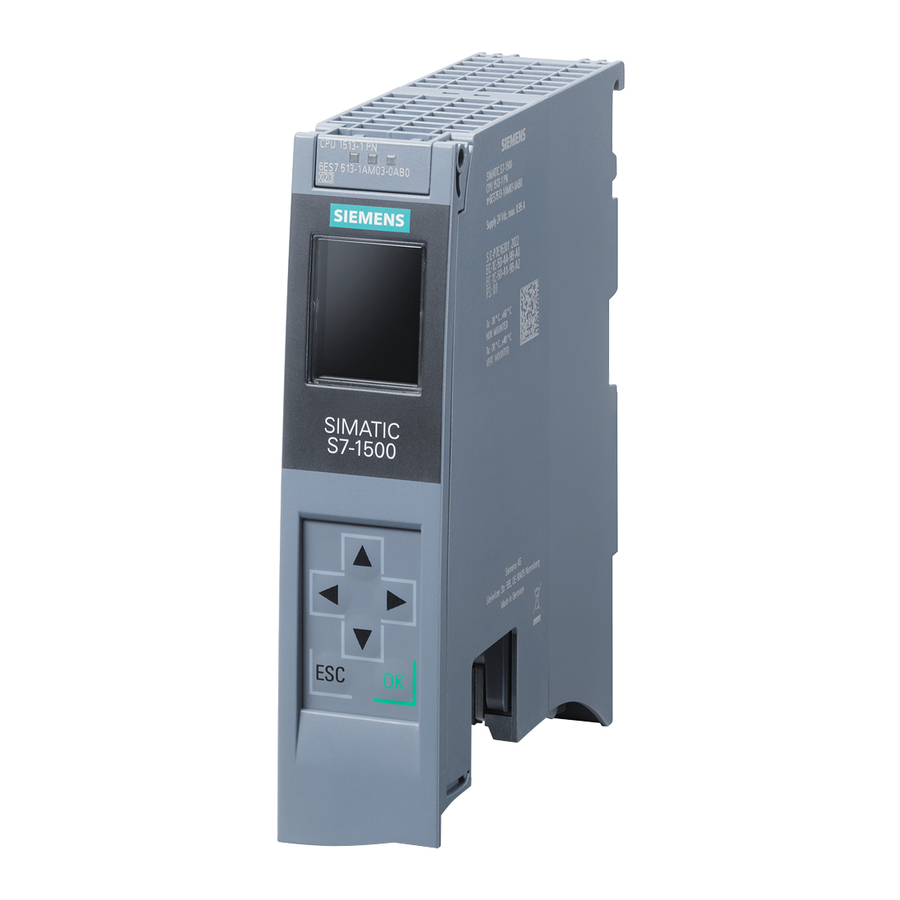

Siemens SIMATIC S7-1500 CPUs - CPU Manual

About this guide

In order to conserve important resources, we work on reducing the materials we use and supporting the recycling economy right from the product design stage. An important way to achieve this goal is the resource recovery of electronic products at the end of their service life. The Siemens recycler guide provides recyclers of electronic products with instructions on how to disassemble products safely in order to maximize resource recycling. This guide provide step-by-step disassembly instructions and material composition information to help recyclers direct fractions to the appropriate material recycler. Disassembly procedures should only be performed by trained electronics recycling professionals. The recycler is responsible for independently evaluating and ensuring compliance with all applicable environmental and health and safety laws related to the work. This includes, but is not limited to, laws related to the management, handling, shipping, and disposal of the results of this work as waste, and applicable laws to ensure the health and safety of all employees supporting this work. If you have any questions or feedback regarding this guide, please email this address: recycling@siemens.com

Recommended tool

To disassemble the product, we recommend using the following tool:
Flat-tip screwdriver

Disassembly instructions

The following guide provides detailed information on how to disassemble the product at the end of its service life and on what materials you can collect and recycle. In doing so, you support the recycling economy.

Components of the product

Disassembling the enclosure
Follow these steps for disassembly:

1. Pull the front flap (4) up 90 degrees. Pull off the front flap.

2. Remove the display (3) with a flat-tip screwdriver.

3. To open the enclosure (1a, 1b), use a flat-tip screwdriver to press the snap locks on the top and bottom.


4. Pull of the front enclosure (1b).


Disassembling printed boards

1. Remove the assembled PCB (2a) by pulling it out of the rear enclosure (1a).

2. Remove the assembled PCB (2b) by pulling it out. Separate the spacer frame (1c) from the assembled PCB (2b) by prying open the snap lock with a flat-tip screwdriver and pulling the frame downwards.



3. Use a flat-tip screwdriver to detach the assembled PCB (2c) by pressing the snap locks on the inside of the rear housing (1a).

4. Remove the assembled PCB (2c) by pressing with a flat-tip screwdriver to the inside of the enclosure (1a).


5. Detach the assembled PCB (2d) from the front enclosure (1b) by pressing the snap locks with a flat-tip screwdriver.

6. Remove the assembled PCB (2d) from the enclosure.


Explanation of substances and components

Components according to Directive 2012/19/EU Annex VII
You must remove at least the following substances, mixtures and components from the product:

Information on Directive 2012/19/EU
In order to support the recycling economy, SIEMENS creates transparency that goes beyond the regulatory requirements. See the table for additional information on smaller PCBs or displays, as well as metal alloys containing elements that may be critical at the end of the service life, such as beryllium or lead. This information does not fall within the scope of Annex VII of Directive 2012/19/EU.

Received material fractions

All results from this process must be managed, handled, and disposed of in accordance with applicable waste laws and regulations including, but not limited to, the Waste Framework Directive and its national legislation in Europe and worldwide. The following table contains the main material fractions, but is not exhaustive.

Safety instructions

Notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are graded according to the degree of danger.

indicates that death or severe personal injury will result if proper precautions are not taken.

indicates that death or severe personal injury may result if proper precautions are not taken.

indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property damage.

Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific task in accordance with the relevant documentation, in particular its warning notices and safety instructions. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.

The recycler is responsible for independently evaluating all activities of its employees to perform or support the work and to ensure compliance with all applicable health and safety laws related to the work. This includes, but is not limited to, laws regarding the health and safety of all employees performing or assisting in that work. The recycler is also responsible for assessing the workplace and ensuring that the area where the work is to be carried out is designed according to ergonomic best practices and meets all ergonomic requirements to ensure the protection of its employees.

Notice (DIN EN ISO 7010)
Warning against hand injuries

Warning against pointed/sharp objects

Wear personal protective equipment throughout the recycling process.

Wear hand protection	Wear a mask
Wear eye protection	Wear foot protection
Wear protective clothing
