Goalzero FLEX 100i - Solar Panel Manual

Getting Started

In the Box

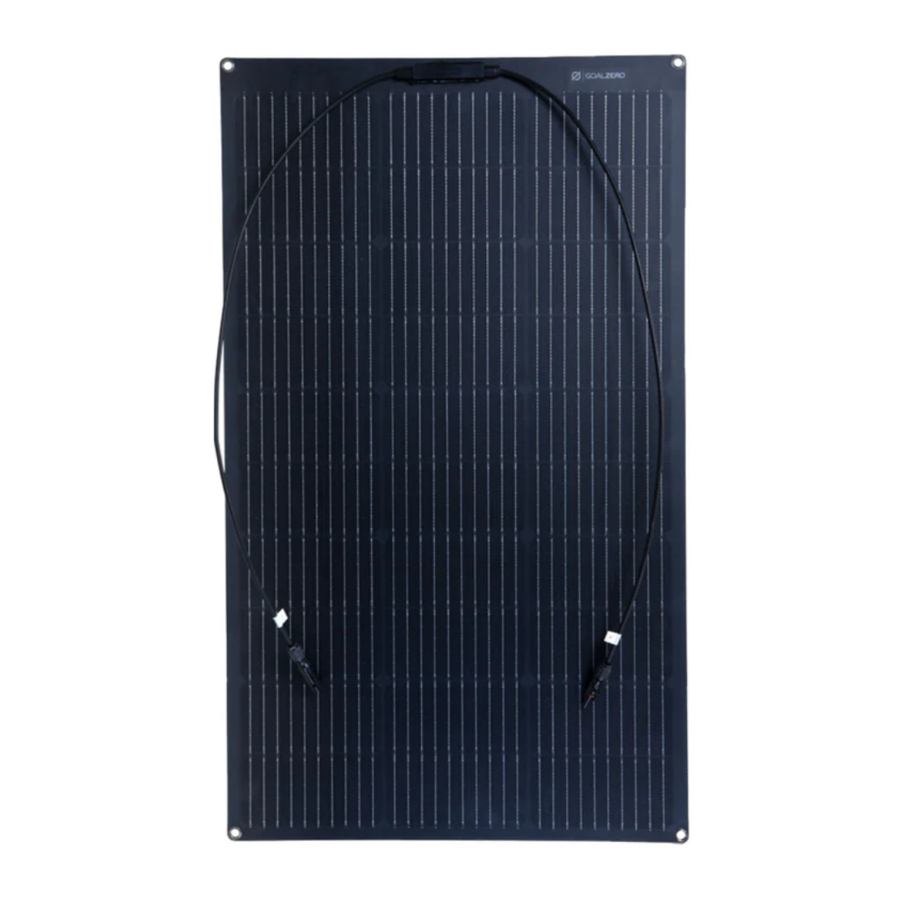

Flex 100i solar panel
4mm Solar Connector Disconnect Tool

Flex 100i solar panel

4mm Solar Connector Disconnect Tool

Get To Know Your Gear

*MC4 is a registered trademark of Staubli Electrical Connectors.

How it Works

Plug the 4mm solar connectors on the front of your Flex 100i into a 4mm solar connector, combiner, or adapter to plug into your desired device to collect and use solar power.

To plug the Flex 100i into a Yeti you will need a 4mm Solar Connector to HPP adapter (SKU: 98014), which you can find at GoalZero.com.
How it Works

Using Your Product

How to Install Your Panels

The Flex 100i has four mounting holes (one on each corner) that can be used to install in your desired configuration. This flexible panel is designed for a variety of applications and installation solutions. The panel must be secured or fastened to something stable when in use to avoid product damage and to ensure efficiency over the panel's lifetime.

Please consult a professional if you have questions or concerns about installing or using your Flex 100i panel.

How to Disconnect Your Panels

The Flex 100i comes with a 4mm solar connector disconnect tool to help you disconnect the 4mm solar connectors. Push the prongs of the tool on the 4mm solar connector tabs to release the connection.
How to Disconnect Your Panels

Connecting Multiple Panels

When connecting multiple panels, it is important to be mindful of the voltage input limitations of the device you are charging. The amount of input is impacted by whether you are connecting panels in a series or parallel configuration. Visit the Goal Zero website for more information about optimum solar panel setup:

Technical Specifications

* For warranty terms, conditions, and registration go to www.goalzero.com/warranty To request a physical copy of the warranty call 1-888-794-6250.

Frequently Asked Questions

Can I plug the Flex 100i directly into a Goal Zero Yeti?
No. You need an MC4 to HPP adapter to connect the Flex 100i to a Yeti power station.

How many solar panels can I connect together?
It varies depending on the device you're pairing your panels with. For example, the Goal Zero Yeti 4000 PRO will accept a maximum of 5 Flex 100i panels in series, while the Yeti 1500X and all other 'X' line products can only accommodate 2 panels in series.

Can I chain my Flex 100i with third-party solar panels?
No. The Flex 100i is not guaranteed to work with any other manufacturers' products. Many solar panels are manufactured differently. Pairing your Flex 100i with third-party panels may result in product damage, fires, or other serious issues.

How flexible is the Flex 100i?
The Flex 100i is most flexible when lengthwise. In this direction it can bend at a 0.4 m radius. If the panel is forced to bend at a tighter radius than 0.4m, it may result in lasting damage to the panel. If you are using the panel and it seems to have maxed out on flexibility, do not force it to bend further.

For assistance with your device in the United States, visit our contact page at www.goalzero.com/contact or call 1-888-794-6250. For assistance with your device outside of the United States, contact the local distributor.
If you do not have contact information for the local distributor, contact us in the United States and we will help connect you to the local representative.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS
Please read all warnings, instructions and cautions carefully before use to avoid personal injury, property damage or damage to your Goal Zero product. Goal Zero reserves the right to update this document without prior notice. Please visit www.goalzero.com to find the latest product information.
