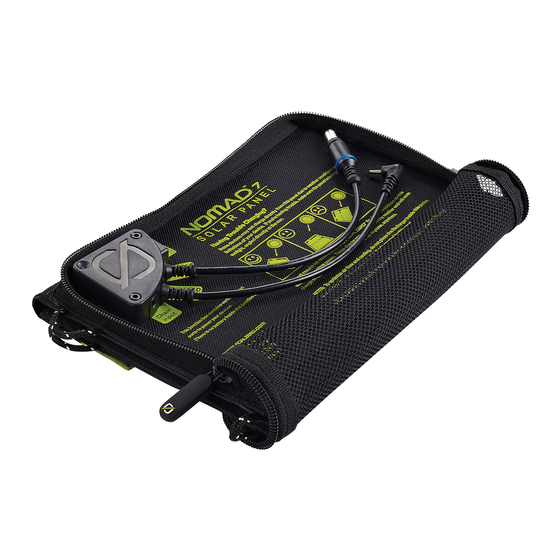

Goalzero NOMAD 7 User Manual

NOMAD
7
S O L A R P A N E L
Get to Know Your Gear
Getting Started
1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Open and remove protective film from solar cells.
3. Position and angle towards the sun (see below).
4. Plug your device into one of the charging ports.
BEST
SOLAR PANEL
How to Use Your Gear
HANG IT
Reflective nylon loops make the
NOMAD 7 easy to find and hang.
CHARGE IT
The NOMAD 7's highly efficient
solar cells deliver up to 7 Watts of
power in a small package.
COLLECT IT
Monocrystalline cells deliver the most
power and smallest area for the price.
OKAY BAD
12V car adapter
USB output port
Accepts any standard USB cable for charging USB devices.
Solar output port
Charges the GUIDE 10 battery pack, faster than USB.
Car adapter and 12V output port
Connect the car adapter (included) to charge small 12V devices.
Backside
Technical Specs
Usage
Charges the following: Approx. charge time:
GUIDE 10 battery pack 2-4 hours
Cell phone, MP3 player 1-3 hours
Smart phone, GPS, USB camera 2-4 hours
Not compatible with tablets, like iPad.
Inputs
Solar panel Rated wattage:7W
Cell type: monocrystalline
Open-circuit voltage: 6.5-7V
Converting eff.: 17-18%
Cell area: 0.0394 m
2
Outputs
USB port 5V, 1.0A max (5W), linear regulated
12V port 13-15V, 0.2A max (3W), boost regulated
Solar port 6-6.5V, 1.0A max (6W), not regulated
General
Weight (no pkg) 0.8 lbs (0.36 kg)
Dimensions (folded) 6x9x1 in (15x26x2.5 cm)
Dimensions (unfolded) 17x9x0.1 in (43x23x0.25 cm)
Warranty 12 months
Certifications FCC and CE
Optimal Operating Temp. 0-120ºF (-17-48ºC)
Comes With
12V car adapter
