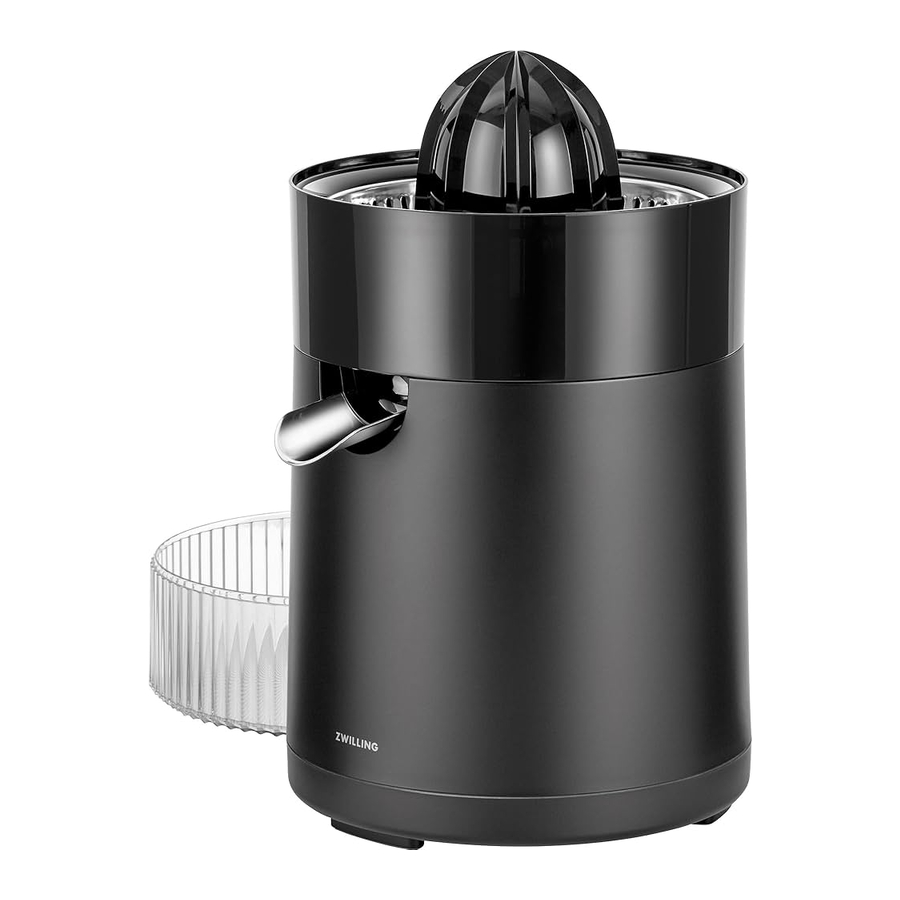

Zwilling ENFINIGY (53109-0) - CITRUS JUICER Manual

Overview

1. Cover
2. Large cone
3. Small cone
4. Strainer

Operation

1. Starting up the citrus juicer
   Rinse the juice tray, juicer cone and strainer with clean water before using them for the first time. These accessories are dishwasher safe. The drive unit may only be wiped with a damp cloth. Place the juice tray and strainer on the drive unit and connect the device to a suitable mains socket.

2. Preparing for juicing
   Put the small juicer cone on the drive axle. For more pulp in the juice, insert the juicer cone so that the wings are close to the strainer (see 1.). For less pulp in the juice, put the small juicer cone on the drive axle rotated through 45°. There is now a gap between the wings and the strainer (see 2.).

3. Selecting the juicer cone
   The small juicer cone is intended for smaller fruits (e.g., lemons). For larger fruits (e.g., oranges), fit the large juicer cone on top of the small one. The large juicer cone can only be used in combination with the smaller juicer cone. Press the halved citrus fruit down onto the juicer cone. The drive axle rotates while pressure is applied to the juicer cone.

4. Removing the juice
   Place a suitable vessel under the juice outlet and then press it down with light pressure. It engages in the lower position. The extracted juice can flow into the vessel.
   For larger quantities of juice, it is recommended to leave the juice outlet folded down when juicing and to place a larger vessel underneath it.


Maintenance

1. Cleaning the citrus juicer
   Always clean carefully after use. Clean the juice tray, the juicer cones and the sieve with water and a little detergent and rinse under running water to finish. These accessories are dishwasher safe. Please use only a damp cloth to clean the drive unit. Do not use abrasives or solvents.
   Make sure that the mains plug is disconnected from the power socket before you start cleaning.
2. Storage
   Put the lid on the device. Wind the cable onto the cable winder in the base of the drive unit.
   Store it in a dry place out of the reach of children.


Customer service

Please contact our Customer Service team if you encounter any problems with your citrus juicer.
Detailed information on service, repairs, warranty and product registration can be found on www.zwilling.com/service.

Safety Information
The ZWILLING citrus juicer ("device" in the following) is used exclusively for juicing citrus fruits such as lemons and oranges.
Any other use is considered unintended and can result in injury to persons and damage to property. The device is intended for domestic use. It is not intended for commercial use.
Read these operating instructions completely and with care before using the device. Keep the operating manual in a safe place. If you hand over the device to a third party, make sure that you also hand over the operating instructions. ZWILLING accepts no liability for damage caused by failure to observe these operating instructions.
This device can be used by children aged 8 years and above if they are supervised or instructed in the safe use of the device and understand the dangers involved. Children must not clean or carry out user maintenance unless they are 8 years of age or older and supervised. Keep the device and its connecting cable away from children less than 8 years of age.
Devices can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they are carefully supervised, have been instructed in advance on the safe use of the device and understand the resulting dangers.
Children must not play with the device. Keep the device in a location that is inaccessible to children. Keep children away from the packaging material. Risk of suffocation! Poor hygiene poses a health hazard:
Do not leave juice residues in the juice tray if not in use.
Clean all accessories thoroughly before first use and always immediately after use.
If the device is defective, it must be repaired. The device does not contain any parts that you can repair yourself.
Always check the device for damage prior to use. If you discover transport damage, contact the retailer from whom you purchased the device immediately. Never use the device if the supply cable or the device itself is damaged. If the device's power cable is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or a person with similar qualifications in order to ruled out any danger.
Never handle other objects in the strainer insert during use. To prevent injury, be sure to keep your hair, hands and clothes clear of the rotating juicer cone.
Do not use the device outdoors or in rooms with a high level of humidity (e.g., bathrooms).
Only connect the device to a correctly installed and grounded power socket whose voltage matches the voltage specified on the type plate.
Make sure that the power cable is not kinked or trapped.
Make sure that the power cable does not hang over the edge of the table or work surface and cannot be pulled down.
Never wind the power cable around the device. There is a cable winder in the base of the drive unit. Always pull on the mains plug and never on the power cord when unplugging the mains plug from the mains socket.
Never touch the mains plug with wet hands.
Never immerse the drive unit in water or other liquids, and do not clean the drive unit under running water.
Even if the motor is not running, there is still live voltage in the device while the mains plug is plugged into the power socket. Always unplug the mains plug from the power socket immediately after use and in the event of danger or a defect. For this reason, keep the power socket easily accessible at all times.
Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Safety/Technical data
Never unscrew the device and do not make any technical modifications.
Do not place the device on a hot surface or in the vicinity of strong sources of heat.
Always place the device on a flat, non-slip surface.
If overheating causes an automatic shut-off, unplug the mains plug from the power socket.
Do not use hard cleaning utensils such as steel wool or sharp or corrosive cleaning agents to clean the device.
Keep the device in a cool and dry place that is not accessible to children.

Explanation of symbols

	Danger to life due to electric shock
	Danger of property damage and damage to the device
