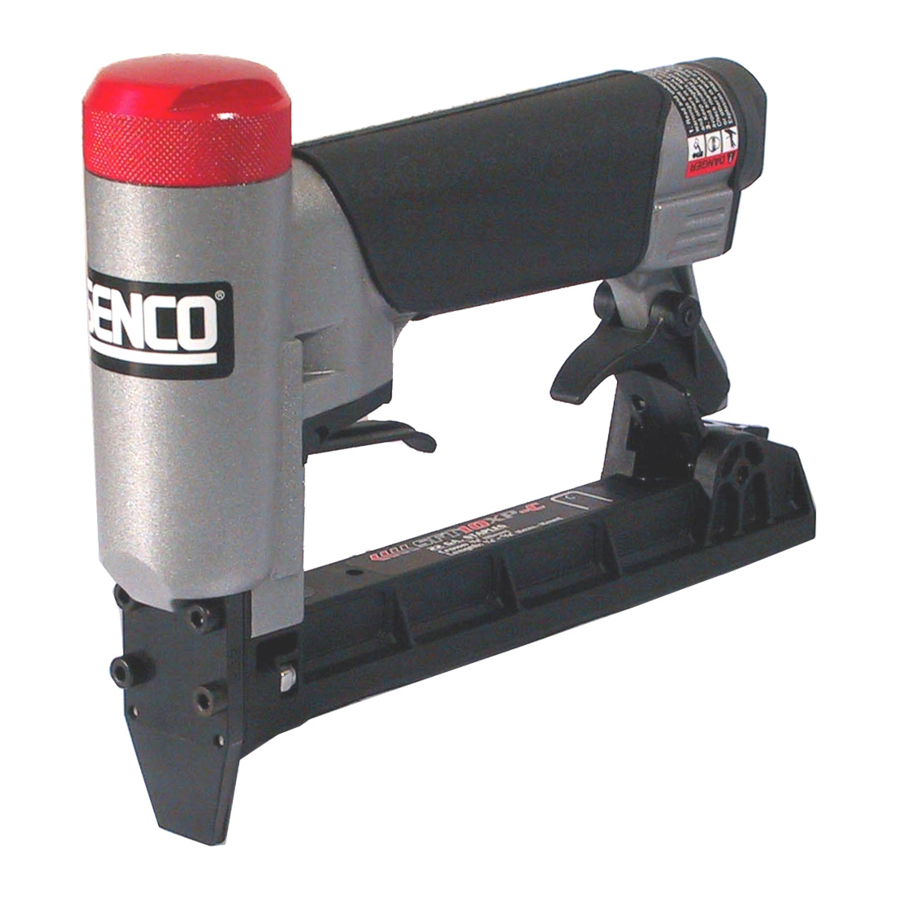

Senco SFT10XP - Fine Wire Stapler Manual

EMPLOYER'S RESPONSIBILITIES

warning Employer must enforce compliance with the safety warnings and all other instructions which accompany this tool as shipped from the manufacturer.
Keep this manual available for use by all people assigned to the use of this tool.
For personal safety and proper operation of this tool, read and understand all of these instructions carefully.

SAFETY WARNINGS

	Read and understand tool labels and manual. Failure to follow warnings could result in DEATH or SERIOUS INJURY. Save these instructions
	Use safety equipment. Always wear ANSI Z87.1 safety glasses with permanently attached side shields. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Failure to do so could result in personal injury.
	Personal Safety Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
	Explosion Hazard Never use tool in an explosive atmosphere or in the presence of combustible materials such as flammable liquids, gases or dust.
	Never use oxygen, carbon dioxide or any other bottled gas as a power source for this tool; the tool will explode and cause serious injury.
	Always remove finger from trigger when not driving fasteners. Never carry the tool with finger on or under trigger. USE CautioN as these tools will drive a fastener when the trigger is pulled.
	Always assume the tool contains fasteners. No horseplay. Respect the tool as a working implement. Keep tool pointed away from yourself and others and connect air to tool. Tools shall be operated at the lowest pressure needed for the application. This will reduce noise levels, part wear, and energy use.
	Drive fasteners into work surface only; never into materials too hard to penetrate.
	Do not drive fasteners on top of other fasteners or with the tool at too steep of an angle; the fasteners can ricochet and hurt someone.
	Do not drive fasteners close to the edge of the work surface. The workpiece is likely to split and the fastener could fly free or ricochet and hit someone.
	Tool may eject a fastener when connected to air supply; therefore, remove all fasteners from tool before connecting air.
	Never use tool if trigger or springs have become inoperable, missing or damaged. Do not tamper with or remove trigger or springs.
	Disconnect tool from air before doing tool maintenance, clearing a jammed fastener, leaving work area, moving tool to another location, or handing the tool to another person.
	Make sure all screws and caps are securely tightened at all times. Make daily inspections for free movement of trigger. Never use the tool if parts are missing or damaged.
	Never use a tool that leaks air or needs repair.
	Use only parts, fasteners, and accessories recommended or sold by SENCO. Do not modify tool without authorization from SENCO.
	Use only clean, dry, regulated compressed air at recommended pressure.
	Do not connect tools to air pressure that potentially exceeds 200 psig or 13.7 bar.
	Air compressors used to supply compressed air to this tool must comply with requirement ANSI/ ASME B 19.1–1995 (U.S.), "Safety Standard For Air Compressor Systems."
	Air hose must have a minimum working pressure rating of 150 psig (10.3 bar) or 150% of the maximum pressure produced in the system, whichever is higher.
	The tool and air supply hose must have a hose coupling such that all pressure is removed from the tool when the coupling joint is disconnected.
	Do not load fasteners with trigger depressed.
	Do not use tool without danger label on tool. If label is missing, damaged or unreadable, contact your SENCO representative to obtain a new label.
	Always place yourself in a firmly balanced position when using or handling the tool.
	For information on the "SENCO Safety First Program," contact your SENCO representative.

TOOL USE

	Read section titled "Safety Warnings," before using tool.
	To load: Push latch. Slide rail open.
	Connect air supply and lay strip of staples into magazine. Use only genuine SENCO fasteners (see Parts Chart). Do not load with trigger depressed.
	Push rail forward until it latches.
	To drive fasteners: Position tool against work surface. Pull trigger. These tools are not required to have a workpiece contact (safety element). USE CautioN as these tools will drive a fastener when the trigger is pulled.
	Should a staple jam occur: Disconnect air supply.
	Depress latch. Slide rail open.
	Remove staples.
	Remove jammed fastener.
	Connect air supply and lay strip of staples into magazine. Use only genuine SENCO fasteners (see Parts Chart). Do not load with trigger depressed.
	Push rail forward until it latches.
	AUTOMATIC TOOLS ONLY This tool is equipped with a drive rate adjustment to adjust the speed. Rotate the screw, not more than three turns, counter-clockwise () to increase the drive rate. Rotate the screw clockwise ( ), not more than three turns, to slow the drive rate. For single shot operation, pull trigger only partially. For automatic operation, pull trigger fully.

MAINTENANCE

	Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at: 1-800-543-4596. Read section titled "Safety Warnings" before maintaining tool.
	All screws should be kept tight. Loose screws result in unsafe operation and parts breakage.
	With tool disconnected, make daily inspection to assure free movement of trigger. Do not use tool if trigger sticks or binds.
	Squirt Senco pneumatic oil (5 to 10 drops) into the air inlet daily (depending on frequency of tool use). Other oils may damage O-rings and other tool parts.
	Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary. DO NOT SOAK. Such solutions may damage O–rings and other tool parts.

TROUBLESHOOTING

Symptom

Air leak near top of tool / Sluggish operation

Solution
Verify air supply / Tighten screws or install Firing System Kit Ⓐ.

Symptom

Air leak near bottom of tool / Poor return

Solution
Clean tool / tighten screws or install Piston Stop Kit Ⓑ.

Symptom

ACCESSORIES

SENCO offers a full line of accessories for your SENCO tools, including:

Air Compressors
Hose
Couplers
Fittings
Safety Glasses
Pressure Gauges
Lubricants
Regulators
Filters

For more information or a complete illustrated catalogue of SENCO accessories, ask your representative for #MK336.

TECHNICAL SPECIFICATIONS

Minimum to maximum operating pressure	65–100 psi	4,5–7 bar
Air Consumption (60 cycles per minute)	1.16 scfm	33 liter
Air Inlet	1/4 in. NPT	1/4 in. NPT
Maximum Speed (cycles per second)	30 (Automatic)	30 (Automatic)
Weight - R	2.1 lbs.	0,955 kg
Weight - D/L	2.87	1,305
Weight - A	2.44	1,108
Weight - A D/L	3.20	1,451
Weight - LN	2.01	,915
Staple Capacity	180	180
Staple Capacity - D/L	390	390
Tool size: Height	6.57 in.	167 mm
Tool size: Height - LN	8.15	207 mm
Tool size: Length	8.58 in.	218 mm
Tool size: Length - D/L	14.80	376 mm
Tool size: Width: Main Body	1.65 in.	42 mm
