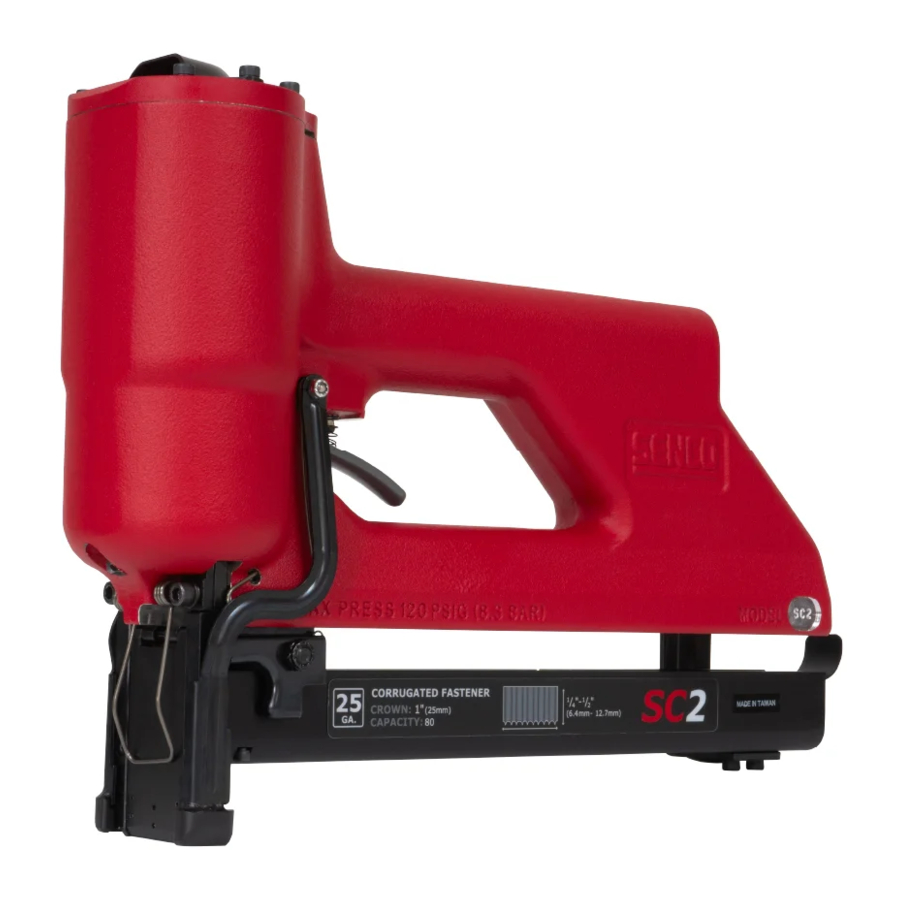

Senco SC2 - Corrugated Fastener Manual

EMPLOYER'S RESPONSIBILITIES

Employer must enforce compliance with the safety warnings and all other instructions which accompany this tool as shipped from the manufacturer. Keep this manual available for use by all people assigned to the use of this tool. For personal safety and proper operation of this tool, read and understand all of these instructions carefully.

• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situations.

• Always assume the tool contains fasteners. Keep the tool pointed away from yourself and others. No horseplay. Respect the tool as a working implement.

• Do not drive fasteners on top of other fasteners or with the tool at too steep of an angle; the fasteners can ricochet and hurt someone.

• Disconnect tool from air before doing tool maintenance, clearing a jammed fastener, leaving work area, moving tool to another location, or handing the tool to another person.

• Make sure all screws and caps are securely tightened at all times. Make daily inspections for free movement of trigger. Never use the tool if parts are missing or damaged.


• Never use a tool that leaks air or needs repair.

• Keep bystanders, minors, and visitors away while operating a power tool. Distractions can cause you to lose control.


SERVICE

• Tool service must be performed only by Authorized Senco repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury.

• For information on the "SENCO Safety First Program," contact your SENCO representative.


TOOL USE

• Read and understand "SAFETY INSTRUCTIONS" manual shipped with this tool before using tool.

• Keep tool pointed away from yourself and others and connect air to tool.


To Load:

• Adjust the magazine height before loading fasteners.

  1. Remove the two outer screws on the bottom of the magazine and
  2. remove the top plate.
  3. Slide the top plate into the proper position for the desired fastener.
• Insert fasteners into rear of magazine. Do not load with workpiece contact (safety element) or trigger depressed.

• Pull the feeder shoe back, fully, and slowly release it to engage behind the fasteners. Jamming may occur if the feeder clip is not engaged.

• With a "Sequential" (Restrictive) trigger, staples can only be driven one way. First depress workpiece contact (safety element) against work surface then pull trigger. This feature is helpful when precise fastener placement is required.

• Read the "Customer Satisfaction and Safety Reminder" (CSSR) in the tool and fastener boxes for safety information regarding the Contact-Actuation and Sequential triggers. Under certain conditions, the Sequential (restrictive) trigger may reduce the possibility of injury to you or to others working with you.
• Should a staple jam occur, disconnect air supply.


• Remove fasteners from the tool.

• Insert the tip of a screwdriver into the driver track. Tap the handle straight down to open door. Do not twist or turn screwdriver.

• Remove jammed fastener.

• Close door with a sharp tap from the screwdriver handle.

• Connect air supply and replace fasteners.


MAINTENANCE

• Read and understand "SAFETY INSTRUCTIONS" manual shipped with this tool before using tool.

• All screws should be kept tight. Loose screws result in unsafe operation and parts breakage.

• With tool disconnected, make daily inspection to assure free movement of trigger. Do not use tool if trigger sticks or binds.

• Squirt Senco pneumatic oil (5 to 10 drops) into the air inlet twice daily. (Depending on frequency of tool use.) Other oils may damage O-rings and other tool parts.

• Wipe tool clean daily and inspect for wear. Use non- flammable cleaning solutions only if necessary–DO NOT SOAK.


Such solutions may damage O-rings and other tool parts.

TECHNICAL SPECIFICATIONS
