Muse M-29 KB, M-29 KP - Radio Manual

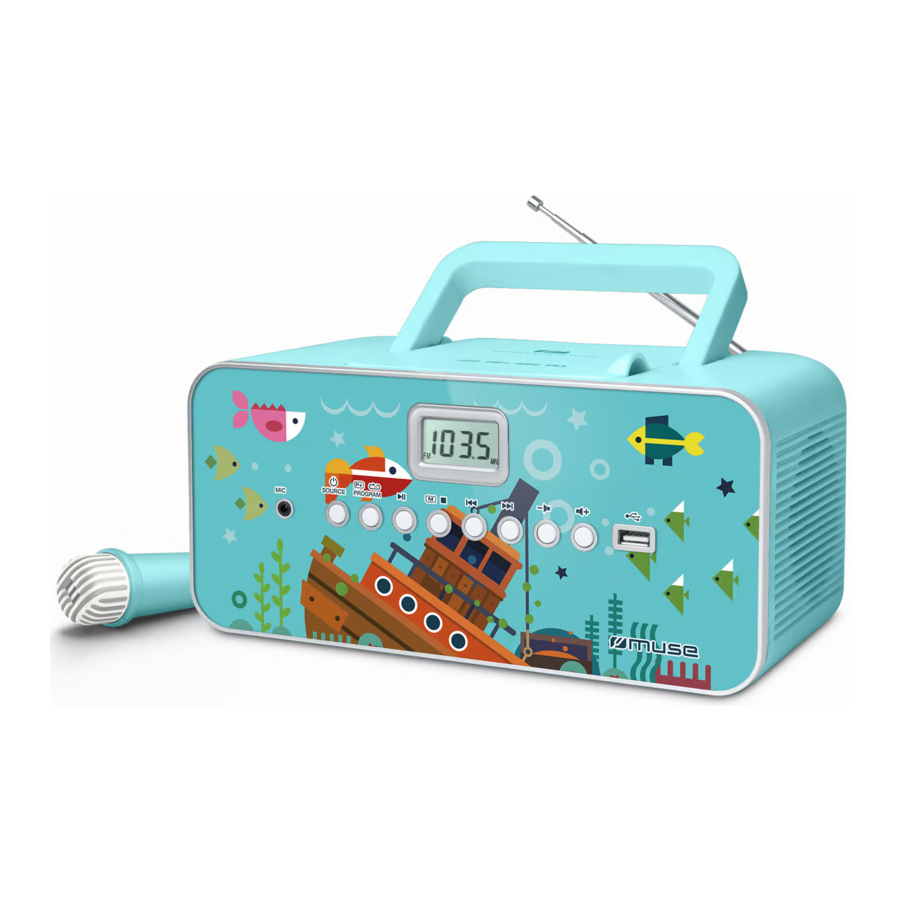

LOCATION AND DESCRIPTION OF CONTROLS

1. HANDLE
2. FM TELESCOPIC ANTENNA
3. CD COMPARTMENT
4. MIC JACK (3.5MM)
5. POWER ON-OFF/SOURCE: FM, AM (MW), CD, USB
6. PROGRAM / RADIO PRESET STATIONS /REPEAT
7. PLAY/PAUSE
8. MEMORY /STOP
9. SKIP/SEARCH/TUNING BACKWARD
10. SKIP/SEARCH/TUNING FORWARD
11. VOLUME DOWN
12. VOLUME UP
13. USB PORT
14. LCD DISPLAY
15. AC IN POWER INPUT
16. BATTERY COMPARTMENT

POWER SUPPLY

This unit operates on AC (230V 50 Hz) or DC (9V ) 6 x 1.5V Type UM-2 /R 14 / ''C'' ( Batteries not included ).

AC OPERATION

Connect the AC power cord from the unit to the mains. Make sure that the voltage is compatible with your device before turning it on.
Disconnect the AC power cord from the mains when not in use.
NOTE: In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 10 minutes, the unit will automatically switch to Standby mode.

BATTERY OPERATION

Open the battery compartment at the rear of the unit and insert 6 batteries, observing the polarity diagram indicated inside the compartment and close the compartment. To switch from AC power to battery power, disconnect the AC power cord.

BATTERY REPLACEMENT
Batteries should be replaced when the volume decreases or the sound distorts.

Notes on batteries

• Do not mix batteries of different types or new batteries with used batteries.
• Do not recharge, heat it and never remove the batteries.
• The batteries can not be exposed to excessive heat such as sunshine, fire or the like.
• Please respect the environment when disposing of used batteries.

NOTE
To prevent leakage, always remove the batteries from the device when it is not used for an extended period.

AUDIO CONTROLS

Press to turn the unit on. When the unit is on, press again to select your listening source: FM, AM (MW), CD, USB.

LISTENING TO THE RADIO

MANUAL SEARCH

1. Press to select FM or AM (MW).
2. Press repeatedly or to find your station.
3. Adjust the sound level with or .

FOR OPTIMAL RADIO RECEPTION:
FM: Extend and position the telescopic antenna.
AM (MW): Rotate the unit horizontally.

AUTOMATIC SEARCH

Press to select FM or AM (MW).
Press and Hold on or for about 2 seconds to start the search. The automatic search function locates stations whose signal is strong. Press again or to continue the search.
Note:
Stations with weak signals can be searched manually.
The sound is automatically muted during search.

RADIO PRESET STATIONS

1. Select a station manually or automatically with or .
2. Press once , "P01" blinks on the display for a few seconds.
3. Press or to select a preset number.
4. Press again to store the radio station on the selected memory number.
5. Repeat steps 1-4 to store other stations.

Note:
When you store a station in a memory number already occupied, the existing station is automatically erased.

LISTENING TO PRESET STATIONS

Press button to select a preset station.

LISTENING TO DISC

1. Press to turn the unit on.
2. Open the CD door.
3. Insert the disc with the label facing up and then close the compartment.
4. Press to select the CD mode.
5. After a few seconds, the total number of tracks and the CD icon will appear on the display.

To:

• Read your CD: Press once
• Pause Playback: Press again
• Resume playback: Press again
• Permanently stop playback: Press
• Search forward or backward: Press and hold or
• To skip to the next or previous track: press or

DISK ERROR

Note: If the disc is dirty, damaged or unreadable or if it is placed upside down, "NO" is displayed. If this happens, clean the disc, insert the disc correctly or try another disc.

If you encounter CD playback problem, either of the following ways may help:

1. Turn off the unit. Disconnect the AC power cord from AC outlet and reconnect it again.
2. Clean your CD disc.

REPEAT PLAYBACK

Repeatedly press to select one of the following playback modes. Track Repeat, Repeat All and Repeat Folder.

TO DISABLE THE REPEAT PLAYBACK

Press repeatedly until the repeat mode indicator disappears from the display. The repeat function is automatically canceled at the opening of the door of the CD or the shutdown of the unit.

PROGRAM PLAYBACK

1. Insert the disc with the label facing up, into the compartment and close the CD door.
2. Press .
3. Press .
4. Select the desired track with or then press to save the program in memory.
5. Repeat step 4 until the end of your programming.
6. Press to start playback. This PROGRAM function is automatically canceled when opening the CD door or shutdown of the unit.

Note:
CD up to 20 programs, MP3 up to 99 programs.

SING-A-LONG FUNCTION

Sing along with the music by plugging the provided microphone (stored in the unit's battery compartment) into the microphone jack on the unit.

Tapping or dropping the microphone can permanently damage your microphone. Resist the urge to swing the microphone around by the cord.

LISTENING TO DEVICE USB

1. Press to turn the unit on.
2. Connect a USB device containing MP3 files or MP3 player to the USB port.

3. Press to select the USB mode. USB appears on the display.
4. After a few seconds, the total number of folders and tracks are displayed, and playback starts automatically.

NOTE:

• The total number of MP3 files on the disc should not exceed 999.
• The disc may not contain more than 99 directories.
• The charging time takes about 20 seconds or more depending on the amount of MP3 files and folders on the disc or USB device.
• The USB port is not designed for charging and files transfer with a computer.
• Manufacturer is not responsible for the play ability of USB key or MP3 due to different recording condition, capacity and interface compatibility, etc...

MP3 FOLDER OPERATION

1. Press to turn the unit on.
2. Place the CD-MP3 disc with label side facing up inside the CD compartment and close the CD door, or, connect a USB key with MP3 audio files into the USB port.
3. Press to select CD or USB mode (CD or USB icon is displayed), After few seconds, the total number of folders and tracks appears on the display. The unit will start to play automatically.
4. If there is more than one folder, press and hold for 3 seconds, on the display "FXX" appears and "FOLDER" flashes.
5. Press or to select the desired folder and release the button to enter this folder. the first track in the folder starts Playing automatically. Press successively to play a track of your choice.

MAINTENANCE

CLEANING

Disconnect this device from any power source before cleaning.

• Use a soft, clean, dry cloth. Dust regularly ventilation holes on the back or sides of the apparatus.
• The use of solvents or abrasive products or with a basis of alcohol can damage the unit.
• If an object or liquid enters the unit, unplug it immediately and have it checked by an authorized engineer.

Notes on discs

• Do not use irregularly shaped discs (example: heart-shaped, octagonal ones). The unit may malfunction.
• Do not place more than one disc in the compartment.
• Do not attempt to open the disc tray during playback.
• Do not touch the lens. You could cause a malfunction.
• If the disc is scratched, dirty or smudged with fingerprints, the device may not work. Before playing, wipe the disc with a cloth. Proceed from the center outwards. Do not store discs in places with high temperature or high humidity. They could bend. After reading, replace the disc in its case.

Remove the disc from its compartment if the device is to be transported.

SPECIFICATIONS

POWER SUPPLY:
AC:	230V 50Hz
DC:	9V 6 x 1,5V type UM-2/R14/ 'C'
POWER CONSUMPTION:	14W
OUTPUT POWER:	2 x 1 Watt RMS
RADIO FREQUENCY RANGE
FM:	87.5 - 108 MHz
AM (MW):	522 - 1620 kHz
MICROPHONE:	Electret condenser Microphone with 3.5mm jack

SAFETY

RISK OF ELECTRIC SHOCK
DO NOT OPEN

To reduce the risk of electric shock, do not disassemble this product. The unit contains no user serviceable parts inside. Refer all servicing to a qualified technician.
The lightning flash with arrowhead within a triangle alerts the user to the presence of "dangerous voltage" inside the product.
The exclamation point within a triangle to alert the user to the presence of important instructions in the literature accompanying the appliance.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
ATTENTION: Invisible when safety devices are open or defective laser radiation. Avoid exposure to beam.
Device class 1 laser.

ATTENTION!

• Ensure proper ventilation of the unit and do not cover the ventilation openings with items such as newspapers, tablecloths, curtains, etc..
• Do not put any heat sources, such as lighted candles, on or near the appliance.
• Use this unit in a temperate climate.
• Do not expose the unit to dripping or moisture.
• Ensure a minimum distance of 5 cm around the unit to allow adequate ventilation.
• Do not place objects filled with liquids, such as vases, on or near the appliance.
• The plate is located at the rear of this unit.
• The mains plug is used to disconnect the device and must be easily accessible. To completely remove power from the unit, unplug the AC power plug from the outlet completely. The AC power plug can not be constrained and must be easily accessible during use.
• A s a result of electrostatic phenomena and / or electrical transients, the product may malfunction and reset may be necessary.
• Do not expose the batteries to excessive heat such as direct sunlight, fire or other sources of heat.
• Please respect the environment when disposing of used batteries.
• To prevent splashing, place objects filled with liquids, such as vases, near the product.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device
• The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
