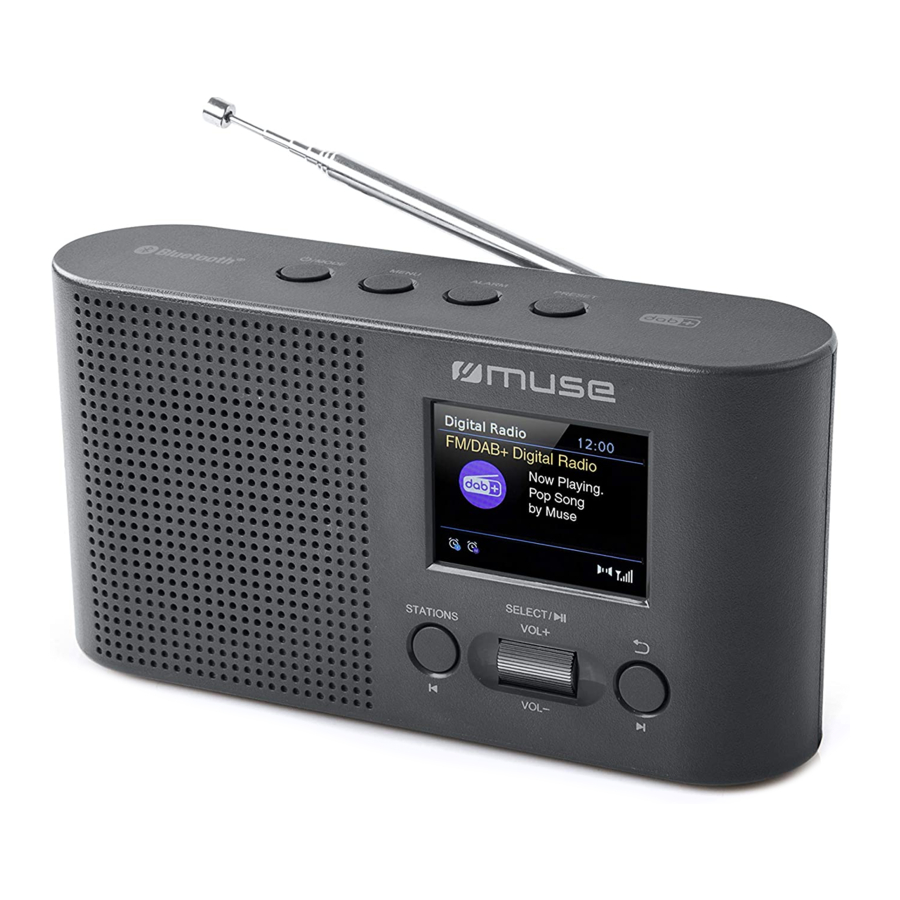

Muse M-112 DBT - Portable Radio DAB+/FM With Bluetooth Manual

LOCATION AND DESCRIPTION OF CONTROLS

Please read the instruction carefully before operating the unit.

1. TFT display
2. Speaker
3. / STATIONS: To show sation list; To skip to previous track in Bluetooth mode
4. SELECT +/-; knob: Tuning; To confirm the selection/ settings; To adjust the volume; To review the information transmitted by the radio station; Play/ Pause; Bluetooth pairing function; Snooze
5. /: Return to previous setting; To skip next track in Bluetooth mode
6. / MODE: To turn unit on/ standby mode; To select DAB, FM and Bluetooth mode
7. MENU: To access the setting menu
8. ALARM: To set alarm
9. PRESET: Preset radio stations
10. ON/OFF switch
11. DC IN micro USB socket
12. Phones jack
13. Battery compartment
14. Telescopic antenna

POWER SUPPLY

AC ADAPTOR
The supplied AC adaptor is suitable for use on AC main supplies of AC 100-240V 50/60Hz and should only be connected to a mains supply within these parameters.

BATTERY OPERATION

Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.

NOTES:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

TURNING UNIT ON/OFF

SELECTING FUNCTION

When the unit is on, repeatedly press MODE button to select desired mode: DAB, FM or Bluetooth.

SETTING THE TIME AND DATE

The first time you listen to DAB/ DAB+ radio, the time and date of the unit will synchronize automatically to the broadcast by the DAB service in 24 hour mode, which is in line with daylight saving.
If you want to set the time and date manually, turn on the radio and follow the steps as below:

When you confirm the date and time. "Time saved" is displayed and returns to <Time/Date> setting menu.
You can use SELECT knob a to set followings:
Auto update: From Any/ From Digital Radio/ From FM/ No Update
Set 12/24 Hour: 12 Hour or 24 Hour
Set Date Format: DD-MM-YYYY or MM-DD-YYYY.
Note: If the time is not set, "00:00" will blink on display when unit is in standby mode.

SETTING THE ALARM

"Alarm 1" or "Alarm 2" will display when the alarm time is reached.
Note: In 12 hour clock format, be sure to observe the AM/PM indicator to set the alarm time correctly.

Stopping the Alarm

1. Alarm repetition
   Press SELECT to stop the alarm temporally. The unit will go to standby mode. The display will show "Snooze" and the remaining snooze time. The alarm stops and will sound again 5 minutes later.
   Note: Repeatedly press SELECT to select 5-10-15-30 minutes of alarm repetition time.
2. Alarm stop
   Press to stop the alarm.
   Note:
   • When "Daily" is set, the alarm will sound again the next day at the same time.
   • When "Once" is set, the alarm will not sound again. The alarm indicator will light off.
   • When "Weekends" is set, the alarm will sound again the following Saturday or Sunday at the same time.
   • When "Weekdays" is set, the alarm will sound again on next weekday (Monday to Friday) at the same time.
3. Alarm Cancellation
   When the unit on, press MENU button to access setting menu. Rotate SELECT knob to select <System settings> then press SELECT to confirm. Rotate SELECT knob to "Alarm" and press it again to enter into alarm setting menu. Rotate SELECT knob to select "Alarm 1" or "Alarm 2", then press SELECT to confirm. Press SELECT knob to select <On>, the alarm time will be show on display when the unit in standby mode. Press SELECT knob again to select <Off> to cancel the alarm. The alarm "Off" will be show on display when the unit in standby mode.

LISTENING TO DAB/DAB+ RADIO

When the unit is on, repeatedly press MODE button to select DAB icon.
The first time you use the radio, or if the station list is empty, the radio automatically performs a full scan to see what stations are available. The display will change to "Scanning......". A progress bar will show the progress of the scan and the number of stations found during the scan will also be displayed.
You may also need to start a scan manually to update the list of stations for one of the following reasons:

To do a full scan, press MENU button to enter setting menu, rotate SELECT knob to select <Full Scan> and press SELECT to start a scan.
Once the scan is complete, the radio returns to play the previously selected station or first station on the station list. Press STATIONS button to show the station list which have found. Rotate SELECT knob to select a desired station.

Note:

LISTENING TO FM RADIO

When the unit is on, repeatedly press MODE button to select FM icon. Tune to a desired radio station with STATION/SELECT buttons. Note: For a better reception, extend the telescopic antenna.

Manual Search

Note: If SELECT knob is no activated in 9 seconds, "Tune" disappears in the FM mode. It will automatically turn back to volume adjustment function.

Automatic search
Press and hold SELECT button. The automatic search locates strong stations.

PRESET STATIONS

This unit can store 10 FM and 10 DAB/DAB+ stations.

LISTENING TO RADIO PRESETS
Press PRESET once. "Preset Recall" and preset stations will be displayed. Rotate SELECT knob to select your desire preset station and press SELECT to confirm.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device
When the unit is on, repeatedly press MODE button to select Bluetooth icon. The display will show "Disconnected".
On the Bluetooth device, enable Bluetooth and select "M-112DBT" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use "0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, you will hear the indication sound. The display will show "Connected".

Note:

Using a Bluetooth Device

Hereby, NEW ONE S.A.S, declares that this MUSE M-112 DBT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

SETTING MENU

When the unit is on, press MENU button to access setting menu. Rotate SELECT knob to select an option and/ or adjust the setting, then press SELECT to confirm.

Note:
When do the setting in the menu, press button to return back to previous step.

DAB setting menu
Station List
Show a full list of DAB stations available.

Full Scan
This function allows you to automatically scan and create a list of receivable DAB broadcasts.

Manual tune
This function can be used to assist the positioning of antenna or the unit, to enhance specific channel or frequency reception ability.
Rotate SELECT knob to select <Manual Tune> and press SELECT to confirm. Rotate SELECT to select your desired frequency and press SELECT to tune to the station for the selected frequency.

Prune Invalid
Remove stations that are listed but unavailable.
This function can remove all invalid stations indicated in the station list with a "?" in front of the station name.
Rotate SELECT knob to select "Yes" or "No", then press SELECT button to confirm or cancel removing all invalid stations.

DRC (Dynamic range compression)
DRC can make quieter sounds easier to hear when the unit is used in a noisy environment.
Rotate SELECT knob to select "Off", "Low" or "High", then press SELECT to confirm. DRC off - no compression. This is the default setting.
DRC low - medium compression.
DRC high - maximum compression.
Note: DRC is effective only in dynamic range compression broadcast.

System setting

• Sleep
  Rotate SELECT knob to select 15-30-45-60-90 minutes of listening and press SELECT to confirm. The display will show " " and the remaining sleep time. The unit will automatically turn off after the specified time. To cancel the sleep function, rotate SELECT knob to select "Sleep Timer Off" and press SELECT to confirm, Indicator lights off.
• Alarm
  Set the alarms. Refer to the operations in section "SETTING THE ALARM".
• Equaliser
  Select the desired sound effect: Normal, Classic, Jazz, POP, Rock, Speech, My EQ, My EQ Setup (Bass and Treble).
  Note: Select "My EQ Setup" and rotate SELECT knob to choose the desired value of Bass and Treble before you choose "My EQ".
• Time / Date
  • Set Time/ Date
    Set date (DD/MM/YY) and time. Refer to the operations in section "SETTING THE TIME AND DATE".
  • Auto update
    From Any: Auto update the time from DAB signal or FM signal
    From Digital Radio: Auto update the time from the DAB signal From FM: Auto update the time from the FM signal No Update: show the time from system setting.
  • Set 12/ 24 Hour
    Set time format: 12/24 hour clock display
  • Set Date Format
    Select the date format: DD-MM-YYYY or MM-DD-YYYY
• Backlight
  • Time out
    To select your desire backlight timeout in seconds: Off > 10 > 20 > 30 > 45 > 60 > 90 > 120 >180
    1. Select <Timeout> and press SELECT to enter to this option.
    2. Rotate SELECT knob to select your desire backlight timeout in seconds: Off > 10 > 20 > 30 > 45 > 60 > 90 > 120 > 180. Then press SELECT to confirm your setting.
  • On Level
    To select the backlight level when unit is on: High > Medium > Low
  • Dim Level
    To select the backlight level when unit is dim: High > Medium > Low
• Language
  To select the desired language of the unit's menu: English, Nederlands, Deutsch, Français.
• Factory Reset
  To restore to factory default settings.
• Software Update
  This option is for software update via computer.
  Notes:
  1. Once "Yes" is confirmed under this option, the unit will enter into software update mode, and all the buttons will be deactivated. If you want to exit this mode, you need to reset the unit. Slide the ON/OFF switch to OFF position and then ON again.
  2. When software update is processing, all the buttons will be deactivated and don't power off the unit. The unit will resume normal operation after the upgrade process is completed.
• Software version
  To review the current software version.

FM setting menu

• Scan setting
  Strong stations only: The automatic search only locates at strong stations. All stations: The automatic search locates at any available station.
• Forced Mono
  To select force mono "Yes" or "No".
• System setting
  Refer to the operaitons in section "DAB setting menu/ System setting".
  Note: In Bluetooth mode, press MENU button to enter "System setting" for setting. Refer to the operaitons in section "DAB setting menu".

NOW PLAYING INFORMATION

While a station is playing, the display shows its name and DLS (Dynamic Label Segment) information transmitted by the radio station such as program name, track title and contact details. When you short press SELECT each time, the next set of information is displayed, cycling through:

DAB mode:
Radio text, PTY (Program Type), Ensemble name, DAB variant, Channel number/ region, Channel number/ frequency, Signal error rate/ Signal strength, Bit rate/ Codec, Date.

FM mode:
Radio Text, PTY (Program Type), Name, Stereo or Mono, Date.

ERROR MESSAGES

'Service not available': No DAB reception
'No stations': The listed station cannot be found.
(No name): The current station does not broadcast an identify name.
'No stations found': No DAB stations are available, check/ extend the antenna
'No Radio Text': No RDS text information is available on this station.
'No PTY': No RDS program type information is available.

USING HEADPHONES / EARPHONES (NOT INCLUDED)

Maximum output voltage ≤ 150 mV
HEADPHONE VOLUME WARNING
Connect earphones with the volume set low and increase it if required. Prolonged listening through some earphones at high volume settings can result in hearing damage. When headphones/earphones are connected, no sound will be emitted from the unit's speaker.

Avoid listening to sound at levels which may be harmful to your ears.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

TECHNICAL SPECIFICATIONS

POWER SUPPLY
AC adaptor:
Input: 100-240V 50/60Hz 0.2A MAX
Output: DC IN 5V 1A
Batteries: 4X1.5V battery type R6/UM3/AA (not provided)

RADIO:
FM: 87.5 -108 MHz
DAB/DAB+: 174.928-239.200 MHz

BLUETOOTH
Bluetooth Version: V5.0
Bluetooth: 2.402-2.48GHz
RF Output Power: < 2dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)
Specifications are subject to change without notice.

SAFETY INSTRUCTIONS

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.
The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.
The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.
The caution mark is located at the back of the device.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)
