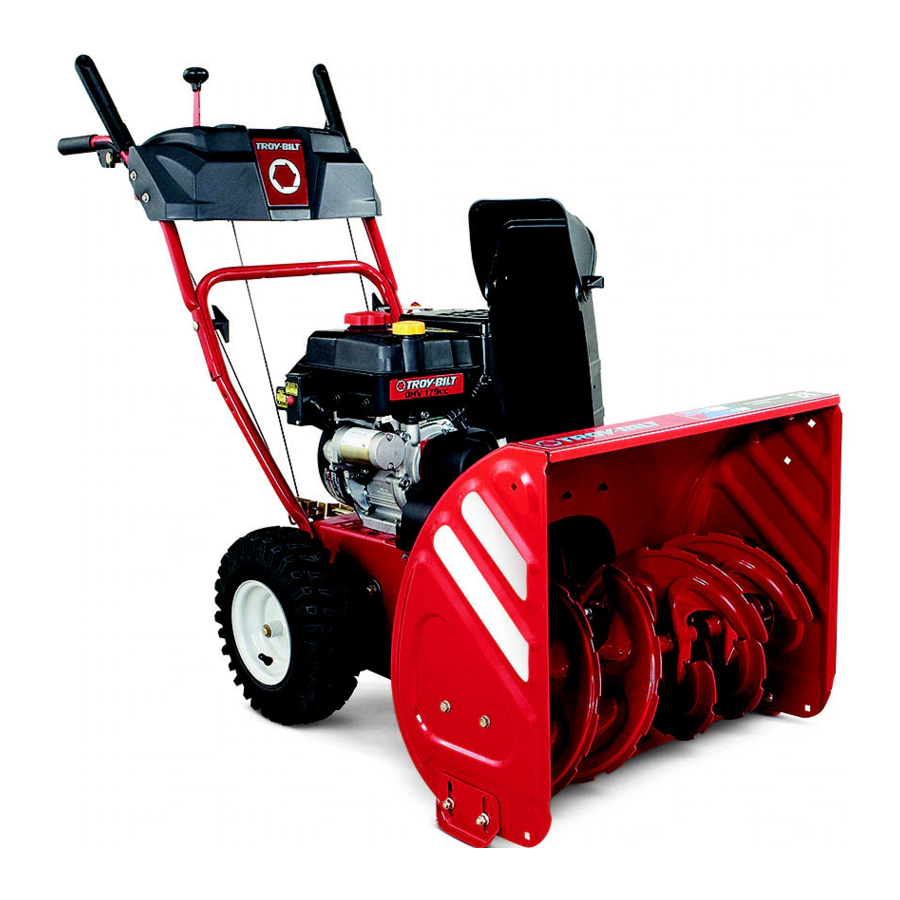

Troy-Bilt Storm 2410 - Two-Stage Snow Thrower Manual

Also See for Storm 2410:

Operator's manual (60 pages)

Operator's manual (56 pages)

Operator's manual (28 pages)

Table of Contents

Contents

1 Introduction
2 Important Safe Operation Practices
3 Assembly & Set-Up
4 Controls and Features
- 4.1 Shift Lever
5 Operation
6 Maintenance & Adjustments
7 Service
- 7.1 Belt Replacement
  - 7.1.1 Auger Belt
  - 7.1.2 Drive Belt
- 7.2 Friction Wheel Removal
8 Troubleshooting
9 Replacement Parts
10 Attachments & Accessories
11 WARRANTY
12 Customer Support
13 Documents / Resources
- 13.1 References
- 13.2 Download manual

Troy-Bilt Storm 2410 - Two-Stage Snow Thrower Manual

Introduction

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

Please read this entire manual prior to operating the equipment. It instructs you how to safely and easily set up, operate and maintain your machine. Please be sure that you, and any other persons who will operate the machine, carefully follow the recommended safety practices at all times. Failure to do so could result in personal injury or property damage.

All information in this manual is relative to the most recent product information available at the time of printing. Review this manual frequently to familiarize yourself with the machine, its features and operation. Please be aware that this Operator's Manual may cover a range of product specifications for various models. Characteristics and features discussed and/or illustrated in this manual may not be applicable to all models. We reserve the right to change product specifications, designs and equipment without notice and without incurring obligation.

Record Product Information
Before setting up and operating your new equipment, please locate the model plate on the equipment and record the information. You can locate the model plate by standing at the operator's position and looking down at the rear of the frame. This information will be necessary, should you seek technical support via our web site, Customer Support Department, or with a local authorized service dealer.

Important Safe Operation Practices

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol. HEED ITS WARNING!

CALIFORNIA PROPOSITION 65

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

This machine was built to be operated according to the safe operation practices in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating fingers, hands, toes and feet and throwing foreign objects. Failure to observe the following safety instructions could result in serious injury or death.

Training

Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.
Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.
Never allow children under 14 years of age to operate this machine. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the machine and be trained and supervised by an adult.
Never allow adults to operate this machine without proper instruction.
Thrown objects can cause serious personal injury. Plan your snow-throwing pattern to avoid discharge of material toward roads, bystanders and the like.
Keep bystanders, pets and children at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.
Exercise caution to avoid slipping or falling, especially when operating in reverse.

Preparation

Thoroughly inspect the area where the equipment is to be used. Remove all doormats, newspapers, sleds, boards, wires and other foreign objects, which could be tripped over or thrown by the auger/impeller.

Always wear safety glasses or eye shields during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.
Do not operate without wearing adequate winter outer garments. Do not wear jewelry, long scarves or other loose clothing, which could become entangled in moving parts. Wear footwear which will improve footing on slippery surfaces.
Use a grounded three-wire extension cord and receptacle for all machines with electric start engines.
Adjust auger housing height to clear gravel or crushed rock surfaces.
Disengage all control levers before starting the engine.
Never attempt to make any adjustments while engine is running, except where specifically recommended in the operator's manual.
Let engine and machine adjust to outdoor temperature before starting to clear snow.

Safe Handling of Gasoline

To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.

Use only an approved gasoline container.
Extinguish all cigarettes, cigars, pipes and other sources of ignition.
Never fuel machine indoors.
Never remove gas cap or add fuel while the engine is hot or running.
Allow engine to cool at least two minutes before refueling.
Never over fill fuel tank. Fill tank to no more than ½ inch below bottom of filler neck to provide space for fuel expansion.
Replace gasoline cap and tighten securely.
If gasoline is spilled, wipe it off the engine and equipment. Move machine to another area. Wait 5 minutes before starting the engine.
Never store the machine or fuel container inside where there is an open flame, spark or pilot light (e.g. furnace, water heater, space heater, clothes dryer etc.).
Allow machine to cool at least 5 minutes before storing.
Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.
If possible, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

Operation

Do not put hands or feet near rotating parts, in the auger/ impeller housing or chute assembly. Contact with the rotating parts can amputate hands and feet.
The auger/impeller control lever is a safety device. Never bypass its operation. Doing so makes the machine unsafe and may cause personal injury.
The control levers must operate easily in both directions and automatically return to the disengaged position when released.
Never operate with a missing or damaged chute assembly. Keep all safety devices in place and working.
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.
Do not operate machine while under the influence of alcohol or drugs.
Muffler and engine become hot and can cause a burn. Do not touch. Keep children away.
Exercise extreme caution when operating on or crossing gravel surfaces. Stay alert for hidden hazards or traffic.
Exercise caution when changing direction and while operating on slopes.
Plan your snow-throwing pattern to avoid discharge towards windows, walls, cars etc. Thus, avoiding possible property damage or personal injury caused by a ricochet.
Never direct discharge at children, bystanders and pets or allow anyone in front of the machine.
Do not overload machine capacity by attempting to clear snow at too fast of a rate.
Never operate this machine without good visibility or light. Always be sure of your footing and keep a firm hold on the handles. Walk, never run.
Disengage power to the auger/impeller when transporting or not in use.
Never operate machine at high transport speeds on slippery surfaces. Look down and behind and use care when backing up.
If the machine should start to vibrate abnormally, stop the engine, disconnect the spark plug wire and ground it against the engine. Inspect thoroughly for damage. Repair any damage before starting and operating.
Disengage all control levers and stop engine before you leave the operating position (behind the handles). Wait until the auger/impeller comes to a complete stop before unclogging the chute assembly, making any adjustments, or inspections.
Never put your hand in the discharge or collector openings. Always use the clean-out tool provided to unclog the discharge opening. Do not unclog chute assembly while engine is running. Shut off engine and remain behind handles until all moving parts have stopped before unclogging.
Use only attachments and accessories approved by the manufacturer (e.g. wheel weights, tire chains, cabs etc.).
When starting engine, pull cord slowly until resistance is felt, then pull rapidly. Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises or sprains could result.
If situations occur which are not covered in this manual, use care and good judgment. Contact Customer Support for assistance and the name of your nearest servicing dealer.

Clearing a Clogged Discharge Chute

Hand contact with the rotating impeller inside the discharge chute is the most common cause of injury associated with snow throwers. Never use your hand to clean out the discharge chute.

To clear the chute:

SHUT THE ENGINE OFF!
Wait 10 seconds to be sure the impeller blades have stopped rotating.
Always use a clean-out tool, not your hands.

Maintenance & Storage

Never tamper with safety devices. Check their proper operation regularly. Refer to the maintenance and adjustment sections of this manual.
Before cleaning, repairing, or inspecting machine disengage all control levers and stop the engine. Wait until the auger/impeller come to a complete stop. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.
Check bolts and screws for proper tightness at frequent intervals to keep the machine in safe working condition. Also, visually inspect machine for any damage.
Do not change the engine governor setting or over-speed the engine. The governor controls the maximum safe operating speed of the engine.
Snow thrower shave plates and skid shoes are subject to wear and damage. For your safety protection, frequently check all components and replace with original equipment manufacturer's (OEM) parts only. "Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!"
Check control levers periodically to verify they engage and disengage properly and adjust, if necessary. Refer to the adjustment section in this operator's manual for instructions.
Maintain or replace safety and instruction labels, as necessary.
Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.
Prior to storing, run machine a few minutes to clear snow from machine and prevent freeze up of auger/impeller.
Never store the machine or fuel container inside where there is an open flame, spark or pilot light such as a water heater, furnace, clothes dryer etc.
Always refer to the operator's manual for proper instructions on off-season storage.
Check fuel line, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary.
Do not crank engine with spark plug removed.
According to the Consumer Products Safety Commission (CPSC) and the U.S. Environmental Protection Agency (EPA), this product has an Average Useful Life of seven (7) years, or 60 hours of operation. At the end of the Average Useful Life have the machine inspected annually by an authorized service dealer to ensure that all mechanical and safety systems are working properly and not worn excessively. Failure to do so can result in accidents, injuries or death.

Do not modify engine

To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor.

Notice Regarding Emissions

Engines which are certified to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) are certified to operate on regular unleaded gasoline, and may include the following emission control systems: Engine Modification (EM), Oxidizing Catalyst (OC), Secondary Air Injection (SAI) and Three Way Catalyst (TWC) if so equipped.

Spark Arrestor

This machine is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands.
A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

Safety Symbols

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Safety Symbols

Your Responsibility - Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!

Assembly & Set-Up

Contents of Carton

One Snow Thrower
One Snow Thrower Operator's Manual
Two Replacement Auger Shear Pins
One Product Registration Card
One Chute Assembly

Assembly

Handle

Place the shift lever in the Forward-6 position.
Observe the lower rear area of the snow thrower to be sure both cables are aligned with roller guides before pivoting the handle upward. See Fig. 3-1.

Fig. 3-1

NOTE: Make certain the upper ends of each cable are seated properly in its pulley. See Fig. 3-2.

Fig. 3-2
Secure the handle by tightening the plastic knob located on both the left and right sides of the handle. Remove and discard any rubber bands, if present. They are for packaging purposes only.

Chute Assembly

Position the chute assembly over the base. See Fig. 3-3.

Fig. 3-3

Close the flange keepers to secure the chute assembly to the chute base. The flange keepers will click into place when properly secure. See Fig. 3-4.

Fig. 3-4
NOTE: If the flange keepers will not easily click into place, use the palm of your hand to apply swift, firm pressure to the back of each.

Chute Directional Control

Remove the plastic cap (if present), flat washer and hairpin clip from the end of the chute directional control. See Fig. 3-5.

Fig. 3-5
Insert the end of the chute directional control into the lower bracket and secure with the flat washer and hairpin clip just removed. If necessary, the lower bracket can be adjusted. Refer to Chute Bracket Adjustment.

Set-Up

Shear Pins

A pair of replacement auger shear pins and bow tie cotter pins are included with your snow thrower. Store them in your snow thrower's dash panel until needed. See Fig. 3-6.
Set-Up - Shear Pins
Fig. 3-6

Chute Clean-Out Tool

The chute clean-out tool is fastened to the top of the auger housing with a mounting clip and a cable tie at the factory. Cut the cable tie before operating the snow thrower. See Fig. 3-7.
Set-Up - Chute Clean-Out Tool
Fig. 3-7

Tire Pressure

Under any circumstance do not exceed manufacturer's recommended psi. Equal tire pressure should be maintained at all times. Excessive pressure when seating beads may cause tire/rim assembly to burst with force sufficient to cause serious injury. Refer to side wall of tire for recommended pressure.

The tires are over-inflated for shipping purposes. Check the tire pressure before operating the snow thrower. Refer to the tire side wall for tire manufacturer's recommended psi and deflate (or inflate) the tires as necessary.

warning NOTE: If the tire pressure is not equal in both tires, the machine may not travel in a straight path and the shave plate may wear unevenly.

Adjustments

Skid Shoes

The snow thrower skid shoes are adjusted upward at the factory for shipping purposes. Adjust them downward, if desired, prior to operating the snow thrower.

It is not recommended that you operate this snow thrower on gravel as it can easily pick up and throw loose gravel, causing personal injury or damage to the snow thrower and surrounding property.

For close snow removal on a smooth surface, raise skid shoes higher on the auger housing.
Use a middle or lower position when the area to be cleared is uneven, such as a gravel driveway.

warning NOTE: If you choose to operate the snow thrower on a gravel surface, keep the skid shoes in position for maximum clearance between the ground and the shave plate.

To adjust the skid shoes:

Loosen the four hex nuts (two on each side) and carriage bolts. Move skid shoes to desired position. See Fig. 3-10.

Fig. 3-10
Make certain the entire bottom surface of skid shoe is against the ground to avoid uneven wear on the skid shoes.
Retighten nuts and bolts securely.

Chute Assembly

The distance snow is thrown can be adjusted by changing the angle of the chute assembly. To do so:

Stop the engine. Refer to the Engine Operator's Manual. Remove the key and loosen the plastic knob found on the left side of the chute assembly.
Pivot the chute upward or downward before retightening the wing knob. See Fig. 3-11.
Fig. 3-11

Auger Control

Prior to operating your snow thrower, carefully read and follow all instructions below. Perform all adjustments to verify your snow thrower is operating safely and properly.

Check the adjustment of the auger control as follows:

When the auger control is released and in the disengaged "up" position, the cable should have very little slack. It should NOT be tight.
In a well-ventilated area, start the snow thrower engine. Refer to Engine Operator's Manual.
While standing in the operator's position (behind the snow thrower), engage the auger.
Allow the auger to remain engaged for approximately ten (10) seconds before releasing the auger control. Repeat this several times.
With the throttle control in the FAST (rabbit) position and the auger control in the disengaged "up" position, walk to the front of the machine.
Confirm that the auger has completely stopped rotating and shows NO signs of motion. If the auger shows ANY signs of rotating, immediately return to the operator's position and shut off the engine. Wait for ALL moving parts to stop before re-adjusting the auger control.
To readjust the control cable, loosen the upper hex screw on the auger cable bracket. See Fig. 3-12.

Fig. 3-12
Position the bracket upward to provide more slack (or downward to increase cable tension).
Retighten the upper hex screw.
Repeat steps 2 through 6 above to verify proper adjustment has been achieved.

Controls and Features

Controls and Features
Fig. 4-1

Snow thrower controls and features are described below and illustrated in Fig. 4-1.

Shift Lever

The shift lever is located on the right side of the handle panel and is used to determine ground speed and direction of travel.

Forward
There are six forward (F) speeds. Position one (1) is the slowest and position six (6) is the fastest.

Reverse
There are two reverse (R) speeds. One (1) is the slower and two (2) is the faster.

Augers
When engaged, the augers rotate and draw snow into the auger housing.

Chute Assembly
Snow drawn into the auger housing is discharged out the chute assembly.

Skid Shoe
Position the skid shoes based on surface conditions. Adjust upward for hard-packed snow. Adjust downward when operating on gravel or crushed rock surfaces.

Auger Control

The auger control is located on the left handle. Squeeze the control grip against the handle to engage the augers and start snow throwing action. Release to stop.

Drive Control

The drive control is located on the right handle. Squeeze the control grip against the handle to engage the wheel drive. Release to stop.

warning NOTE: Always release the drive control before changing speeds. Failure to do so will result in increased wear on your machine's drive system.

Chute Directional Control

The chute directional control is located on left side of the snow thrower. To change the direction in which snow is thrown, rotate chute directional control.

Chute Clean-Out Tool

Never use your hands to clear a clogged chute assembly. Shut off engine and remain behind handles until all moving parts have stopped before unclogging.

The chute clean-out tool is conveniently fastened to the rear of the auger housing with a mounting clip. Should snow and ice become lodged in the chute assembly during operation, proceed as follows to safely clean the chute assembly and chute opening:

Release both the Auger Control and the Drive Control.
Stop the engine. Refer to the Engine Operator's Manual. Remove the key.
Remove the clean-out tool from the clip which secures it to the rear of the auger housing.
Use the shovel-shaped end of the clean-out tool to dislodge and scoop any snow and ice which has formed in and near the chute assembly.
Refasten the clean-out tool to the mounting clip on the rear of the auger housing, reinsert the key and start the snow thrower's engine.

While standing in the operator's position (behind the snow thrower), engage the auger control for a few seconds to clear any remaining snow and ice from the chute assembly.

Operation

Starting and Stopping the Engine

Refer to the Engine Operator's Manual packed with your snow thrower for instructions on starting and stopping the engine.

To Engage Drive

With the throttle control in the Fast (rabbit) position, move shift lever into one of the six forward (F) positions or two reverse (R) positions. Select a speed appropriate for the snow conditions and a pace you're comfortable with.
Squeeze the drive control against the handle the snow thrower will move. Release it and drive motion will stop.

To Engage Augers

To engage the augers and start throwing snow, squeeze the auger control against the left handle. Release to stop the augers.

Replacing Shear Pins

The augers are secured to the spiral shaft with shear pins and cotter pins. If the auger should strike a foreign object or ice jam, the snow thrower is designed so that the pins may shear. If the augers will not turn, check to see if the pins have sheared. See Fig. 5-3.
Replacing Shear Pins
Fig. 5-3

NEVER replace the auger shear pins with anything other than OEM Part No. 738-04124A replacement shear pins. Any damage to the auger gearbox or other components as a result of failing to do so will NOT be covered by your snow thrower's warranty.

Always turn off the snow thrower's engine and remove the key prior to replacing shear pins.

Maintenance & Adjustments

Maintenance

Engine

Refer to the Engine Operator's Manual.

Shave Plate and Skid Shoes

The shave plate and skid shoes on the bottom of the snow thrower are subject to wear. They should be checked periodically and replaced when necessary.

To remove skid shoes:

Remove the four carriage bolts and hex flange nuts which secure them to the snow thrower.
Reassemble new skid shoes with the four carriage bolts (two on each side) and hex flange nuts. Refer to Fig. 6-1.

Fig. 6-1

To remove shave plate:

Remove the carriage bolts and hex nuts which attach it to the auger housing.
Reassemble new shave plate, making sure heads of carriage bolts are to the inside of housing. Tighten securely.

Tire Pressure

Refer information regarding tire pressure.

Lubrication

Gear Shaft

The gear (hex) shaft should be lubricated at least once a season or after every twenty-five (25) hours of operation.

Allow the engine to run until it is out of fuel.
Carefully pivot the snow thrower up and forward so that it rests on the auger housing.
Remove the frame cover from the underside of the snow thrower by removing the self-tapping screws which secure it. Refer to Fig. 7-3.
Apply a light coating of engine oil (or 3-in-1 oil) to the hex shaft. See Fig. 6-2.

Fig. 6-2

warning NOTE: When lubricating the hex shaft, be careful not to get any oil on the aluminum drive plate or the rubber friction wheel. Doing so will hinder the snow thrower's drive system. Wipe off any excess or spilled oil.

Wheels

At least once a season, remove both wheels. Clean and coat the axles with a multipurpose automotive grease before reinstalling wheels.

Chute Directional Control

Once a season, lubricate the eye-bolt bushing and the spiral with 3-in-1 oil.

Auger Shaft

At least once a season, remove the shear pins from the auger shaft. Spray lubricant inside the shaft and around the spacers and the flange bearings found at either end of the shaft. Reinstall shear pins. See Fig. 6-3.
Lubrication - Auger Shaft
Fig. 6-3

Adjustments

Shift

Cable If the full range of speeds (forward and reverse) cannot be achieved, adjust the shift cable as follows:

Place the shift lever in the fastest forward speed position.
Loosen the hex nut on the shift cable index bracket. See Fig. 6-4.

Fig. 6-4

Pivot the bracket downward to take up slack in the cable.
Retighten the hex nut.

Auger Control

Refer to the Assembly and Set-up section for instructions on adjusting the auger control cable.

Chute Assembly

Refer to the Assembly and Set-up section for instructions on adjusting the skid shoes chute assembly.

Skid Shoes

Refer to the Assembly and Set-up section for instructions on adjusting the skid shoes.

Chute Bracket

Adjustment If the spiral at the bottom of the chute directional control is not fully engaging with the chute assembly, the chute bracket can be adjusted. To do so:

Loosen the two nuts which secure the chute bracket and reposition it slightly. See Fig. 6-5.

Fig. 6-5

Retighten the nuts.

Drive Control

When the drive control is released and in the disengaged "up" position, the cable should have very little slack. It should NOT be tight.

warning NOTE: If excessive slack is present in the drive cable or if the snow thrower's drive is disengaging intermittently during operation, the cable may be in need of adjustment.

Check the adjustment of the drive control as follows:

With the drive control released, push the snow thrower gently forward. The unit should roll freely.
Engage the drive control and gently attempt to push the snow thrower forward. The wheels should not turn. The unit should not roll freely.
With the drive control released, move the shift lever back and forth between the R2 position and the F6 position several times. There should be no change in resistance in the shift lever while moving through all the speeds.

If any of the above tests failed, the drive cable is in need of adjustment. Proceed as follows:

Loosen the lower hex screw on the drive cable bracket. See Fig. 6-6.

Fig. 6-6
Position the bracket upward to provide more slack (or downward to increase cable tension).
Retighten the upper hex screw.
Check the adjustment of the drive control as described above to verify proper adjustment has been achieved.

Off-Season Storage

If the snow thrower will not be used for 30 days or longer, follow the storage instructions below.

Lubricate the machine as instructed earlier in this section.
Store in a clean, dry area.
If storing the snow thrower in an unventilated area, rustproof the machine using a light oil or silicone to coat the snow thrower.
Clean the exterior of the engine and the snow thrower.

warning NOTE: Refer to the Engine Maintenance section for information on storing your engine.

Service

Belt Replacement

Auger Belt

To remove and replace your snow thrower's auger belt, proceed as follows:

Allow the engine to run until it is out of fuel. Do not attempt to pour fuel from the engine.
Remove the plastic belt cover on the front of the engine by removing the two self-tapping screws. See Fig. 7-1.

Fig. 7-1
Roll the auger belt off the engine pulley. See Fig. 7-2.

Fig. 7-2

Carefully pivot the snow thrower up and forward so that it rests on the auger housing.
Remove the frame cover from the underside of the snow thrower by removing the self-tapping screws which secure it. See Fig. 7-3.

Fig. 7-3
Remove the belt as follows. See Fig. 7-4.

Fig. 7-4
1. Loosen and remove the shoulder bolt which acts as a belt keeper.
2. Unhook the support bracket spring from the frame.
Remove the belt from around the auger pulley, and slip the belt between the support bracket and the auger pulley. See Fig. 7-5.

Fig. 7-5
Replace the auger belt by following instructions in reverse order.
NOTE: Do not forget to reinstall the shoulder bolt and reconnect the spring to the frame after installing a replacement auger belt.
After replacing the auger belt, perform the Auger Control test of the Assembly and Set-Up section.

Drive Belt

To remove and replace your snow thrower's drive belt, proceed as follows:

To prevent spillage, remove all fuel from tank by running engine until it stops. Do not attempt to pour fuel from the engine.
Remove the plastic belt cover on the front of the engine by removing the two self-tapping screws. Refer to Fig. 7-1.
Remove the belt as follows. See Fig. 7-6.:

Fig. 7-6
1. Roll the auger belt off the engine pulley.
2. Use a wrench to pivot the idler pulley toward the right.
3. Lift the drive belt off engine pulley.
Carefully pivot the snow thrower up and forward so that it rests on the auger housing.
Remove the frame cover from the underside of the snow thrower by removing the self-tapping screws which secure it. Refer to Fig. 7-3.
Back out the stop bolt to increase the clearance between the friction wheel disc and friction wheel. See Fig. 7-7.

Fig. 7-7
Slip the drive belt off the pulley and between friction wheel and friction wheel disc. See Fig. 7-7.
Remove and replace belt in the reverse order.

Friction Wheel Removal

If the snow thrower fails to drive with the drive control engaged, and performing the drive control cable adjustment fails to correct the problem, the friction wheel may need to be replaced.
Follow the instructions below. Examine the friction wheel for signs of wear or cracking and replace if necessary:

Allow the engine to run until it is out of fuel. Do not attempt to pour fuel from the engine.
Place the shift lever in third Forward (F3) position.
Carefully pivot the snow thrower up and forward so that it rests on the auger housing.
Remove the frame cover from the underside of the snow thrower by removing the self-tapping screws which secure it. Remove the right-hand wheel by removing the screw and bell washer which secure it to the axle. See Fig. 7-8.

Fig. 7-8
Carefully remove the hex nut which secures the hex shaft to the snow thrower frame and lightly tap the shaft's end to dislodge the ball bearing from the right side of the frame. See Fig. 7-9.

Fig. 7-9
NOTE: Be careful not to damage the threads on the shaft.
Carefully position the hex shaft downward and to the left before carefully sliding the friction wheel assembly off the shaft. See Fig. 7-10.

Fig. 7-10
NOTE: If you're replacing the friction wheel assembly as a whole, discard the worn part and slide the new part onto the hex shaft.

Follow the previous steps in reverse order to reassemble components. If you're disassembling the friction wheel and replacing only the rubber ring, proceed as follows:

Remove the four screws which secure the friction wheel's side plates together. See Fig. 7-11.

Fig. 7-11
Remove the rubber ring from between the plates.
Reassemble the side plates with a new rubber ring.
NOTE: When reassembling the friction wheel assembly, make sure that the rubber ring is centered and seated properly between the side plates. Tighten each screw only one rotation before turning the wheel clockwise and proceeding with the next screw. Repeat this process several times to ensure the plates are secured with equal force (between 6 ft-lbs and 9 ft-lbs).
NOTE: Make sure the shift lever pin is in place in the bearing housing. See Fig. 7-9 inset.
Slide the friction wheel assembly back onto the hex shaft and follow the steps above in reverse order to reassemble components.
After replacing the friction wheel, perform the Drive Control test in the Maintenance and Adjustments section.

Troubleshooting

Problem	Cause	Remedy
Engine fails to start	Choke not in CHOKE position. Spark plug wire disconnected. Fuel tank empty or stale fuel. Engine not primed. Faulty spark plug. Key not in ignition on engine.	Move choke to CHOKE position. Connect wire to spark plug. Fill tank with clean, fresh gasoline. Prime engine as instructed in the Operation section. Clean, adjust gap, or replace. Insert key fully into the switch.
Engine running erratically/ inconsistent RPM (hunting or surging)	Engine running on CHOKE. Stale fuel. Water or dirt in fuel system. Carburetor out of adjustment. Engine over-governed	Move choke lever to RUN position. Fill tank with clean, fresh gasoline. Drain fuel tank. Refill with fresh fuel. Contact an authorized Service Center. Contact an authorized Service Center.
Engine overheats	Carburetor not adjusted properly.	Contact an authorized Service Center.
Excessive vibration	Loose parts or damaged auger.	Stop engine immediately and disconnect spark plug wire. Tighten all bolts and nuts. If vibration continues, have unit serviced by an authorized Service Center.
Loss of power	Spark plug wire loose. Gas cap vent hole plugged.	Connect and tighten spark plug wire. Remove ice and snow from gas cap. Be certain vent hole is clear.
Unit fails to propel itself	Drive control cable in need of adjustment. Drive belt loose or damaged. Friction wheel worn.	Adjust drive control cable. Refer to Maintenance & Adjustments section. Replace drive belt. Refer to Service section Replace friction wheel. Refer to Service section.
Unit fails to discharge snow	Chute assembly clogged. Foreign object lodged in auger. Auger control cable in need of adjustment. Auger belt loose or damaged. Shear pin(s) sheared.	Stop engine immediately and disconnect spark plug wire. Clean chute assembly and inside of auger housing with clean-out tool or a stick. Stop engine immediately and disconnect spark plug wire. Remove object from auger with clean-out tool or a stick. Refer to Auger Control Test. Refer to Maintenance & Adjustments section. Replace with new shear pin(s).
Engine fails to start	Extension cord not connected (when using electric start button, on models so equipped)	Connect one end of the extension cord to the electric starter outlet and the other end to a three-prong 120-volt, grounded, AC outlet.
Chute fails to easily rotate 180 degrees	Chute assembled incorrectly.	Unassemble chute control and reassemble as directed in the Assembly section.

Replacement Parts

Component	Part Number and Description
	929-0071A	Extension Cord, 110V
	954-04050 954-04260	Auger Drive Belt Wheel Drive Belt
	684-04153 935-04054	Friction Wheel Assembly Friction Wheel Rubber
	784-5580	Slide Shoe, Standard
	738-04124A 714-04040	Shear Pin, 1.50 Bow-tie Cotter Pin
	931-2643	Chute Clean-out Tool
	790-00120	Shave Plate, 24"
	731-05632	Key
	951-10292	Spark Plug

Phone (800) 828-5500 to order replacement parts or a complete Parts Manual (have your full model number and serial number ready). Parts Manual downloads are also available free of charge at www.troybilt.com.

Attachments & Accessories

The following attachments and accessories are available for your Troy-Bilt snow thrower. Phone (800) 828-5500 for information regarding compatibility, price and availability (have your full model number and serial number ready).

Model Number	Description
OEM-390-679	Drift Cutter Kit
490-241-0010	Polymer Skid Shoe Kit
OEM-390-995	Snow Thrower Protective Cover
490-241-Y014	Troy-Bilt Snow Thrower Maintenance Kit

WARRANTY

HOW TO OBTAIN SERVICE:
Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer.

To locate the dealer in your area:

In the U.S.A.
Check your Yellow Pages, or contact Troy-Bilt LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-866-840-6483, 1-330-558-7220 or log on to our Web site at www.troybilt.com.

In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800668-1238 or log on to our Web site at www.mtdcanada.com.

Owner must present Original Proof of Purchase to obtain warranty coverage.

Customer Support

Please do NOT return the machine to the retailer or dealer without first contacting the Customer Support Department. If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this machine, you can seek help from the experts. Choose from the options below:
