Philips Sonicare Power Flosser 3000 (HX3711/22) - Irrigation System Manual

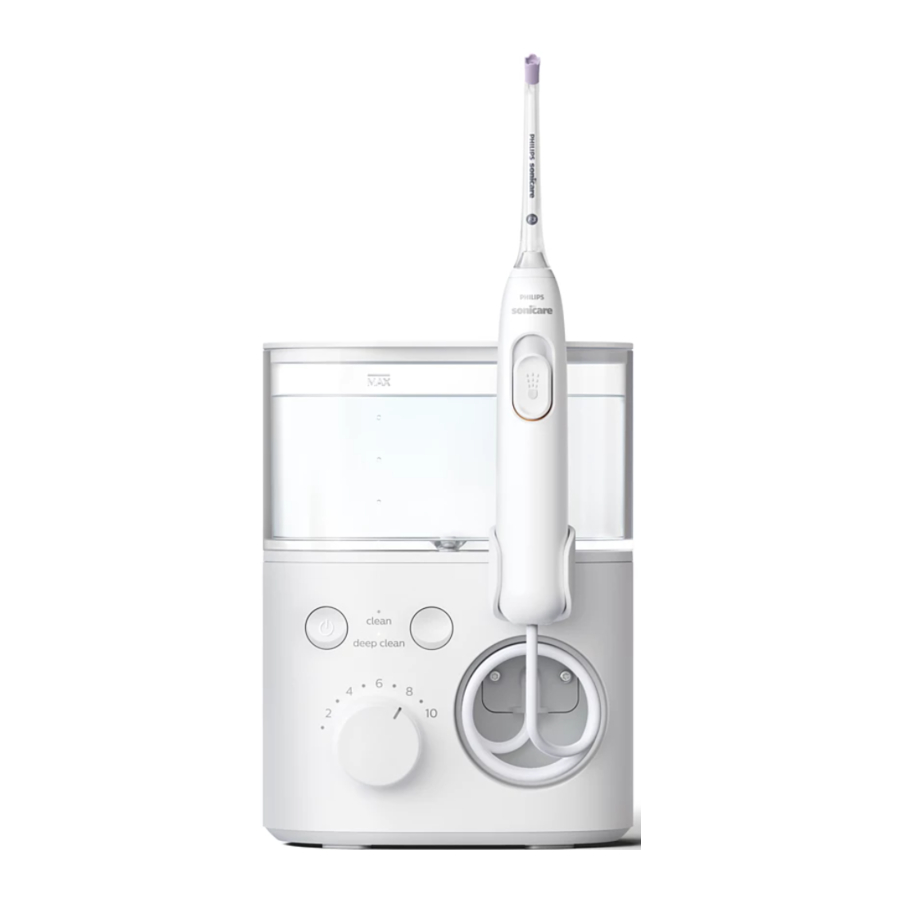

Your Philips Sonicare Power Flosser

1. Reservoir lid
2. Reservoir
3. Mode button
4. Mode indicator
5. On/off button
6. Intensity dial
7. Hose
8. Hose storage compartment
9. Base
10. Handle dock
11. Handle
12. Pause switch
13. Nozzle eject button
14. Quad Stream nozzle*
15. Comfort nozzle*
16. Standard nozzle*
17. Power adapter

*Note: The contents of the box may not include all items shown depending on the product configuration purchased.

Nozzles

To see what type of nozzles you have, check the code at the base of the nozzle. Each nozzle type provides different benefits.

Nozzle label	F1	F2	F3
Nozzle Name	Standard nozzle	Comfort nozzle	Quad Stream nozzle
Benefit	Standard nozzle with a single stream of water for removing debris and plaque.	Soft rubber nozzle for comfort and ease of positioning for those with sensitive gums.	Soft rubber nozzle that directs water into a cross-shaped stream that gently removes plaque for an effortlessly thorough clean.

Modes

Your Power Flosser is equipped with two modes:

Clean

This mode, with pacer, provides standard water pressure for a great clean.

Deep clean

This mode, with Pulse Wave technology, provides strong and gentle pulses of water for a thorough clean.

Note: For details on "Pulse Wave technology" and "pacer" (see 'Features').

Selecting modes

1. Turn on the device by pressing the on/off button.
2. Press the mode button to select desired mode.


Intensity Settings

Your power flosser comes with 10 different intensity settings. To manually change the intensity, turn on the base and turn the intensity dial to the setting you prefer.

Note: For first time use, start the device from the lowest setting. It is recommended to increase the intensity you use over the course of a few weeks. This can give better cleaning benefits as you are able to tolerate higher settings.

Features

Pacer

The clean mode has a pacer. This feature indicates when you are supposed to move to the next section of your mouth via a short pause in the waterflow.

Note: This feature is on clean mode only.

Activating or deactivating pacer
You can activate or deactivate the pacer feature by holding the on/off button and the mode button simultaneously for 5 seconds when the device is turned off.

• When deactivated, all the lights will flash once.
• When activated, all the lights will flash twice.

Pulse Wave technology

The deep clean mode has a "Pulse Wave technology" feature. The flow of the water increases and decreases in intensity, providing a brief pause during which you can move the nozzle to the next space between your teeth.

Getting started

1. Connect the small plug into the bottom of the base and connect the power plug in any 100-240V power outlet.
2. Remove the reservoir from the base.
   Note: Make sure the product is powered off before you remove the reservoir.
3. Open the lid, fill the reservoir with lukewarm water to the MAX fill line.

4. Close the lid. Place the reservoir back on the base.
   Note: Press down firmly to ensure there is no gap between the reservoir and the base.

5. Insert your preferred nozzle into the handle. Press the nozzle down until you hear a "click".

6. Press the on/off button on the base station to turn on the product. Select your desired mode and intensity.

7. Remove the handle from the base and point the tip of the nozzle into the sink. Slide the pause switch on the handle to the 'on' (up) position and wait until the water stream comes out of the tip of the nozzle. Stop the flow of water by sliding the pause switch to the 'off' (down) position.

   Note: This step is for first time use after purchase only.
8. Press the on/off button on the base again to turn off the product.

Using your Power Flosser

1. Make sure that the pause switch on the handle is in the 'off' position.
2. Press the on/off button on the base to turn on the product.

3. Place the nozzle tip in your mouth. Lean over the sink and partially close your lips over the nozzle to avoid splashing. Leave enough space to allow water to flow from your mouth into the sink.


Standard and Comfort Nozzle

With the base station turned on:

1. Position the nozzle tip just above the gum line at a 90° angle.

2. Slide the pause switch on the handle to the 'on' position to start the water flow.
3. Starting from your back teeth in your upper or lower jaw, slide the nozzle tip along the gum line and pause briefly between each tooth. Continue to clean both inside and outside of your teeth in one arch of your mouth for 30 seconds.

   Note: Remember to clean the inside of your teeth.
4. Repeat in the other arch of your mouth for another 30 seconds until all spaces around and between your teeth have been cleaned for a total of at least one minute.

   Note: You can stop the water flow during use by sliding the pause switch on the handle to the 'off' position (motor will pause).

Quad Stream Nozzle

With the base station turned on:

1. Position the nozzle tip just above the gum line at a 90° angle. Press gently so that the nozzle tip is in contact with the gum line and the teeth.

2. Slide the pause switch on the handle to the 'on' position to start the water flow.
3. Starting from your back teeth in your upper or lower jaw, slide the nozzle tip along the gum line and pause briefly between each tooth. Continue to clean both inside and outside of your teeth in one arch of your mouth for 30 seconds.

   Note: Remember to clean the inside of your teeth.
4. Repeat in the other arch of your mouth for another 30 seconds until all spaces around and between your teeth have been cleaned for a total of at least one minute.

   Note: You can stop the water flow during use by sliding the pause switch on the handle to the 'off' position (motor will pause).

Cleaning orthodontic brackets with the Quad Stream nozzle

1. To clean around orthodontic brackets, place the nozzle tip over each bracket.
2. Gently rotate the nozzle tip around the bracket in a small circle before moving to the bracket on the next tooth.


After each use

1. When you are finished, turn off the product.
2. Pick up and empty the reservoir.
3. Remove the nozzle from the handle by pushing the eject button on the back of the handle.

4. Rinse the nozzle under the tap.
5. Insert the nozzle back into the handle.

6. Dry any excess water off the tether and handle.

Cleaning

The product needs to be cleaned once a week. Clean the device and the accessories as follows:

Reservoir and lid

Gently remove the reservoir from the unit. The reservoir can be hand washed with warm water and mild soap or cleaned in the dishwasher.

Base and handle

When necessary, you can clean the outside of the base and the handle with a soft cloth and mild soap.

Nozzles

Regular Cleaning:
Remove the nozzle from the handle. Rinse the tip under warm water.

Every few months, or if your nozzle becomes clogged:
Soak the nozzle in a container of 2 parts water and 1 part white vinegar for 5 minutes. Rinse the nozzle with warm water.

Internal components, hose and handle

Fill the reservoir with warm water and add 1-2 tablespoons of white vinegar. Remove the handle, point the nozzle at the sink and turn on the product to run the solution through the unit until the reservoir is empty. Rinse by repeating with a full reservoir of clean warm water.

Storage

If you are not going to use the product for an extended period of time, unplug it from the electrical outlet, clean it and store it in a cool and dry place away from direct sunlight.

Replacement

Replace nozzles every 6 months or immediately when damaged. To buy accessories or spare parts, visit philips.com or go to your local Philips Sonicare dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).
The following spare parts are available:

• Standard nozzle
• Comfort nozzle
• Quad Stream nozzle

Note: The availability of spare parts may differ by country.

Frequently asked questions

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

IMPORTANT SAFETY INSTRUCTIONS

• Only use the product for its intended purpose. Read this information carefully before you use the product and its batteries and accessories, and save it for future reference. Misuse can lead to hazards or serious injuries. Accessories supplied may vary for different products.

• Keep the power adapter away from water.
• Do not place or store product where it can fall or be pulled into a tub or sink.
• Do not reach for a product that has fallen into water. Unplug immediately.
• Do not immerse the power adapter or base in water or any other liquid.
• After cleaning, make sure the power adapter is completely dry before you connect it to the mains.

• Keep the adapter away from water.
• After cleaning, make sure the adapter is completely dry before you connect it to the wall socket.
• This appliance can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• Only use original Philips accessories or consumables. Only use charger provided with the product. If supplied, only use the original USB cable and USB power supply unit.
• This appliance contains no user-serviceable parts. If the appliance is damaged, stop using it and contact the Consumer Care Center in your country. Devices with cord only: If the cord is damaged, replace the charger with a new one.
• Do not use the adapter outdoors or near heated surfaces.
• Do not clean any part of the product in the dishwasher.
• To avoid physical injury, do not fill the reservoir with hot water. Do not put foreign objects in the reservoir.
• This appliance has only been designed for cleaning teeth and gums.
• Do not use to clean eyes, ears or nose.
• The maximum altitude of use is 4420 meters.

MEDICAL WARNINGS

• Stop using the appliance and consult your dentist/doctor if excessive bleeding occurs after use, if bleeding continues to occur after 1 week of use or if you experience discomfort or pain.
• If you have had oral or gum surgery in the previous 2 months, consult your dentist before you use this appliance.
• If you have a pacemaker or other implanted device, contact your doctor or the manufacturer of the implanted device prior to use.
• If you have medical concerns, consult your doctor before you use this appliance.
• This appliance is a personal care device and is not intended for use on multiple patients in a dental practice or institution.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Storage and transportation conditions

Temperature (Transport and Storage) -10C to +60C (14°F and 140°F).

Intended Use

The Philips Sonicare Power Flosser is an oral irrigator intended to remove plaque and food debris between teeth and the tooth surface in order to reduce tooth decay and improve and maintain gum health. This product is intended for consumer home use, normally used at least once a day. Use by children (ages 6+) should be with adult supervision.
