Samsung MX-ST4CB - Sound Tower Manual

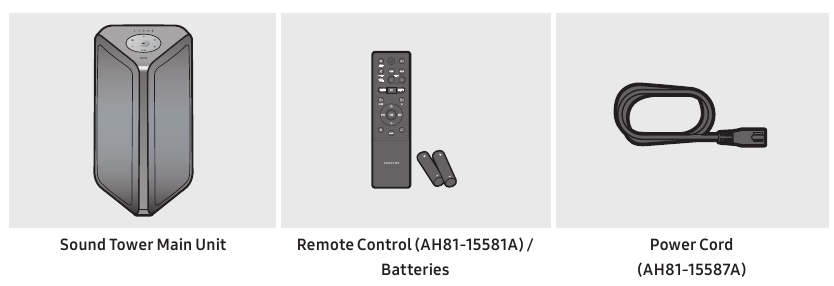

CHECKING THE COMPONENTS

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Rear of the Sound Tower Main Unit)
• To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care.

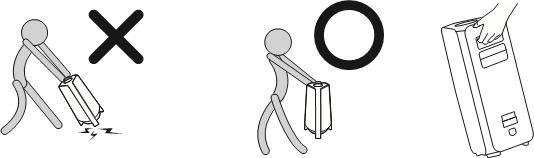

• When moving the product, do not drag or pull the product from the ground. Lift the product when moving the product.
• Design and specifications are subject to change without prior notice.

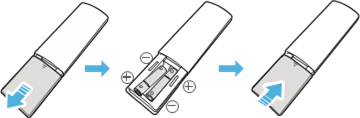

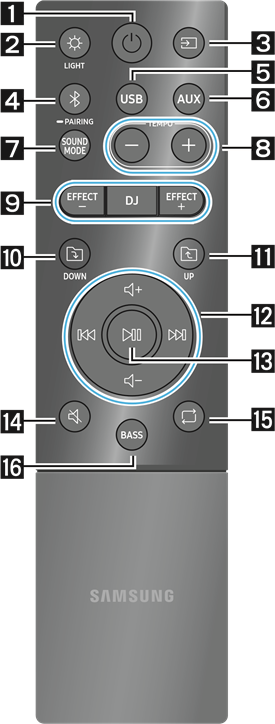

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

PRODUCT OVERVIEW

Top Panel of the Sound Tower

1	Remote Sensor	When operating the Sound Tower system, please aim the front of the remote control at the remote sensor.
2	LED Indicator	Displays operating messages or current source of the Sound Tower system. The information sources represented by each LED are as follows: (BT) (USB (AUX1) (AUX2) (Power/Battery)
3	Power	Turns the Sound Tower on and off.
4	Light	Press the (Light) button to turn the Lighting Mode on.
5	Source	Press to select a source connected to the Sound Tower. Press and hold the (Source) button for more than 5 seconds to enter the "SEARCHING TV" mode.
6	Play/Pause	Play/Pause Press the button to pause a music file temporarily. When you press the button again, the music file plays. Demo play Press and hold the button for more than 5 seconds to start the Demo play while the system is turned on. 5 LEDS flashing simultaneously and it plays demo music for 90 seconds. Please be careful as it may play louder than the set volume.
7	Volume down	Press the (Volume down) button to lower the volume.
8	Volume up	Press the (Volume up) button to raise the volume.
9	BASS	Press the BASS button to use the powerful bass sound.

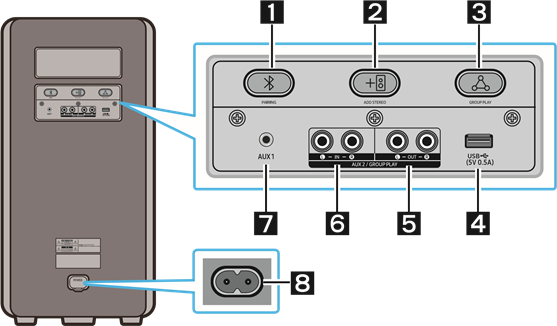

Rear Panel of the Sound Tower

1	Bluetooth PAIRING	Press the PAIRING button to enter pairing mode, "PAIRING" LED on the rear plane will be fast blink.
2	ADD STEREO	Press the ADD STEREO button to connect to another same model Sound Tower wirelessly.
3	GROUP PLAY	Press the GROUP PLAY button to connect up to ten Sound Tower systems wirelessly.

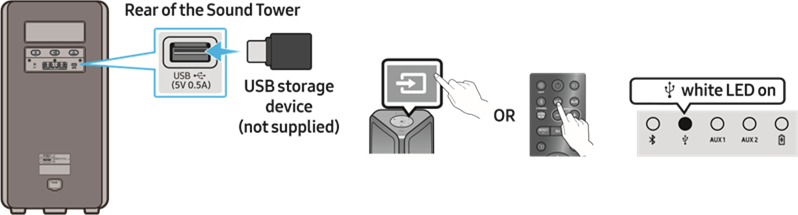

4	USB	Connect a USB device to the USB port on the main unit. Press the (Source) button to select USB.
5	GROUP PLAY OUT Terminals	Use an Audio Cable (not supplied) to connect GROUP PLAY (OUT) terminals on the main unit to Audio In on an external analog output device.
6	GROUP PLAY IN Terminals	Use an Audio Cable (not supplied) to connect AUX2(IN) terminals on the main unit to Audio Out on an external analog output device.
7	AUX1	Use an Audio (AUX) Cable (not supplied) to connect AUX1 jack on the main unit to Audio Out on an external device.
8	Power	Connect the power cord to the Power jack and connect the other end of the power cord to a wall socket to supply electrical power to the Sound Tower.

Charge LED State of the Sound Tower:

Sound Tower state	Charging state	Charge LED (AC Mode)	Charge LED (DC Mode)	Remark
Off	Fully charged	Off(black)	Off (black)
Off	Charging	Green blinks	N/A
Off	Not in charging	Off (black)	Off (black)	The AC cable is not inserted.
Stand by	Fully charged	Blue on	N/A	There is no standby mode in DC mode.
Stand by	Charging	Green blinks	N/A	The charging LED is the same as when Sound Tower is shut down.
On	Fully charged	Blue on	Blue on	When turned on, Sound Tower mainly reflects the current battery state.
On	Charging	Green blinks	N/A
On	Not in charging and 30%~98%power	Green on	Green on
On	Not in charging and 5% ~ 29% power	Red on	Red on
On	Not in charging and below 5% power	Red on	Power off after Light bar orange blink once

In DC mode shutdown, the entire system power will be turned off. So in the off state, compared with AC mode, the following functions are not supported.

Feature

Wake up via bluetooth

Shop mode

Power Off Setting

Customer Reset

Power on via IR

Battery Charge

AUI on/off

UI feedback of LED lighting bar(front) on/off

CONNECTING THE SOUND TOWER

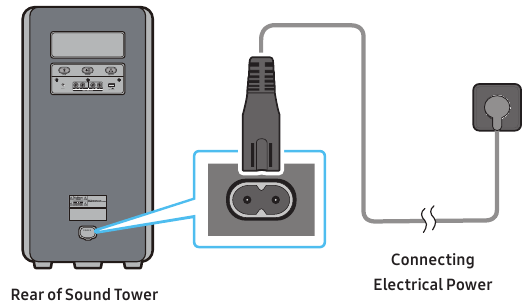

Connecting Electrical Power

Use the power cord to connect the Sound Tower to an electrical outlet in the following order:

Connect the power cord to the Sound Tower and then to a wall socket.

See the illustrations below.

• When the AC cord is pressed in, the built-in battery will be charged automatically until the battery is fully charged. The LED indicator on the top panel will show the current charging state (refer to page ENG - 4)
• When you unplug the set to run on battery, the volume level drops dramatically.
• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label: Rear of the Sound Tower)


How to use Audio Group

You can connect multiple audio systems in a group to create a party environment and produce higher sound output. Set one Sound Tower as the HOST and any music played on it will be shared among any other Sound Tower systems in the Audio group.

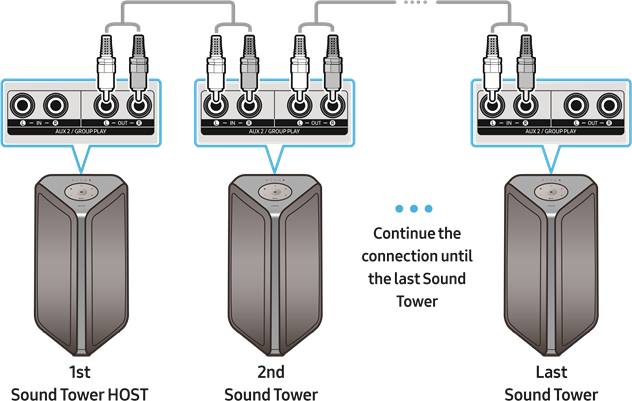

Connecting the wired Group Play mode

Set up Group Play by connecting all the systems using audio cables (not supplied). Use the AUX or (Source) button to change the source to AUX2 for every Sound Tower system except the 1st (or HOST) Sound Tower system.

NOTES

• The 1st Sound Tower HOST can play music from any source.
• Depending on the length or characteristics of the cable, there may be a difference in operating distance.

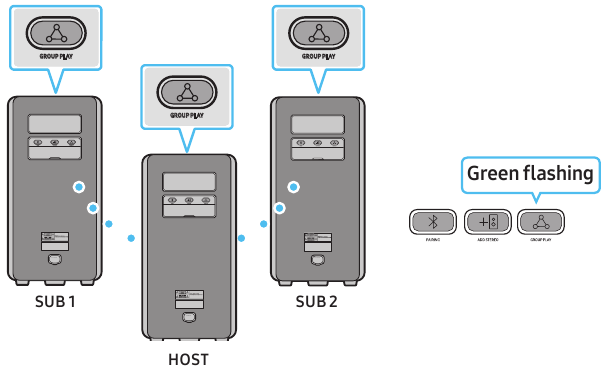

Connecting the wireless Group Play mode

You can connect up to ten Sound Tower systems with the wireless Group Play function.

1. Press the GROUP PLAY button on the HOST Sound Tower system, After "GROUP LED" solw blinks 10 seconds "GROUP PLAY"LED will be fast blink (30s).
2. Press the GROUP PLAY button on the 2nd Sound Tower system (SUB 1). "GROUP PLAY"LED will be blink. And then SUB1 will be connected with HOST, "GROUP PLAY" LED of SUB1 and HOST will stop blinking and turn on.
3. Press the GROUP PLAY button on the 3rd Sound Tower system (SUB 2). Tone prompt instead the GROUP PLAY button on the system stops blinking.
4. If you want to add more Sound Tower systems, repeat step 3.
5. Play music on the HOST Sound Tower. Sound outputs from all the connected systems.

NOTES

• In Group play mode, "HOST" Sound Tower (Figure 1) can connect to the Samsung TV. After the connection is successful, the Group play mode automatically exits.
• The wireless Group Play connection is available for MX-ST90B/MX-ST50B/MX-ST40B.
• Environmental conditions or other factors with connected devices may have effect on playback quality.
• If the red LED is on the GROUP PLAY button, an error has occurred in the wireless Group Play connection. Try step 1 to step 5 again.
• The ADD STEREO button and PAIRING button on the SUB Sound Tower systems are not available while in wireless Group Play mode.
• TheA DD STEREO button on the HOST Sound Tower system is not available while in wireless Group Play mode.
• Long press "GROUP PLAY" in BT Source state to enter Group mode as "HOST".
• All SUB units must be connected one by one. For example, after HOST is connected, press GROUP PLAY button on SUB 1 to connect, and after SUB 1 is connected, you should connect SUB 2 and SUB 3 one by one sequentially.
• While using Group Play, currently connected Bluetooth devices are disconnected and Bluetooth connection is disabled.
• Bluetooth devices can search and connect with the HOST Sound Tower only.
• When in Group Play mode, the SUB cannot connect to a Bluetooth device.
• If you power off and then power on the Sound Tower or select any source other than BT on a SUB unit, in Group Play mode, the Group Play mode is disconnected.
• This product does not support aptX audio stream with Wireless Group Play mode.

Disconnecting the wireless Group Play mode

1. Press and hold the GROUP PLAY button over 5 seconds (HOST or SUB) after Group Play is connected or press the GROUP PLAY button (HOST or SUB) before Group Play is connected.

• Tone prompt instead and the LED above the GROUP PLAY button is off.

2. If you select any source other than BT on the SUB units or turn off the HOST Sound Tower, the Group Play mode is disconnected.

• If the disconnection is made from the HOST Sound Tower, Group Play is disconnected. LED Indications

LED	STATE	Description
Green	Blink	Waiting for a wireless Group Play connection.
	Solid	The wireless Group Play connection was successful.
Red	Solid	There is an error with the wireless Group Play connection.

NOTE

• In wireless connection, Playback quality can be unstable depending on Bluetooth environment. For better play, please keep the device in wired Group Play mode.
• The first bluetooth connection should be within 1m.

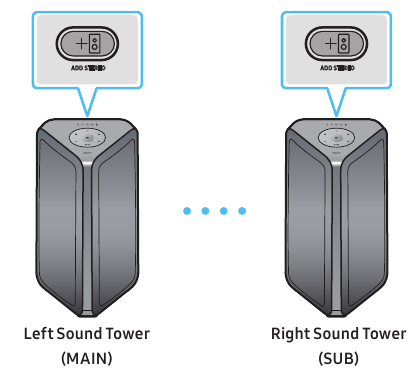

Using a Smartphone and Stereo Group mode

Connect two Sound Tower and use them with your smartphone to enjoy stereo sound.

1. Press the ADD STEREO button on the left Sound Tower system. The LED blinks on the ADD STEREO button.
2. Press the ADD STEREO button on the right Sound Tower system. The LED blinks on the ADD STEREO button.
3. When the connection is made, tone prompt. Backplane ADD LED Green Indicator Steady on.

• The MAIN Sound Tower system outputs left channel sound and the SUB Sound Tower system outputs right channel sound. Press the ADD STEREO button on the MAIN or SUB Sound Tower to change the sound channel of the Sound Tower.

4. Play music by connecting your smartphone to the MAIN Sound Tower and Bluetooth. Sound is output from both Sound Tower.

NOTES

• To use the Stereo Group mode, both Sound Tower systems must be the same model.
• Environmental conditions or other factors with connected devices may have effect on playback quality.
• If the red LED is on the ADD STEREO, an error has occured in the Stereo Group connection. Try step 1 and step 3 again.
• Remote Controller, BT PAIRING, GROUP PLAY and (Source) buttons on the SUB Sound Tower systems are disabled while in Stereo Group mode.
• The GROUP PLAY button on the MAIN Sound Tower system is not available while in Stereo Group mode.
• In mode other than "BT" (ex. USB, AUX mode), music is played only in MAIN Sound Tower and music is not played in SUB Sound Tower.
• The lighting colors between MAIN Sound Tower and SUB Sound Tower may vary.
• This product does not support aptX audio stream with Stereo Group mode.
• If you try to connect a Bluetooth device while Stereo Group is connecting, the Stereo Group mode may fail.

Terminate the Stereo Group mode

Press the ADD STEREO button (MAIN or SUB) for at least 5 seconds while the Stereo Group is connected.

• Tone prompt and the LED above the ADD STEREO button is off.

LED Indications

LED	STATE	Description
Green	Blink	Waiting for a Stereo Group connection.
	Solid	The Stereo Group connection is successful.
Red	Solid	There is an error with the Stereo Group connection.

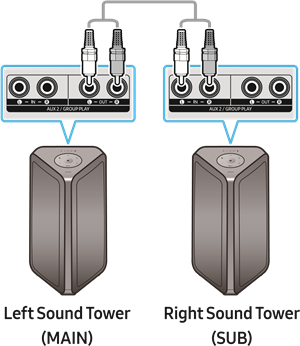

Using Samsung TV and Stereo Group mode

Connect two Sound Tower by wire and use them with Samsung TV to enjoy stereo sound.

1. Connect two sound towers via stereo mode by press the ADD STEREO button on the two Sound Tower.
2. Connect the RCA cable to the AUX2 OUT on the MAIN and AUX2 IN on the SUB as shown by using the RCA cable (not supplied).
3. In "BT" mode, press the "AUX" button on the MAIN Sound Tower remote control for at least 5 seconds. The LED blinks on the ADD STEREO button.
4. When the connection is complete, the "ADD STEREO" LED turn on and then the current output. Tone prompt instead.
5. When the connection is complete, the SUB top panel "AUX2" LED turn on.

• The MAIN Sound Tower outputs the left channel sound and the SUB Sound Tower outputs the right channel sound. Press the ADD STEREO button on the MAIN or SUB Sound Tower to change the sound channel of the Sound Tower.

6. Connect a TV and MAIN Sound Tower via Bluetooth to play music. Sound is output from both Sound Tower.

NOTES

• To use Stereo Group mode, both Sound Tower must be the same model.
• A red light on the LED on the ADD STEREO button indicates an error in the Stereo Group connection. Try Step 1 to 5 again.
• In Stereo Group mode, the remote control, BT PAIRING, GROUP PLAY, and (Source) buttons on the SUB Sound Tower are disabled.
• The GROUP PLAY button on the MAIN Sound Tower is not available in Stereo Group mode.
• If Samsung TV supports a simple connection, the connection pop-up is automatically displayed on the TV, and if you select "Yes", it connects to the TV. If there is a previous connection history between Samsung TV and Sound Tower, it will be connected to Samsung TV without pop-up.
• The lighting colors may vary between the MAIN Sound Tower and the SUB Sound Tower.

Terminating the Stereo Group mode connection

Press the ADD STEREO button (MAIN or SUB) for at least 5 seconds after the Stereo Group is connected.

• "OFF-STEREO MODE" tone prompt and the LED on the ADD STEREO button turns off.

CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired or wireless network to play the external device's sound through the Sound Tower.

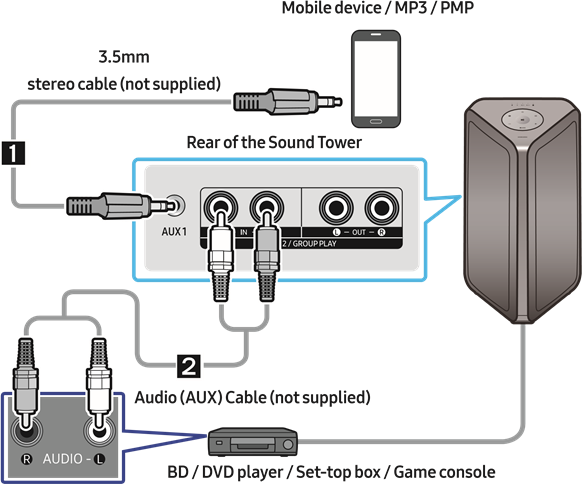

Connecting using an Analog Audio (AUX) Cable

3.5mm stereo Cable (AUX1)

1. Connect AUX1 jack on the main unit to the AUDIO OUT jack of the Source Device using an 3.5mm stereo cable.
2. Select "AUX1" mode by pressing the (Source) button on the top panel or on the remote control.

• You can also select a source using AUX button on the remote control.

Audio Cable (AUX2)

1. Connect AUX2 (IN) terminals on the main unit to the AUDIO OUT terminals of the Source Device using an audio cable.
2. Select "AUX2" mode by pressing the (Source) button on the top panel or on the remote control.

• You can also select a source using AUX button on the remote control.

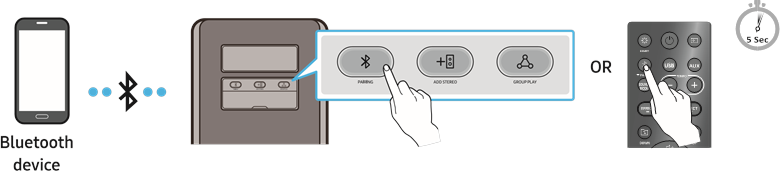

Connecting a mobile device via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

* In battery mode, when the Sound Tower is power off, Bluetooth connection and the party audio app are not available.

The initial connection

1. Press and hold the PAIRING button on the remote control for more than 5 seconds to enter the "BT PAIRING" mode.
   (OR)
   Press the PAIRING button on the rear panel.
2. On your device, select "[AV] MX-ST4CB Series" from the list that appears.

• After the device is connected. The third light on the top panel blinks three times cyan, and the bluetooth light on the rear panel is steady on.

3. Play music files from the device connected via Bluetooth through the Sound Tower.

If the device fails to connect

• Sound tower will play voice prompt via bluetooth disconnected.
• If a previously connected Sound Tower listing (e.g. "[AV] MX-ST4CB Series") appears in the list, delete it.
• Then repeat steps 1 and 2.

What is the difference between BT READY and BT PAIRING?

• BT READY: In this mode, you can use the previously connected TV or mobile device to connect to Sound Tower.
• BT PAIRING: In this mode, you can connect a new device to the Sound Tower.
  (Press and hold the PAIRING button on the remote control for more than 5 seconds or press the PAIRING button on the rear of the Sound Tower to enter the "BT PAIRING" mode.)

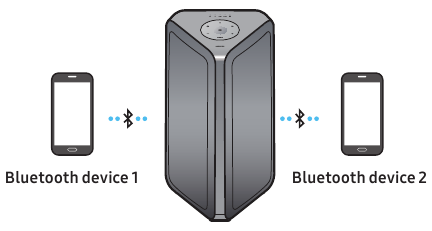

Bluetooth Multi connection

Sound Tower supports up-to two simultaneous Bluetooth device connections. Sound Tower can play music through one of the connected Bluetooth devices without disconnecting the second device.

1. Connect Sound Tower to the first device and the second device respectively for the first time.
2. Music can be played on only one of the two connected devices, and when the music is played on the other device, the music on the playing device is paused.

NOTES

• If you want to connect Sound Tower to a third device, you can disconnect Sound Tower from one of the two currently connected devices and then connect Sound Tower to the third device. (Device include Samsung TV)
• With the Sound Tower and two devices currently connected, when pairing to a new Bluetooth device, the devices currently connected maybe disconnected.
• You can connect to two Bluetooth devices at the same time.
• Environmental conditions or other factors with connected devices may have effect on playback quality.
• The Sound Tower automatically turns off after 18 minutes with no command input in the ready state.
• The Sound Tower may not perform Bluetooth search or connection correctly under the following circumstances:
  • If there is a strong electrical field around the Sound Tower.
  • If several Bluetooth devices are simultaneously paired with the Sound Tower.
  • If the Bluetooth device is turned off, not in place, or malfunctions.
• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Sound Tower main unit - e.g., microwaves, wireless LAN devices, etc.
• Bluetooth Multi connection may not be supported depending on the connected device's specifications.
• Removable/detachable Bluetooth devices (Ex: Dongle etc..),windows phone, laptops, TV, etc. do not support Bluetooth Multi connection.
• After Bluetooth Multi connection pairing, there may be a slight delay before music starts playing depending on the Bluetooth devices.
• If you move too far out of range from the Sound Tower without first disconnecting your Bluetooth device, it may take a few minutes to connect other Bluetooth devices. If you turn the Sound Tower off and back on, you can connect other Bluetooth devices without waiting.

LED Indications

LED	STATE	Description
Blue	Fast Blink	BT PAIRING mode
	Blink	BT READY mode
	Solid	A Bluetooth device is connected.

Using Bluetooth Power On

When the Sound Tower is turned off, you can connect your smart device via a Bluetooth connection to turn it on. Battery status cannot use Bluetooth power on.

1. Press and hold the BASS button on the remote control or on the top panel to set the Bluetooth Power On function on. Lighting bar will be blink white once.
2. When the Sound Tower is off, connect your smart device via Bluetooth. (For information on Bluetooth connections, refer to your smart device's manual.)
3. When the connection is complete, the Sound Tower turns itself on automatically in Bluetooth mode.

• Select the desired music to play from your smart device.

NOTE

• Each time you press and hold the BASS button for 5 seconds. LED lighting bar will be blink white once and status switched:
  BLUETOOTH POWER-ON → BLUETOOTH POWER-OFF

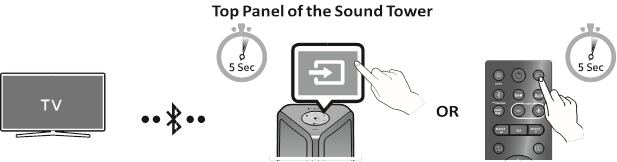

Connecting the Samsung TV via Bluetooth

If Sound Tower connected with Samsung TV via Bluetooth, Sound Tower can be controlled by TV UI. (Volume +/-, Mute On/Off and Power On/Off)

Easy connect with Samsung TV (SEARCHING TV mode)

Sound Tower has "SEARCHING TV" mode for easy connect with Samsung TV.

1. Press and hold (Source) bottom for more than 5 seconds on remote control or top panel then Sound Tower will start to search Samsung TV. Lighting bar will blink white once and then blink cyan, The back plane "PAIRING" LED will be slow blink. (Or, when the wired Stereo Group mode connection is complete, the "SEARCHING TV" mode is automatically activated.)
2. If Samsung TV support easy connection, connection popup will be displayed on TV. If Samsung TV has connected with Sound Tower before, Samsung TV will be connected without popup.
3. If Sound Tower can not find any Samsung TV within 5 minutes, Sound Tower will terminate "SEARCHING TV" mode and turn to "BT PAIRING" mode. If find any Samsung TV, Sound Tower will request connection to those TV.

NOTES

• While in wireless Group Play mode, searching TV is not available.
• To stop searching Samsung TV, turn off the Sound Tower or press the (Source) or PAIRING button.
• Sound Tower does not support multi connection if Samsung TV is connected.
• While Samsung TV is connected, Sound mode is PARTY and SOUND MODE button is not available.
• While Samsung TV is connected, Sound Tower APP can not connect with Sound Tower.
• Connection popup may not be displayed according to TV spec.
• You can select and connect directly from the Bluetooth speaker list on your TV when the connection pop-up does not appear on your TV.
• When the Sound Tower is connected to your TV by Bluetooth connection, the video on the TV and audio from the Sound Tower may not be synchronized because the distance between the Sound Tower and the TV is too far. It is recommended to move the Sound Tower closer to your TV within 3.3 ft (1 meter).

CONNECTING A USB STORAGE DEVICE

You can play music files located on USB storage device through the Sound Tower.

1. Connect a USB storage device to the USB jack on your Sound Tower.
2. Press the (Source) button on the top panel or on the remote control, and then select "USB".

• You can also select a source using USB button on the remote control.

3. The second USB indicator on the top panel is steady on.
4. Play music files from the USB storage device through the Sound Tower.

• The Sound Tower automatically turns off (Auto Power Down) if USB device is not connected, playback stopped, or there is no input for more than 18 minutes.

NOTES

• This product only supports USB storage device that are formatted in the FAT and FAT32 file system.
• This product does not support HDD storage or storage on mobile devices.
• A maximum of 999 files can be played per USB storage device.
• A maximum of 256 folders can be read per USB storage device.

Supported Audio Formats

File Extension	Audio Codec	Sampling Rate	Bit Rate
*.mp3	MPEG 1 Layer3	32 kHz ~ 48 kHz	32 kbps ~ 320 kbps
	MPEG 2 Layer3	16 kHz ~ 24 kHz	8 kbps ~ 160 kbps
	MPEG 2.5 Layer3	8 kHz ~ 12 kHz	8 kbps ~ 160 kbps
*.wma	WMA7/8/9	8 kHz ~ 48 kHz	32 kbps ~ 320 kbps
*.aac	AAC	8 kHz ~ 96 kHz	< 1728 kbps
	AAC-LC	8 kHz ~ 96 kHz	< 1728 kbps
	HE-AAC	8 kHz ~ 96 kHz	< 1728 kbps
*.wav	PCM/LPCM/ IMA_ADPCM	8 kHz ~ 192 kHz	< 5 Mbps
*flac	-	8 kHz ~ 192 kHz	< 5 Mbps

NOTES

• This product does not support WMA Professional codec.
• The above table shows supported sampling rates and bit rates. Files in formats that are not supported will not play.
• AAC files only support the ADTS native format.

Software Update

Samsung may offer updates for the Sound Tower's system firmware in the future.

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Sound Tower. For more information about how to download update files, go to the Samsung Electronics website at www.samsung.com/us/support/.

Then, enter or select the model number of your Sound Tower, select the Software & Apps option, and then Downloads. Note that the option names can vary.

If the upgrade takes more than 10 minutes, it means the upgrade process is stuck. Please press and hold the Power button on the top panel for 18 seconds and wait 1 minute. Sound Tower will automatically restart. Then, wait until the upgrade is complete. (Reset upgrade only supports FAT format)

USING THE REMOTE CONTROL

How to Use the Remote Control

* To reduce battery drain, the product does not turn on when press the power button of remote control while the battery is in use.

1	Power	Turn the Sound Tower on and off.
2	LIGHT	Press the (LIGHT) button to turn the Lighting Mode on. (Only during music playback is effective) Press the button repeatedly to cycle through the available light modes: AMBIENT, PARTY, DANCE, THUNDERBOLT, STAR or OFF.
3	Source	Press to select a source connected to the Sound Tower. Press the button repeatedly to cycle through the available sources: BT, USB, AUX1 or AUX2 . LED indicator on the top of the product
4	Bluetooth PAIRING	Press to select a source connected directly to "BT" mode. Press and hold the button for more than 5 seconds to enter the "BT PAIRING" mode. You can connect the Sound Tower to a new Bluetooth device in this mode by selecting the Sound Tower from the Bluetooth device's search list. LED indicator on the top of the product
5	USB	Press to select the USB source connected to the Sound Tower. LED indicator on the top of the product
6	AUX	Press to select the AUX1 or AUX2 sources connected to the Sound Tower. LED indicator on the top of the product
7	SOUND MODE	Press the button repeatedly to cycle through the available sound effects: PARTY, STANDARD, HIPHOP, EDM, ROCK, LATIN, HOUSE or REGGAE. PARTY: Term for more upbeat music effect, like a party Standard: Term for raw musical effects, like no EQ. HIPHOP: term for Dynamic dance and music. EDM: A more "generalized concept" genre than electronic music. ROCK: Band music. LATIN: Term for the music of many South American countries. HOUSE: Fast beat dance music played on electronic instruments.
8	TEMPO +, -	Press the TEMPO + or TEMPO - buttons to change the tempo of the music up or down. This function only works in the USB mode.
9	DJ	This function lets you turn on the DJ effect function. Press the button repeatedly to cycle through the available DJ sound effects: NOISE, FILTER, CRUSH, CHORUS, WAHWAH or OFF. NOISE: Mixing white noise into the original sound. FILTER: Filter out the sound of some frequencies. CRUSH: Make the original sound sharp. CHORUS: Separate the original sound into several track and delay them separately, then mix again. Create a chorus effect. WAHWAH: WAHWAH effect created by enhancing some specific frequencies of original sound.
10	EFFECT +, -	Press the EFFECT + or EFFECT - buttons to change the level of the each DJ sound effect up or down. Effect value default is 5, can be changed to – 15 ~ 0 ~ +15.
11	Folder DOWN	Press the (DOWN) button to move to the next folder in the USB device.
12	Folder UP	Press the (UP) button to move to the previous folder in the USB device.
13	Volume up, Volume down / Skip	• Volume up, Volume down Press the (Volume up) or (Volume down) to adjust the volume level up or down. • Music Skip Press the button to select the next music file. Press the button once to play the current music again. Pass the button twice to select the previous music file. Press and hold the button or the button for more than 3 seconds in USB play mode to search forward or search backward. Press and hold the button or the button for more than 3 seconds again to get back to normal play.
14	Play / Pause	Press the button to pause a music file temporarily. When you press the button again, the music file plays. Auto Power Down Function To turn off Auto Power Down function while the unit is in AUX1, AUX2 mode, press and hold the button for more than 5 seconds. Lighting bar will be blink white once.
15	Mute	Press the (Mute) button to mute the sound. Press it again to unmute the sound.
16	Repeat	Press the (Repeat) button to use the Repeat function in "USB" mode. Press the button repeatedly to cycle through the available repeat functions: ONE, FOLDER, ALL, RANDOM or OFF.
17	BASS	Press the BASS button to use the powerful bass sound. Press it again to return to the normal sound. Press and hold the BASS button for more than 5 seconds to turn on or off the BLUETOOTH POWER function.
		The remote control button function is not available in the current source.

How to use Sound Mode

Your Sound Tower provides predefined equalizer settings that are optimized for particular music genres.

1. Press the SOUND MODE button on the Remote control.
2. Each time you press the SOUND MODE button, the Sound Tower cycles through the available sound effects: PARTY, STANDARD, HIPHOP, EDM, ROCK, LATIN, HOUSE or REGGAE.

NOTES

• Default sound mode is PARTY.
• When turned off, press and hold the button on product or remote control for more than 5 seconds to turn on in the default Sound Mode setting.

How to use the DJ Effect

The DJ Effect function lets you add DJ sound effects to your music. The level of each effect is adjustable.

1. Press the DJ button on the Remote control.
2. Each time you press the DJ button, the Sound Tower cycles through the available DJ Effects:

• NOISE: Create white noise and mixed with the original sound through the filter and output.
• FILTER: Creates an effect similar to the sound of only treble or bass.
• CRUSH: Creates an effect that makes the original sound sharper.
• CHORUS: Creates an effect similar to a singing chorus.
• WAHWAH: Creates a 'Wah~ Wah~' effect.
• DJ EFFECT OFF: Turns off the DJ Effect.

3. Press the EFFECT + or EFFECT - buttons to raise or lower the level of each of the DJ sound effects from -15 to +15.

NOTE

• When turned off, press and hold the button on product or remote control for more than 5 seconds to turn on in the default DJ Effect setting.

USING THE SAMSUNG SOUND TOWER APP

Install Samsung Sound Tower App

To control this product with your Smart Device and the Samsung Sound Tower app, download the Samsung Sound Tower App from the Google Play Store or Apple App Store, and install it on your Smart Device.

NOTES

• The Samsung Sound Tower app is compatible with Android mobile phone devices running Android OS 8.0 or later.
• The Samsung Sound Tower app is compatible with Apple mobile devices running iOS 11.0 or later.

Market search: Samsung Sound Tower

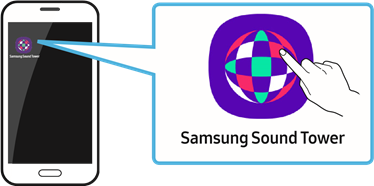

Launching the Samsung Sound Tower App

To launch and use the Samsung Sound Tower app, touch the Samsung Sound Tower icon on your smart device, and then follow the directions on the screen.

TROUBLESHOOTING

Refer to the table below if this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).

The PAIRING button is not working
Is the system in wireless Group Play mode or Stereo Group mode?
→ Try again after disconnecting the wireless Group Play or Stereo Group connection.

IMPORTANT NOTES ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

• An administration fee may be charged if either:
  1. An engineer is called out to your home at your request and there is no defect in the product.
  2. You bring the unit to a repair center and there is no defect in the product.
• You will be advised of the amount of the administration fee before any work is done or a home visit is made.
• If you have a problem with this product, we strongly recommend you read the appropriate section of this manual, visit the Support page for your product at www.samsung.com, or call Samsung Product Support (1-800-726-7864) to find an answer before you contact a service center for a repair.

SPECIFICATIONS AND GUIDE

Specifications

Model Name		MX-ST4CB
USB		5V/0.5A
Weight		17.6lbs (8.0kg)
Dimensions (W x H x D)		11.1x22.1x10.1 inches (281×562×256mm)
Operating Temperature Range		+41°F to +95°F (+5°C to +35°C)
Operating Humidity Range		10% ~ 75%
AMPLIFIER Rated Output power		Power cord plug-in 140W
		Battery 60W
Overall Power Consumption		40W
Battery Type		Lithium-ion 54Wh
Battery play time		up to 12hrs
Battery charge time		<3.5hrs
Li-ion Rechargeable Battery	Battery Model	EB-T23C-00, 2INR19/65-3
	Nominal Voltage	7.34 V
	Rate Capacity	7350 mAh, 53.95 Wh
	Limited Charge Voltage	8.4 V
	Typical Capacity	7500 mAh, 55.05 Wh

NOTES

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.
• Battery Play time and Battery charge time vary with use conditions.
• In an extremely cold or hot environment, charging stops for safety. To resolve these issues, disconnect the AC power cord and connect it again in an operating temperature between 5°C and 35°C (41°F and 95°F).

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Refer to the table below for an explanation of symbols which may be on your Samsung product.

RISK OF ELECTRIC SHOCK. DO NOT OPEN.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product comes with important literature concerning operation and maintenance.
	Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required. If this symbol is not present on a product with a power cord, the product MUST have a reliable connection to protective earth (ground).
	AC voltage: Rated voltage marked with this symbol is AC voltage.
	DC voltage: Rated voltage marked with this symbol is DC voltage.
	Consult Instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
• The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases, on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

    RISK OF ELECTRIC SHOCK. DO NOT OPEN.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

To avoid deterioration of water resistant

Check the following and use the unit correctly.

• Deformation or damage from dropping the unit or subjecting it to mechanical shock may cause deterioration of the water resistant.
• This unit does not have a design that is resistant to water pressure. Use of the unit in a location where high water pressure is applied, such as in the shower, may cause a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer or any other applicance on the unit directly. Also never use the unit in a place subject to high temperatures, such as in a sauna or near a heat source.
• Handle the cap with care. Port cover & AC plug cover plays a very important role in maintenance of the water resistant. When using the unit, make sure that the cap is closed completely. When closing the cap, be careful not to allow foreign objects inside. If the cap is not closed completely the water resistant may deteriorate and may cause a malfunction of the unit as a result of water entering the unit.
• IPX5 cannot be met when any JACK or AC power is plugged in.
• The product cannot be dumped to ensure it is water resistant.


Protection against solids	IP		Protection against water
	0	5
No requirements	X	X	No requirements
No protection	0	0	No protection
Solids> 50 mm	1	1	Vertically falling water
Solids> 12 mm	2	2	Vertically water-enclosure tilted 15°
Solids> 2.5 mm	3	3	Sprayed water 60° from vertical
Solids> 1.0 mm	4	4	Splashed water from all directions
Dust Protected	5	5	Hosing jets from all directions
Dust tight	6	6	Strong hosing jets from all directions
-		7	Temporary Immersion: 1m for 30 minutes
-		8	Immersion: manufacture defined depth and time

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the rear of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.
4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.
5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery.

   Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

Others

• As the battery is manufactured only for this product, do not use the battery for other electronic appliances or other purposes.
• When discarding a dead battery, put it into a battery collection box for recycling.
• Do not disassemble the battery.
• To protect the battery, the battery cannot be charged when the temperature is lower than 3°C or higher than 42°C.
• When the battery level is low, recharge it. If the level of the battery remains low for a long period of time, it can cause the performance of the battery to degrade.
• Do not apply heat to the battery and do not put the battery in a fire.
• Do not disassemble the battery.
• To protect the battery, the Sound Tower may not operate when the temperature is lower than -17°C or higher than 57°C.
