Corsair HX Series, HX1200, HX1000, HX850, HX750 - Power Supply Manual

Introduction

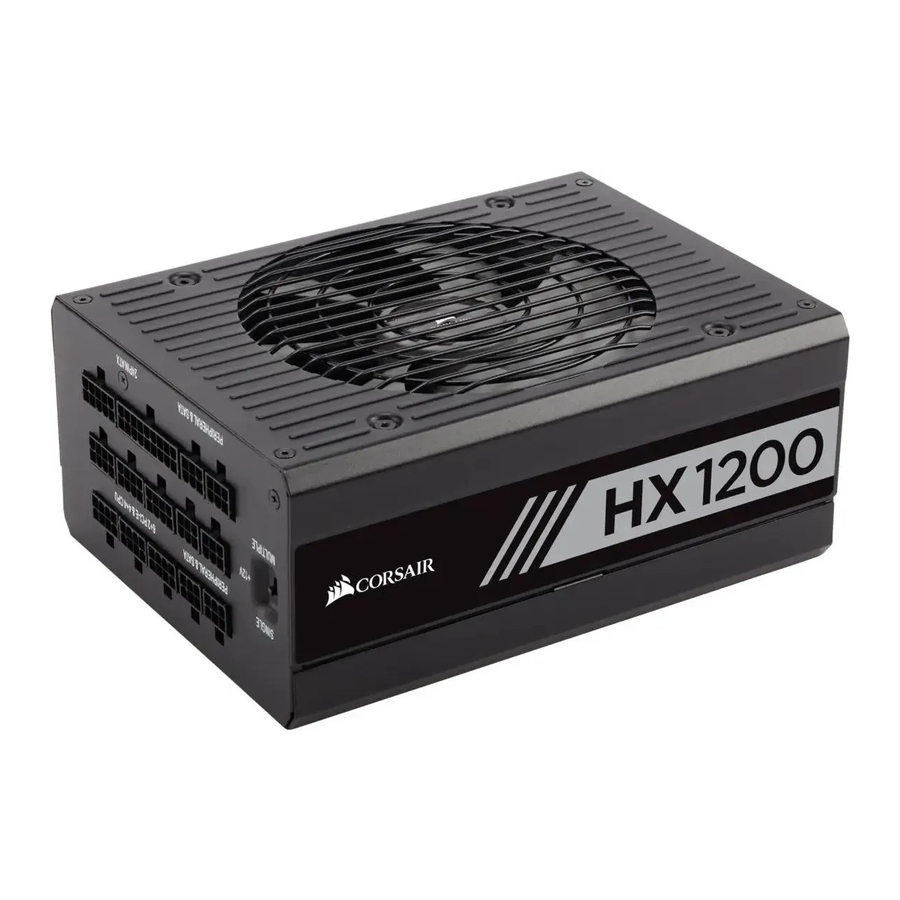

Corsair HX Series enthusiast power supplies are optimized for silence, with a custom fan design and Zero RPM Fan Mode. 80 PLUS Platinum rated efficiency ensures low-cost operation, and the fully modular black cables allow for fast, neat builds. All Japanese 105°C capacitors make it a great choice for high performance PCs where reliability is essential.

HX1200

Dimensions: 150mm (W) x 86mm (H) x 200mm (L)

Package contents

• Corsair HX Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

• Cable ties
• Corsair case badge
• User manual

Corsair HX1200 power table

Corsair HX1200 power supply efficiency

Corsair HX1200 power supply fan noise curve

Corsair HX1200 DC cable listing

Qty	Description		Total Length
1	ATX Cable 24 Pin (20+4)	Connectors Per Cable	610mm (± 10mm)
		1
		Total Connectors
		1
2	EPS/ATX12V 8 Pin (4+4) Cable	Connectors Per Cable	650mm (± 10mm)
		1
		Total Connectors
		2
4	PCIe 8 Pin (6+2) Cable	Connectors Per Cable	775mm (± 10mm)
		2
		Total Connectors
		8
3	SATA Cable	Connectors Per Cable	800mm (± 10mm)
		4
		Total Connectors
		12
2	90° SATA Cable	Connectors Per Cable	800mm (± 10mm)
		4
		Total Connectors
		8
2	Peripheral Cable (4-Pin)	Connectors Per Cable	750mm (± 10mm)
		4
		Total Connectors
		8
1	Floppy Adapter (4-Pin)	Connectors Per Cable	101mm (± 5mm)
		1
		Total Connectors
		1

HX1000

Dimensions: 150mm (W) x 86mm (H) x 180mm (L)

Package contents

• Corsair HX Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

• Cable ties
• Corsair case badge
• User manual

Corsair HX1000 power table

Corsair HX1000 power supply efficiency

Corsair HX1000 power supply fan noise curve

Corsair HX1000 DC cable listing

Qty	Description		Total Length
1	ATX Cable 24 Pin (20+4)	Connectors Per Cable	610mm (± 10mm)
		1
		Total Connectors
		1
2	EPS/ATX12V 8 Pin (4+4) Cable	Connectors Per Cable	650mm (± 10mm)
		1
		Total Connectors
		2
4	PCIe 8 Pin (6+2) Cable	Connectors Per Cable	775mm (± 10mm)
		2
		Total Connectors
		8
2	SATA Cable	Connectors Per Cable	800mm (± 10mm)
		4
		Total Connectors
		8
2	90° SATA Cable	Connectors Per Cable	800mm (± 10mm)
		4
		Total Connectors
		8
2	Peripheral Cable (4-Pin)	Connectors Per Cable	750mm (± 10mm)
		4
		Total Connectors
		8
1	Floppy Adapter (4-Pin)	Connectors Per Cable	101mm (± 5mm)
		1
		Total Connectors
		1

HX850

Dimensions: 150mm (W) x 86mm (H) x 180mm (L)

Package contents

• Corsair HX Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

• Cable ties
• Corsair case badge
• User manual

Corsair HX850 power table

Corsair HX850 power supply efficiency

Corsair HX850 power supply fan noise curve

Corsair HX850 DC cable listing

Qty	Description		Total Length
1	ATX Cable 24 Pin (20+4)	Connectors Per Cable	610mm (± 10mm)
		1
		Total Connectors
		1
2	EPS/ATX12V 8 Pin (4+4) Cable	Connectors Per Cable	650mm (± 10mm)
		1
		Total Connectors
		2
3	PCIe 8 Pin (6+2) Cable	Connectors Per Cable	775mm (± 10mm)
		2
		Total Connectors
		6
2	SATA Cable	Connectors Per Cable	800mm (± 10mm)
		4
		Total Connectors
		8
2	90° SATA Cable	Connectors Per Cable	800mm (± 10mm)
		4
		Total Connectors
		8
2	Peripheral Cable (4-Pin)	Connectors Per Cable	750mm (± 10mm)
		3
		Total Connectors
		6
1	Floppy Adapter (4-Pin)	Connectors Per Cable	101mm (± 5mm)
		1
		Total Connectors
		1

HX750

Dimensions: 150mm (W) x 86mm (H) x 180mm (L)

Package contents

• Corsair HX Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

Corsair HX750 power table

Corsair HX750 power supply efficiency

Corsair HX750 power supply fan noise curve

Corsair HX750 DC cable listing

Qty	Description		Total Length
1	ATX Cable 24 Pin (20+4)	Connectors Per Cable	610mm (± 10mm)
		1
		Total Connectors
		1
2	EPS/ATX12V 8 Pin (4+4) Cable	Connectors Per Cable	650mm (± 10mm)
		1
		Total Connectors
		2
2	PCIe 8 Pin (6+2) Cable	Connectors Per Cable	775mm (± 10mm)
		2
		Total Connectors
		4
2	SATA Cable	Connectors Per Cable	800mm (± 10mm)
		4
		Total Connectors
		8
2	90° SATA Cable	Connectors Per Cable	800mm (± 10mm)
		4
		Total Connectors
		8
1	Peripheral Cable (4-Pin)	Connectors Per Cable	750mm (± 10mm)
		4
		Total Connectors
		4
1	Floppy Adapter (4-Pin)	Connectors Per Cable	101mm (± 5mm)
		1
		Total Connectors
		1

Installing your NEW HX Series

1. Removing your existing power supply
   If you are building a new system, skip to Step B.
   1. Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
   2. Disconnect all the power cables from your video card, motherboard and all other peripherals.
   3. Follow the directions in your chassis manual and uninstall your existing power supply.
   4. Proceed to Step B.
2. Installing the Corsair HX Series power supply
   1. Make sure the power supply's AC power cable is not connected.
   2. Follow the directions in your chassis manual and install the power supply with the screws provided.
   3. The main 24-pin power cable has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
      1. If your motherboard has a 24-pin socket, you may connect the 24-pin main power cable from the power supply directly to your motherboard.
      2. If your motherboard has a 20-pin socket, you must detach the four-pin cable from the 24-pin connector, and then plug the 20-pin cable onto your motherboard without connecting the four-pin connector.
   4. Connect the eight-pin +12V (EPS12V) cable to the motherboard. A. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard. B. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this four-pin cable directly to your motherboard.

      The detachable four-pin from the 24-pin main connector is not a "P4" or "+12V" connector. Serious damage can be caused if you use it in place of a "P4" or "+12V" connector.
   5. Connect the peripheral cables, PCIexpress cables, and SATA cables.
      1. Connect the peripherals cables to your hard drive and CD-ROM/DVD-ROM power sockets.
      2. Connect the SATA cables to your SATA SSD or hard drive's power sockets.
      3. Connect the PCIexpress cables to the power sockets of your PCIexpress video cards if required.
      4. Connect the peripheral cables to any peripherals requiring a small 4-pin connector.
      5. Make sure all the cables are tightly connected. Be sure to save any unused modular cables for future component additions.
   6. Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position (marked with "I").

Zero RPM mode
Zero RPM mode allows the fan to remain off during low to medium loads. This technology uses various temperatures from inside the PSU and the power output level to determine when active cooling is needed for the PSU. When you're pushing it hard the fan will turn itself on to ensure that it gets the cooling it needs without any extra noise. For the specific fan profile of your unit please refer to the specifications section of that PSU.

+12V rail selection switch
The HX Series power supplies are equipped with a +12V Rail Selection Switch that gives you the choice of single or multiple +12v rails.
In the "SINGLE" position, the full output of the power supply's +12V rail is available to any and all connectors, while in the "MULTIPLE" position, each individual connector has Over-Current Protection so no more than 40A of current can be delivered on any given cable.
Deliver the power how you want.

Important safety information

ELECTRIC SHOCK HAZARD!

1. Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may cause serious injury or death.
2. High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.
3. This product is designed for indoor use only.
4. Do not use the power supply near water, or in high temperature or high humidity environments.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
6. Do not insert any objects into the open ventilation or fan grill area of the power supply.
7. Do not modify the cables and/or connectors included with this power supply.
8. If this power supply uses modular cables, use only manufacturer supplied cables. Other cables might not be compatible and could cause serious damage to your system and power supply.
9. The 24-pin main power connector has a detachable 4-pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on the motherboard.
10. Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.
