Introduction

CORSAIR RMx Series enthusiast power supplies are optimized for silence, with a custom fan design and Zero RPM Fan Mode. 80 PLUS Gold rated efficiency ensures low-cost operation, and the fully modular black cables allow for fast, neat builds. All Japanese 105°C capacitors make it a great choice for high performance PCs where reliability is essential.

RM1000x

Dimensions: 150mm (W) x 86mm (H) x 180mm (L)

Package contents

• CORSAIR RMx Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

• Cable ties
• CORSAIR case badge
• User manual

CORSAIR RM1000x power table

CORSAIR RM1000x power supply efficiency

CORSAIR RM1000x power supply fan noise curve

CORSAIR RM1000x DC cable listing

Qty	Description		Total Length
1	ATX Cable 24 pin (20+4)	Connectors Per Cable	610mm (± 10mm)
		1
		Total Connectors
		1
2	EPS/ATX12V 8 pin (4+4) cable	Connectors Per Cable	650mm (± 10mm)
		1
		Total Connectors
		2
4	PCIe 8 pin (6+2) cable	Connectors Per Cable	750mm (± 10mm)
		2
		Total Connectors
		8
1	SATA cable (3 SATA)	Connectors Per Cable	750mm (± 10mm)
		3
		Total Connectors
		3
2	SATA cable (4 SATA)	Connectors Per Cable	850mm (± 10mm)
		4
		Total Connectors
		8
3	Peripheral cable (4-pin)	Connectors Per Cable	750mm (± 10mm)
		4
		Total Connectors
		12
1	Floppy adapter (4-pin)	Connectors Per Cable	101mm (± 5mm)
		1
		Total Connectors
		1

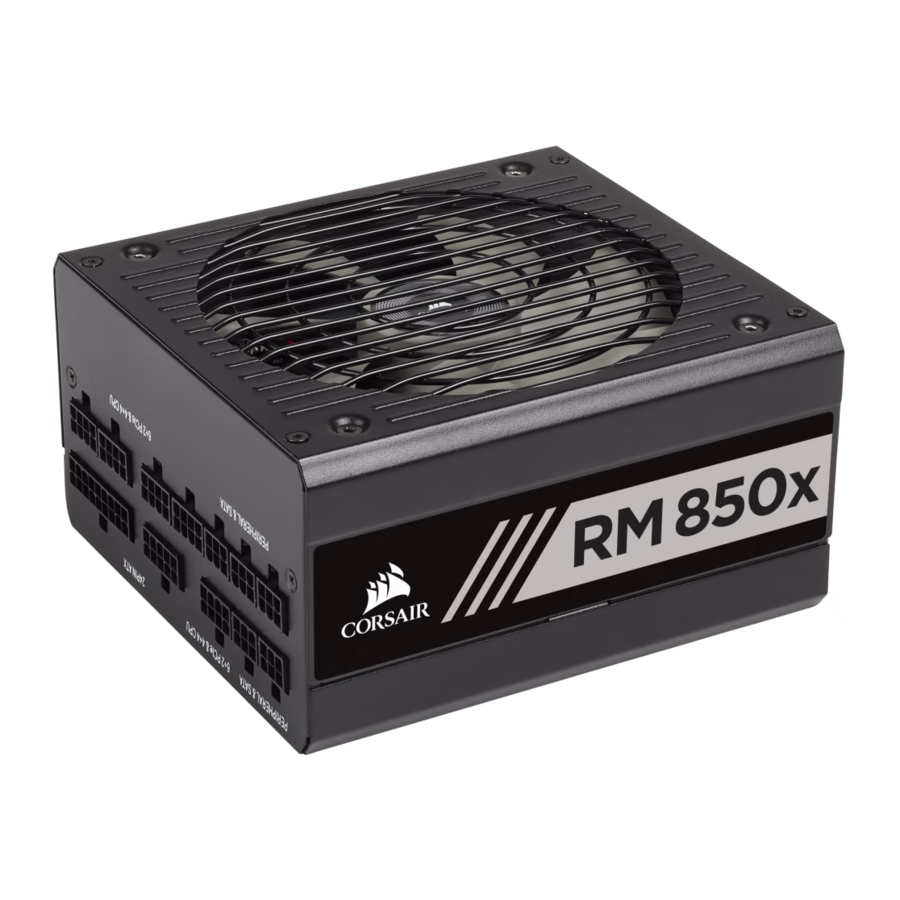

RM850x

Dimensions: 150mm (W) x 86mm (H) x 160mm (L)

Package contents

• CORSAIR RMx Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

• Cable ties
• CORSAIR case badge
• User manual

CORSAIR RM850x power table

CORSAIR RM850x power supply efficiency

CORSAIR RM850x power supply fan noise curve

CORSAIR RM850x DC cable listing

Qty	Description		Total Length
1	ATX Cable 24 pin (20+4)	Connectors Per Cable	610mm (± 10mm)
		1
		Total Connectors
		1
2	EPS/ATX12V 8 pin (4+4) cable	Connectors Per Cable	650mm (± 10mm)
		1
		Total Connectors
		2
3	PCIe 8 pin (6+2) cable	Connectors Per Cable	750mm (± 10mm)
		2
		Total Connectors
		6
2	SATA cable (3 SATA)	Connectors Per Cable	750mm (± 10mm)
		3
		Total Connectors
		6
1	SATA cable (4 SATA)	Connectors Per Cable	850mm (± 10mm)
		4
		Total Connectors
		4
2	Peripheral cable (4-pin)	Connectors Per Cable	750mm (± 10mm)
		4
		Total Connectors
		8
1	Floppy adapter (4-pin)	Connectors Per Cable	101mm (± 5mm)
		1
		Total Connectors
		1

RM750x

Dimensions: 150mm (W) x 86mm (H) x 160mm (L)

Package contents

• CORSAIR RMx Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

• Cable ties
• CORSAIR case badge
• User manual

CORSAIR RM750x power table

CORSAIR RM750x power supply efficiency

CORSAIR RM750x power supply fan noise curve

CORSAIR RM750x DC cable listing

Qty	Description		Total Length
1	ATX Cable 24 pin (20+4)	Connectors Per Cable	610mm (± 10mm)
		1
		Total Connectors
		1
2	EPS/ATX12V 8 pin (4+4) cable	Connectors Per Cable	650mm (± 10mm)
		1
		Total Connectors
		2
2	PCIe 8 pin (6+2) cable	Connectors Per Cable	750mm (± 10mm)
		2
		Total Connectors
		4
3	SATA cable (3 SATA)	Connectors Per Cable	750mm (± 10mm)
		3
		Total Connectors
		9
2	Peripheral cable (4-pin)	Connectors Per Cable	750mm (± 10mm)
		4
		Total Connectors
		8
1	Floppy adapter (4-pin)	Connectors Per Cable	101mm (± 5mm)
		1
		Total Connectors
		1

RM650x

Dimensions: 150mm (W) x 86mm (H) x 160mm (L)

Package contents

• CORSAIR RMx Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

• Cable ties
• CORSAIR case badge
• User manual

CORSAIR RM650x power table

CORSAIR RM650x power supply efficiency

CORSAIR RM650x power supply fan noise curve

CORSAIR RM650x DC cable listing

Qty	Description		Total Length
1	ATX Cable 24 pin (20+4)	Connectors Per Cable	610mm (± 10mm)
		1
		Total Connectors
		1
1	EPS/ATX12V 8 pin (4+4) cable	Connectors Per Cable	650mm (± 10mm)
		1
		Total Connectors
		1
2	PCIe 8 pin (6+2) cable	Connectors Per Cable	750mm (± 10mm)
		2
		Total Connectors
		4
3	SATA cable (3 SATA)	Connectors Per Cable	750mm (± 10mm)
		3
		Total Connectors
		9
1	Peripheral cable (4-pin)	Connectors Per Cable	750mm (± 10mm)
		4
		Total Connectors
		4
1	Floppy adapter (4-pin)	Connectors Per Cable	101mm (± 5mm)
		1
		Total Connectors
		1

RM550x

Dimensions: 150mm (W) x 86mm (H) x 160mm (L)

Package contents

• CORSAIR RMx Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag

CORSAIR RM550x power table

CORSAIR RM550x power supply efficiency

CORSAIR RM550x power supply fan noise curve

CORSAIR RM550x DC cable listing

Qty	Description		Total Length
1	ATX Cable 24 pin (20+4)	Connectors Per Cable	610mm (± 10mm)
		1
		Total Connectors
		1
1	EPS/ATX12V 8 pin (4+4) cable	Connectors Per Cable	650mm (± 10mm)
		1
		Total Connectors
		1
1	PCIe 8 pin (6+2) cable	Connectors Per Cable	750mm (± 10mm)
		2
		Total Connectors
		2
2	SATA cable (3 SATA)	Connectors Per Cable	750mm (± 10mm)
		3
		Total Connectors
		6
1	Peripheral cable (4-pin)	Connectors Per Cable	750mm (± 10mm)
		4
		Total Connectors
		4
1	Floppy adapter (4-pin)	Connectors Per Cable	101mm (± 5mm)
		1
		Total Connectors
		1

Installing your NEW RMx Series

1. Removing your existing power supply
   If you are building a new system, skip to Step B.
   1. Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
   2. Disconnect all the power cables from your video card, motherboard and all other peripherals.
   3. Follow the directions in your chassis manual and uninstall your existing power supply.
   4. Proceed to Step B.
2. Installing the CORSAIR RMx Series power supply
   1. Make sure the power supply's AC power cable is not connected.
   2. Follow the directions in your chassis manual and install the power supply with the screws provided.
   3. The main 24-pin power cable has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
      1. If your motherboard has a 24-pin socket, you may connect the 24-pin main power cable from the power supply directly to your motherboard.
      2. If your motherboard has a 20-pin socket, you must detach the four-pin cable from the 24-pin connector, and then plug the 20-pin cable onto your motherboard without connecting the four-pin connector.
   4. Connect the eight-pin +12V (EPS12V) cable to the motherboard.
      1. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard.
      2. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this four-pin cable directly to your motherboard.

         The detachable four-pin from the 24-pin main connector is not a "P4" or "+12V" connector. Serious damage can be caused if you use it in place of a "P4" or "+12V" connector.
   5. Connect the peripheral cables, PCI-Express cables, and SATA cables.
      1. Connect the peripherals cables to your hard drive and CD-ROM/DVD-ROM power sockets.
      2. Connect the SATA cables to your SATA SSD or hard drive's power sockets.
      3. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required.
      4. Connect the peripheral cables to any peripherals requiring a small 4-pin connector.
      5. Make sure all the cables are tightly connected. Be sure to save any unused modular cables for future component additions.
   6. Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position (marked with "I").

Zero RPM mode

Zero RPM mode allows the fan to remain off during low to medium loads. This technology uses various temperatures from inside the PSU and the power output level to determine when active cooling is needed for the PSU. When you're pushing it hard the fan will turn itself on to ensure that it gets the cooling it needs without any extra noise. For the specific fan profile of your unit please refer to the specifications section of that PSU.

Important safety information

ELECTRIC SHOCK HAZARD!

1. Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may cause serious injury or death.
2. High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.
3. This product is designed for indoor use only.
4. Do not use the power supply near water, or in high temperature or high humidity environments.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
6. Do not insert any objects into the open ventilation or fan grill area of the power supply.
7. Do not modify the cables and/or connectors included with this power supply.
8. If this power supply uses modular cables, use only manufacturer supplied cables. Other cables might not be compatible and could cause serious damage to your system and power supply.
9. The 24-pin main power connector has a detachable 4-pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on the motherboard.
10. Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.

Safety and protection

• Over-voltage protection (OVP)
  Over-voltage protection for the 12V, 5V and 3.3V DC outputs is required to comply with the ATX specification. OVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by the PSU manufacturer. The minimum voltage levels required for compliance are 13.4V for the +12V rail(s), 5.74V for the +5V rail and 3.76V for the 3.3V rail.
• Over-current protection (OCP)
  The RMx Series features OCP on the 3.3V, 5V and 12V rails. OCP ensures that the output of the DC voltage rails remains within safe operating limits.
• Over-temperature protection (OTP)
  OTP ensures that the PSU will shut down when the internal temperature reaches a set point. This is usually as a result of internal current overloading or a fan failure.
• Short-circuit protection (SCP)
  A short-circuit is defined as any output impedance of less than 0.1 ohms. Amongst other things, SCP ensures that the PSU shuts down should the 3.3V, 5V and 12V rails short to any other rail, or to ground. It also ensures that no damage should occur to the unit, or your PC's components in the event of a short.
