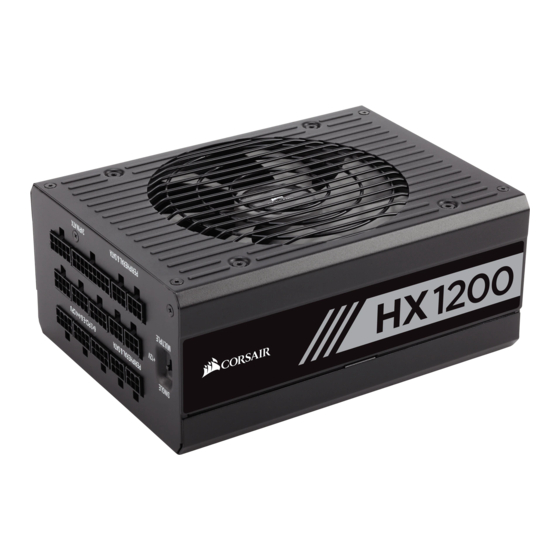

Corsair HX1200 Manual

Corsair HX1200 Manual

Hx series. high performance atx power supply
Hide thumbs Also See for HX1200:

Advertisement

HX1200
HX1000
HX850
HX750
HIGH PERFORMANCE ATX POWER SUPPLY
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HX1200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Corsair HX1200

  • Page 1 HX1200 HX1000 HX850 HX750 HIGH PERFORMANCE ATX POWER SUPPLY MANUAL...
  • Page 2 HX SERIES ™ Product Specifications HX1200 ......3 HX1000 ......5 HX850 ......7 HX750 ......9 Installation ....11 Safety and Agency Approvals ....15...
  • Page 3 Congratulations on the purchase of your new Corsair HX Series High Performance ATX power supply. Corsair HX Series enthusiast power supplies are optimized for silence, with a custom fan design and Zero RPM Fan Mode. 80 PLUS Platinum rated efficiency ensures low-cost operation, and the fully modular black cables allow for fast, neat builds.
  • Page 4 15A - 7.5A -12V 0.8A 9.6W Frequency +5Vsb 47 - 63Hz 3.5A 17.5W Total Power: 1200W Corsair HX1200 power supply efficiency input 115Vac input 230Vac % EFFICIENCY SYSTEM LOAD Corsair HX1200 power supply fan noise curve Fan Noise (db) Power Output (%)
  • Page 5 HX SERIES ™ Corsair HX1200 DC cable listing Description Total Length Connectors Per Cable ATX Cable 24 Pin (20+4) 610mm 610mm 610mm (± 10mm) Total Connectors Connectors Per Cable EPS/ATX12V 8 Pin (4+4) Cable 650mm 650mm 650mm (± 10mm) Total Connectors...
  • Page 6 13A - 6.5A -12V 0.8A 9.6W Frequency +5Vsb 47 - 63Hz Total Power: 1000W Corsair HX1000 power supply efficiency input 115Vac input 230Vac % EFFICIENCY SYSTEM LOAD Corsair HX1000 power supply fan noise curve Fan Noise (db) Power Output (%)
  • Page 7 HX SERIES ™ Corsair HX1000 DC cable listing Description Total Length Connectors Per Cable ATX Cable 24 Pin (20+4) 610mm 610mm 610mm (± 10mm) Total Connectors Connectors Per Cable EPS/ATX12V 8 Pin (4+4) Cable 650mm 650mm 650mm (± 10mm) Total Connectors...
  • Page 8 Input Current 12A - 6A -12V 0.8A 9.6W Frequency +5Vsb 47 - 63Hz Total Power: 850W Corsair HX850 power supply efficiency input 115Vac input 230Vac % EFFICIENCY Corsair HX850 power supply fan noise curve Fan Noise (db) Power Output (%)
  • Page 9 HX SERIES ™ Corsair HX850 DC cable listing Description Total Length Connectors Per Cable ATX Cable 24 Pin (20+4) 610mm 610mm 610mm (± 10mm) Total Connectors Connectors Per Cable EPS/ATX12V 8 Pin (4+4) Cable 650mm 650mm 650mm (± 10mm) Total Connectors...
  • Page 10 Input Current 10A - 5A -12V 0.8A 9.6W Frequency +5Vsb 47 - 63Hz Total Power: 750W Corsair HX750 power supply efficiency input 115Vac input 230Vac % EFFICIENCY Corsair HX750 power supply fan noise curve Fan Noise (db) Power Output (%)
  • Page 11 HX SERIES ™ Corsair HX750 DC cable listing Description Total Length Connectors Per Cable ATX Cable 24 Pin (20+4) 610mm 610mm 610mm (± 10mm) Total Connectors Connectors Per Cable EPS/ATX12V 8 Pin (4+4) Cable 650mm 650mm 650mm (± 10mm) Total Connectors...
  • Page 12 4. Proceed to Step B. Step B: Installing the Corsair HX Series power supply 1. Make sure the power supply’s AC power cable is not connected. 2. Follow the directions in your chassis manual and install the power supply with the screws provided.
  • Page 13 HX SERIES ™ WARNING: The detachable four-pin from the 24-pin main connector is not a “P4” or “+12V” connector. Serious damage can be caused if you use it in place of a “P4” or “+12V” connector. 5. Connect the peripheral cables, PCIexpress cables, and SATA cables. A.
  • Page 14 HX SERIES ™ +12V rail selection switch The HX Series power supplies are equipped with a +12V Rail Selection Switch that gives you the choice of single or multiple +12v rails. In the “SINGLE” position, the full output of the power supply’s +12V rail is available to any and all connectors, while in the “MULTIPLE”...
  • Page 15: Important Safety Information

    HX SERIES ™ Important safety information CAUTION ELECTRIC SHOCK HAZARD! 1. Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may cause serious injury or death. 2.
