Introduction

We hope you will enjoy and appreciate the care and attention we have put into every detail of your new, state-of-the-art DrawerMicro Oven.
Your DrawerMicro Oven is designed to offer years of reliable service. This Use and Care Guide will provide you with the information you need to become familiar with your DrawerMicro Oven's care and operation.
Your complete satisfaction is our ultimate goal. If you have any questions or comments about this product, please contact the dealer from whom you purchased it, or contact our Consumer Support Center at 1-888-845-4641.
We appreciate your choice of a our DrawerMicro Oven and hope that you will again select our products for your other major oven needs.
For more information about the complete and growing selection of products, contact your dealer or visit us online at vikingrange.com in the US or brigade.ca in Canada.

Getting Started

Before Operating

Before operating your new DrawerMicro Oven make sure you read and understand this Use and Care Guide completely.
The following steps MUST be taken before any functions can be used.

Before you use the DrawerMicro Oven:

Plug in the DrawerMicro Oven.will appear.
Touch the Stop/Clear pad. will appear.
Set clock.

To Set The Clock

Touch Timer/Clock pad and number .
Enter the correct time of day by touching the numbers in sequence. Touch Timer/Clock pad.

This is a 12 hour clock. If you attempt to enter an incorrect clock time, will appear in the display. Touch the Stop/ Clear pad and re-enter the time.

If the electrical power supply to your DrawerMicro Oven should be interrupted, the display will intermittently show after the power is reinstated. If this occurs during cooking, the program will be erased. The time of day will also be erased. Simply touch Stop/Clear pad and reset the clock for the correct time of day.

Stop/Clear
Touch the Stop/Clear pad to:

Erase if you make a mistake during programming.
Cancel timer.
Stop the oven temporarily during timed cooking.
Return the time of day to the display.
Cancel a program during cooking, touch twice.

Open Or Close DrawerMicro Oven
Always Touch the OPEN or CLOSE pad on the control panel to open or close the DrawerMicro Oven.
Do not push or pull the drawer by hand, except in case of emergency, such as a power failure. If necessary, push or pull slowly.

Product Controls

Features

Product Controls - Features - Part 1

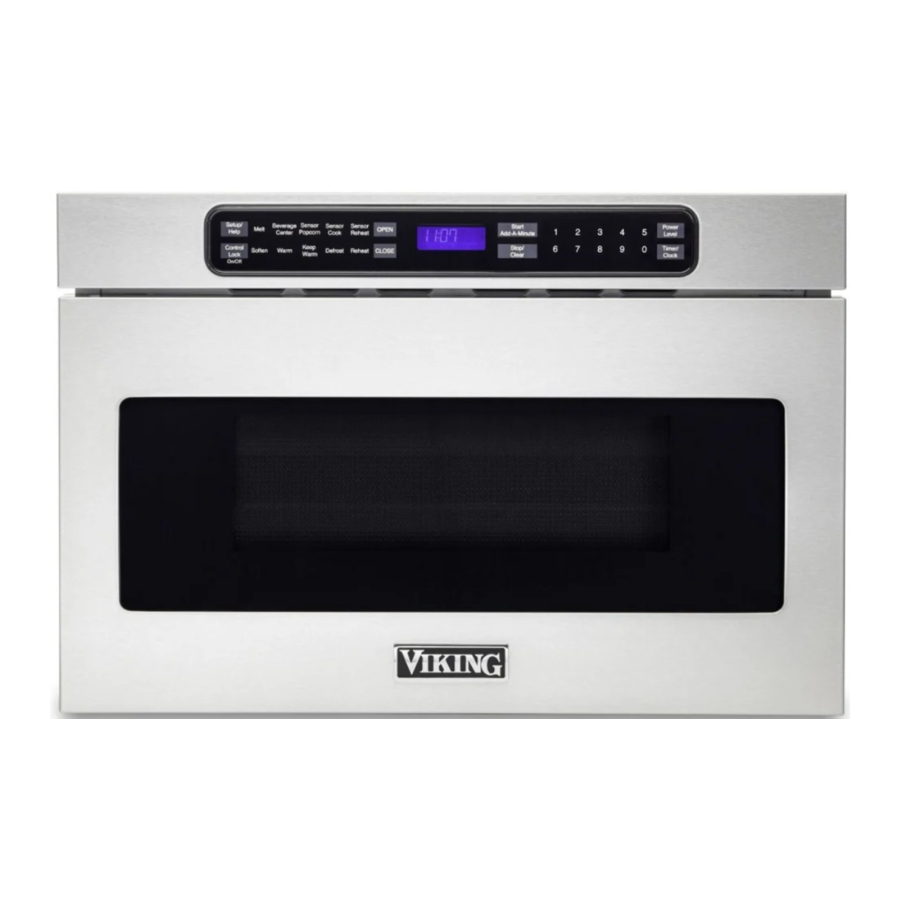

Control panel
Waveguide cover DO NOT REMOVE
DrawerMicro Oven Menu Label
Drawer sealing surfaces
Drawer light
DrawerMicro Oven guides
Vent
Name plate: open the DrawerMicro Oven fully. The label is beyond the back wall of the microwave cavity facing up from the flat surface.

Product Controls - Features - Part 2
Numbers next to the keysheet illustration you can see below in this manual.

Operation

Control Panel and Settings

Time Cooking
Your DrawerMicro Oven can be programmed for 99 minutes 99 seconds (99.99). Always enter the seconds after the minutes, even if they are both zeros.

Cook for 5 minutes at 100%

Enter cooking time 500.
Touch Start/Add-A-Minute pad.

To Set Power Level
There are eleven preset power levels.
Using lower power levels increases the cooking time, which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult a microwave cookbook or recipes for specific recommendations.

Defrost for 5 minutes at 30%

Enter defrost time 500.
Touch Power Level 8 times.
Touch Start/Add-A-Minute.

Touch Power Level pad number of times for desired power	Approximate percentage of power	Common words for power levels
Power Level x 1	100%	High
Power Level x 2	90%
Power Level x 3	80%
Power Level x 4	70%	Medium High
Power Level x 5	60%
Power Level x 6	50%	Medium
Power Level x 7	40%
Power Level x 8	30%	Med Low/Defrost
Power Level x 9	20%
Power Level x 10	10%	Low
Power Level x 11	0%

Sensor Settings
Sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power levels for various foods and quantities.

After the oven is plugged in, wait 2 minutes before using any sensor setting.
Be sure the exterior of the cooking container and the interior of the oven are dry. Wipe off any moisture with a dry cloth or paper towel.
The sensor works with foods at normal storage temperature. For example, popcorn would be at room temperature.
Any sensor selection can be programmed with More or Less Time Adjustment.
More or less food than the quantity listed in the charts should be cooked following the guidelines in any microwave cookbook.
During the first part of sensor use, the food name will appear on the display. Do not open the oven or touch Stop/ Clear during this part of the cycle. The measurement of vapor will be interrupted. If this occurs, an error message will appear. To continue cooking, touch the Stop/Clear pad and cook manually.
When the sensor detects the vapor emitted from the food, the remainder of cooking/reheating time will appear. The oven may be opened when the remaining time appears on the display. At this time, you may stir or season food, as desired.
Except for Popcorn, if the sensor does not detect vapor properly when cooking other foods,will be displayed, and the microwave will turn off.
Check food temperature after cooking. If additional time is needed, continue to cook manually.
Each food has a cooking hint. Touch the Set Up/Help pad when the HELP indicator is lighted in the display.

Covering Foods
Some foods work best when covered. Use the cover recommended in the charts for these foods. You may refer to the hints by touching the Set Up/Help pad.

Casserole lid
Plastic wrap: Use plastic wrap recommended for microwave cooking. Cover dish loosely; allow approximately 1/2 inch to remain uncovered to allow steam to escape. Plastic wrap should not touch food.
Wax paper: Cover dish completely. Fold excess wrap under dish to secure. If dish is wider than paper, overlap two pieces at least one inch to cover.

Be careful when removing any covering to allow steam to escape away from you.

Sensor Popcorn / Sensor Reheat
You can pop popcorn and reheat many foods and don't need to calculate cooking time or power level.
Touch Sensor Reheat or Sensor Popcorn and Start/Add-A-Minute pad.
When the sensor detects the vapor emitted from the food, the remainder of cooking/reheating time will appear.

NOTE:

The Sensor Popcorn setting has 2 choices. Follow directions in the display to choose desired option.

Sensor Popcorn / Sensor Reheat Chart

Food	Amount	Procedure
Sensor Popcorn	Only 1 package at a time	Use only popcorn packaged for the microwave. Try several brands to decide which you like. Do not try to pop unpopped kernels.
	2.85 - 3.5 oz. (Regular / Regular light)	Touch Sensor Popcorn pad once.
	1.2 - 1.75 oz. (Mini / Snack)	Touch Sensor Popcorn pad twice.
Sensor Reheat	4 - 36 oz	Place in dish or casserole slightly larger than amount to be reheated. Flatten, if possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic wrap or lids with larger quantities of more dense foods such as stews. After reheating, stir well, if possible. Re-cover and allow to stand 2 to 3 minutes. Foods should be very hot. If not, continue to heat with variable power and time.

Sensor Cook

Touch Sensor Cook pad once.
See Menu Label. Select desired food by touching number pad. Ex: Touch for baked potatoes.
Touch Start/Add-A-Minute pad.

NOTE:

To heat or cook other foods or foods above or below the quantity allowed on the Sensor Cook Chart, cook manually.

Sensor Cook Chart

Food

Amount

Procedure

Fresh vegetables: Quick
Broccoli
Brussels sprouts
Cabbage
Cauliflower (flowerets)
Cauliflower (whole)
Spinach
Zucchini
Baked apples

.25 - 2.0 lb.
.25 - 2.0 lb.
.25 - 2.0 lb.
.25 - 2.0 lb.
1 med.
.25 - 1.0 lb.
.25 - 2.0 lb.
2 - 4 med.

Wash and place in casserole. Add no water if vegetables have just been washed. Cover with lid for tender vegetables. Use plastic wrap for tendercrisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.

Fresh vegetables: Longer
Carrots, sliced
Corn on the cob
Green beans
Winter squash: diced halves

.25 - 1.5 lb.
2 - 4
.25 - 1.5 lb.
.25 - 1.5 lb.
1 - 2

Place in casserole. Add 1-4 tablespoons water. Cover with lid for tender vegetables. Use plastic wrap cover for tender-crisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.

Frozen vegetables

.25 - 1.25 lb.

Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand, covered, for 3 minutes.

Frozen entrees

6 - 17 oz.

Use this pad for frozen convenience foods. It will give satisfactory results for most brands. You may wish to try several and choose your favorite. Remove package from outer wrapping and follow package directions for covering. After cooking, let stand, covered, for 1-3 minutes

Baked potatoes
Sweet potatoes

1 - 6 med.
1 - 6 med.

Pierce. Place on paper-towel-lined DrawerMicro Oven. After cooking, remove from microwave, wrap in aluminum foil and let stand 5 to 10 minutes.

Ground meat

.25 - 2.0 lb.

Use this setting to cook ground beef or turkey as patties or in a casserole to be added to other ingredients. Place patties on a microwave-safe rack and cover with wax paper. Place ground meat in a casserole and cover with wax paper or plastic wrap. When microwave stops, turn patties over or stir meat in casserole to break up large pieces. Re-cover and touch Start/Add- A-Minute. After cooking, let stand, covered, for 2 to 3 minutes.

Fish/Seafood

.25 - 2.0 lb.

Arrange in ring around shallow glass dish (roll fillet with edges underneath). Cover with vented plastic wrap. After cooking, let stand, covered for 3 minutes.

White rice
Brown rice

.5 - 2.0 cups
.5 - 2.0 cups

Place rice into a deep casserole and add double quantity of water. Cover with lid or plastic wrap. After cooking, stir, cover and let stand 3 to 5 minutes or until all liquid has been absorbed.

Rice	Water	Size of casserole
.5 cup	1 cup	1.5 quart
1 cup	2 cups	2 quart
1.5 cups	3 cups	2.5 or 3 quart
2 cups	4 cups	3 quart or larger

Defrost
Use this feature to defrost the foods shown in the Defrost Chart below.

Touch Defrost pad.
See Menu Label. Select desired food by touching the number pad. Ex: Touch for steaks/chops.
Enter weight by touching number keys.
Touch Start/Add-A-Minute pad.
The oven will stop so that the food can be checked.
After the first stage, open the DrawerMicro Oven. Turn steak over and shield any warm portions. Close the DrawerMicro Oven. Touch Start/Add-A-Minute pad.
After the second stage, open the DrawerMicro Oven. Shield any warm portions. Close the DrawerMicro Oven. Touch Start/Add-A-Minute pad.
After defrost cycle ends, cover and let stand as indicated in the chart.

NOTE:

Defrost can be programmed with More or Less Time Adjustment.
To defrost other foods or foods above or below the weights allowed on the Defrost Chart, see Manual Defrost below.
Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue thawing. Do not cook until all ice crystals are thawed.
Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth strips of aluminum foil to cover edges and thinner sections of the food.

Defrost Chart

Food	Amount	Procedure
1. Ground Meat	.5 - 2.0 lb.	Pull apart and remove any thawed pieces after each stage. Let stand, covered, for 5 to 10 minutes.
2. Steaks/ chops	.5 - 3.0 lb.	After each stage, rearrange and if there are warm or thawed portions, shield with small flat pieces of aluminum foil. Remove any meat or fish that is nearly defrosted. Let stand, covered, for 10 to 20 minutes.
3. Boneless poultry	.5 - 2.0 lb.	Use boneless breast of chicken or turkey. After each stage, if there are warm or thawed portions, rearrange or remove. Let stand, covered, for 10 to 20 minutes.
4. Bone-in poultry	.5 - 3.0 lb.	Arrange pieces with meatiest portions toward outside of glass dish or microwave safe rack. After each stage, if there are warm or thawed portions, rearrange or remove. Let stand, covered, for 10 to 20 minutes.
5. Roast	2.0 - 4.0 lb	Start defrosting with fat side down. After each stage, turn roast over and shield the warm portions with aluminum foil. Let stand, covered, for 30 to 60 minutes.

Manual Defrost
If the food that you wish to defrost is not listed on the Defrost Chart or is above or below the limits in the amount column on the Defrost Chart, you need to defrost manually.
You can defrost any frozen food, either raw or previously cooked, by using Power Level at 30%. Follow the exact 3-step procedure found under To Set Power Level. Estimate defrosting time and Touch Power Level pad eight times for 30% power.
For either raw or previously cooked frozen food the rule of thumb is approximately 4 minutes per pound. For example, defrost 4 minutes for 1 pound of frozen spaghetti sauce.
Always stop the oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1 minute increments on Power Level 30% until totally defrosted. When using plastic containers from the freezer, defrost only long enough to remove from the plastic in order to place in a microwave-safe dish.

Reheat
Reheat automatically computes the correct warming time and microwave power level for foods shown in the chart below.

Touch Reheat pad once.
See Menu Label. Select desired food by touching number pad. Ex: Touch for frozen rolls or muffins.
Touch the number pad to select quantity. Ex: Touch for 2 rolls or muffins.
Touch Start/Add-A-Minute pad.

NOTE:

Reheat can be programmed with More or Less Time Adjustment.
To reheat other foods or foods above or below the quantity allowed on the Reheat Chart, heat manually.

Reheat Chart

Food	Amount	Procedure
1. Fresh Rolls/ Muffins	1 - 8 pcs	Use this pad to warm rolls, muffins, biscuits, bagels etc. Large items should be considered as 2 or 3 regular size. Arrange on plate; cover with paper towel. For refrigerated rolls or muffins, it may be necessary to double the entered amount to ensure the proper serving temperature. For example, enter quantity of 2 for 1 refrigerated muffin.
2. Frozen Rolls/ Muffins	1 - 8 pcs	Use this pad to warm frozen rolls, muffins, biscuits, bagels etc. Large items should be considered as 2 or 3 regular size. Arrange on plate; cover with paper towel.

Beverage Center
Beverage Center enables you to reheat coffee or tea to restore to a more suitable drinking temperature or to make instant coffee or tea.

Touch Beverage Center pad once.
See Menu Label. Select desired selection by touching number pad. Ex: Touch to make coffee.
Repeating touching same number pad to select quantity. Ex: Touch two more times for 2 cups of coffee.
Touch Start/Add-A-Minute pad.

NOTE:

Beverage Center can be programmed with More or Less Time Adjustment.
Should you attempt to enter more or less than the allowed amount, an error message will appear in the display.

Beverage Center Chart

Food	Amount	Procedure
1. Reheat beverage	.5 - 2.0 cups	This setting for good for restoring cooled beverage to a better drinking temperature. Touch number 1 pad for a 0.5 cup increase per touch. Stir after heating.
2. Hot water	1 - 6 cups	Use this setting for heating COLD TAP WATER to a temperature somewhat below the boiling point to make instant coffee or tea. Touch number 2 pad for 1 cup increase per touch. Stir liquid briskly before and after heating to avoid "eruption".

Melt/Soften/Warm
Melt, Soften and Warm automatically compute the correct heating time and microwave power level for melting, softening and warming foods shown in the chart below.

Touch Melt pad once.
See Menu Label. Select desired food by touching number pad. Ex: Touch for chocolate.
Repeat touching same number pad to select quantity. Ex: Touch two more times for 1 square.
Touch Start/Add-A-Minute pad.

NOTE:

Melt, Soften and Warm can be programmed with More or Less Time Adjustment.
To melt, soften or warm other food or foods above or below the quantity allowed on the MELT/SOFTEN/WARM CHART, use manual operation.

Melt/Soften/Warm Chart

Food	Amount	Procedure
Melt		Use a Pyrex measuring cup. Cover with plastic wrap.
1. Butter	2 tbsp .5 cup	After touching Melt, touch 1 two times for 2 tbsp. After touching Melt, touch 1 three times for.5 cup.
2. Chocolate	1 cup chips 1 square	After touching Melt, touch 2 two times for 1 cup chips. After touching Melt, touch 2 three times for 1 square.
Soften		DO NOT COVER.
1. Ice cream	1 pint .5 gallon	After touching Soften, touch ₁ two times for 1 pint. After touching Soften, touch 1 three times for.5 gallon.
2. Cream cheese	3 oz. 8 oz.	After touching Soften, touch 2 two times for 3 oz. After touching Soften, touch 2 three times for 8 oz.
Warm		Use a Pyrex measuring cup. DO NOT COVER.
1. Syrup	1/4 cup 1/2 cup	After touching Warm, touch ₁ two times for 1/4 cup. After touching Warm, touch 1 three times for 1/2 cup.
2. Dessert toppings	1/4 cup 1/2 cup	After touching Warm, touch 2 two times for 1/4 cup. After touching Warm, touch 2 three times for 1/2 cup.

Keep Warm
Keep Warm allows you to keep food warm up to 30 minutes.

Direct use

Touch Keep Warm pad.
Enter desired time by touching the number keys. To enter 30 minutes, touch.
Touch Start/Add-A-Minute pad.

The oven will start. The display will show and count down. will be displayed intermittently during the count down.

With Manual Cooking

Enter desired cooking time and power level.
Touch Keep Warm pad.
Enter desired warming time up to 30 minutes.
Touch Start/Add-A-Minute pad.

The operation will start. When the cooking time is complete, a long tone will sound and Keep Warm will start. The display will count down. will be displayed intermittently during the count down.

NOTE:

If you attempt to enter more than 30 minutes for Keep Warm, an error message will appear in the display.
Keep Warm cannot be programmed with Sensor Popcorn, Sensor Reheat, Sensor Cook, Defrost or Reheat.

Multiple Sequence Cooking
Your DrawerMicro Oven can be programmed for up to 4 automatic cooking sequences, switching from one power level setting to another automatically.
Sometimes cooking directions tell you to start on one power level and then change to a different power level. Your DrawerMicro Oven can do this automatically.

First enter cooking time. Then touch Power Level pad once for 100% cooking or repeat touching Power Level pad for a lower power level.
Enter second cooking time. Repeat touching Power Level pad for desired level. You can follow this procedure up to 4 times.
Touch Start/Add-A-Minute pad.

NOTE:

If Power Level pad is touched once, will be displayed.
If 100% is selected as the final sequence, it is not necessary to touch the Power Level pad.
If you wish to know power level during cooking, simply touch the Power Level pad. As long as your finger is touching the Power Level pad, the power level will be displayed.
Keep Warm can be programmed even if 4 cooking sequences have been set.

Add-A-Minute
Add-A-Minute allows you to cook for a minute at 100% by simply touching the Add-A-Minute pad. You can also extend cooking time in multiples of 1 minute by repeatedly touching the Add-A-Minute pad during manual cooking.

NOTE:

To use Add-A-Minute, touch pad within 3 minutes after cooking, closing the drawer or touching the Stop/Clear pad.
Add-A-Minute cannot be used with Sensor settings, Reheat or Defrost.

More or less time adjustment
Should you discover that you like any of the Sensor, Reheat or Defrost settings slightly more done, touch the Power Level pad once after touching your selection. The display will show .
For slightly less done, touch the Power Level pad twice after touching your selection. The display will show .

Help (In the display)
Each setting of Sensor Reheat, Sensor Cook, Sensor Popcorn, Keep Warm, Reheat and Defrost has a cooking hint. If you wish to check, touch Set Up/Help whenever HELP is lighted in the Interactive Display for these and other manual operation hints.

Control lock
The Control Lock prevents unwanted drawer operation such as by small children. The DrawerMicro Oven can be set so that the control panel and the automatic door mechanism are deactivated or locked.

TO LOCK
Touch Control Lock pad and hold for 3 seconds. The display shows .

TO UNLOCK
Touch Control Lock pad and hold for 3 seconds. The display shows .
The Control Lock is canceled when the electrical power supply to your oven is interrupted. Set the Control Lock again when power to the oven is restored.

Setup/Help
If the electrical power supply to your DrawerMicro Oven should be interrupted, the display will intermittently show after the power is reinstated. If this occurs, the Setup/Help option you input will be erased. Simply touch Stop/Clear pad and reset.

AUDIBLE SIGNAL ELIMINATION
At the end of timed cook, beeps will sound. The audible signal can be turned off if you prefer quiet operation.

TO TURN SOUND OFF

Touch Setup/Help pad.
Touch Setup/Help pad again.
Touch Start/Add-A-Minute pad. The display shows

TO RESTORE SOUND

Touch Setup/Help pad.
Touch Setup/Help pad again.
Touch Start/Add-A-Minute pad. The display shows

END OF COOKING REMINDER
At end of timed cooking, the microwave will signal every 10 seconds for the first minute; then every 3 minutes until Stop/ Clear pad is touched, up to one hour.

TO TURN REMINDER OFF

Touch Setup/Help pad three times. The display shows .
Touch Start/Add-A-Minute pad. The display shows .

TO TURN REMINDER SIGNAL BACK ON

Touch Setup/Help pad three times. The display shows .
Touch Start/Add-A-Minute pad. The display shows .

AUTO START
If you wish to program the DrawerMicro Oven to begin cooking automatically at a designated time of day, follow this procedure.

Touch Setup/Help pad 4 times. The display shows
Touch Start/Add-A-Minute pad.
Enter start time.
Touch Timer/Clock pad.
Touch the number keys to enter cooking time.
Touch Power Level pad repeatedly until the desired power level is reached.
Touch Start/Add-A-Minute pad.

DEMONSTRATION MODE
TO SELECT DEMO MODE

Touch Setup/Help pad five times. The display shows
Hold Start/Add-A-Minute pad for 3 seconds. The display shows .

TO CANCEL DEMO MODE

Touch Setup/Help pad five times. The display shows .
Touch Start/Add-A-Minute pad. The display shows

NOTE:

DrawerMicro Oven doesn't heat in Demo Mode.
Display counts down quickly.

Timer

Touch Timer/Clock pad and number.
Enter time.
Touch Timer/Clock pad again. To cancel timer, touch Stop/Clear.

Standby Mode
This microwave will go into standby mode after a period of inactivity. The backlight of the display will automatically dim after 3 minutes if the unit has not been in operation. If the display is in standby mode, simply touch the control panel or open/close the door to return the backlight to maximum brightness.

Product Care

Cleaning and Maintenance

Any piece of equipment works better and lasts longer when maintained properly and kept clean. Cooking equipment is no exception. Your DrawerMicro Oven must be kept clean and maintained properly.
Disconnect the power cord before cleaning or leave the door open to inactivate the oven during cleaning.

Exterior
The outside surface is precoated metal and plastic. Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner.

Stainless Steel Surface
The exterior should be wiped often with a soft damp cloth and polished with a soft dry cloth to maintain its beauty. There are also a variety of products designed especially for cleaning and shining the stainless exterior of the oven. We recommend that the cleaner be applied to a soft cloth and then carefully used on the stainless exterior rather than sprayed directly on to it. Follow package directions carefully.

Front Side of The Drawer
Wipe the window on both sides with a soft damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a soft damp cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the drawer surface.

Touch Control Panel
If desired, the touch keys may be deactivated before cleaning. See the Control Lock information of this manual. Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close drawer and follow directions for turning Control Lock off. Touch Stop/Clear.

Interior
Before cleaning the DrawerMicro Oven, touch and hold the Control Lock button for 3 seconds to lock the control pad and the automatic door mechanism. The drawer can be locked in either the open or closed position. The display will show . This will prevent the drawer from accidentally opening or closing during cleaning. After cleaning, touch and hold the Control Lock button for 3 seconds to turn the lock off. The display will show .
Cleaning is easy because no heat is generated to the interior surfaces; therefore, there is no baking and setting of spills or spattering. To clean the interior surfaces, including drawer sealing surfaces, wipe with a soft damp cloth. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use mild soap; wipe clean with a soft damp cloth. Do not use any chemical oven cleaners.

Drawer Guides
Remove the food crumbs from the drawer guides. Wipe with a soft dry cloth in order to keep the DrawerMicro Oven opening and closing smoothly.

Waveguide Cover
warning ATTENTION
The waveguide cover, located on the inside top of the DrawerMicro Oven area, is made from mica, so it requires special care. Keep the waveguide cover clean to assure good microwave performance. Carefully wipe with a soft damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch fire. Do not remove the waveguide cover.

Odor Removal
Occasionally, a cooking odor may remain in the DrawerMicro Oven. To remove odor, combine 1 cup water, grated peel and juice of one lemon and several whole cloves in a 2-cup glass microwave-safe measuring cup. Boil for several minutes using 100% power. Leave in the DrawerMicro Oven until water cools. Wipe interior with a soft cloth.

Before You Call For Service

Please check the following before calling for service. It may save you time and expense.

PROBLEM	POSSIBLE CAUSE	SOLUTION
Part or all of DrawerMicro Oven does not operate	Power cord of DrawerMicro Oven is not completely connected to the electrical outlet. Power outage. Fuse/circuit breaker at home doesn't work. DrawerMicro Oven is in Demo Mode.	Make sure the power cord is tightly connected to the outlet. Check house lights to be sure. Call your local electric company for service. Replace the fuse or reset the circuit breaker. See how to cancel Demo Mode.
Food in DrawerMicro Oven is not heated	No power to the appliance. DrawerMicro Oven controls improperly set. DrawerMicro Oven is in Demo Mode.	See SOLUTION for PROBLEM 1. Check if the controls have been properly set.
DrawerMicro Oven light does not work	Light bulb is loose or burned out.	Call for service.
Touch controls will not operate	Control Lock is on.	See how to unlock.
Display flashes	Power failure.	Touch Clear pad and reset the clock. If the DrawerMicro Oven was in use, you must reset the cooking function.
Steam from the vent	During microwaving, steam may come from the right side of the vent.

Safety

Warnings

Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating this appliance.
ALWAYS contact the manufacturer about problems or conditions you do not understand.

Recognize Safety Symbols, Words, Labels

Hazards or unsafe practices which WILL result in severe personal injury or death

Hazards or unsafe practices which COULD result in death or severe personal injury

Hazards or unsafe practices which COULD result in minor personal injury or property damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Read and follow all instructions before using this appliance
to prevent the potential risk of fire, electric shock, personal injury or damage to the appliance as a result of improper usage of the appliance. Use appliance only for its intended purpose as described in this manual.
To ensure proper and safe operation: Appliance must be properly installed and grounded by a qualified technician. DO NOT attempt to adjust, repair, service, or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified servicer.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:
1. door (bent),
2. hinges and latches (broken or loosened),
3. door seals and sealing surfaces.
The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Improper use of the grounding plug can result in a risk of electric shock.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

Read all instructions before using the appliance.
Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
This appliance must be properly grounded. Connect only to properly grounded outlet. See Grounding Instructions.
Install or locate this appliance only in accordance with the provided Installation Manual.
Some products such as whole eggs and sealed containers - for example, closed glass jars—are able to explode and should not be heated in the appliance.
Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This appliance is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE OVEN. Use caution when removing hot items.
Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.
This appliance should be serviced only by qualified service personnel. Contact nearest Authorized Servicer for examination, repair or adjustment.
Do not cover or block any openings on the appliance.
Do not store or use this appliance outdoors. Do not use this product near water—for example, near a kitchen sink, in a wet basement, near a swimming pool or similar locations.
Do not immerse cord or plug in water.
Keep cord away from heated surfaces.
Do not climb or sit on the appliance.
Do not let cord hang over edge of table or counter.
Do not store anything directly on top of the appliance surface when the appliance is in operation.
Be sure that fingers or other objects or materials are not around the appliance opening when the appliance is closed.
Do not put fingers or clothes around the drawer guides when the appliance is opened or closed. They could be caught in the guides when the appliance is closed.
Be sure that the food and container are shorter than the drawer before closing it. You can refer to the height of the side walls of the drawer.
When cleaning appliance sealing surfaces that come together on closing the drawer, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. See cleaning instructions.
To reduce the risk of fire in the appliance cavity:
1. Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the appliance to facilitate cooking.
2. Remove wire twist-ties from paper or plastic bags before placing bag in appliance.
3. If materials inside the appliance ignite, keep appliance door closed, turn microwave off and shut off power at the fuse or circuit breaker panel.
4. Do not use the appliance for storage purposes. Do not leave paper products, cooking utensils, or food in the appli-ance when not in use.
5. Use extreme care when inserting a spoon or other utensil into the container.
Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the appliance is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1. Do not overheat the liquid.
2. Stir the liquid both before and halfway through heating it.
3. Do not use straight-sided containers with narrow necks. Use a wide-mouthed container.
4. After heating, allow the container to stand in the appliance at least for 20 seconds before removing the container.
If the appliance light fails, consult a AUTHORIZED SERVICER.

SAVE THESE INSTRUCTIONS

Important–Please Read and Follow

About Unpacking and Examining Your DrawerMicro Oven

Remove all packing materials from inside the DrawerMicro Oven. DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the top of the DrawerMicro Oven.
Remove the feature sticker, if there is one. Check the drawer for any damage, such as misaligned or bent drawer, damaged drawer seals and sealing surfaces, broken or loose drawer guides and dents inside the cavity or on the front side of the drawer.
If there is any damage, do not operate the DrawerMicro Oven and contact your AUTHORIZED SERVICER.

ELECTRICAL GROUNDING INSTRUCTIONS
This appliance must be grounded. The oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.

Improper use of the grounding plug can result in a risk of electric shock.
DO NOT USE AN EXTENSION CORD. IF THE POWER SUPPLY CORD IS TOO SHORT, HAVE A QUALIFIED ELECTRICIAN OR SERVICEMAN INSTALL AN OUTLET NEAR THE APPLIANCE.
If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

NOTE:

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or serviceperson.
Neither Viking Range, LLC nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedures.

Radio or TV Interference
Should there be any interference caused by the DrawerMicro Oven to your radio or TV, check that the DrawerMicro Oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check position and signal of receiving antenna.

About Your DrawerMicro Oven
ALWAYS have food in the DrawerMicroOven when it is on to absorb the microwave energy.
The vent under the DrawerMicro Oven must not be blocked. During microwaving, steam may come from the right side of the vent.
When using the DrawerMicro Oven at power levels below 100%, you may hear the magnetron cycling on and off. It is normal for the exterior of the DrawerMicro Oven to be warm to the touch when cooking or reheating.
Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will influence the amount of moisture that condenses in the DrawerMicroOven. Generally, covered foods will not cause as much condensation as uncovered ones.
The DrawerMicro Oven is for food preparation only. It should not be used to dry clothes or newspapers.
Your DrawerMicro Oven is rated 950 watts by using the IEC Test Procedure. In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly.
When opening or closing the DrawerMicro Oven quickly, food in the DrawerMicro Oven may be spilled. To clean, please refer to the Cleaning and Care section.

Cookware Safety

Use dry, sturdy pot-holders. Damp pot-holders may cause burns from steam. Dishtowels or other substitutes shouldNEVER be used as potholders because they can trail across hot surface elements and ignite or get caught on appliance parts.
DO NOT heat unopened food containers; buildup of pressure may cause the container to explode and result in injury.
Use care when opening the microwave drawer. Let hot air or steam escape before removing or replacing food.
PREPARED FOOD

Follow food manufacturer's instructions. If a plastic frozen food container and/or its cover distorts, warps, or is otherwise damaged during cooking, immediately discard the food and its container. The food could be contaminated.

It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your new DrawerMicro Oven. Make sure the utensil does not touch the interior walls during cooking.

Use these utensils for safe microwave cooking and reheating:

glass ceramic (Pyroceram^®), such as Corningware^®.
heat-resistant glass (Pyrex^®)
microwave-safe plastics
microwave-safe paper plates
microwave-safe pottery, stoneware and porcelain
browning dish (Do not exceed recommended preheating time. Follow manufacturer's directions.)

These items can be used for short time reheating of foods that have little fat or sugar in them:

wood, straw, wicker

DO NOT USE:

metal pans and bakeware (cookie sheets / brownie pans)
dishes with metallic trim
non-heat-resistant glass
non-microwave-safe plastics (margarine tubs)
recycled paper products
brown paper bags
food storage bags
metal twist-ties

Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.

The following coverings are ideal:

Paper towels are good for covering foods for reheating and absorbing fat while cooking bacon.
Wax paper can be used for cooking and reheating.
Plastic wrap that is specially marked for microwave use can be used for cooking and reheating.DO NOT allow plastic wrap to touch food. Vent so steam can escape.
Lids that are microwave-safe are a good choice because heat is kept near the food to hasten cooking.
Oven cooking bags are good for large meats or foods that need tenderizing.DO NOT use metal twist ties. Remember to slit bag so steam can escape.

How to use aluminum foil in your DrawerMicro Oven:

Small flat pieces of aluminum foil placed smoothly on the food can be used to shield areas that are either defrosting or cooking too quickly.
Foil should not come closer than one inch to any surface of the DrawerMicro oven.

Should you have questions about utensils or coverings, check a good microwave cookbook or follow recipe suggestions.

Accessories
There are many microwave accessories available for purchase. Evaluate carefully before you purchase so that they meet your needs. A microwave-safe thermometer will assist you in determining correct doneness and assure you that foods have been cooked to safe temperatures. Viking Range, LLC is not responsible for any damage to the DrawerMicro Oven when accessories are used.

Food Safety

Arrange food carefully. Place thickest areas towards outside of dish.
Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
Cover foods while cooking. Check recipe or cookbook for suggestions: paper towels, wax paper, microwave plastic wrap or a lid. Covers prevent spattering and help foods to cook evenly.
Shield with small flat pieces of aluminum foil any thin areas of meat or poultry to prevent overcooking before dense, thick areas are cooked thoroughly.
Stir foods from outside to center of dish once or twice during cooking, if possible.
Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
Rearrange foods such as meatballs halfway through cooking both from top to bottom and from right to left.
Add standing time. Remove food from DrawerMicro Oven and stir, if possible. Cover for standing time which allows the food to finish cooking without overcooking.
Check for doneness. Look for signs indicating that cooking temperatures have been reached.

Doneness signs include:

Food steams throughout, not just at edge.
Center bottom of dish is very hot to the touch.
Poultry thigh joints move easily.
Meat and poultry show no pinkness.
Fish is opaque and flakes easily with a fork.

About Foods

Food	Do	Don't
Eggs, sausages, nuts, seeds, fruits & vegetables	Puncture egg yolks before cooking to prevent "explosion". Pierce skins of potatoes, apples, squash, hot dogs and sausages so that steam escapes.	Cook eggs in shells. Reheat whole eggs. Dry nuts or seeds in shells.
Popcorn	Use specially bagged popcorn for the microwave. Listen while popping corn for the popping to slow to 1 or 2 seconds or use special Sensor Popcorn pad.	Pop popcorn in regular brown bags or glass bowls. Exceed maximum time on popcorn package.
Baby food	Transfer baby food to small dish and heat carefully, stirring often. Check temperature before serving. Put nipples on bottles after heating and shake thoroughly. "Wrist" test before feeding.	Heat disposable bottles. Heat bottles with nipples on. Heat baby food in original jars.
General	Cut baked goods with filling after heating to release steam and avoid burns. Stir liquids briskly before, during and after heating to avoid "eruption". Use deep bowl, when cooking liquids or cereals, to prevent boilovers. Food should be shorter than the DrawerMicro Oven. Please refer to the height of side walls of the drawer.	Heat or cook in closed glass jars or air tight containers. Can in the microwave as harmful bacteria may not be destroyed. Deep fat fry. Dry wood, gourds, herbs or wet papers.

Cooking Safety
Check foods to see that they are cooked to the United States Department of Agriculture's recommended temperatures.

Temp		Food
145˚F	(63˚C)	Fish
160˚F	(71˚C)	Pork, ground beef/veal/lamb, egg dishes
165˚F	(74˚C)	For leftover, ready-to-reheat refrigerated, and deli and carry-out "fresh" food. Whole, pieces and ground turkey/chicken/duck.
170˚F	(74˚C)	White meat of poultry.
180˚F	(74˚C)	Dark meat of poultry.

To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave use.

ALWAYS use potholders to prevent burns when handling utensils that are in contact with hot food. Enough heat from the food can transfer through utensils to cause skin burns.
Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish's covering and carefully open popcorn and oven cooking bags away from the face.
Stay near the DrawerMicro Oven while it is in use and check cooking progress frequently so that there is no chance of overcooking food.
NEVER use the oven for storing cookbooks or other items.
Select, store and handle food carefully to preserve its high quality and minimize the spread of foodborne bacteria.
Keep waveguide cover clean. Food residue can cause arcing and/or fires.
