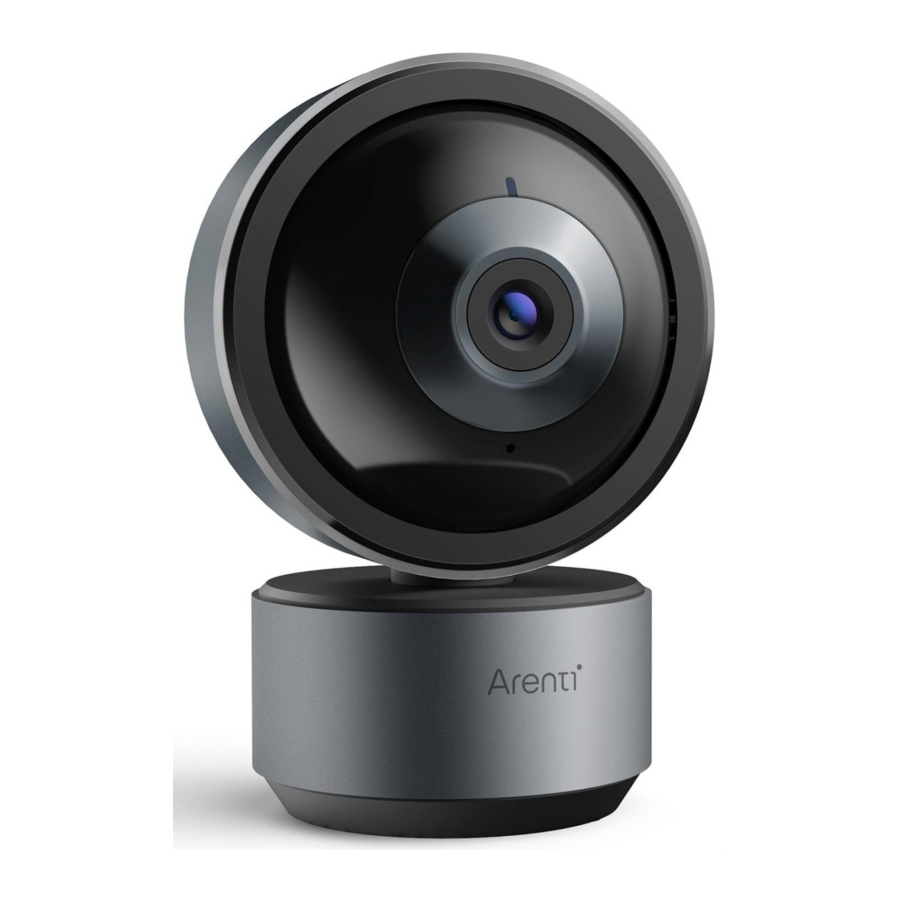

Arenti DOME 1 - Wi-Fi Camera Manual
Quick start guide
- Packing list
- Product description
- Device configuration
- Legal notice
Packing list
Product description
Notice
To reset the device, press and hold the reset button for 5 seconds.
The camera beeps when the operation is complete.
| Flashing red light (slow) | Waiting configuration |
| Flashing red light (fast) | Searching WiFi network |
| Fixed blue light | Camera connected to WiFi |
| Flashing blue light | Access point mode |
Camera configuration
- Turn on your camera by plugging in the power adapter.
- Connect your smartphone to the Wi-Fi network.
- Download Arenti app from the App Store or Google Play depending on your device.
- Launch Arenti app and sign up for the first use.
- Follow the steps below to add your camera, then follow the on-screen instructions.
Note
- If you have multiple cameras, please follow step 5 again to add devices one by one.
- To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
Specifications
| Sensor type | 1/3" CMOS |
| Min. brightness | Color 0.1Lux@F2.0 |
| Black and white 0.01Lux@F2.0 | |
| Resolution | 3 Mega pixels |
| Lens | 3.6 mm F2.0 |
| Shutter | 1/15-1/10,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 10 meters |
| Pan/Tilt | 0°~350°/-20°~90° |
| Video compression | H.264 |
| Bit rate | 32Kbps - 2Mbps |
| Max resolutio | 2304 x 1296 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 256GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP, DNS, RTSP |
| WiFi standard | IEEE802.11b/g/n |
| Frequency | 2.4 GHz - 2.4835 GHz |
| Bandwidth | 20/40MHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20℃~50℃ |
| Power | DC5V,1A |
| Consumption | 4.5W MAX |
| Size(mm) | 59x70x102 |
| Model | TPA-67F050100VU01 |
| Input voltage | 100-240Vac |
| Input frequency | 50-60Hz |
| Output voltage | +5Vdc |
| Output current | 1A |
| Output power | 5W |
| Efficiency | 73,62% |
| No-load consumption | <0.1W |
Support
www.arenti.com
Symbols
 | Direct current (DC) |
