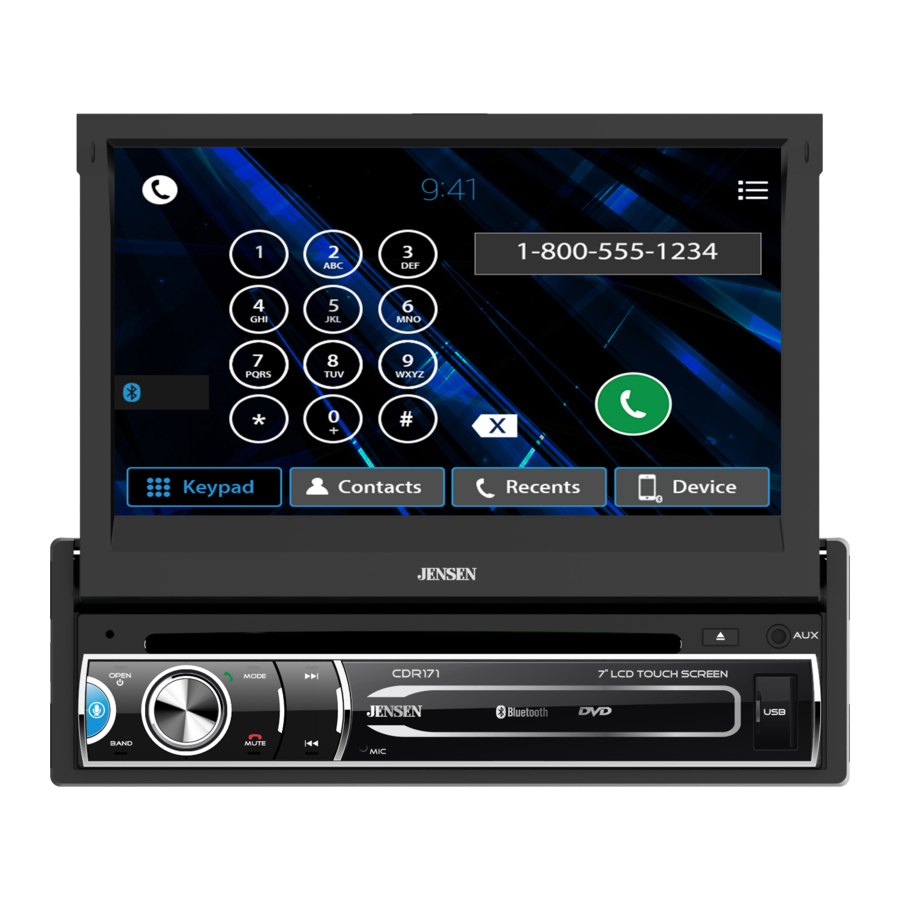

Jensen CDR171 - DVD Multimedia Receiver Manual

Preparation

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

TYPICAL FRONT-LOAD DIN MOUNTING METHOD

• Remove trim ring from unit.
• Remove 2 transit screws located on top of the unit.
• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve.
• Install mounting sleeve into opening, bending tabs to secure.
• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.
• Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately).
• Test for correct operation and slide into mounting sleeve to secure.

Wiring Diagram - Inputs/Outputs

Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp ATC mini style fuse located on the power connector.

Wiring Notes:
Rear camera input
A rear view camera (not included) can be used with the Camera input.

Control Locations

1. Eject
2. Auxiliary Input
3. USB Port
4. Microphone
5. Tune/Track Down
6. Mute/End Call
7. Volume/Talk
8. Band
9. Mode/Voice Activation
10. Open/Power
11. Reset
12. Mode
13. Tune/Track Up

General Operation

Installing the Faceplate	Align the faceplate with the front of the unit, then snap in place beginning with the left side.
Power On/Off	Momentarily press to turn the unit on or off.
Volume	Rotate the volume knob to increase or decrease the volume level.
Mute	Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume. Rotating the volume knob while the volume is muted will also cancel the mute function.
Mode	Press MODE to step through all available input modes: Radio, Disc (which includes DVD and CD playback), AV In, USB, Bluetooth Phone, Bluetooth Audio, Auxiliary Input, Rear Camera and Settings. Modes of operation are indicated on the display and/or the monitor. Optional USB device must be connected/inserted to appear in the mode selection string.
Auxiliary Input	Connect external audio/video devices to the 3.5mm auxiliary input on the front panel.
USB	Connect an USB device to play MP3 files.
Opening the LCD	Press OPEN to open or close the LCD screen.
Screen Angle	Press UP or DOWN to adjust the screen angle up or down.
Main Menu	When the monitor is open, press the house icon in the top left corner to access the Main Menu screen. Radio Media Player Bluetooth Phone Disc USB Bluetooth Audio Auxiliary Input Rear Camera Settings
Setup Menu	From the Main Menu screen, press SETUP in the bottom right corner to access the Setup menu and select from the following categories: General, Clock, Audio, Bluetooth, Display and About. General: OSD Language - Select English Only. Wallpaper - Select between three available wallpaper options. Panel Adust - Select to calibrate the touch screen. Radio Area - Select your current geographic area: Europe, USA, South America, Russia and Asia. Time Setting - Adjust the current time (hours and minutes) and choose between a 12-hour and 24-hour clock. Beep - Select to turn the audible beep On or Off. Camera - Select to turn the rear camera On or Off. Version - Select to view information about the unit. Restore Default - Select to restore the unit to default settings. Audio: Sound Effect - Select to access three sound effect sub-menus. EQ - Select from any preset equalization curve (Classic, Rock, Pop, Jazz, Beat, Flat) or use custom settings (User). Subwoofer - Select desired Subwoofer frequency and volume. Loudness - Turn the Loudness setting On or Off. Loudness Cut off Frequency - Select the desired frequency as a cutoff for the Loudness setting. Video: Aspect Ratio - Select desired aspect ratio: 4:3PS, 4:3LB or 16:9. Adjust - Select to adjust levels of Brightness, Contrast, Hue, Saturation and Sharpness. Panel - Select to choose backlight settings: 10s, 20s, 30s or Off. Bluetooth: Auto Connect - Turn auto connect feature On or Off. Auto Answer - Turn auto answer feature On or Off.

AM/FM Tuner Operation

Radio Operation	Select the Radio icon from the Main Menu screen.
Current Mode/Main Menu	Displays current mode of operation. Press to return to Main Menu screen.
Preset Stations	Press and hold to set the current station in that preset spot. Press momentarily to recall the desired preset and begin playback.
AM	Press to access AM bands.
FM	Press to access FM bands.
Bluetooth	Press to access Bluetooth phone.
Stereo / Mono	Press to toggle between Stereo and Mono tuning.
Tune Down	Press << to tune radio to a lower frequency. Press and hold to tune the unit down one step at a time.
AS/PS	Press to scan presets and listen to the first 10 seconds of each. Press again to stop scanning and listen to the station. Press and hold to automatically store the strongest stations as presets.
Direct Station Entry	Press to display the keypad and directly enter the desired station number.

Station Number	Displays the current station number.
Station Search	Press to search stations.
Tune Up	Press >> to tune radio to a higher frequency. Press and hold to tune the unit up one step at a time.
Audio Settings	Press to access and adjust audio settings.
Band	Press to select between 2 AM and 3 FM bands.

Media Player Operation

Media Player Operation	Select the Media Player icon from the Main Menu screen.
Current Mode/Main Menu	Shows current mode of operation. Press to return to Main Menu.
Bluetooth Music	Press to access Bluetooth music.
USB	Press to access files on USB device.
Bluetooth Phone	Press to access Bluetooth phone.
Random	Press to enable or disable Random playback.
Tune Down	Press << to tune radio to a lower frequency. Press and hold to tune the unit down one step at a time.
Repeat	Press to enable or disable Repeat playback.
Direct File Entry	Press to display the keypad and enter the desired file number.
Play / Pause	Press to pause or resume playback.
File List	Press to display a list of all files on the device.
Tune Up	Press >> to tune radio to a higher frequency. Press and hold to tune the unit up one step at a time.
Audio Settings	Press to access and adjust audio settings.
Time Indicator	Displays elapsed time/remaining time for the current file.
ID3 Metadata	Displays current file information.

Media Compatibility

CD/DVD

File Type				MP3
File System	ISO9660	Level 1, Level 2
		Level 3		X
	ISO9660 Extension	JOLIET	Playback
			Filename	32 bytes
	Other Extensions	ROMEO	Playback	X
			Filename	X
		Apple ISO		X
File Extension	.mp3/.MP3/.Mp3/.mP3
	.rmp/.m4a			X
MPEG Format	MPEG 1
	MPEG 2
	MPEG 2.5
Sampling Frequency	MPEG 1			32/44.1/48kHz
	MPEG 2			12/16/22.05/24kHz
	MPEG 2.5			8/11.025/12kHz
Bitrate	MPEG 1			32 ~ 320kbps
	MPEG 2			8 ~ 160kbps
	MPEG 2.5			8 ~ 160kbps
Other Information	Directory Depth			Unlimited
	File Name Length			32 bytes
	Total File Number			2000 files
	Total Folder Number			200 folders
	File Number via Folder			2000 files
	MP3 ID3 TAG	ver.1.x
		ver.2.x
		Title, Artist, Album

USB

File Type			MP3
File System	FAT	FAT 12	X
File Extension	.mp3/.MP3/.Mp3/.mP3
	.rmp/.m4a		X
MPEG Format	MPEG 1
	MPEG 2
	MPEG 2.5
Sampling Frequency	MPEG 1		32/44.1/48kHz
	MPEG 2		12/16/22.05/24kHz
	MPEG 2.5		8/11.025/12kHz
Bitrate	MPEG 1		32 ~ 320kbps
	MPEG 2		8 ~ 160kbps
	MPEG 2.5		8 ~ 160kbps
Other Information	Directory Depth		Unlimited
	File Name Length		32 bytes
	Total File Number		2000 files
	Total Folder Number		200 folders
	File Number via Folder		2000 files
	MP3 ID3 TAG	ver.1.x
		ver.2.x
		Title, Artist, Album

DVD Operation

Inserting a Disc	Insert disc into the slot, and playback will begin automatically. Sub-menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features.
Ejecting the Disc	Press to eject the disc.
Touchscreen Controls	Press anywhere on the LCD to display touch screen controls.
???	Need info
Audio Settings	Press to adjust audio settings.
Previous Chapter	Press to return to the previous chapter.
Play / Pause	Press to pause or resume playback.
Next Chapter	Press to advance to the next chapter.
Next Page	Press to display the next page of options.

Direct Entry	Enter a chapter number directly to begin playback.
Audio	Press to access and adjust audio settings.
Repeat	Press to repeat current chapter.
Random	Press to enable or disable random playback.
Next Page	Press to display the next page of options.

Bluetooth Operation

Preparation	Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process.
Pairing a New Device	The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "JENSES CDR171". The Bluetooth passcode is "0000". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once.
Connecting a Paired Device	Most Bluetooth devices support the auto-connect feature and will connect automatically if the device is in range when the unit is powered-on. If your device was previously paired but does not connect, enter the Bluetooth setup menu and ensure that Auto Connect is On.
Bluetooth Phone	To access the phone, select Bluetooth Phone from the Main Menu or press the phone icon from any operational mode.
Current Mode/ Main Menu	Displays current mode of operation. Press to return to the Main Menu screen.
Phone Keypad	Use the phone keypad to dial the desired phone number. Alternately, numbers can be dialed directly from the phone.
Display Keypad	Press to display phone keypad.
Contacts	Press to access the contact list.
Backspace	Press to backspace when typing a phone number.
Recent Calls	Press to display a list of recent calls.
Devices	Press to view available devices.

Talk	Press to connect a call.
Phone Number	Shows the phone number dialed.
End Call	Press to end the current call.
Settings	Press to transfer call between the head unit and the mobile phone.
Mute	Press to mute call audio.
Keypad	Press to display the keypad.

Front 3.5mm Aux Input & Rear RCA A/V Input

Auxiliary Input
Connect an optional audio source into the 3.5mm (front panel) input.
Select auxiliary input from the Main Menu to listen to audio.
Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

Using AV Input
Connect an optional audio/video source to the rear auxiliary input (Red/ White/Yellow RCA connectors).
Select AV Input from the Main Menu to listen to audio.
Engage parking brake to watch video.

Rear Camera Operation - (Optional)

Using Rear Camera
Connect an optional rear camera to the Camera Input (Black RCA connector). Refer to the wiring diagram for details.
Manual selection - Touch CAMERA icon from the Main Menu or from any operational mode (when enabled) to select camera mode. Touch the top left area on the screen to exit camera mode.
Note: The manual mode is for dedicated cameras that are ALWAYS on while driving, it is not meant for cameras that are connected to the vehicle's reverse light.

Auto Selection
The unit will automatically select camera mode when connected to the reverse lamp circuitry.
Note: The external video output is not active when using the rear camera input.

SWC Input Operation

The built-in SWC Interface is compatible with PAC steering wheel control modules.
The PAC SWI-RC is recommended. A third-party adapter must be used in order for the XDVD600 to be compatible with any steering wheel controls. The following controls are available for most vehicles.

1. Volume Up (+)
2. Volume Down (-)
3. Mute
4. Preset (+)
5. Preset (-)
6. Mode
7. Seek/Track Up (+)
8. Seek/Track Down (-)
9. Band
10. BT Talk
11. BT End

Note: Not all OE steering wheel functions may be supported by the XDVD600.

PAC SWI-RC Installation Hints

1. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".
2. To program, use the Pioneer/Sony/Other radio function mapping order for CDR171 units.
3. When programming the SWI-RC, if a function is not supported (or not desired), then the function MUST be skipped as per the PAC SWI-RC instructions.

Specifications

Design and specifications subject to change without notice.

Troubleshooting

General

Register Your ProductRegister your product online at www.jensenmobile.com.

Safety Notes

(Only DVD Receiver)
Video playback will not operate while the vehicle is moving.
This is a safety feature to prevent driver distraction. In-dash video functions will only operate when vehicle is in Park and the parking brake is engaged. It is illegal in most jurisdictions for the driver to view video while the vehicle is in motion.

Warning Statement

Upon installation of this monitor/media player ("unit") into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle's occupants or persons outside the vehicle and/or property damage.
Several states prohibit the installation of monitors/media players if the screen is visible from the driver's seat. If you reside in a jurisdiction which has enacted such a law, this unit must not be installed so that the screen is visible from the driver's seat. When installing this unit in the front console/dashboard, the unit must be positioned so that it is facing the front passenger seat only. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle's occupants or persons outside the vehicle and/or property damage.
This unit is designed so that it may be operated only when the vehicle is in "Park" and the parking brake is fully engaged. To this end, this unit includes a parking brake lock-out feature which prohibits the unit from operating if the vehicle is not in "Park" and/or the parking brake is not fully engaged. When installing this unit, the installer must connect the parking brake detect wire to the parking brake mechanism in order to make the parking brake lock-out feature operable. DO NOT simply ground the parking brake detect wire to a metal portion of the vehicle. Failure to properly install the parking brake lock-out feature could lead to driver distraction which could result in serious injury or death to the driver's occupants or persons outside the vehicle and/or property damage.
Once the parking brake lock-out feature is installed, the owner/user must not attempt to disrupt/neutralize the parking brake lock-out feature by

1. partially engaging the parking brake and/or
2. purchasing/using any device or unit designed to send necessary brake signals to the unit. Failure to follow these instructions could lead to driver distraction which could result in serious injury or death to the driver's occupants or persons outside the vehicle and/or property damage.

When operating this unit, keep the unit's volume level low enough so that the vehicle's occupants can hear traffic-related sounds such as police and emergency vehicles. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle's occupants or persons outside the vehicle and/or property damage.
Note.
The above video Content is for DVD Receiver Only.

Safety Information

Please read all instructions carefully before attempting to install or operate.
Due to its technical nature, it is highly recommended that your radio is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.

To prevent damage or injury:

• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or the possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause the unit to malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness first.
• Use only the provided hardware and wire harness.
• You cannot view video while the vehicle is moving. Find a safe place to park and engage the parking brake.
• If you experience problems during installation, consult your nearest Jensen dealer.
• If the unit malfunctions, reset the unit first. If the problem still persists, consult your nearest Jensen dealer or call tech assistance @ 1-866-382-5476.
• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use a stiff cloth, or volatile solvents such as paint thinner and alcohol. They can scratch the surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside the screen will become darker than usual. Normal brightness will return after using the monitor for a while.
• When extending the ignition, battery or ground cables, make sure to use automotive-grade cables or other cables with an area of 0.75mm (AWG 18) or more to prevent voltage drops.
• Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liquid crystal fluid may be hazardous to your health or fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately.

Customer Support
1-888-921-4088
(Monday-Friday, 9AM-5PM EST)
Visit https://www.jensenmobile.com
