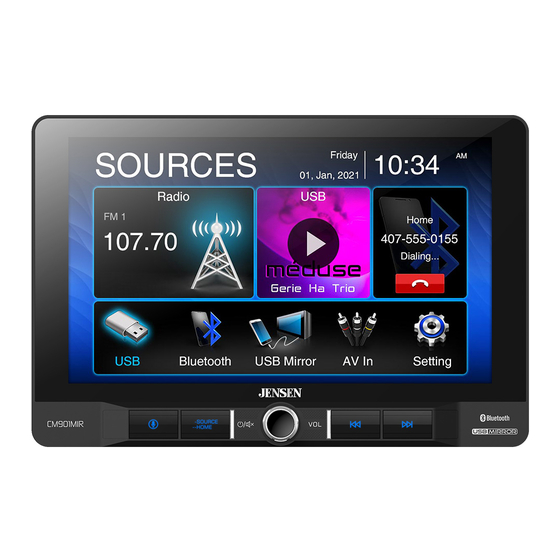

- Page 1 CM901MIR Multimedia Receiver with USB Mirror featuring a 9" Digital TFT Display AM-FM USB Media Player Rear Camera Input INSTALLATION & OWNER’S MANUAL...
- Page 2 • Use only the provided hardware and wire harness. • If you experience problems during installation, consult your nearest JENSEN deale . • If the unit malfunctions, reset the unit as described. If the problem still persists consult your nearest JENSEN dealer or call tech assistance @ 1-888-921-4088.
-
Page 3: Table Of Contents
CM901MIR Table of Contents Page Warning Statement .......... -
Page 4: Warning Statement
CM901MIR WARNING Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or... -
Page 5: Fcc Compliance
CM901MIR FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Preparation/Mounting
CM901MIR Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 7: Screen Rotation
CM901MIR Screen Rotation Screen angle can pivot side to side Screen height adjusts up to 1.5“ down Screen depth can be adjusted from 0” to 0.5“ to Screen tilts forward and back 1“ forward... -
Page 8: Wiring Diagram
CM901MIR Wiring Diagram - Inputs/Outputs 20PIN 18PIN Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 15 amp ATC mini style fuse located on the power connector. -
Page 9: Control Locations
CM901MIR Control Locations The radio display features the following functions and displays: VOICE ACTIVATION BUTTON SOURCE/HOME POWER/VOLUME/MUTE PREVIOUS BUTTON NEXT BUTTON RESET / USB PORT... -
Page 10: General Operation
CM901MIR General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Volume Rotate the volume knob to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume. - Page 11 CM901MIR General Operation Setup Menu From the Main Menu screen, select Setup to access the Settings menu and select from eight categories represented by the icons on the top of the screen: General, Audio, Display, Others. Select the category, and adjust any of the available options using the touch screen.
-
Page 12: Audio Operation
CM901MIR Audio Operation Equalizer Menu From the Main Menu screen, Press the Equalizer icon on the main menu screen to adjust Fader and Balance controls, Equalizer (8-Band Tone Control and 8 Presets EQ Settings). Time Alignment Menu Surround Presets Time Delay Setting... -
Page 13: Am/Fm Tuner Operation
CM901MIR AM/FM Tuner Operation From the main menu, touch Radio icon on the screen to select AM/ Radio Operation FM tuner mode. Main Menu Press icon to return to Main Menu screen. Current Mode Indicator Display status of various tuning functions including Auto. -
Page 14: Usb Operation
CM901MIR USB Operation From the main menu, touch the USB icon on the main screen. Press icon to return to Main Menu screen. Main Menu Current Mode Indicator Displays source currently playing. List Press icon to access a list of all files and folders on the device. -
Page 15: Media Compatibility
CM901MIR Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3/.flac/ogg/.MP4/.Xvid File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz... - Page 16 CM901MIR Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • AAC, protected AAC, M4A format Playback Order MP3 playback sequence begins in the root folder of the USB device. Any empty folders or folders that do not include MP3 files are skipped.
-
Page 17: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "CM901MIR". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once. - Page 18 CM901MIR Bluetooth Operation Bluetooth Music Press MUSIC to transfer audio between the unit and mobile phone. Setup Press "SETUP" to access Bluetooth settings. Call Dial a number and touch the Phone icon to call. Phone Keypad Use the keypad to dial a phone number.
-
Page 19: Usb Mirror™ Operation
CM901MIR USB Mirror™ Operation To set up USB Mirroring capabilities, select USB Mirroring from the main menu and follow the on-screen directions for connecting your Android or iPhone. Once completed, the unit will mirror phone display onto the unit’s on-screen display. To return to the main menu, press the lower left corner of the screen to display and select the home button. -
Page 20: Auxiliary Inputs/Rear Camera Operation
CM901MIR Rear RCA A/V Input A/V Input Connect an optional audio/video source into the RCA (rear) input. Adjust volume on the external audio source as needed (if connected to the headphone output of the device). Rear Camera Operation - (Optional) Rear Camera Input Connect an optional rear camera to the Camera Input (Black RCA connector). -
Page 21: Swc Input Operation
The built-in SWC Interface is compatible with 3rd party steering wheel control modules. Either the PAC SWI series or Axxess ASWC-1 are recommended. These adapters must be used in order for the CM901MIR to be compatible with any steering wheel controls. The following controls are available for most vehicles. -
Page 22: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your JENSEN product. Dealer Name... -
Page 23: Specifications
CM901MIR Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0... -
Page 24: Warranty
4. For more information and for the location of the original retail purchaser for products purchased from nearest authorized service center please contact an authorized JENSEN dealer and used in the U.S.A. us by one of the following methods: What is covered? This warranty covers all defects •... - Page 25 Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) Visit https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
