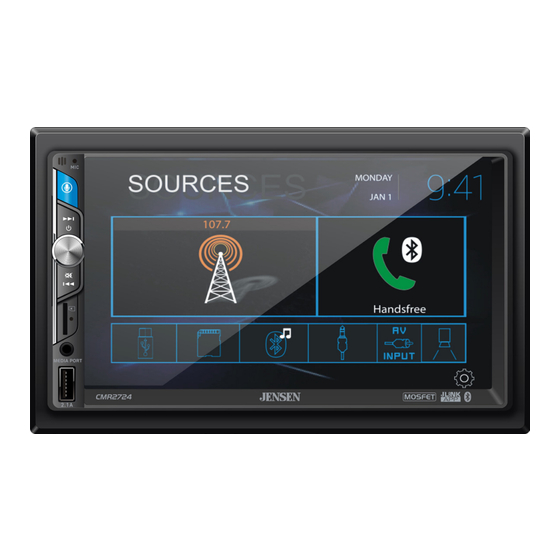

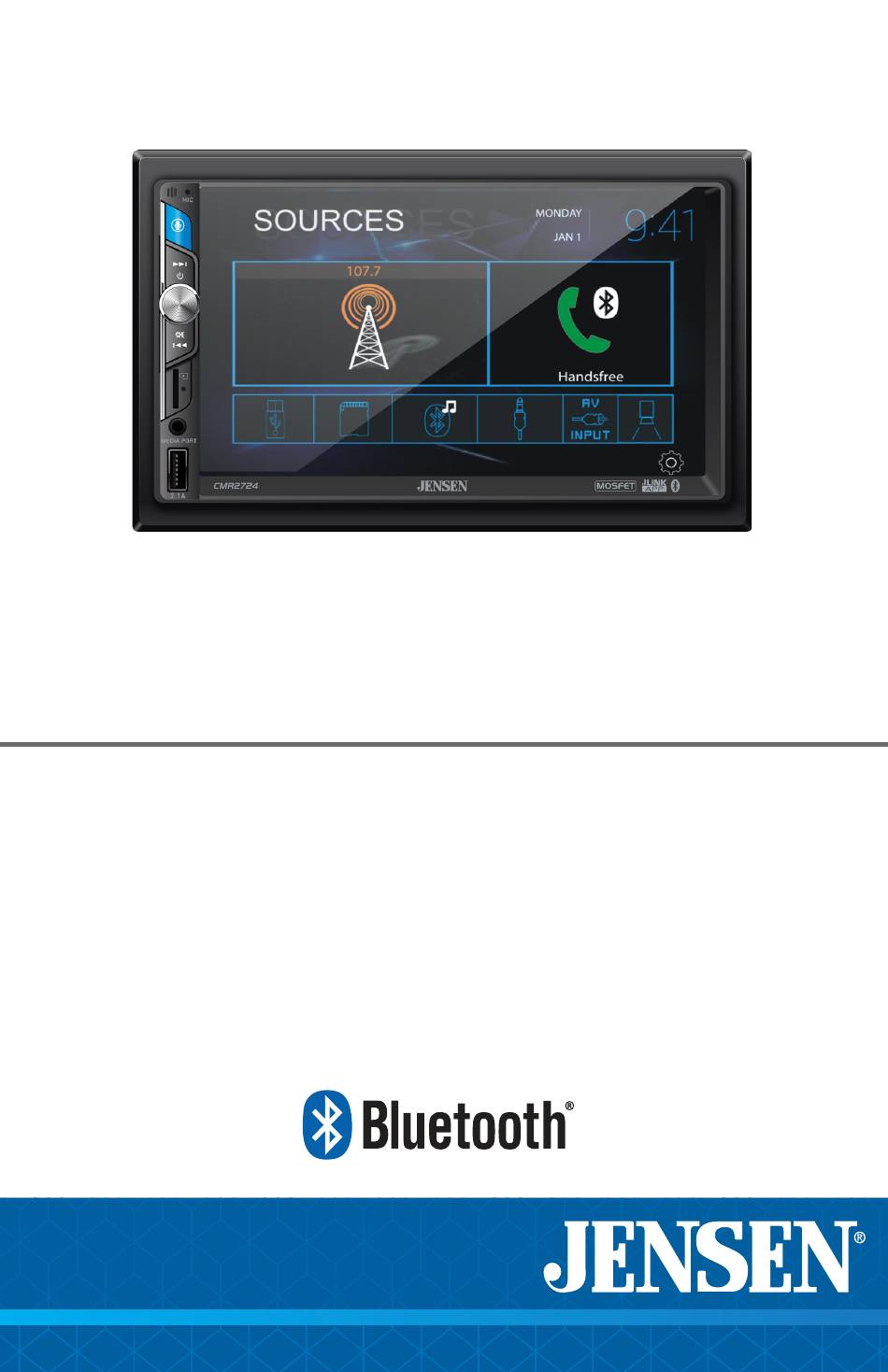

- Page 1 CMR2724 7” TOUCH SCREEN MECHLESS RECEIVER AM-FM, Bluetooth INSTALLATION & OWNER’S MANUAL...
-
Page 2: Fcc Compliance
CMR2724 INFORMATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Safety Notice
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your JENSEN CAR2724 is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. -
Page 4: Getting Started
CMR2724 INSTALLATION Preparation Please read and understand entire manual before installation. Consult a qualified technician for detailed instructions or installation assistance. Before You Start • Disconnect negative battery terminal. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. - Page 5 (1) 10 amp ATC blade-type fuse located on the back of the unit. Front / Rear camera inputs Up to two cameras (not included) can be used. We recommend JENSEN Part # BUCAM200J for front camera and BUCAM300AJ or BUCAM400AJ for rear camera.
- Page 6 CMR2724 OPERATION Main Control Locations Microphone microSD Card Slot Mode / Voice Assistant Reset Tune/Track Up Auxiliary Input Volume / Power / Mute USB Slot Tune/Track Down...
- Page 7 CMR2724 OPERATION Source Menu Operation Radio Press to access Radio. Bluetooth Phone Press to access Bluetooth phone. Settings Press to display and adjust system settings. Camera Press to display the rear and front cameras. AV Input Press to access AV input.
-
Page 8: On Screen Controls
CMR2724 OPERATION On Screen Controls Screen Brightness Press up to two times to dim the screen. Press a third time to put the unit in standby mode (screen will go black). Press anywhere on the screen to return to normal screen operation. -
Page 9: Audio Settings
CMR2724 OPERATION Audio Settings Select any of the preset EQ settings (Flat, Classic, Rock, Pop, Jazz, Beat or User) or use the touch screen to manually adjust EQ settings. Select any of the preset Surround settings: Concert, Church, Passive, Wide, Live or None. -
Page 10: Settings Menu
CMR2724 OPERATION Settings Menu From the Main Menu, press the gear icon to access the Setup menu and adjust the following: General, Audio, Display and Bluetooth. General: • OSD Language - Select English. • Wallpaper - Select from three different wallpaper options. -
Page 11: Tuner Operation
CMR2724 OPERATION Tuner Operation Select the Radio icon from the Main Menu Radio Operation screen. Press to return to Main Menu screen. Main Menu Displays the current mode of operation. Mode Indicator Press to tune to a lower frequency one step at Tune Down a time. - Page 12 CMR2724 OPERATION USB/microSD Operation To play MP3 files from a USB device or microSD card, USB/microSD Operation insert a USB device or microSD card, and playback will begin automatically. To return to USB or microSD playback from another mode of operation, select the corresponding icon from the Main Menu.
-
Page 13: Media Compatibility
CMR2724 OPERATION Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz... -
Page 14: Bluetooth Operation
Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “JENSEN CMM2720”. The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once. - Page 15 CMR2724 OPERATION Bluetooth Operation Paired Device List Press to display a list of paired devices, and select desired device to connect. Talk Press to connect a call to the number entered. End Call Press to end a call. Previous Track Press to go back to the previous track.
-
Page 16: App Operation
Jensen J-Link P1 application on your smartphone. Navigation Hot Button Once the Jensen Smart app is installed, press the Navi hot button to connect your receiver to your phone through the on-screen UI. Instantly stream audio from your favorite navigation apps on a connected smartphone through your car’s receiver vla Bluetooth. -
Page 17: Auxiliary Input
CMR2724 OPERATION Rear Camera Connect an optional rear camera to the Rear Camera inputs (Yellow RCA connector for video and Black RCA connector for audio). Refer to the wiring diagram for details. Manual selection - Touch the REAR CAMERA icon from the Main Menu or from any operational mode (when enabled) to select camera mode. -
Page 18: Steering Wheel Controls
CMR2724 OPERATION Steering Wheel Controls A third-party adapter must be used in order for the CMR2724 to be compatible with any OEM steering wheel controls. The CMR2724 has a built-in 3.5mm SWC interface that compatible with many popular 3rd party SWC control modules, such as PAC, METRA, and others. -
Page 19: Limited One Year Warranty
CMR2724 OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Namsung America Inc. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 20: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your JENSEN product. Dealer Info Dealer Name:... -
Page 21: Specifications
CMR2724 WARRANTY Specifications FM Tuner US Tuning Range: 87.5MHz-107.9MHz EU Tuning Range: 87.50MHz-108.00MHz Usable Sensitivity: 8.5dBf 50dB Quieting Sensitivity: 10dBf Stereo Separation@ 1kHz: 30dB Frequency Response: 30Hz-13kHz AM Tuner Tuning Range: 530kHz-1710kHz Usable Sensitivity: <42dBu Frequency Response: 30Hz-2.2kHz Bluetooth Version: 4.1 + EDR... - Page 22 CMR2724 INSTALLATION & OWNER’S MANUAL Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) Visit https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
