MAJORITY DVD Player Manual

WHAT'S IN THE BOX

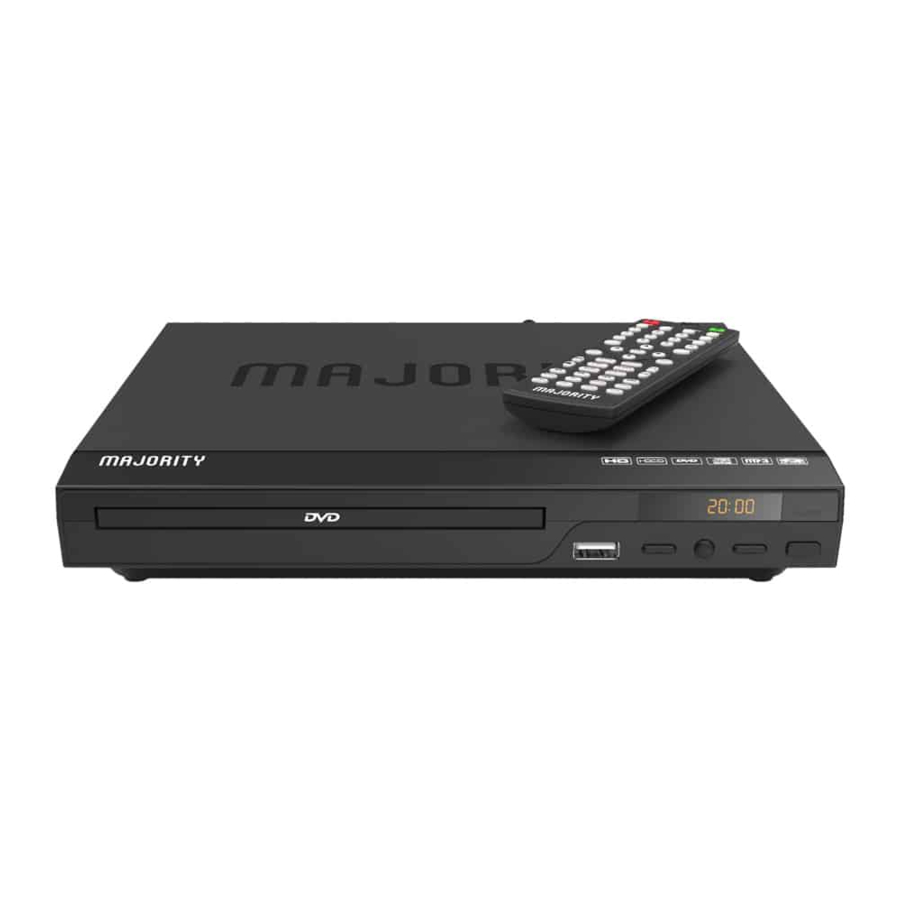

1. Majority DVD Player
2. Remote Control
3. RCA AV Cable
4. HDMI Cable
5. User Manual

REMOTE CONTROL

CONTROLS& FUNCTIONS

1. On/Off
2. L/R: Use for VCD or CD discs. Select left or right channel or stereo
3. Switch to DVD or USB mode
4. Language
5. Subtitles
6. N/P: Switch between NTSC or PAL
7. Programme
8. Press to repeat certain sections.
   Press button on start point (A) and the end point (B) to select section.
   Cancel by pressing button a third time.
9. Repeat: Press repeatedly in DVD mode to scroll through: Repeat a title, chapter, track or go to the beginning. In SVCD, VCD or CD mode: Track repeat, all repeat or repeat cancel.
10. Title
11. Navigate up
12. Navigate left
13. Setup
14. Play/Pause
15. Previous Chapter/ Track
16. Next Chapter/ Track
17. Time
18. Open/Close DVD Tray
19. OSD
20. Mute
21. Angle
22. Zoom: Press to zoom in, press again to zoom out. Use arrow keys to move picture
23. Volume Down
24. Volume Up
25. Slow
26. Press to play picture by picture.
    Press Play to return to normal playback.
27. Menu/PBC: Playback control
28. Enter/Confirm
29. Navigate right
30. Navigate down
31. Return: Return to VCD menu
32. Fast-forward
33. Rewind
34. Stop
35. 0-9/10+: Select desired track/ chapter in menu selection
36. Press to clear input selections

FRONT & BACK VIEW

37. DVD Tray
38. Remote Sensor
39. Display
40. USB Port
41. Open/Close
42. Play/ Pause
43. Stop
44. Power On/Off
45. (Y.Pb/Cb. Pr/Cr) Output
46. Power Cable Outlet
47. HDMI Output
48. 2 x Audio Output ports
49. Video Output

GETTING STARTED

Setting Up

Connect the power plug Of the DVD player to a wall outlet. The power indicator and timer on the front panel will illuminate.
Follow the guidance below for connecting your DVD player:

Cable Connection Options

1. Connect a RCA cable between the 2 channel Audio Output port and the RCA input on your TV.
2. Connect a HDMI cable between the HDMI Output on the back panel of the DVD player (Ref.47) to the HDMI input on your TV.
3. Connect a (Y Pb/Cb Pr/Cr) cable via the (V/Cb/Pb Cr/Pr) Output of the DVD player (Ref.45) to your TV (R/ L/ Video port and cable).

DVD OPERATION

1. The following DVD formats can be played: DVD, DVD-R-RW, CD Video. Ensure that your TV is set to the correct mode for DVD playback.
2. Plug in the DVD player and press the 'Power' button to turn the unit on. You can do this on the unit (Ref.44) or via the remote (Ref.1).
   When the machine is switched on, pressing the button on the remote control will make it go into standby mode. Press the button again and the machine will switch on.

   If the product will not be used for an extended period of time, it is advisable to unplug it for safety.
3. Press the Open/Close button on the front panel (Ref.41) or on the remote control (Ref.18) and place a DVD disc on the disc tray. Press the Open/Close button again to close the tray.
4. The DVD will read the DVD disc and begin playing. You can control the playback and settings via the remote control.

USB OPERATION

This device has a port in the front interface for AVI video format with maximum resolution of 720 x 576 or 720 x 480.

The USB stick used for playback should be for up to 32GB and needs to be formatted in FAT32 before adding the video files on it.

Insert a USB device into the port (Ref.40).

Press the DVD/USB button on the remote control (Ref.3) to switch the source to USB.
The DVD player will read and display the file list from the USB drive.

Browse through the file list by pressing the buttons (Ref.11, Ref.12, Ref.29, Ref.30) on the remote control. Select a file by pressing the Enter button (Ref.28) of the remote control.

PLAYING JPEG/PICTURE CD& MP3 DISCS

PLAYING JPEG/PICTURE CDS

The following formats can be played: Jpg, Jpeg, CD Photo

Press the STOP button and 12 small pictures will show on the TV screen.

Press the buttons to select the desired picture to view. (Ref.11), (Ref.12), (Ref.29), (Ref.30).

To access the instructions menu, use the buttons to navigate and then press the ENTER button to confirm. The following options will display:

1. PROG - Select to change picture transform mode
2. STOP - Entering picture preview mode
3. PREV - Previous picture
4. NEXT - Next picture
5. PLAY - Play picture
6. UP - Mirror image in vertical
7. DOWN- Mirror image in horizontal
8. LEFT - Rotate 90 degrees anticlockwise
9. RIGHT - Rotate 90 degrees clockwise
10. ZOOM - Change zoom mode
11. FAST FORWARD - Zoom in the picture
12. FAST REWIND - Zoom out the picture
13. - Move zoom focus for picture.

PLAYING MP3 DISCS

The following formats can be played: Mp3, WMA, CD Audio, CD-R-RW, CD

Whilst a MP3 disc is playing, a menu screen will display on the TV. Press the buttons (Ref.11, Ref.30) to scroll through tracks or folders. Press the ENTER button to select the track or folder.

Press the PROG button in file play mode. The screen will then display the total track number and the current track playing. Use the digit buttons (Ref.35) to key in and select the track or use the buttons to shift to the track and press the ENTER button (Ref.28) to play the track.

SYSTEM SET-UP

Setup options

• Setup options on System, Language, Audio, Video, Speaker and Digital can be accessed from the main setup menu.
• Press SETUP on the remote control to display the main menu.
• UP/DOWN arrows to move up or down in the menu. Then press ENTER to confirm the selection and move to submenu.
• Use LEFT/ RIGHT arrows to move the cursor and UP/ DOWN arrows to the desired option, then press ENTER to confirm.
• Press LEFT arrow to return to the previous menu. The setup options for this function are now finished.
• To end the setup, press the SETUP button again.

System setup

TV system: for composite only

Based on TV hardware, select proper options: NTSC, PAL or AUTO. Default is PAL.

Screen Saver

Use this option to turn the screen saver ON or OFF

Resolution

On HDMI, select one of the following video output resolution: OFF, 720P, 1080I, 1080P.

Video setup

Your video settings must correspond with the type Of connection to your TV or other equipment.

Aspect Ratio

Use this submenu to select the aspect ratio.

Password

Use the numerical keys to set your personal 4-digit password. The default and master password is "0000".

Parental Control

Use this option to set an appropriate rating to restrict viewing for children. The options available correspond to the film ratings on the disc.

Default

Use this option to restore the default factory settings.

Resume

If this option is set to "ON" and the power is turned off, the player will remember where it stopped and when the power is resumed, it will continue to play from that point.

Language setup

Select options for your on-screen and menu language and subtitles.

OSD language

Select a language to be used on on-screen display and setup

Audio language

Use this option to set the audio (dubbing) language.

Subtitle language

Use this option to set the subtitle language, or choose 'off ' to hide the subtitles.

Menu language

Use this option to set the film's menu language.

Audio setup / Audio out

Use this menu to select your audio output.

Key

Use UP/DOWN arrows to adjust the key.

Video setup

Under this menu you can select options for your image output.

Brightness

Use UP/DOWN arrows to adjust the brightness.

Contrast

Use UP/DOWN arrows to adjust the contrast.

Hue

Use UP/DOWN arrows to adjust the hue.

Saturation

Use arrows to adjust the saturation.

Sharpness

Use UP/DOWN arrows to adjust the sharpness.

Speaker setup

Select options including downmix, subwoofer, center delay, rear delay and size of front, center and rear speakers.

Downmix

This settingis for HomeTheater. If two channels is required, select the Stereo

Digital setup

Use this menu to select digital setup options including OP, dynamic range and dual/mono.

OP mode

• For nighttime playing, select LINE OUT to set volume at a lower level.
• For daytime playing, select RF REMOD to set volume at a higher level.

Dynamic range

When LINE OUT is selected, use this setting to adjust the line out ratio for a different effect. The audio signal peak value will be at the minimum when set to Full; peak value will be at the maximum when set to Off.

Dual mono

Choose this option to set up the left (L) and right (R) mono output; there are four modes in this option.

TROUBLESHOOTING

SUPPORT

If you require further assistance with your new DVD player, please contact our support team on the Majority website: www.majority.co.uk/support

SPECIFICATIONS

SAFETY INFORMATION

1. Read these instructions.
2. Keep these instructions. Instructions are also available for download at www.majority.co.uk
3. Heed all Warnings
4. Follow all instructions
5. Do not clean the apparatus near or with water
6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
8. Protect power from being on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
9. Only use attachments/accessories specified by the manufacturer.
10. Unplug this apparatus during light storms or when unused for long periods of time.
11. Refer all servicing to qualified service personnel.
    Servicing is required when apparatus has been damaged in a way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen apparatus, apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
12. No naked flame sources, such as lit candles, should be placed on the apparatus.
13. Dispose of used electrical products and batteries safely according your authority and regulations.

ADDITIONAL WARNINGS

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquid, such as vases, shall be places on the apparatus.
Main plug is used to disconnect device and it should remain readily operable during intended In order disconnect the apparatus from the main mains completely, the mains plug should be disconnected from the main completely.
Battery Shall not be exposed to excessive heat Such as sunshine, fire or the like.

Risk of electric shock
Do not open

Read instructions carefully before use and keep for future reference

When only rep a cement parts

Please read instructions carefully before use and keep for future reference.
