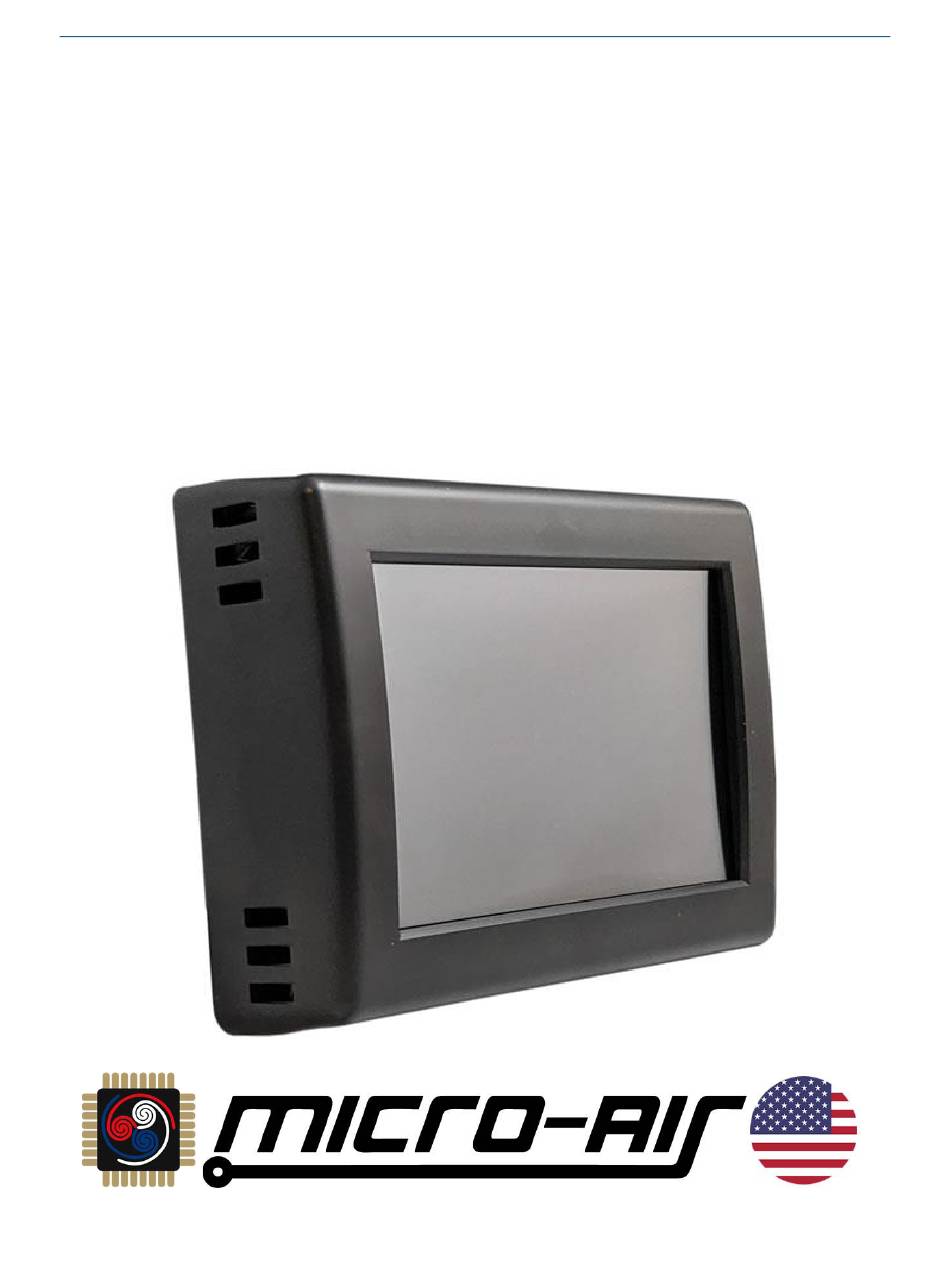

EasyTouch RV 351
TM
EasyTouch RV
Reference Manual
for Model
351
1
©2024 Micro-Air LLC
Revision 2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the EasyTouch RV 351 and is the answer not in the manual?

Questions and answers

Patrick McGillvray
April 9, 2025

I always have rv hooked to ac (50 amp) power with thermostat set to 50 in winter and 80 in summer and connected to the internet when it sits in the driveway. I came home from vacation and found that the furnace icon had been replaced by the aqua icon. Was there a software update? I have searched through the menus, and it doesn’t seem to be there. The furnace operates normally on aqua.

1 comments:
Mr. Anderson
April 10, 2025

No, the icon change between furnace and aqua on the EasyTouch RV 351 thermostat is a cosmetic setting, not a software update. It can be toggled manually using the Furnace/Aqua button.

This answer is automatically generated

Summary of Contents for MICRO-AIR EasyTouch RV 351

  • Page 1 EasyTouch RV 351 EasyTouch RV Reference Manual for Model ©2024 Micro-Air LLC Revision 2.0...
  • Page 2: Table Of Contents

    EasyTouch RV 351 Table of Contents EasyTouch RV 351 Models and Compatible Replacements ........... 3 Included in the Box ......................4 Installing the Display ......................4 Safety ............................4 Removing the Old Display’s Faceplate ..................4 Wiring the Display........................5 Re-apply Power ........................
  • Page 3: Easytouch Rv 351 Models And Compatible Replacements

    Use this manual for detailed installation and operation of this product. EasyTouch RV 351 Models and Compatible Replacements EasyTouch RV 351 can be purchased in two colors. Table 1 lists all EasyTouch RV 351 models. EasyTouch RV 351 Model...
  • Page 4: Included In The Box

    EasyTouch RV 351 Included in the Box EasyTouch RV model 351 is shipped with the following items: • 1x EasyTouch RV 351 Display • 1x Quick-Instruction Card • 1x Mounting Bracket (Figure 2) • 4x Screw Hole Covers The mounting bracket is used during installation. The screw hole covers can be used to cover holes in the wall from the previous display if they are exposed.
  • Page 5: Wiring The Display

    COMM terminal of the EasyTouch RV push button connector, as well as the other terminals and what they look like. This is on the back of EasyTouch RV 351. Depressing the button opens the wire clamp jaw for that terminal. This allows a wire to be inserted.
  • Page 6: Re-Apply Power

    EasyTouch RV 351 I don’t know which wire is which anymore! You may have accidentally lost which wire is used for what purpose. You can typically use a voltmeter to determine what each wire is. Disconnect the three wires and set the meter to measure DC voltage at least up to 16 volts (some meters can be set to a lower maximum voltage).
  • Page 7: Mounting The Display

    EasyTouch RV 351 Mounting the Display Step 1: Level the mounting bracket horizontally across the hole with the smaller diameter of the mounting button against the wall. Step 4: Cut away the center of the mounting bracket before mounting the display on the wall.
  • Page 8: Initial Setup Instructions

    There is no software configuration required to control your appliances from the touchscreen. The control board in the air conditioner determines the available appliances automatically. This information is communicated down to the display. This makes EasyTouch RV 351 a plug-and-play solution.
  • Page 9: Operating The Display - Touchscreen

    EasyTouch RV 351 Operating the Display - Touchscreen Main Screen This screen is where most time is spent using the display. This screen allows you to set and monitor the desired operation of the display, shown in Figure 3. (1) Operational Mode This is the main operating state of the system.
  • Page 10 (7) Local Weather information. It may also be from a local outside air temperature sensor if an internet reading has not yet been retrieved. This sensor is factory installed in heat pump models only. Micro-Air cannot assist in adding these sensors. (9) Info Screen This screen shows information about the display’s operating state.
  • Page 11: Operational Modes

    EasyTouch RV 351 Operational Modes All modes operate the overhead electric fan and/or a heating or cooling cycle based on the current setpoint, relative to the inside ambient temperature. To get appliance operation: 1. Set the desired mode by tapping the (1) Operational Mode and choosing the desired mode or turn the system off.
  • Page 12 EasyTouch RV 351 Auxiliary Heat Only Mode This mode only runs a “forced-air” auxiliary heat cycle to maintain the heating set-point in the selected zone. Set the (1) Operational Mode to Furnace or Aqua and the desired (2) Fan Speed and (4) Temperature Setpoint.
  • Page 13: Settings Screens

    Back to Main Menu System Help This screen displays a QR code that can be scanned to provide information about display operation and troubleshooting from the Micro-Air website. It also shows the Help Button current display firmware revision and the display’s serial number.
  • Page 14 EasyTouch RV 351 Max Wi-Fi Recovery This button on the Wi-Fi settings page, when enabled, will restart the thermostat if it ENABLED detects an outage for too long. This is intended to make sure the Wi-Fi connection Max Wifi Recovery from the thermostat stays up as much as possible.
  • Page 15 EasyTouch RV what appliances it has connected to it. Tap the Switches button Button to see what configurations are available. See section Initial Setup Instructions for details on what must be configured, if any. Micro-Air cannot assist with manipulating and adding more appliances to your system. Furnace/Aqua Icons Most RV systems have auxiliary heat modes in the form of a “forced-air”...
  • Page 16: Schedule Screens

    EasyTouch RV 351 Schedule Screens The schedule supports 7 day per week scheduling of events. Events can include changes to the set point or mode of operation for one or more zones. Each numbered row is an event that can be configured.
  • Page 17 EasyTouch RV 351 (1) Day of the Week Day of the week is selected from the days along the top of the screen. The day selected appears in white. (8) Scheduled Events Events are numbered 1 to 6 along the left side of the screen.
  • Page 18: Create And Enable A Schedule

    EasyTouch RV 351 Figure 5 shows the edit screen when an event is tapped as shown in (8) Scheduled Events of Figure 4 - Main Schedule Screen. The event time on the main schedule screen and Action Time in the edit schedule screen will show disabled until a time is set.
  • Page 19: Unique Features

    Micro-Air cannot assist in diagnosing the causes of a system’s freeze ups.
  • Page 20: Status Messages

    This means this sensor and/or BAD FREEZE SENSOR the A/C control board has failed and needs to be replaced. Micro-Air cannot assist in resolving non-display issues. This means that the A/C control board has detected a frozen coil and has locked out the cooling cycle.
  • Page 21: Local Weather And Local Time

    EasyTouch RV 351 Local Weather and Local Time Local weather is displayed on the main screen whenever Wi-Fi and internet is available, shown visibly in the Main Screen section. Tapping the (7) Local Weather button will reveal more detailed weather information of the last received weather data. The local temperature is displayed under the local weather.
  • Page 22: Smart-Device Application Features

    EasyTouch RV 351 Smart-Device Application Features Check for Updates Checks to see if any updates are available for the display. The smart device application must have internet and the display must be connected to Wi-Fi with a green Wi-Fi symbol. Tap Check for Updates and follow the prompts.
  • Page 23: Appendix A: Working Wirelessly

    EasyTouch RV 351 Appendix A: Working Wirelessly This display may be operated remotely using either Bluetooth or Wi-Fi. All connectivity is performed through the EasyTouch RV App on a smart device. The app is downloaded from the Google Play store or Apple App store. The first time the app is opened, it will ask to create an account.
  • Page 24: Connecting To A New Wi-Fi Network

    EasyTouch RV 351 Connecting to a New Wi-Fi Network You can connect to the display from anywhere using the app when the display is connected to an internet source. The internet source must be operating on a 2.4GHz network to connect to EasyTouch.
  • Page 25: Appendix B: Troubleshooting

    EasyTouch RV Does Not Have a Three Wire Connector on the Back EasyTouch RV 351 is connected to the system by three wires. If the EasyTouch RV display you have does not then it is not a 351 model. Make sure that you purchased a 351 model, the 351 is appropriate for you, and that you were shipped the correct model.
  • Page 26: An Appliance Is Not Operating As Expected

    A/C control board verified that it is sending the appropriate signals (when the cycle is active). An RV shop is recommended to troubleshoot these parts of the system. Micro-Air cannot assist with troubleshooting non-display related issues.
  • Page 27: Black Or White Display Screen

    EasyTouch RV 351 Black or White Display Screen The screen of the display normally has some graphics on it that show the status of the system operation. You may find the screen is blank (full black or full white) and can try the following: •...
  • Page 28: No Control Response

    RV technician. If new control boards were replaced or installed then it is recommended the installation be verified by an RV shop. There are many facets to system installations that go beyond a simple drop-in replacement. Micro-Air cannot assist in installations where more than just the display is replaced.
  • Page 29 Place the display’s IP or MAC address into the router’s DMZ settings to bypass any firewalls. If you still have trouble then navigate to our Micro-Air EasyTouch RV Knowledge Bank that has a troubleshooting section. See the Wi-Fi troubleshooting articles for the latest information.
  • Page 30: More Information And Resources

    That manual has graphical instruction for common operations for the touchscreen and the app, as well as the FAQ for operations and troubleshooting. https://www.micro-air.com/kb-easytouchrv/cat_installation.htm Dealer Map This is a map of all technicians and RV shops associated with Micro-Air. You can use these businesses for installation services. https://www.microair.net/pages/find-a-dealer Main Website Main website for buying our products and contacting us for support.
