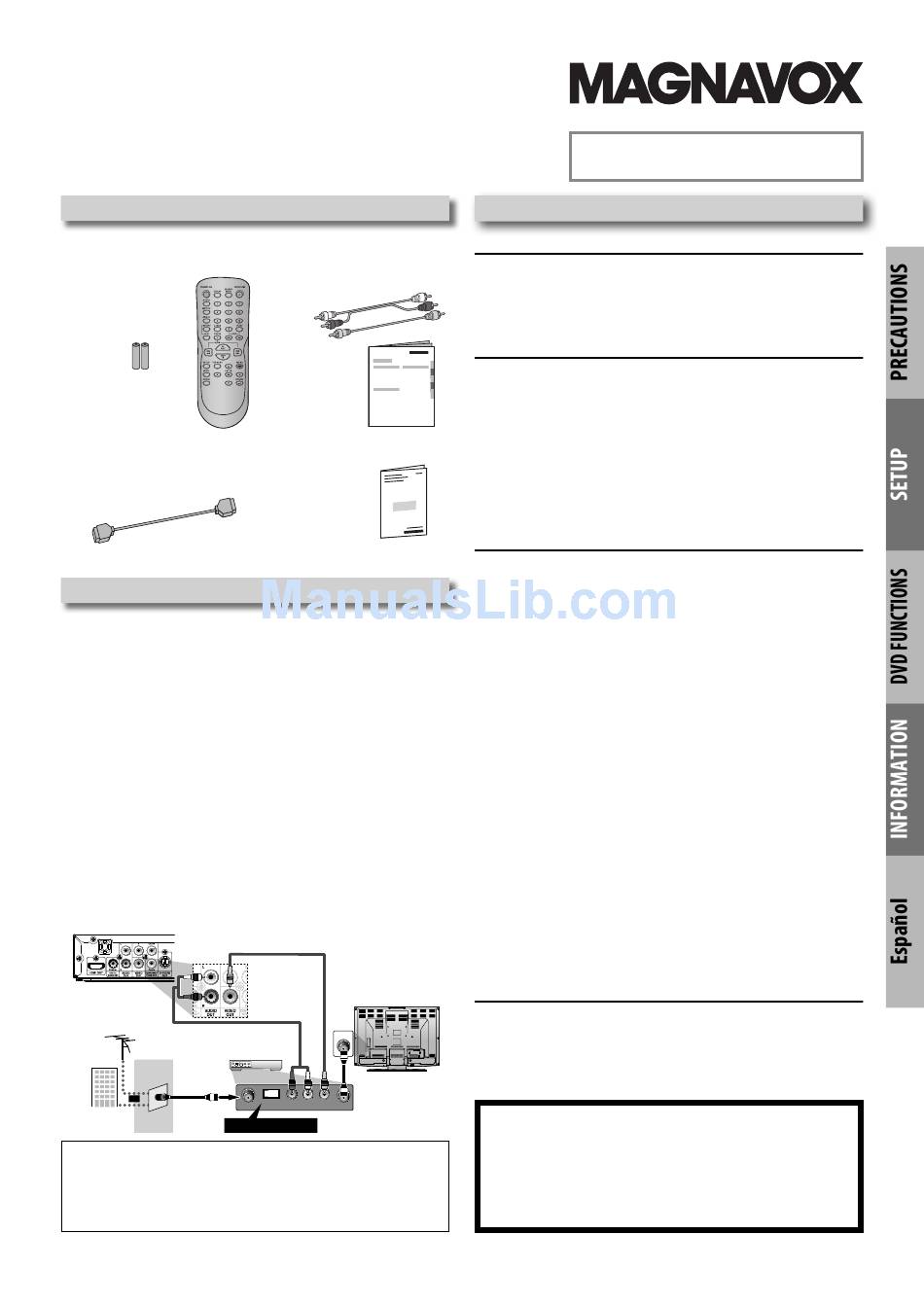

Owner's Manual
Please read before using this unit.
DVD / CD Player
MDV3110/F7
Supplied Accessories
remote control
(NB098UD)
AA (1.5 V) battery x 2
HDMI cable
(WPZ152TSN001 /
WPZ152JVE001 / WPZ152NBR001)
Connecting to RF Modulator (Not Supplied)
If your TV has antenna in jack only, it is still possible to
connect this unit to your TV by using an RF modulator.
In this case, follow the instructions below.
1) Disconnect the power cords of the devices from the
AC outlet.
2) Make the connection as illustrated below.
3) Set your RF modulator's channel 3/4 switch to
either 3 or 4, whichever the TV channel is least used in
your area. If your RF modulator has a
modulator / antenna switch, set it according to the
manual supplied with the RF modulator.
4) Plug in the power cords of the devices to the AC outlet.
5) Turn on your TV and choose the same channel as
you set the RF modulator's channel 3/4 switch to.
For more details, follow the manual supplied with the
RF modulator.
rear of this unit
rear of your RF
VHF / UHF
modulator
antenna
or
RF coaxial
cable TV
cable
company
Set channel 3 or 4
Note:
• RF modulator is not supplied with this unit. You need to
purchase it at your local store.
• The quality of picture may become poor if this unit is
connected to an RF modulator.
© 2010 Funai Electric Co., Ltd.
audio / video cables
(WPZ0102TM018 / WPZ0102LTE01
WPZ1020TM001 / WPZ102SCP001)
owner's manual
Owner's Manual
(1VMN29474)
quick start guide
(1VMN29475)
video cable
rear of TV
audio cable
ANT. IN
RF coaxial cable
3
4
R
L
ANT. IN
CHANNEL
AUDIO IN
VIDEO IN
TO TV
INSTRUCCIONES EN
ESPAÑOL INCLUIDAS.
Contents
PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS ....................................... 2
About the Discs ......................................................................... 5
Playable Discs ...........................................................................................5
Unplayable Discs .....................................................................................5
SETUP
Connections .............................................................................. 6
Connection to a TV .................................................................................6
HDMI Audio ...............................................................................................7
HDMI Mode and Actual Output Signals .........................................7
Connection to an Audio System .......................................................8
Rear Terminals ..........................................................................................8
About the Remote Control ....................................................... 9
Remote Control .......................................................................................9
Installing the Batteries for the Remote Control ...........................9
Playback .................................................................................. 10
MP3 / JPEG Playback ................................................................ 11
Search Functions ..................................................................... 11
Using Track / File / Folder Search .....................................................11
Using Title / Chapter Search ..............................................................11
Using Time Search .................................................................................11
On-Screen Display ................................................................... 12
Repeat / Random / Programmed Playback ............................ 13
Repeat Playback .....................................................................................13
Repeat A-B Playback .............................................................................13
Random Playback ..................................................................................13
Programmed Playback .........................................................................13
Special Settings ....................................................................... 14
Subtitle Language..................................................................................14
Audio Language .....................................................................................14
Camera Angles ........................................................................................14
Stereo Sound Mode ..............................................................................14
DVD Setting ............................................................................. 15
Language Setting ...................................................................................15
Display Setting ........................................................................................16
Video Setting ...........................................................................................16
Audio Setting ...........................................................................................17
Others Setting .........................................................................................18
INFORMATION
Troubleshooting Guide ........................................................... 19
Specifications .......................................................................... 19
LIMITED WARRANTY ................................................................ 20
Español .................................................................................... 21
If you need additional operating assistance after
reading this owner's manual, please call
TOLL FREE : 1-800-605-8610
or visit our web site at
www.magnavox.com/support
