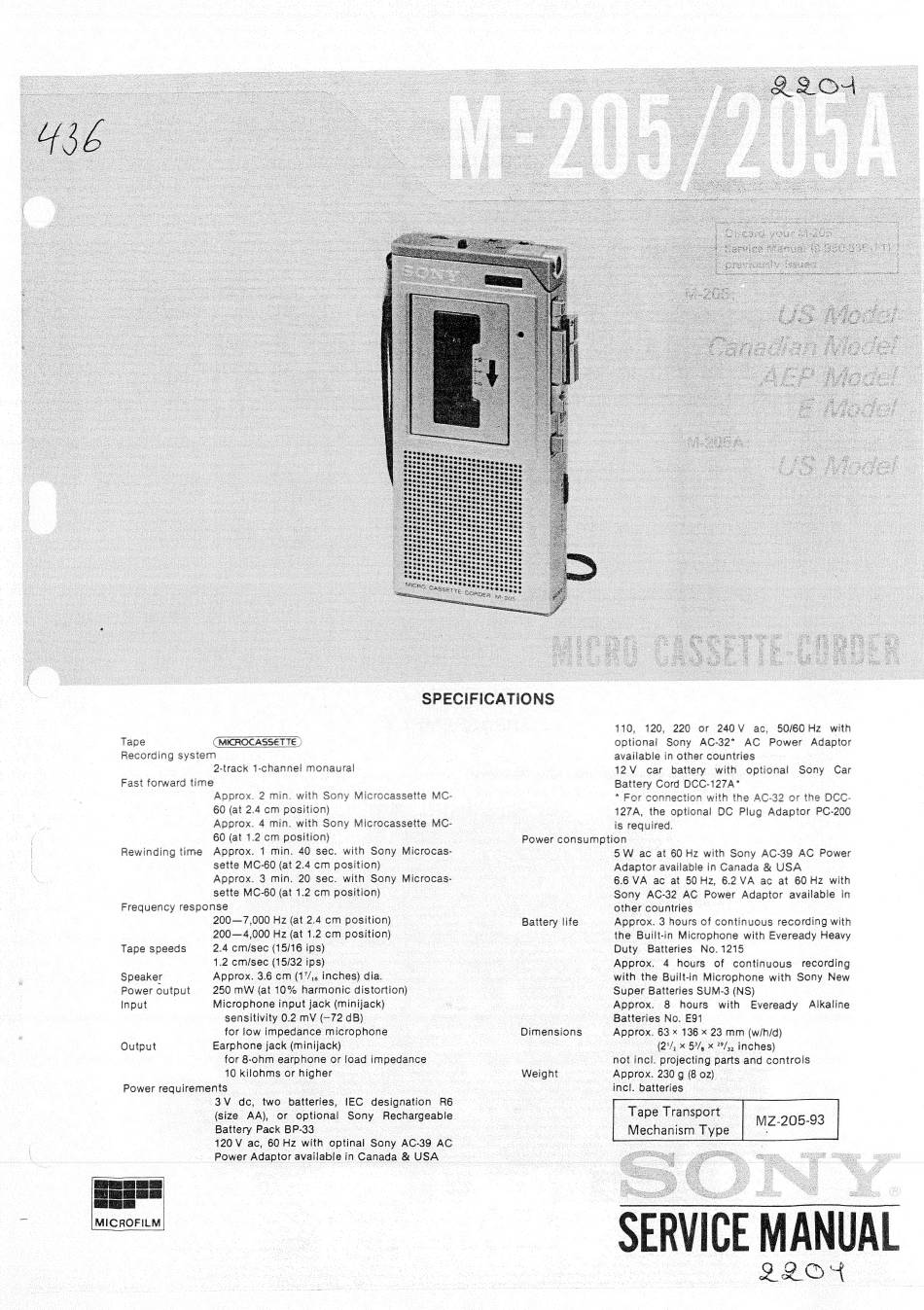

Sony M-205 Service Manual

Tape
SPECIFICATIONS
MICROCASSETTE)
Recording system
2-track 1-channel monaural!
Fast forward time
Rewinding time
Frequency response
Tape speeds
Speaker
Power output
Input
Output
Power requirements ee e e
3M. de, two 'batteries. EC 'designation RE
(size. AA), or optional Sony Rechargeable _
MICROFILM
200—4,000 Hz (at 1.2 cm ropsition).
420 V ac, 60Hz with optinal Sony AC-39 ae
; ower Adaptor available in | Canada | & USA —
Approx. 2 min. with Sony Microcassette MC-
60 (at 2.4 cm position)
Approx. 4 min. with Sony Microcassette MC-
60 (at 1.2 cm position)
Approx. 1 min. 40 sec. with Sony Microcas-
sette MC-60 (at 2.4 cm position)
Approx. 3 min. 20 sec. with Sony Microcas-
sette MC-60 (at 1 - cm. position)
200—7,000 Hz (at 2.4 cm position): Battery life.
2.4 cm/sec (15/16 ips)
1.2 cm/sec (15/32 ips).
Approx. 3.6 cm (1/16 inches) dia.
250 mW (at 10% harmonic distortion) PETE |
Microphone input jack (minijack) oe ee
sensitivity 0.2 mV (—72 dB) : ae eae
for low impedance microphone _
Earphone jack (minijack).
for 8-ohm earphone or load impedance
10 kilohms or eRe rs:
'Weight
Battery Pack BP-33
Dimensions
110, 120, 220 or 240V ac, 50/60 Hz with
optional Sony AC-32* AC Power aay
available in other countries
12V car battery with optional Sony Car
Battery Cord DCC-127A*
* For connection with the AC-32 or the DCC-
127A, the optional DC Plug Adaptor PC-200
is required.
Power consumption
5 W ac at 80 Hz with Sony AC-39 AC Power
Adaptor available in Canada & USA
6.6 VA ac at 50Hz, 6.2VA ac at 60 Hz with
- Sony AC-32 AC Power Adaptor available in
other countries —
Approx. 3 hours of continuous recording with
the Built-in Microphone with Eveready Heavy
Duty Batteries No. 1215
Approx. 4 hours of continuous. recording
with the Built-in Microphone wi ith Sony New
Super Batteries SUM-3 (NS)
Approx. 8 hours with Eveready Alkaline
Batteries No. E91
EPIX 63 x 136 x 23 mm (w/h/d)
— (2'4, x 5%, x ¥/4, inches)
not. incl. projecting parts and controls
Re Approx. 230 g (8. OZ)
incl. batteries
_ Tape Transport
_Mechanism Type
| Mz-205-93
