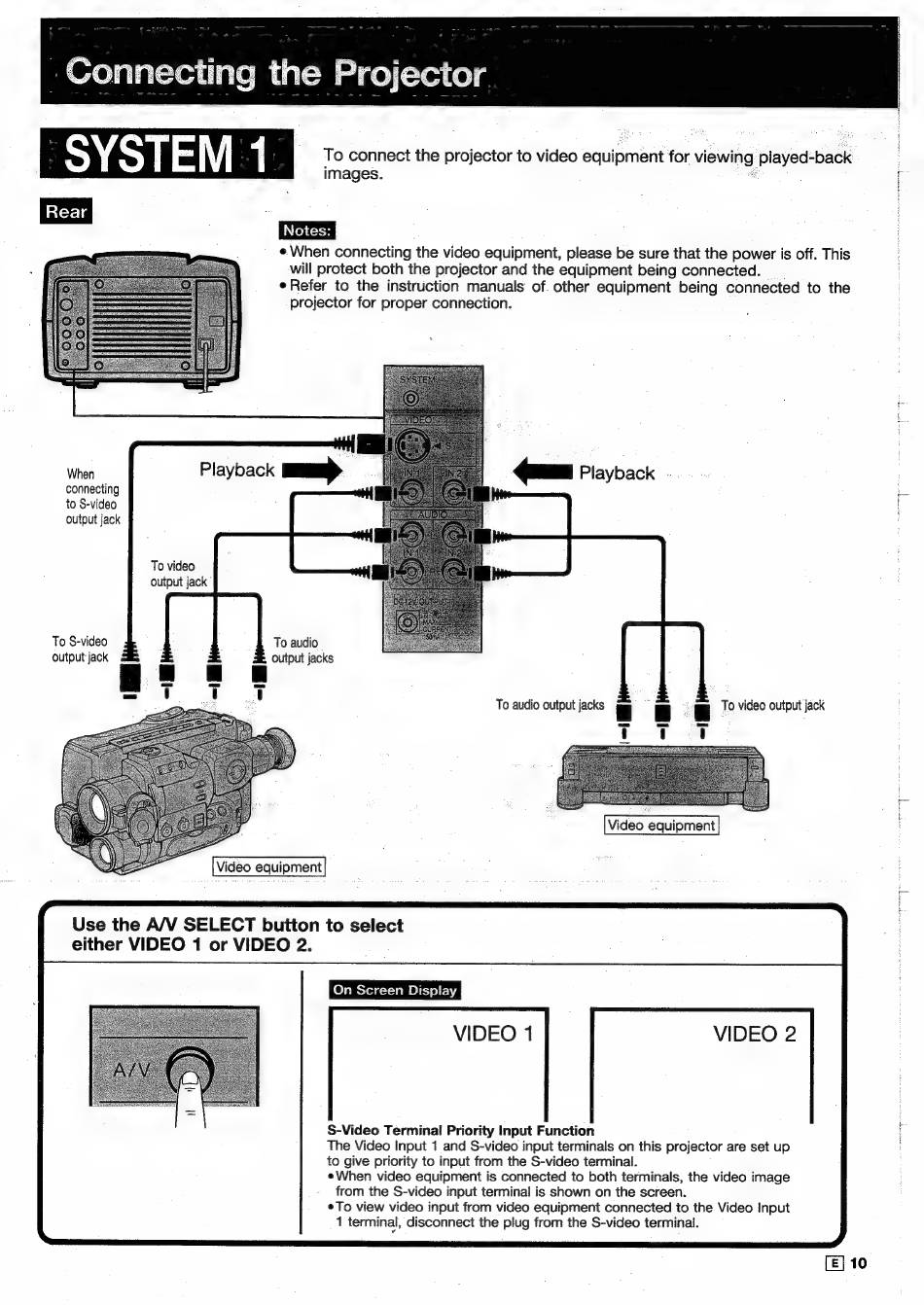

Sharp SHARPVISION XV-310P Operation Manual page 11

SYSTEM 14
When
connecting
to S-video
output jack
To video
output jack
To S-video
output jack
Use the A/V SELECT button to select
To connect the projector to video equipment for viewing played-back
images. " .
e When connecting the video equipment, please be sure that the power is off. This
will protect both the projector and the equipment being connected. _ _
e Refer to the instruction manuals of. other equipment being connected to the
projector for proper connection.
To audio
output jacks
To audio output jacks a | To video output jack
Video equipment i
Video equipment
either VIDEO 1 or VIDEO 2.
VIDEO 1 VIDEO 2
S-Video Terminal Priority Input Function
The Video Input 1 and S-video input terminals on this projector are set up '
to give priority to input from the S-video terminal.
eWhen video equipment is connected to both terminals, the video image
from the S-video input terminal is shown on the screen.
eTo view video input from video equipment connected to the Video Input
1 terminal, disconnect the plug from the S-video terminal.
[£] 10
