Bob's Furniture D-1760-8-SC1 Assembly Instruction

CAUTION: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can cause injury, therefore, for
your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make assembly easier, and will help to
eliminate damage the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your newly purchased product
correctly and efficiently.
NO. PART DESC
DINING SIDE CHAIR W/GREY FABRIC IN BLACK-
BACK FRAME WITH CUSHION
A
DINING SIDE CHAIR W/CHARCOAL PU IN BLACK-
BACK FRAME WITH CUSHION
DINING SIDE CHAIR W/GREY FABRIC IN BLACK-
SEAT FRAME WITH CUSHION
B
DINING SIDE CHAIR W/CHARCOAL PU IN BLACK-
SEAT FRAME WITH CUSHION
C SIDE CHAIR - FRONT LEGS IN BLACK
D
SIDE CHAIR - LEFT & RIGHT STRETCHER IN BLACK
STEP 1
STEP2
PART LIST
CODE
PD-1760-8-SCBFR1
PD-1760-8-SCBFR2
PD-1760-8-SCSEA 1
PD-1760-8-SCSEA2
PD-1760-8-SCLEG
PD-1760-8-SCSTR
D-1760-8-SC 1 /D-1760-8-SC2
.......
Q'TY
NO.
HARDWARE DESC
.....
1 BOLT 05/16"x85mm
1
......
2
BOLT 05/16"x38mm
1
3 BOLT 05/16"x50mm
0
1
4 LOCK WASHER 05/16"
@
5 FLAT WASHER 05/16"
1
/II
6
ALLEN KEYM5
2
e-
7
SCREW 04x45mm
2
Assembly Instruction for

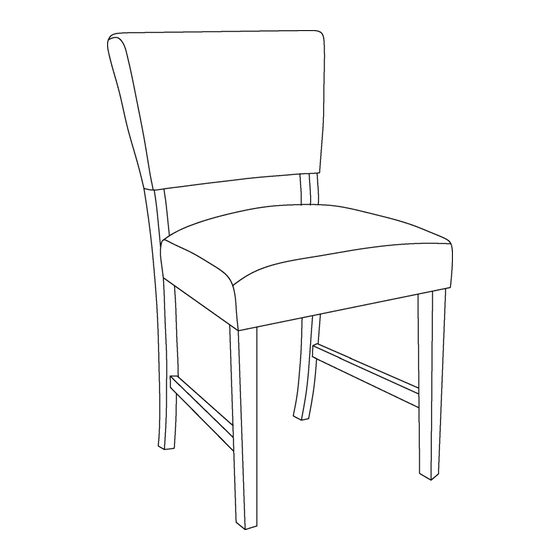

DINING SIDE CHAIR
HARDWARE LIST
CODE
PD-1760-SCHW
Q'TY
4
2
4
10
10
1
4
PAGE 1 OF 2
