Bob's Furniture 20078340015 Assembly Instructions

3




• ADJUST THE FLOOR LEVELERS AS NEEDED TO LEVEL
THE TABLE
MADE IN CHINA
Table Top
1 PC
1 PC Cross Frame
4 PCS
Table Legs
4 PCS
Floor Leveler
E
A
2
1

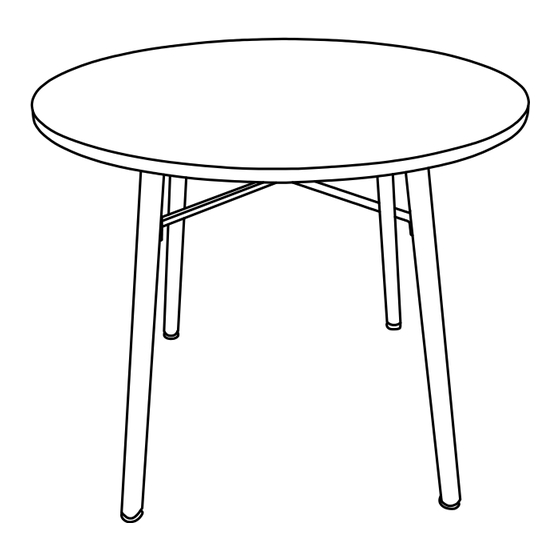

ASSEMBLY INSTRUCTIONS FOR
COUNTER TABLE
ITEM NO. 20078340015
Bolt M6X16MM Cross Frame
Bolt M8X20MM Legs
Lock Washer
Flat Washer
Allen Wrench
TWO PEOPLE ARE NEEDED FOR THE
ASSEMBLY OF THIS TABLE.
Carefully place the tabletop upside down on a padded
surface to avoid scratches.
. Attach the table legs ( part 3 ) to table top using a
lock washer C, flat washer D, and bolt B. Dot not fully
tighten at this point.
Attach the cross frame ( part 2 )to the table legs by
inserting bolt A per the diagram.
. Once all pieces are in place, fully tighten all bolts with
the Allen Wrench provided.
DO NOT use power tools to assemble.
4 PCS
8 PCS
8 PCS
8 PCS
1 PC
