Bob's Furniture ANASTASIA 100459-100866 Manual

Model #100459-100866 (1648-500) Queen HB & FB • Model #100462-100872 (1648-550) Queen Rails & Slats
Model #100459-100865 (1648-660) King HB & FB • Model #100462-100871 (1648-650) King Rails & Slats
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (14) 1/4" x 1" Allen Bolts
B (12) 1/4" x 1" Counter Bolts
C (20) 1/4" Flat Washers
D (8) 1/4" Spring Washers
E (6) 1/4" Hex Nuts
F (1) Open Wrench
G (1) Allen Wrench

PARTS LIST

H (3) Bottom Rails
I (2) Finials
J (1) Headboard
K (1) Footboard
L (2) Side Rails
M (2) Headboard Posts
N (2) Footboard Posts
J
M
B B
B B
B B
M
FIGURE 2
N
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
ANASTASIA BED SET
Model #100461-100870 (1648-110) Post Kit 4 Pack
B B
B B
B B
J
B B
FIGURE 1
N
K
B B
PART QTY HARDWARE
A 14
C 20
E 6
G 1

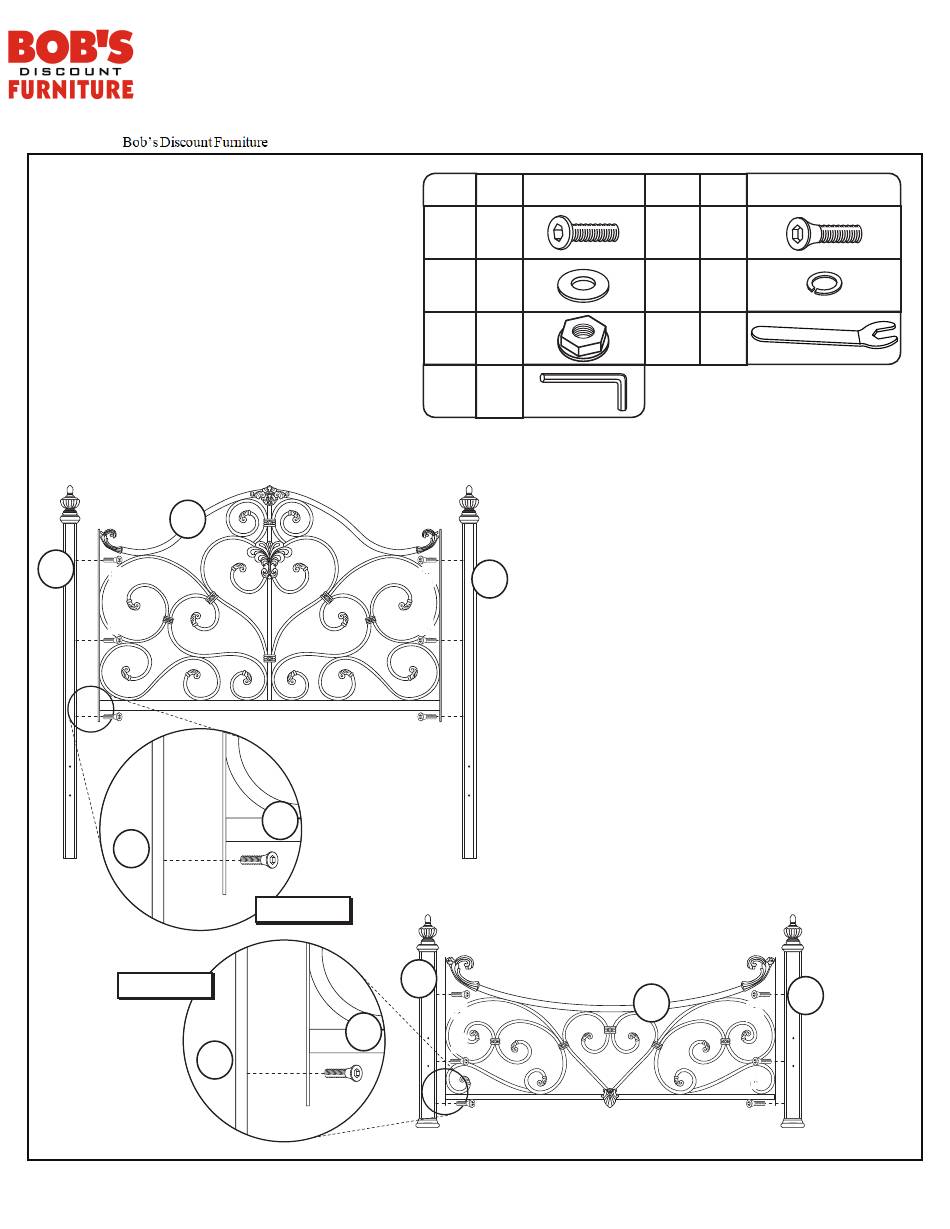

STEP 1

Begin assembly by connecting the Headboard
Posts (M) to the Headboard (J) using 3 Allen
Bolts (B) per side. See Figure 1.
M
STEP 1
Attach the Footboard Posts (N) to the
Footboard (K) using 3 Allen Bolts (B) per side.
See Figure 2.

STEP 2

Attach the Side Rails (L) to the Headboard (J)
with 2 Allen Bolts (A), 2 Spring Washers (D)
and 2 Flat Washers (C) per side. See Figure 3.

STEP 3

Attach the Side Rails (L) to the Footboard (K)
with 2 Allen Bolts (A), 2 Spring Washers (D)
and 2 Flat Washers (C) per side. See Figure 4.
B B
B B
B B
Date: 09-25-2012
PART QTY HARDWARE
B 12
D 8
F 1
N
K
B B
B B
B B
Page 1 of 2
