EMPORIA V228 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
Emporia V228
o cerca il
tuo prodotto tra le
migliori offerte di Cellulari e Smartphone
Mobile data
tariff required
Thank you for purchasing an emporia product!
Please read this user guide before attempting to use your phone.
JOY-LTE
Eveline Pupeter, emporia Telecom
www.emporia.eu
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V228 and is the answer not in the manual?

Questions and answers

Related Manuals for EMPORIA V228

Summary of Contents for EMPORIA V228

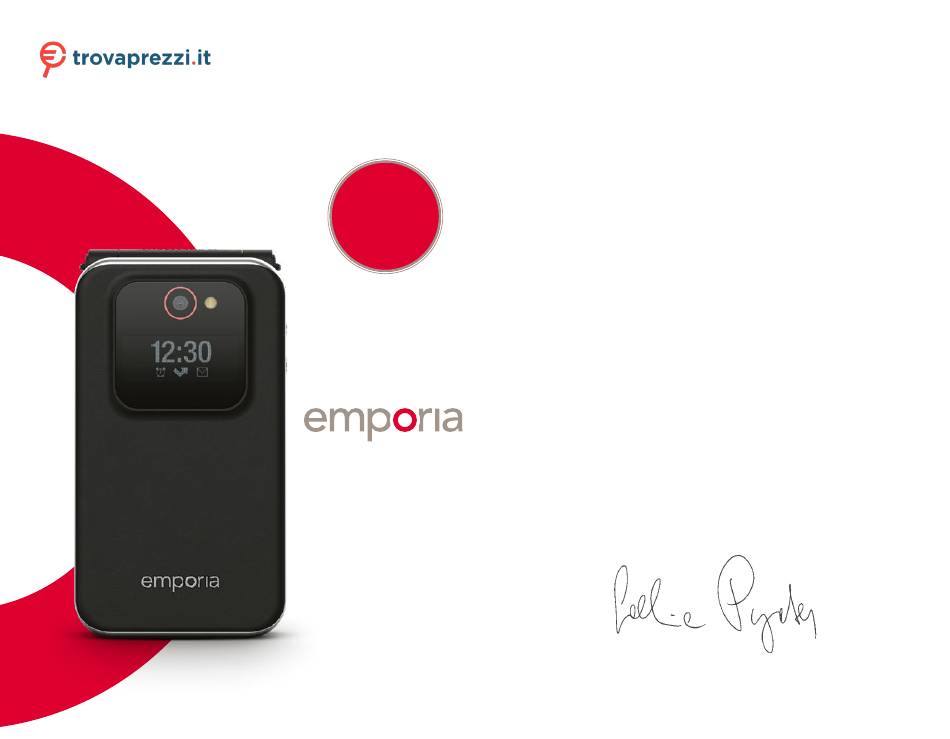

  • Page 1 Cellulari e Smartphone Mobile data tariff required Thank you for purchasing an emporia product! Please read this user guide before attempting to use your phone. JOY-LTE Eveline Pupeter, emporia Telecom www.emporia.eu...
  • Page 2 › YOUR MOBILE PHONE AT A GLANCE Loudspeaker Speed-dial keys Display (screen) (voicemail) Green key On/Off key • Start or accept a call Port for a charging cable or • In the menu: USB headset Handset volume control Confirm selection •...
  • Page 3 Symbols on the screen External display › › Symbols are only visible Network signal when the phone is closed strength and disappear when it is Roaming (abroad) opened. Mobile data enabled Battery indicator Time Incoming call Missed call Missed call Call forwarding New message New text message...

  • Page 4: Setting Up Your Phone

    1. SETTING UP YOUR PHONE 1.1 Inserting a SIM card and a Micro SD card (optional) 1. Remove the battery cover (opening in the bottom left-hand corner). 2. Insert the SIM card into the SIM card holder with the gold contacts facing down.
  • Page 5 Never connect the phone to the charger or a PC if a battery has not been inserted. Do not attempt to operate the phone without a battery inserted. Doing this can damage the phone. Charging with the charging cable › To avoid contact faults with the USB connector, only use the charging cable supplied with the phone for charging.

  • Page 6: Turning On The Phone

    1.4 Turning on the phone • Press and hold the key for at least 2 seconds until the emporia logo appears. It will take a few seconds for the home screen to be displayed. 1.5 Entering a PIN code Enter the four-digit PIN code for your SIM card when asked to do so and confirm the entry.

  • Page 7: Using The Phone

    2. USING THE PHONE 2.1 Home screen If your phone is on but not using a function, it will display the home screen. 12:30 You can return to the home screen any time by pressing the red key  Sun, 21.04 several times. Call Info 2.2 Menu Messages...

  • Page 8: Dual-Function Keys

    2.3 Dual-function keys key: Allows you to listen to your Pressing and holding the voicemail key: Turns on Silent/Sleep mode Pressing and holding the key twice: + for a country code, Pressing the such as +49 for Germany 2.4 Writing text You enter text using the keypad in Manual mode or T9 mode (software-supported suggested words).
  • Page 9 Inputting text in T9 mode › • Find the key bearing the letter you require and press it once only. After a few entries, the software will start to detect word patterns and suggest appropriate words, (e.g. 4 2 5 5 6 for Hallo). •...
  • Page 10 3. CALLS 3.1 Accepting, declining or ending a call To answer: • Open the phone and for Accept. press the green key To decline or end a call: • Press the red button  close the phone. • To mute the ringtone temporarily, press the volume control button.

  • Page 11: Messages (Sms)

    4. MESSAGES (SMS) Write message, Chats, SMS settings and Menu items: › MMS settings 4.1 Writing and sending a message 1. Open Menu _ Messages. 2. Select Write message. 3. Enter the text using the keypad. 4. To specify a recipient for the SMS, open Options and select Send.

  • Page 12: Taking Photos

    5. PHOTO ALBUM AND CAMERA 5.1 Taking photos 1. When on the home screen, press the camera button on the side of the phone or open Menu _ Tools _ Camera. 2. To Zoom in or out on the camera frame, use the volume buttons on the side of the phone.
  • Page 13 will open Options for 3. Pressing the green key the selected photo: • View: A complete, full-screen version of the selected photo will be displayed. You can use the arrow keys to move to other photos. • Send: This option allows you to send the selected photo to a recipient as an MMS message.

  • Page 14: Alarm Clock

    6. TOOLS items: Alarm clock, Birthday reminder, Calendar, Menu › Calculator, Bluetooth, FM radio and Camera 6.1 Alarm clock 1. Open Set time. 2. Enter your desired Alarm time and then Save it. 3. The alarm clock is activated and will now go off at the time you have set every day.
  • Page 15 6.3 FM radio • Searching for a station You can set the station using the arrow keys • Adjusting the volume You can adjust the volume of the radio with the side of the phone. You cannot change the volume if you are in an Options menu item.
  • Page 16 7. CONTACTS Search for name, Add contact, Edit contact, Menu items: › Delete, Send contact via SMS, Copy contacts, My number, Speed-dial keys, Emergency contacts, Contact settings, SMS's in Contacts and Blocked numbers 7.1 Searching for a contact in the phone book 1.

  • Page 17: Adding A Contact

    7.2 Adding a contact 1. Open Menu _ Contacts _ Add contact. 2. Enter the phone number and the person's name and then Save them. Always save names and numbers with the international dialling code, e.g. +41 for Switzerland, +43 for Austria and +49 for Germany. 3.

  • Page 18: Copying Contacts

    7.5 Sending contact via SMS 1. Select the contact you want to send. 2. Enter the recipient's Number or Search for their name in your contacts. 3. You'll then send an SMS that the contact receives as text in the format #Name#Number#. 7.6 Copying contacts You can save one or all the contacts on your SIM card in the phone's memory or vice versa.

  • Page 19: Contact Settings

    7.9 Contact settings • Save entries on SIM or Phone • Memory in use: SIM, Phone or both • Automatically save in Contacts: On or Off • Memory status: Up to 300 contacts can be saved on the SIM card and up to 500 contacts can be saved on the phone. 7.10 SMS's in Contacts If you receive a message that contains text in the format #Name#Number#, the text will be saved in your contacts...

  • Page 20: Call History

    8. CALL HISTORY Missed calls, Dialled calls, Received calls, Menu items: › Call duration and Delete Each list is sorted chronologically and shows the date and time of each call beneath the contact's name or number. Call, Save in Contacts, Edit number before call, Options: Write message, and Delete When on the home screen, you can access your Chats...

  • Page 21: Mobile Network

    9. SETTINGS items: Mobile network, Silent/Sleep mode, Menu › Sound and alerts, Handset volume, Hands-free volume, Display and light, Time and date, Language, Call waiting, Call forwarding, Open to answer calls, Suppress number, Voicemail number, Emergency numbers, Emergency button, Security settings, Contact settings, 0000 to enter settings, System updates and Master reset 9.1 Mobile network •...

  • Page 22: Voicemail Number

    9.3 Sound and alerts You can personalise the settings for tones, alerts and vibration or select a set of predefined settings (profile). Ringtone, Alarm melody, Ringer volume, Menu items: › Silent/Sleep mode, Meeting/Theatre mode, Maximum/Bus mode, Vibra for calls, Vibra for alarm clock, Key tones, Message tone, Vibra for messages, Handset volume, Hands-free volume, Confirmation tone and Emergency tone...

  • Page 23: System Updates

    9.7 System updates You can download the latest software for the phone yourself and therefore update the system and improve applications yourself. However, only perform updates if your tariff includes mobile data! 1. Check that the battery is at least 30% charged. If it isn't, the download cannot start.
  • Page 24 10. EMPORIA EMERGENCY CALL FUNCTION Your phone has an emergency call function that you can tailor to your specific needs. The Emergency button  on the back of the device enables you to call people you trust for help quickly in an emergency.
  • Page 25 If this doesn't happen, the call will be ended automatically after 1 minute and the next emergency contact will be called. 2. The emporia phone will automatically answer the callback, re-establishing the connection to the emergency contact. ENGLISH–25...
  • Page 26 This will put your call through to the nearest police station. Important! Emporia does not assume liability for any costs incurred through you calling such an institution by mistake. How do I delete a saved emergency contact? ›...
  • Page 27 For more information on emergency calls, you can scan this › QR code or visit: https://www.emporiamobile.com/en/ service/service/frequently-asked-questions ENGLISH–27...

  • Page 28: Guarantee And Service

    GUARANTEE AND SERVICE › Manufacturer: emporia telecom GmbH + CoKG Industriezeile 36, 4020 Linz, Austria Importer: Emporia UK and Ireland Limited · Cardinal Point, Park Road, Rickmansworth, Hertfordshire, WD3 1RE, United Kingdom Contact: www.emporiatelecom.co.uk or www.emporiatelecom.ie Brand name: emporia Model: emporiaJOY-LTE (V228i-LTE) ›...
  • Page 29 › Frequencies › Safety information • BT: 2402 MHz - 2480 MHz • Turn off your phone in hospitals Transmitter power: < 0.0066 W and whenever you are near medical • BT LE: 2402 - 2480 MHz equipment. There should always be a Transmitter power: <...
  • Page 30 › Intended use • The mains adapter serves as a separator • This phone is robust and designed for between the product and your mains mobile use. However, it still needs to be supply. The mains supply must be close protected from moisture (rain, bathroom to the device and easily accessible.
  • Page 31 › Disposal › Declaration of conformity (DOC) • Disposing of the packaging emporia telecom GmbH + CoKG The packaging and pack- (Industriezeile 36, 4020 Linz, Austria), aging aids are recyclable hereby declares that the emporiaJOY-LTE (V228i-LTE) and should be recycled. • Disposing of the battery...
  • Page 32 Druckfehler, Irrtümer und technische Änderungen vorbehalten. Misprints, errors and technical changes excepted. Con riserva di errori di stampa, inesattezze e modifiche tecniche. Toutes erreurs d'impression, erreurs et modifications techniques réservées. Drukfouten, vergissingen en technische wijzigingen voorbehouden. Part no.: V228i-LTE_BDA-V5_11106-EN | 202401...

This manual is also suitable for:

V228i-lteJoy-lte
