Summary of Contents for Hultafors HDL 60

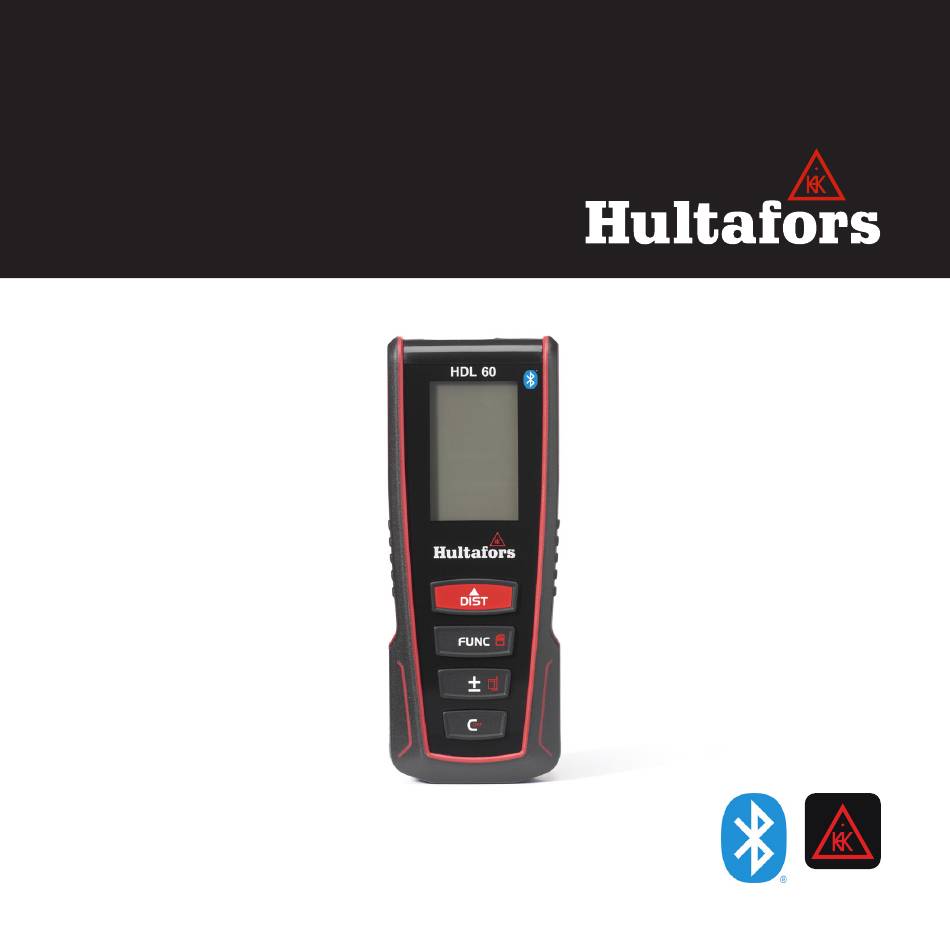

- Page 1 HDL 60 Operating instructions Hultafors Measures...
- Page 2 INCLUDED IN DELIVERY WITH THE HDL 60 Laser distance meter Belt pouch Charging cable Hand strap Quick start guide...
-
Page 3: Table Of Contents
About this manual Contents 1. General information Congratulations on the purchase of your new 2. Description HDL 60! You have acquired a Hultafors 3. Technical data measuring instrument, which can make 4. Safety instructions your work easier, faster and more precise. -
Page 4: General Information
1. General information 1.1 Signal words and their meaning 1.2.2 SYMBOLS DANGER Read instructions before use. For an imminent danger that could lead to serious injury or death. WARNING Batteries and devices must not be For a possibly dangerous situation that could disposed of with household waste. -
Page 5: Description

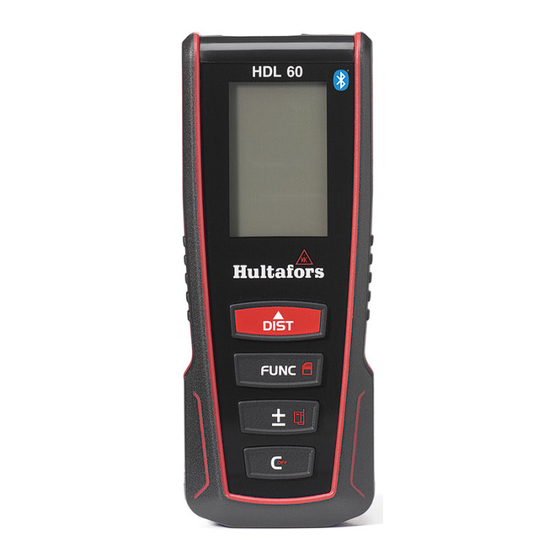

2. Description 2.1 Function buttons 1. Display 2. Keyboard 3. Hole for hand strap 4. Working face 5. Tripod adapter 1/4" 6. Mini-USB port 7. ON / Measure button 8. Function button / Memory 9. Addition, subtraction / Reference point 10. -
Page 6: Intended Use
2.2 Display 1. Measured values 2. Measured value display 3. Gradient display 4. Function display 5. Point-to-point display 6. Bluetooth 7. Battery status 8. Min/Max display 9. Reference point 10. Unit 11. Memory 2.3 Intended Use This instrument is designed to measure distances. The measured value, setting, and instrument status can be viewed on the display. -
Page 7: Technical Data
3. Technical data 3.1 Gradient module Measuring range Operations per charge up to 5000 measurements*** 0.05 – 60 m* Accuracy Battery type ± 1.5 mm** 3.7 V 850 mAh Li-ion Protection class IP 54 Operating temperature 0 to 40°C Laser class Storage temperature -20 to 60°C Laser type... -
Page 8: Safety Instructions
4.3 Utilization limitations the operating manual. • The operator shall comply with local The HDL 60 is suitable for a continuous use in an atmosphere which can be inhabited by humans. regulations relating to safety and accident prevention regulations as well as worker •... - Page 9 • Follow the manufacturer‘s and operator‘s be opened or exposed to mechanical loads. safety instructions. • Repairs have to be exclusively performed by • Protect equipment and accessories from Hultafors. access by children. WARNING WARNING High ambient temperatures and Blinding by laser radiation can indirectly...
-
Page 10: Electromagnetic Compatibility (Emc)
WARNING WARNING A short-circuiting or unintended use can If disposed of improperly third parties cause batteries to overheat and create can possibly be seriously injured and an injury or fire hazard. the environment polluted. The burning of plastic components generates toxic •... -
Page 11: Laser Safety/Classification
5. Laser safety/Classification 4.5.1 INTERFERENCE OF OTHER DEVICES The HDL 60 emits a visible laser point. BY HDL 60 The product corresponds to Laser Class 2 according to DIN EN 60825-1:2007-03. Although the product meets the strict requirements of the relevant directives and... -
Page 12: Getting Started
DO NOT STARE INTO BEAM Charge the batteries when the symbol flashes continuously on the screen. Use the charging cable supplied to charge your HDL 60. The device cannot be used whilst charging. The device is fully charged in approx. 3 hours. -
Page 13: Operation
7. Operation 7.1 Getting started 7.2.2 MIN/MAX MEASUREMENT 7.1.1 SWITCHING THE INSTRUMENT ON AND OFF 1. Switching on the laser instrument. Hold down the ON/Measure button to switch the 2. Direct the laser point at the target. laser instrument on. 3. - Page 14 Once the second measurement is 3. Measure the two points separately using the complete, the area is automatically individual measurement method. The laser calculated and shown on the beam remains switched on between the two bottom line of the display. The measurements.
-
Page 15: Selecting Unit Of Measurement
The laser beam remains switched on between The laser instrument shows the result on the the three measurements. Once the third bottom line of the display. This process can be measurement is complete, the length is repeated as many times as required. automatically calculated and shown on the bottom line of the display. -
Page 16: Charging Batteries
8. Maintenance, storage and transportation 7.4 Charging batteries 8.1 Cleaning The battery charge status is shown on the • Wipe off the dirt with a soft damp cloth. display. Charge the batteries when the symbol • Check the outlet openings of the laser regularly, flashes continuously on the screen. -
Page 17: Delivery Contents And Accessories
9. Delivery contents and accessories 8.3 Transport 9.1 Delivery contents of HDL 60 Laser distance meter • The device may be damaged by strong Belt pouch vibrations or by falling. Charging cable • Never transport the product loose. Always Hand strap... -
Page 18: Troubleshooting
10. Troubleshooting Error Possible cause Remedy • Distance outside of the • Stay inside the measurement range. measurement range. • The reflected signal is too weak. • Measure using a more reflective surface. • Range outside the display. • Use the OFF/Delete button to reset to zero. •... -
Page 19: Disposal
– may not be disposed of with household waste. • Ensure proper disposal of the device and the accessories. • Observe the country-specific disposal requirements. Your Hultafors dealership will accept returned batteries as well as old equipment, and will ensure proper disposal. -
Page 20: Manufacturer's Guarantee
12. Manufacturer‘s Guarantee The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over. -
Page 21: Ec Conformity Declaration
13. EC conformity declaration Declaration of Conformity We Hultafors Group AB, Hultaforsvägen 21, Hultafors declare under our sole responsibility that the Product(s) HDL 60 to which this declarations relates is in conformity with the following standards. EN 61010-1 EN 301489-17... - Page 22 14. UKCA conformity declaration Declaration of Conformity We Hultafors Group AB, Hultaforsvägen 21, Hultafors declare under our sole responsibility that the Product(s) HDL 60 to which this declarations relates is in conformity with the following standards. EN 61010-1 EN 301489-17...
