Hultafors RECG Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

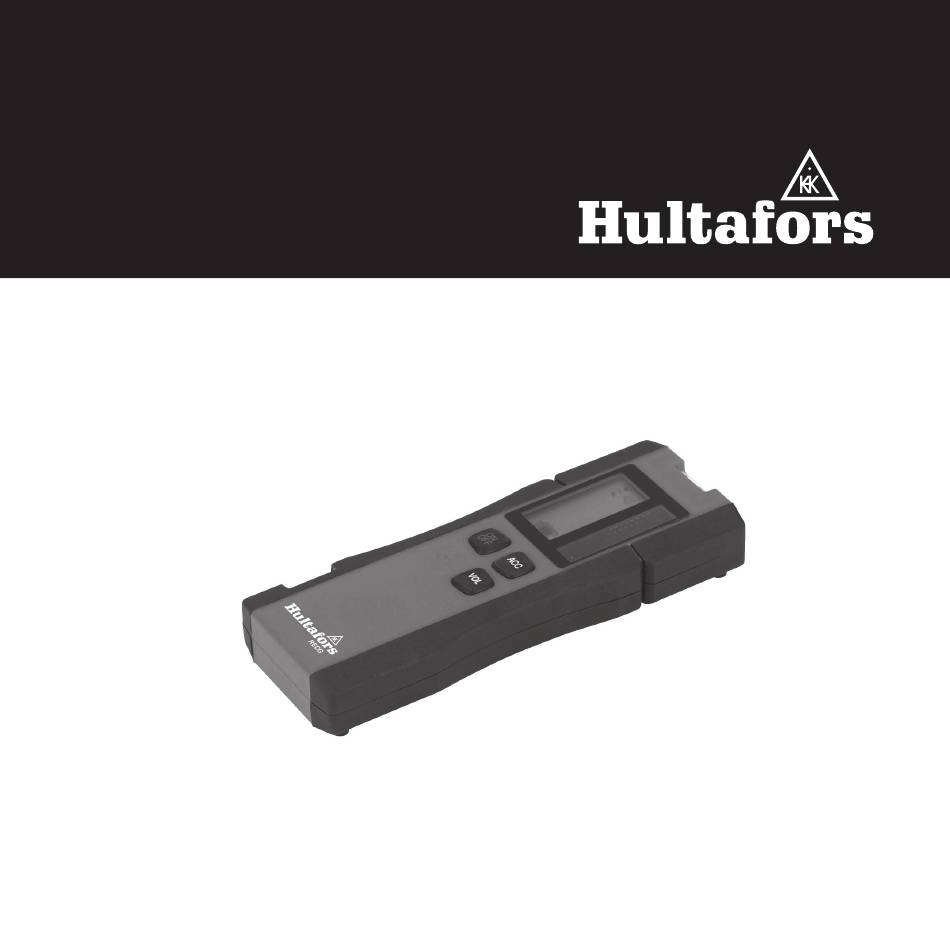

RECG
EN
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RECG and is the answer not in the manual?

Questions and answers

Related Manuals for Hultafors RECG

Summary of Contents for Hultafors RECG

  • Page 1 RECG Operating instructions...
  • Page 2 2.1 RECG...
  • Page 3 2.1 RECG...
  • Page 4 2.2 Holder...

  • Page 5: Table Of Contents

    About this manual Contents 1. General information Congratulations on the purchase of your new 2. Description Reciever RECG! You have acquired a Hultafors 3. Technical data measurement instrument, which can make 4. Safety instructions your work easier, faster and more precise. To 5.

  • Page 6: General Information

    1. General information 1.1 Signal words and their meaning 1.2.2 SYMBOLE DANGER Read instructions before use For an imminent danger that could lead to serious injury or death. WARNING Batteries and devices must not be For a possibly dangerous situation that could disposed of with household waste lead to serious injury or death.

  • Page 7: Description

    2. Description 2.1 RECG 2.3 Intended use 1. Horizontal spirit level vial The RECG is a hand-held receiver, which a person 2. Front display can use single handed to receive a horizontal 3. Detection window for laser beam and vertical line laser beam.

  • Page 8: Technical Data

    3. Technical data Operation range r = 1 - 80 m* Large detection window 50 mm Max. measurement tolerance - Fine ± 0.5 mm / m - Rough ± 2.0 mm / m Protection class IP54 Power supply 1 x 9V 6F22 (E-Block) Battery Battery life (at 20°C) 40 h Operating temperature...

  • Page 9: Safety Instructions

    • The operator complies with any current local regulations pertaining to operational safety 4.3 Limits of use and accident prevention and/or employee The RECG hand-held receiver is suitable for use protection legislation and regulations. in ambient conditions that are continuously • The operator informs Hultafors immediately suitable for human habitation.
  • Page 10 Perform a proper disposal • Repairs have to be exclusively performed by (see Chapter 9 / Disposal). Hultafors WARNING • Before use, check the accuracy of the device A short-circuiting or unintended use can (see Chapter 7 / Checking the accuracy) cause batteries to overheat and create an injury or fire hazard.
  • Page 11 4.5.1 MALFUNCTION OF OTHER DEVICES AS A WARNING RESULT OF THE RECG HAND-HELD RECEIVER If disposed of improperly third parties Although the product meets the strict can possibly be seriously injured and requirements of the relevant directives and the environment polluted. The burning...

  • Page 12: Startup

    1. Open the battery compartment cover on the rear side of the device. 2. Insert batteries with the correct polarity into the RECG hand-held receiver. 3. Close the battery compartment (audible click of the cover). Only use 9V 6F22 (E-Block) batteries! If the device is not used for a long period, remove the batteries.

  • Page 13: Operation

    (the hand-held receiver will turn itself off 6.2 Accuracy automatically after 7 minutes if it is not The RECG hand-held receiver has two levels of actively being used). accuracy. The „Fine“ level with an accuracy of • Turn the front face of the receiver towards 0.5 mm and the „Rough“...
  • Page 14 7. Testing the accuracy of the device Test the accuracy of the RECG hand-held receiver level of accuracy or 2.0 mm in the „Rough“ level before carrying out every measurement. of accuracy. • Before starting the test, allow the device to If the result is more than 0.5 mm or 2.0 mm, the...

  • Page 15: Maintenance, Storage And Transportation

    8. Maintenance, storage and transportation 8.1 Cleaning 8.3 Transport 8.3.1 GENERAL • Wipe away any dirt with a soft, damp cloth. The device may become damaged if it is heavily • Do not use any abrasive cleaning agents or shaken or dropped. solvents.

  • Page 16: Disposal

    9. Disposal Only for EU countries If disposed of improperly third parties can possibly be seriously injured and the Electric tools may not be environment polluted. disposed of with household The burning of plastic components generates waste! According to the toxic fumes which may impair health of people.
  • Page 17 10. Manufacturer‘s Guarantee „The manufacturer warrants to the original purchaser who is stated on the guarantee card, the freedom from defects for the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over.

  • Page 18: Ec Conformity Declaration

    11. EC conformity declaration Declaration of Conformity We Hultafors Group AB, Hultaforsvägen 21, Hultafors declare under our sole responsibility that the Product(s) RECG to which this declarations relates is in conformity with the following standards. RECG: • EN 61326-1:2013 Following the provisions of Directive(s)
