Summary of Contents for Hultafors DPL

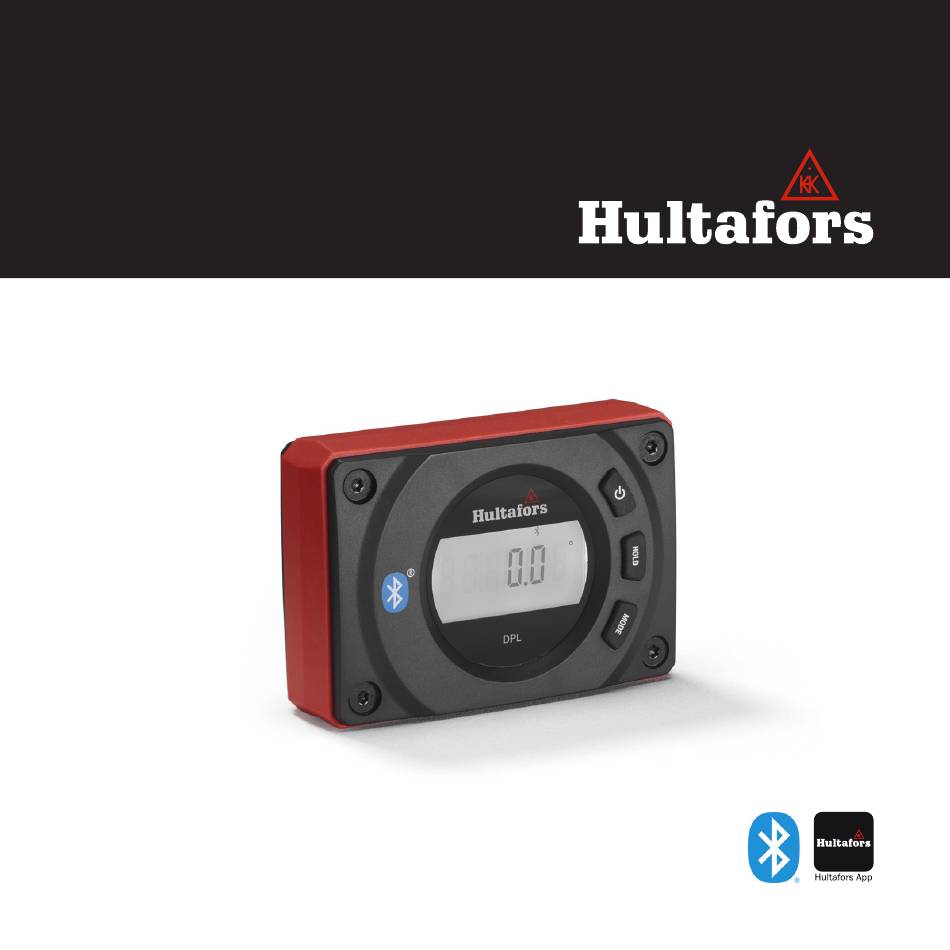

- Page 1 Operating instructions...
- Page 2 INCLUDED IN DELIVERY WITH THE DPL Belt pouch AA battery...
-
Page 3: Table Of Contents
Operating manual Digital Spirit Level DPL About this manual Contents 1. General information Congratulations on the purchase of your new DPL! 2. Description You have acquired a Hultafors measuring 3. Technical data instrument, which can make your work easier, 4. Safety instructions faster and more precise. -
Page 4: General Information
1. General information 1.1 Signal words and their meaning 1.2 Pictograms and other information DANGER 1.2.1 WARNING SIGNS For an imminent danger that could lead to serious injury or death. Warning of dangers in general. WARNING For a possibly dangerous situation that could lead to serious injury or death. -
Page 5: Description

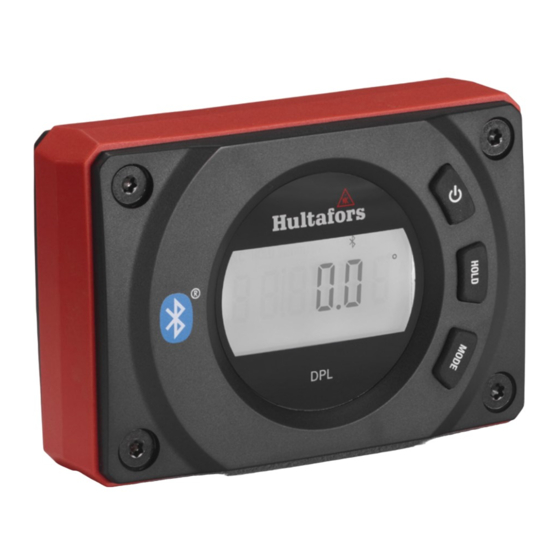

2. Description 1. On/Off switch 2. Hold function (measurement is retained by pressing once) / Toggling between ABS (absolute) and INC (incremental) 3. Mode button for switching between measured value settings (°, mm/m, %, in/ft) 4. Calibration 5. Changing the display resolution... -
Page 6: Technical Data
3. Technical data Gradient module Max. measurement tolerance 0° & 90° ± 0.05° 1°–89° ± 0.20° Protection class IP 52 Power supply 1 x AA battery Battery life (at 20°C) 65 h (if display light switched off, approx. 80h) Permissible temperatures Operating temperature -10°C to +50°C Storage temperature... -
Page 7: Safety Instructions
4.3 Utilization limitations the operating manual. The DPL is suitable for a continuous use in an • The operator shall comply with local atmosphere which can be inhabited by humans. regulations relating to safety and accident prevention regulations as well as worker •... - Page 8 • Damaged batteries may not be used. • Protect equipment and accessories from • Repairs have to be exclusively performed by access by children. Hultafors. CAUTION WARNING A fall, longer storage, transportation High ambient temperatures and or other mechanical effects can lead immersion into liquids can cause to erroneous measurement results.
- Page 9 WARNING WARNING A short-circuiting or unintended use can If disposed of improperly third parties cause batteries to overheat and create can possibly be seriously injured and an injury or fire hazard. the environment polluted. The burning of plastic components generates toxic •...
- Page 10 NOTE • Only use original Hultafors equipment and This device has passed the compliance accessories. test for limits for a digital class B device as per Part 15 of the FCC Rules.
- Page 11 NOTE NOTE This device produces and uses radio- This equipment has been tested and frequency energy and can also emit it. found to comply with the limits for a If it is not installed and used according Class B digital device, pursuant to to the instructions, it may cause harmful part 15 of the FCC Rules.
-
Page 12: Getting Started
5. Getting Started 4.7 Use of the product with Bluetooth Prior to initial set-up, check whether the batteries have been installed correctly in the device. WARNING Electromagnetic radiation can cause Inserting batteries disturbances in other equipment, in 1. Open the battery compartment cover. installations (e.g. - Page 13 You can toggle between ABS (absolute) and To pair with a smartphone, INC (incremental) by pressing the “Hold function” launch the Hultafors measures for more than 2 seconds. app and connect using one of In “ABS” (absolute) mode, the measurement the function options.
-
Page 14: Calibration
Calibration of gradient module 8.1 Cleaning Calibration stage 1 based on position 0°. • Place the DPL with the measurement surface • Wipe off the dirt with a soft damp cloth. horizontally. • Do not use aggressive cleaning agents or •... - Page 15 9. Delivery contents and accessories • Check battery for any damage before use. Delivery contents of DPL Do not use damaged equipment. Belt pouch 8.3 Transport AA battery 8.3.1 GENERAL Further information on accessories can be found • The device may be damaged by strong at www.hultafors.com...
-
Page 16: Troubleshooting
10. Troubleshooting Error Possible cause Remedy Device is switched on, • Battery flat • Replace battery no display, screen not • Battery inserted incorrectly • Insert battery correctly illuminated • Device or switch faulty • Contact dealer and have device repaired Display jumps or screen •... -
Page 17: Disposal
11. Disposal Only for EU countries If disposed of improperly third parties can possibly be seriously injured and the Electric tools may not be environment polluted. disposed of with household The burning of plastic components generates waste! toxic fumes which may impair the health of According to the European people. - Page 18 12. Manufacturer‘s Guarantee The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over.
-
Page 19: Ec Conformity Declaration
13. EC conformity declaration Declaration of Conformity We Hultafors Group AB, Hultaforsvägen 21, Hultafors declare under our sole responsibility that the Product(s) to which this declarations relates is in conformity with the following standards. EN61326-1:2013 EN61326-2-2:2013 EN 55011:2009+A1:2010 Radio transfer EN 301489-1 V2.1.1...
