Hultafors H360G Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H360G
EN
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H360G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hultafors H360G

Summary of Contents for Hultafors H360G

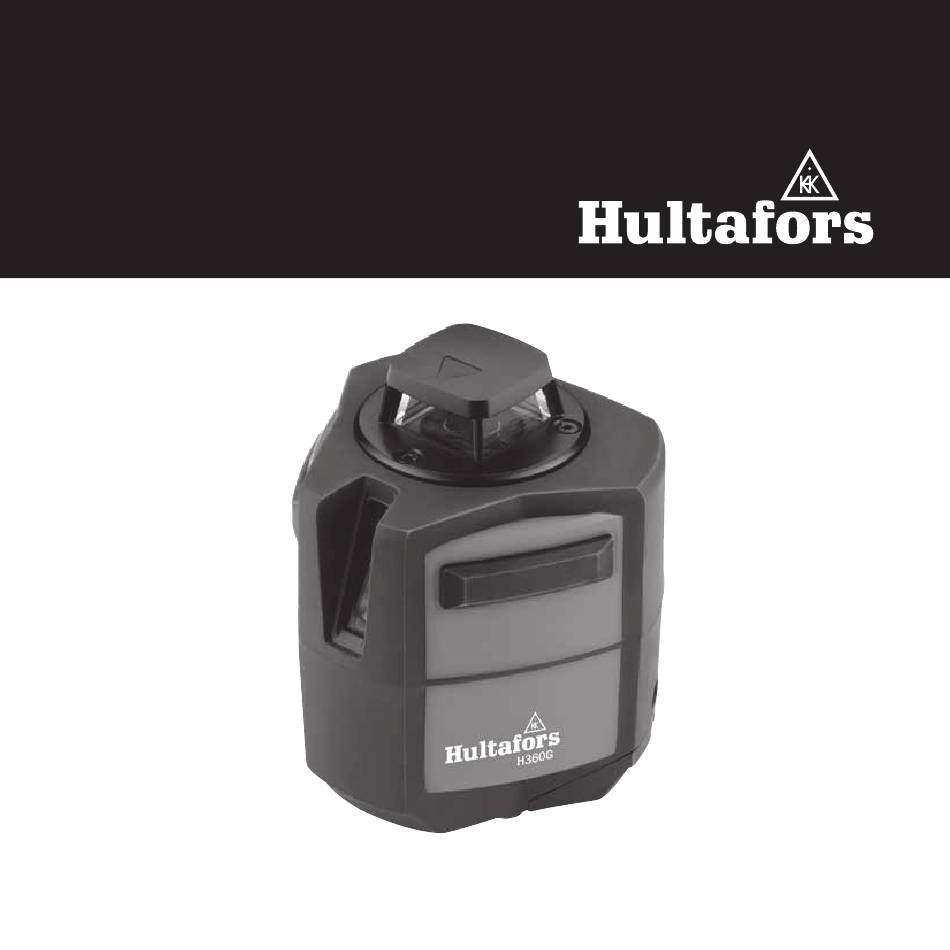

  • Page 1 H360G Operating instructions...
  • Page 2 SCOPE OF DELIVERY FOR H360G: 1. H360G line laser 2. Battery adapter BA 3. AA batteries 4. Wall bracket UH 5. Case...
  • Page 3 H360G 1. Laser beam output aperture 2. On/off switch, transport lock 3. Tripod adapter ¼“ and 5/8“ 4. Battery compartment cover...

  • Page 4: Table Of Contents

    About this manual Contents 1. General information Congratulations on the purchase of your 2. Description new H360G! You have acquired a Hultafors 3. Technical data measurement instrument, which can make 4. Safety instructions your work easier, faster and more precise. To 5.

  • Page 5: General Information

    1. General information 1.1 Signal words and their meaning 1.2.2 SYMBOLE DANGER Read instructions before use For an imminent danger that could lead to serious injury or death. WARNING Batteries and devices must not be For a possibly dangerous situation that could disposed of with household waste lead to serious injury or death.

  • Page 6: Description

    2. Description 2.1 Device components, display and 2.2 Intended use operating elements The H360G is a line laser that enables a single 2.1.1 H360G person to level and align items horizontally and vertically. 1. Laser beam output aperture The device is mainly intended for indoor use. For 2.

  • Page 7: Technical Data

    3. Technical data 3.1 H360G line laser Working range - Laser lines r = 25 m* - Receiver r = 80 m* Max. measurement tolerance - Laser lines ± 0.2 mm / m Protection class IP 54 Levelling range (typical) ±...
  • Page 8 3.2 Hultafors Li-Ion battery 5.2 (optional) Type Li-Ion with circuit protection Cells 2 x ICR 18650 parallel Capacity 5200 mAh Voltage 3.6 V DC Power 28 Wh Permissible temperatures Operating temperature -10°C to +50°C -20°C to +60°C Storage temperature (ideal) (ideal +20°C to +25°C)

  • Page 9: Safety Instructions

    4.3 Utilization limitations • The operator shall immediately notify Hultafors The H360G is suitable for a continuous use in an if safety-related issues should develop on the atmosphere which can be inhabited by humans. product or during its utilization.
  • Page 10 • Damaged batteries, may not be used. • Follow the manufacturer‘s and operator‘s safety instructions. • Repairs have to be exclusively performed by Hultafors. • Protect equipment and accessories from access by children. WARNING WARNING...
  • Page 11 • Only use original Hultafors equipment and are damaged or heated excessively, accessories. and thereby cause poisoning, burning, corrosion or environmental 4.5.2 INTERFERENCE OF THE H360G BY OTHER contamination. DEVICES If disposed of negligently unauthorized persons are able to use the product Although the product meets the strict requirements improperly.

  • Page 12: Laser Safety/Classification

    5. Laser safety/classification Labelling on the device: The H360G emits a horizontal 360° laser line and a vertical laser line. The product corresponds to Class 2M Laser DO NOT STARE INTO BEAM according to DIN EN 60825-1:2014 OR VIEW DIRECTLY WITH...

  • Page 13: Startup

    (optional) 1. Open the battery compartment cover. 2. Insert batteries into the Hultafors battery 1. Fully charge the battery with the Hultafors Li- adapter, making sure that the polarity of the ion charger (see Chapter 7.2). batteries is correct 2.

  • Page 14: Operation

    The Pulse mode required for the receiver is the (see Chapter 3/ Technical data). Off: • standard mode on the H360G. • Turn the on/off switch, transport lock to the left (OFF position) and the pendulum unit will 7.1.3 CREATING INCLINATIONS BEYOND THE be locked;...
  • Page 15 • Plug the charger plug into the charging port of the Li-Ion Charger • Connect the Hultafors Li-ion charger to a socket. • Insert the Hultafors Li-ion battery in the charging station in the correct position.
  • Page 16 Charger operating display: COLOUR DISPLAY MODE DESCRIPTION yellow Standby No battery in the charger green yellow Wait cycle Battery temperature beyond the valid range green yellow Pre-charge Protective charging for deeply discharged green batteries yellow Main charge Rapid charging phase with max. Power up green to 80 % yellow...
  • Page 17 7.3 Applications 7.3.4 INCLINATION 7.3.1 HORIZONTAL LEVELLING 360° 7.3.5 WORKING AT DISTANCES 7.3.2 VERTICAL LEVELLING 7.3.3 90° ANGLE...

  • Page 18: Checking The Accuracy

    • Attach a plumb line as close as possible possible to a (at least) 3 m high wall. • Mount the H360G onto a tripod at a height of approx. 1.2 m. • Position the device approx. 3 m in front of the ca.
  • Page 19 20 cm 20 cm ca. 10 m ca. 10 m 2. Rotate the H360G by 180° and mark point on wall B. • Position the laser at the same height approx. 20 cm away from wall B and mark point wall B.

  • Page 20: Maintenance, Storage And Transportation

    9. Maintenance, storage and transportation 9.1 Cleaning • Protect from moisture and humidity. Dry wet or damp batteries before storage or before use. • Wipe off any dirt with a soft damp cloth. • Prior to a prolonged storage, charge the •...
  • Page 21 9.3.2 BATTERIES When transporting or shipping batteries, the operator is responsible for complying with the applicable national and international laws and regulations. • Before shipping, remove the batteries from the device. When shipping through third parties (e.g. forwarding agent or air freight) the special requirements regarding the packaging and labeling must be observed.

  • Page 22: Scope Of Delivery And Accessories

    10. Scope of delivery and accessories 10.1 Scope of delivery for H360G BASIC 1 H360G line laser 1 Battery adapter BA 3 AA batteries 1 Wall bracket UH 1 case 10.2 ACCESSORIES (optional) Receiver RECG Li-Ion battery HRB Li-Ion battery set HRB-S...

  • Page 23: Troubleshooting

    11. Troubleshooting Error Possible cause Rectification The device turns itself off • Battery flat • Replace battery immediately after start-up • Charge battery Laser lines flash at one-second • Device not within the • Align device horizontally intervals selflevelling range Laser lines flash every •...

  • Page 24: Disposal

    12. Disposal Only for EU countries If disposed of improperly third parties can possibly be seriously injured and the Electric tools must not be environment polluted. disposed of not be disposed of The burning of plastic components generates with household waste! toxic fumes which may impair the health of According to the European people.
  • Page 25 13. Manufacturer‘s Guarantee The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over.

  • Page 26: Ec Conformity Declaration

    14. EC conformity declaration Declaration of Conformity We Hultafors Group AB, Hultaforsvägen 21, Hultafors declare under our sole responsibility that the Product(s) H360G to which this declarations relates is in conformity with the following standards. H360G: • EN 61326-1: 2013 •...
