Zumax Medical OMS3200 User Manual

Surgical microscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The CE mark on this product indicates it has been tested to and conforms with the provisions noted within
the 93/42/EEC Medical Device Directive
Zumax Medical Co., Ltd.
5 Zhiying Street, Suzhou New District,
Suzhou, Jiangsu, China 215129
Phone：+86 512 66650502
Fax： +86 512 66909655
E-mail：Sales@zumaxmedical.com
Http://www.zumaxmedical.com
MedNet EC-REP GmbH
Borkstrasse 10, 48163 Münster, Germany
Surgical Microscope
OMS3200
User's Manual
OMS3200 Version:1
Date: 2020-09-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMS3200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zumax Medical OMS3200

Summary of Contents for Zumax Medical OMS3200

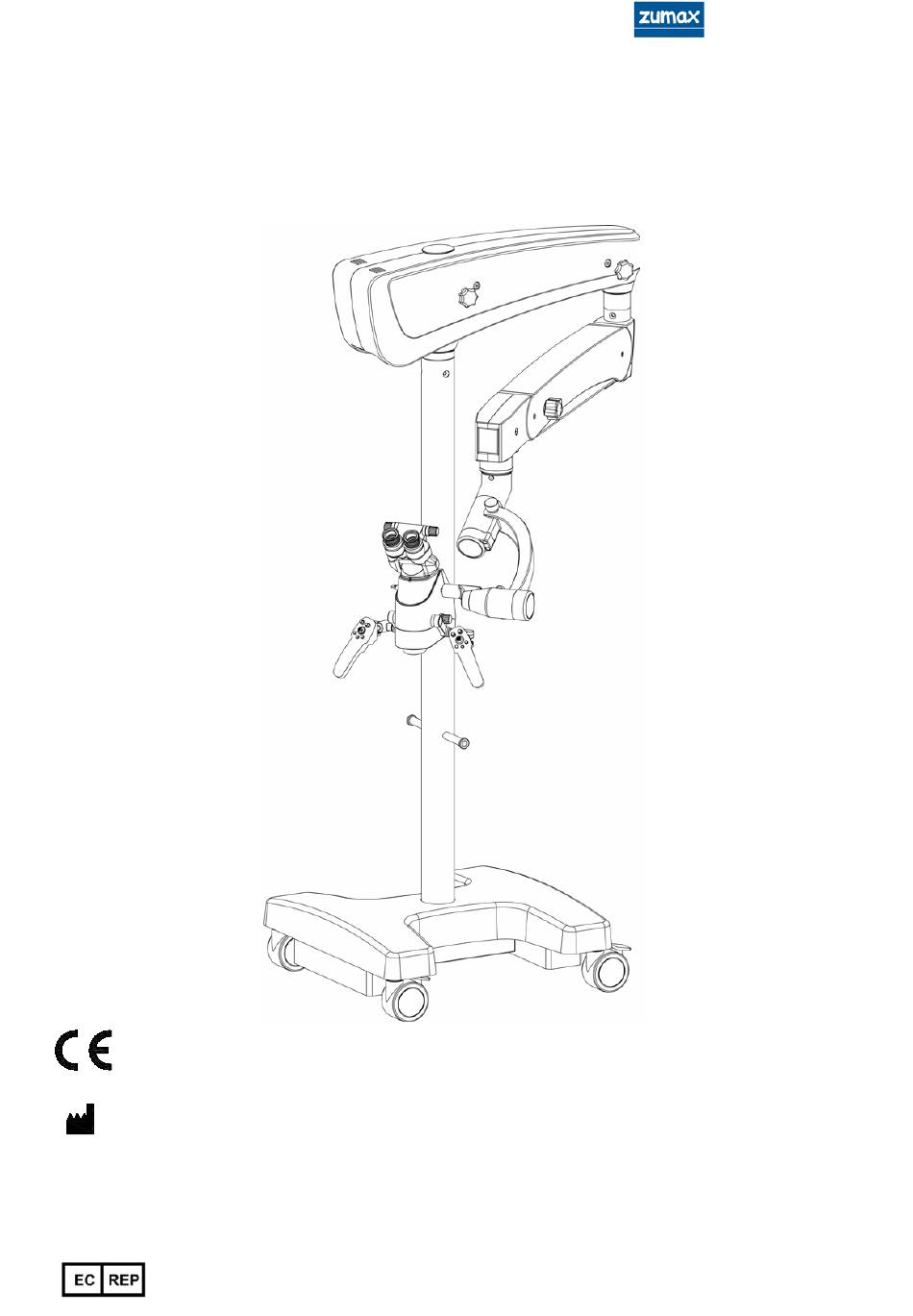

  • Page 1 User’s Manual The CE mark on this product indicates it has been tested to and conforms with the provisions noted within the 93/42/EEC Medical Device Directive Zumax Medical Co., Ltd. 5 Zhiying Street, Suzhou New District, Suzhou, Jiangsu, China 215129 Phone：+86 512 66650502...
  • Page 2 Date: 2020-09-11 Preface Thank you for purchasing our OMS3200 Surgical Microscope. To prevent damage to your product or injury to you or to others, read the following safety precaution in their entirety before using this equipment. Keep these safety instructions where all those who use the product will read them.
  • Page 3 OMS3200 Version:1 Date: 2020-09-11 Ground Terminal Operating Warning Caution instructions ＜12 Kg Electrostatic discharge warning Weight limit Balance arm regulation Video plug Power plug Photo / Video Magnification Focus adjustment adjustment...

  • Page 4: Table Of Contents

    OMS3200 Version:1 Date: 2020-09-11 Contents 1. PURPOSE AND FEATURES ............................1 .................................... 1 1.1 P URPOSE ............................1 1.2 M AIN STRUCTURE COMPOSITION ..................................1 1.3 F EATURES ................................. 1 1.4 C ONTRAINDICATIONS 2. MAIN COMPONENTS ..............................2 3. ASSEMBLY .................................. 12 ....................

  • Page 5: Purpose And Features

    1.3 Features  OMS3200 can enable teaching through built in photography and video capture accessories.  OMS3200 use 190 ° adjustable binoculars eyepieces that can be angled to match the desired positioning for optimal operator viewing comfort. ...

  • Page 6: Main Components

    OMS3200 Version:1 Date: 2020-09-11 2. Main components Fig.1 general assembly view...
  • Page 7 OMS3200 Version:1 Date: 2020-09-11 Fig.2-1 A direction view Fig.2-2 base view Fig.3 Right back-side view...
  • Page 8 OMS3200 Version:1 Date: 2020-09-11 Fig.4 Left back-side view Fig.5 Left handle view...
  • Page 9 OMS3200 Version:1 Date: 2020-09-11 Fig.6 Assembly the camera Fig.7 Foot control...
  • Page 10 OMS3200 Version:1 Date: 2020-09-11 13-1 13-6 13-2 13-7 13-3 13-4 13-5 Fig.8-1 LED Display Panel Fig.8-2 B direction view...
  • Page 11 OMS3200 Version:1 Date: 2020-09-11 Fig.9 Accessories parts...
  • Page 12 OMS3200 Version:1 Date: 2020-09-11 [1] Star handler fixation screw. Hang the microscope on the second arm using this nut. [2] Balance adjustment screw for second arm. Rotate the screw with 8mm special driver to adjust the balance of the second arm.
  • Page 13 OMS3200 Version:1 Date: 2020-09-11 The eyepiece has a dioptric adjustment ring and a goggles height adjustment ring. [15] Left Multi-fuction handle(optional). Same to Right Multi-fution Left and right handles are mirror functions. [16] Main Power Switch To turn on or turn off the main power of the microscope.
  • Page 14 OMS3200 Version:1 Date: 2020-09-11 [32] Star handler lock screw. After adjusting the proper position of the handle, lock and fix the position of the handle. [33] LED light switch (Yellow button Mirror fuction). This button is a multiplex key. Short press is used to control the light source on and off. Its function is to press the light source for the first time to turn it off, and then press it again to turn on the light source.
  • Page 15 OMS3200 Version:1 Date: 2020-09-11 [49] Magnification minus button. [50] Illumination brightness plus button. [51] Magnification plus button. [52] Photo/Video button. (same [48]) [53] Electromagnetic lock ON/OFF switch. Use this switch can to control the Electromagnetic lock be ON or OFF.

  • Page 16: Assembly

    OMS3200 Version:1 Date: 2020-09-11 3. Assembly The microscope is packed in one package. Please open the package and take out all parts and assemble them according to the following procedures. The second arm The first arm Connecting arm Binocular Support arm...

  • Page 17: Assembly Of Microscope Head And Bottom Cover

    OMS3200 Version:1 Date: 2020-09-11 3.1 Assembly of Microscope head and Bottom cover (1) Please take out the microscope body from the package, lay it on the ground. (2) Take out the microscope head from the box, Tighten M6 socket hexagon screw to fix microscope head to microscope.
  • Page 18 OMS3200 Version:1 Date: 2020-09-11 Head M6 Screw Fig.12 Assembly microscope body Bottom cover Fig.13 Assembly Caution：The Second Arm use a spring to keep the balance. The star handler fixation screw [3] can only be used to tighten the arm, the arm can not be locked by this screw.

  • Page 19: Assembly Of 190º Inclinable Binocular

    OMS3200 Version:1 Date: 2020-09-11 3.2 Assembly of 190º inclinable binocular Take out the 190º inclinable binocular from the package, fix it to the microscope head , make sure the pin is in the right position, then tighten the screw [7].

  • Page 20: Use Of The Microscope

    OMS3200 Version:1 Date: 2020-09-11 4. Use of the microscope Warning: To avoid the risk of electric shock, this equipment must only be connected to a grounded power supply. Warning: To avoid the risk of mechanical hazards, this equipment must only be used in a controlled indoor environment.

  • Page 21: Adjusting The Balance Of Support Arm

    OMS3200 Version:1 Date: 2020-09-11  Insert a 8 mm inner hexagon spanner into the screw [2].  Rotate the screw [2] to adjust the balance of second arm.  Adjust the second arm, check the balance of second arm in multiple positions.

  • Page 22: Inspection Before Use

    OMS3200 Version:1 Date: 2020-09-11 to +5D，take the eyepiece and eyepiece tube from the microscope, observe a distant object through the eyepiece, just like using a telescope. Then rotate the diopter adjustment hoop until the image is clear. If necessary, repeat this process for three times. Use the same method to adjust the second eyepiece.

  • Page 23: Using The Microscope

    OMS3200 Version:1 Date: 2020-09-11 Filter selector:  Filter selector [26] is in good condition. Base：  The foot wheels brakes have been set. Disinfection covers and handles:  Star handle fixation screws, pupil distance adjustment knob, fine focusing adjustment knob etc. have been equipped the sterile covers.

  • Page 24: Change The Light Source

    OMS3200 Version:1 Date: 2020-09-11 4.6 Change the light source Change the light source:  Push this button [30] to switch the light to normal light.  Pull this button [30] to switch the light to fluorescence. Change the Laser protection filter [25]: ...

  • Page 25: Maintenance

    OMS3200 Version:1 Date: 2020-09-11 5. Maintenance 5.1Replacing the consumable parts 5.1.1Replacing the LED Please contact the after-sales service department. 5.1.2 Replacing the fuse The fuse is integrated with main power input socket. Please replace the fuse according to the following steps: ...

  • Page 26: Cleaning The Surface Of The Optical Lens

    OMS3200 Version:1 Date: 2020-09-11 5.2.2 Cleaning the surface of the optical lens To prevent the dust from staining the lens, never expose the optical lens to air without the objective, eyepiece tube and eyepiece. Please use the dust cover after using the microscope.

  • Page 27: Microscope Accessories List

    OMS3200 Version:1 Date: 2020-09-11 6. Microscope accessories list Order Code Description 800-0030 180 deg inclinable binocular 800-0031 Stereo observation tube 800-0033 180 deg inclinable binocular with PD adjustment device 800-0036 180 deg inclinable binocular(F170/F250) 800-0037 Dual iris diaphragm 800-0112 Beam Splitter (50%:50%)
  • Page 28 OMS3200 Version:1 Date: 2020-09-11 800-0178 F340 Nikon Digital Camera Adapter 800-0180 M32 Digital Camcorder Adapter 800-0181 M43 Digital Camcorder Adapter 800-0182 M46 Digital Camcorder Adapter 800-0183 M49 Digital Camcorder Adapter 800-0184 M52 Digital Camcorder Adapter 800-0185 M58 Digital Camcorder Adapter...
  • Page 29 OMS3200 Version:1 Date: 2020-09-11 800-0470 Wireless Foot pedal for Micro2D 800-0472 Wireless phoht&video set for integrated full hd video camera 800-0475 Wireless router & Networking cables 800-3010 Nissin MF18 Macro Flash for Canon/Nikon SLR cameras 800-3011 Canon MT-24EX Macro Twin Lite Flash...

  • Page 30: Trouble-Shooting Guide

    OMS3200 Version:1 Date: 2020-09-11 7. Trouble-shooting guide In case there is any trouble, please first refer to the trouble-shooting guide. If you cannot solve the problem, please contact the authorized distributor or our after-sales service department. Trouble Possible reason Remedy...

  • Page 31: Technical Specification

    OMS3200 Version:1 Date: 2020-09-11 8. Technical specification Microscopes section (including binocular microscope, objective, eyepiece) Magnification factor OMS3200:0.4 x～2.4 x Work distance 200mm~450mm Binocular F=170mm(F170/F250) Adjustable range for pupil distance 55mm~75mm Eyepiece magnification 12.5X/17.7B, adjustable dioptor: ±7D ≥ 80,000 lx Coaxial Illumination（200 mm work distance）...

  • Page 32: Emc (Electromagnetic Compatibility)

    OMS3200 Version:1 Date: 2020-09-11 9. EMC (electromagnetic compatibility) When using the device, the EMC precautions specified below must be observed.  Only use spare parts approved by zumax for this device.  Do not use any portable or mobile RF communication equipment in the vicinity of the device as this may impair the device's function.
  • Page 33 OMS3200 Version:1 Date: 2020-09-11 Electromagnetic immunity for ME equipment and ME systems Guidance and manufacturer’s declaration – electromagnetic immunity The microscope is intended for use in the electromagnetic environment specified below. The customer or the user of the microscope should assure that it is used in such an environment.
  • Page 34 OMS3200 Version:1 Date: 2020-09-11 Electromagnetic immunity for non-life-supporting ME equipment and ME systems Guidance and manufacturer’s declaration – electromagnetic immunity The microscope is intended for use in the electromagnetic environment specified below. The customer or the user of the microscope should assure that it is used in such an environment.
